Lightolier Lytespan 9379 Manuale utente

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting System 9379

Page 1 of 2 PowerWash™T5 3 Foot Suspended 39 Watt High Output Fluorescent

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

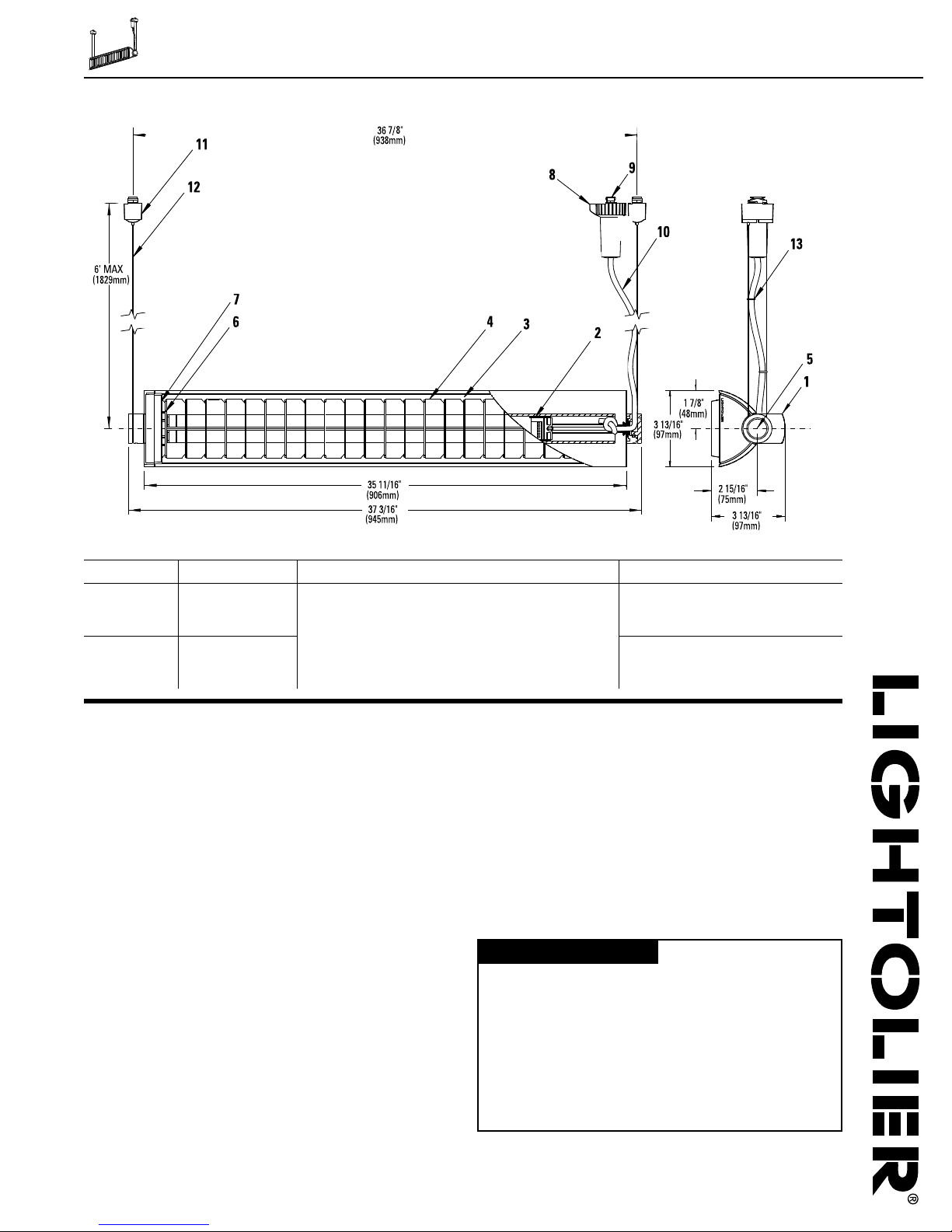

Features

1. Ballast & Reflector Housing: Aluminum with die-cast endcaps.

2. Ballast: 39w electronic ballast.

3. Flood Reflector: Aluminum with high reflectivity and semispecular finish for

a smooth wash of light.

4. Louver: Aluminum for glare control with captive locking springs for easy

installation and removal.

5. Vertical Pivot: Die cast rotation housing with positive rotation stop provides

360°max. vertical rotation for uplight and downlight aiming.

6. Sockets: 600v rated mini bi pin sockets with 90°rotor lock to engage

contacts and retain with a positive detent.

7. Socket Bracket: Adjustable steel mounting bracket slides out for easy

lamping.

8. Power Stem: High temperature molded polycarbonate, secures mechanically

into track and makes electrical contact to energize the luminaire.

9. Brass Contact: Extends for connection to second circuit in Advent®

Lytespan track.

10. Power Cord: 18ga, 105°C, SVT insulated flexible cord. 6' supplied.

11. Cable Suspension Housing: Molded polycarbonate with grip-lock™cable

wrap-around feature for suspension height adjustability, covers with snap-

in feature.

12. Dual Cable Suspension: 1/32”diameter stranded stainless steel cable, up

to 6' max suspension adjustability from ceiling.

13. Cord Retainer: Attaches to suspension cable for neat cord dressing

suspension.

Electrical

Rapid Start High Power Factor, Class P Electronic Ballast

Power Factor: >.97%

Sound Rated: A

Minimum Start Temp: 0°F

Input Watts: 9379 85W

9380 43W

Finish

All painted finishes are baked enamel.

Labels

UL, c.U.L.

Advent®is a registered trademark of Lightolier.

Ordering Information

Catalog No. Finishes Track Mountings Lamps

9379WH Matte White Compatible with all Lytespan®Track Systems. 2 x 39w T5 High Output (Fluorescent)

9379TM Dark Titanium Not compatible with ProSpec Track, Clamp-On

9379AL Metallic Aluminum Monopoint, Slope Ceiling Adapter or Extension Wands.

9380WH Matte White 1 x 39w T5 High Output (Fluorescent)

9380TM Dark Titanium

9380AL Metallic Aluminum

0’1’2’3’4’5’

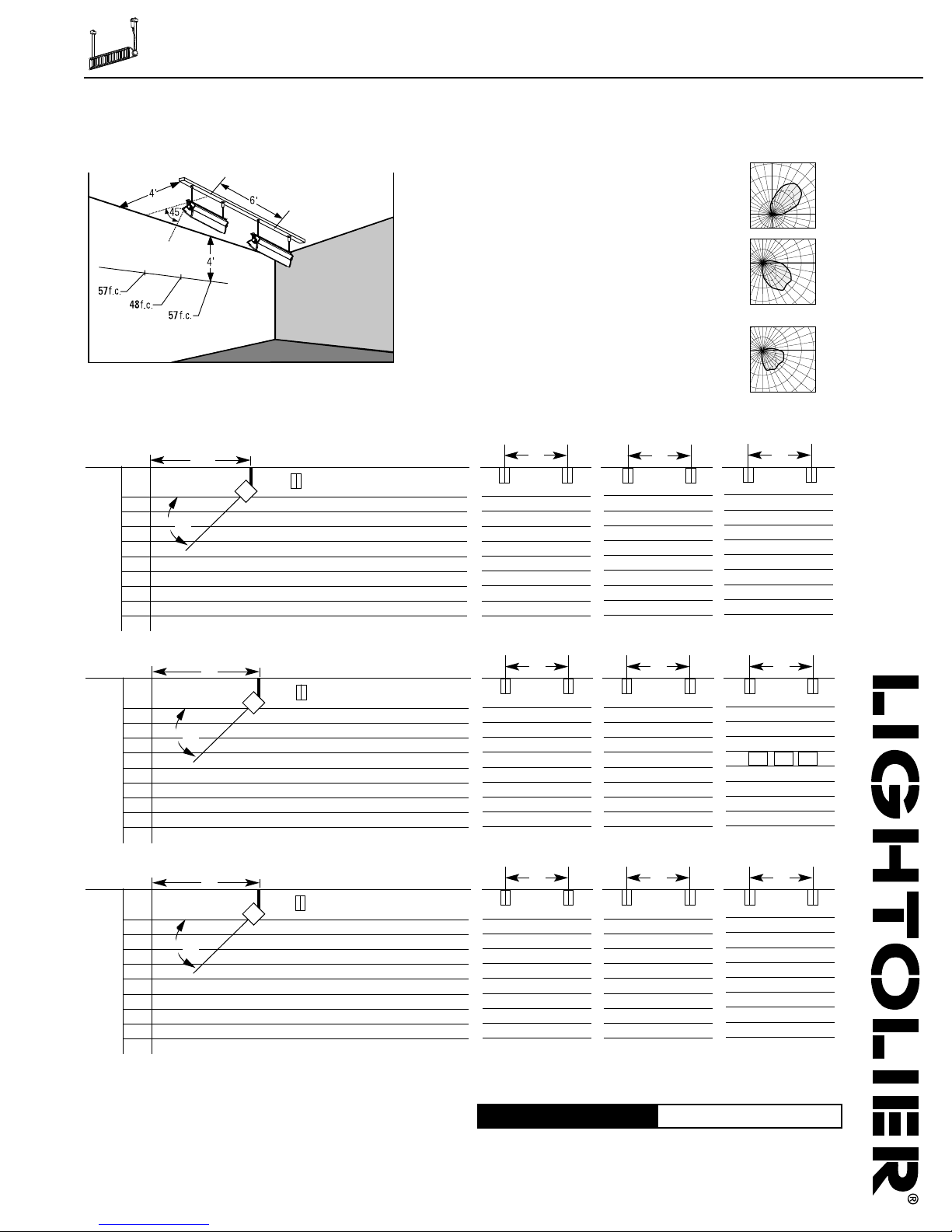

Lighting Data 2-39W T5 High output

1’157 132 76 36 17 9

2’123 106 65 32 14 6

3’78 69 47 27 13 6

4’51 46 34 22 13 7

5’30 27 21 15 9 6

6’19 18 15 11 8 5

7’12 12 10 8 6 4

8’887543

9’665433

196 166 196

153 136 153

107 100 107

83 80 83

50 49 50

40 39 40

27 27 27

19 19 19

16 16 16

170 77 170

129 65 129

84 54 84

63 50 63

35 30 36

29 26 29

19 18 19

13 13 13

11 11 11

Footcandles on Wall

Track 3 Feet From Wall Single Unit Multiple Units

4’6’

3’

Distance From Luminaire

45˚

EXAMPLE: With track located 4’from wall and multiple units

spaced 6’on center and aimed 45˚from horizontal, the illumination

on wall 4’from luminaire will be 57 f.c. beneath units and 48 f.c.

between units.

1’87 75 48 24 10 3

2’86 76 53 31 16 7

3’65 58 43 27 15 8

4’47 43 33 23 15 9

5’34 32 26 19 13 9

6’23 21 18 14 10 7

7’16 15 13 10 8 6

8’11 11 9 8 6 5

9’887654

105 97 105

117 111 117

96 93 96

79 77 79

66 64 66

47 46 47

35 35 35

29 29 29

22 22 22

92 69 92

100 82 100

80 70 80

65 60 65

54 51 54

38 37 38

29 28 29

24 24 24

18 18 18

87 48 87

92 60 92

71 53 71

57 48 57

47 42 47

33 30 33

25 23 25

21 20 21

16 15 16

Track 4 Feet From Wall Single Unit Multiple Units

4’5’6’

4’

Distance From Luminaire

45˚

Footcandles are average and rounded off and data for multiple units are based on a minimum of five units.

Footcandles on wall:

Beam Center

178 114 178

136 95 136

91 74 91

70 62 70

41 38 41

33 32 33

22 21 22

15 15 15

13 13 13

5’

0’1’2’3’4’5’

1’61 55 41 27 16 10

2’62 56 43 29 18 11

3’55 51 40 28 18 12

4’40 38 30 22 15 10

5’31 29 24 18 13 9

6’24 22 19 15 12 8

7’18 17 15 12 10 7

8’13 12 11 9 7 6

9’10 9 8 7 6 5

99 96 99

104 102 104

101 99 101

77 76 77

63 62 63

53 53 53

43 43 43

32 32 32

27 27 27

83 74 83

87 80 87

84 79 84

63 60 63

51 49 51

44 42 44

36 35 36

26 26 26

22 22 22

74 58 74

77 63 77

75 64 75

54 49 54

44 41 44

37 35 37

31 29 31

22 22 22

19 19 19

Track 5 Feet From Wall Single Unit Multiple Units

4’5’6’

5’

Distance From Luminaire

45˚

Beam Center

Lamp Information:

2 X 39W T5 High Output

Mini Bi-Pin Fluorescent (9379)

1 x 39W T5 High Output

Mini Bi Pin Fluorescent (9380)

One Lamp, with louver,

aimed 45˚down.

Two Lamps, without louver,

aimed 45˚up.

Two Lamps, with louver,

aimed 45˚down.

0˚30˚

90˚

60˚

180˚150˚

120˚

90˚

0˚30˚

90˚

60˚

Lytespan®Track Lighting System 9379

Page 2 of 2 PowerWash™T5 3 Foot Suspended 39 Watt High Output Fluorescent

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:
