Lightolier POWERSPEC 7218HT series Manuale utente

—

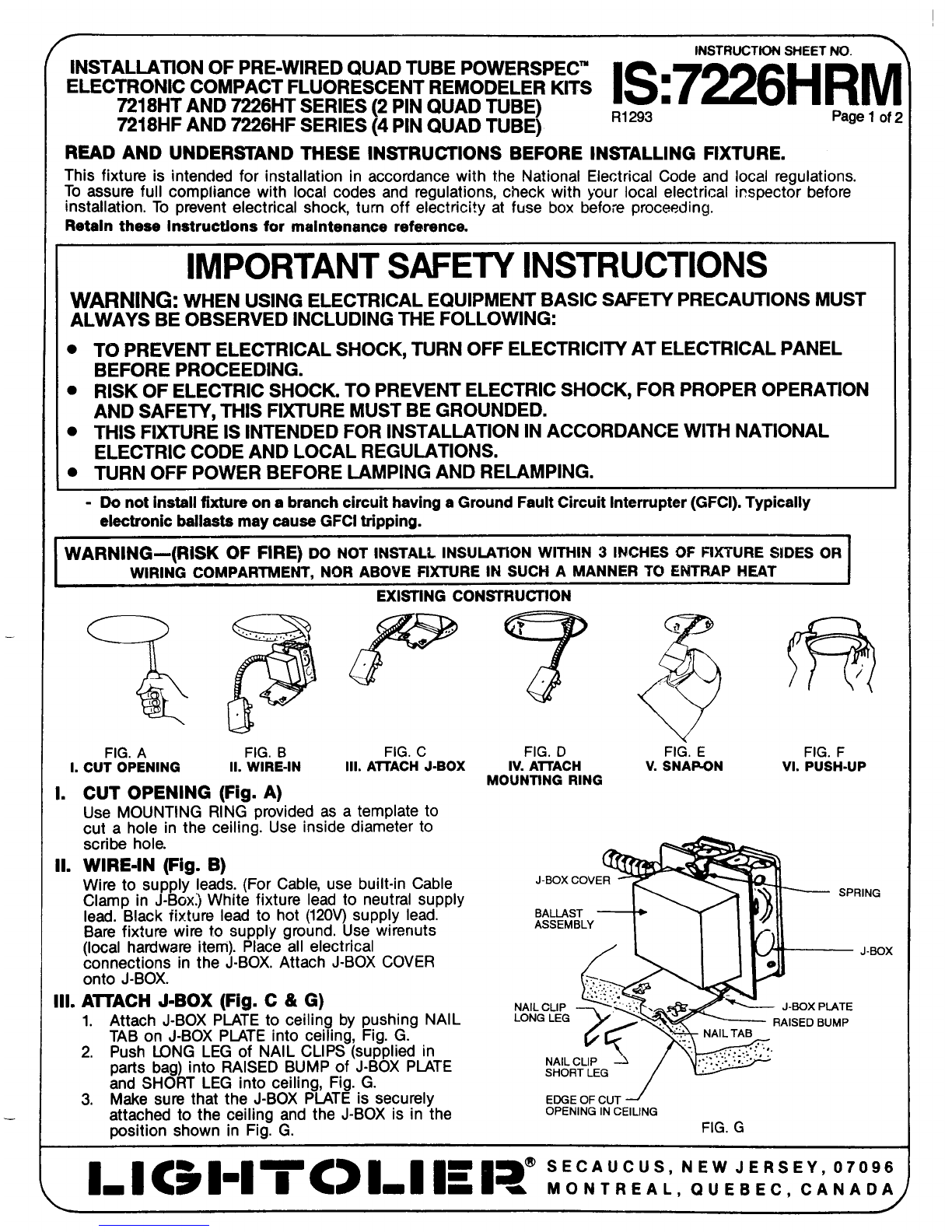

/INSTRUCTION SHEET NO.

INSTALLATION OF PRE-WIRED QUAD TUBE POWERSPEC”

ELECTRONIC COMPACT FLUORESCENT REMODELER KITS

7218HT AND 7226HT SERIES (2 PIN QUAD TUBE) IS:7226HRM

7218HF AND 7226HF SERIES (4 PIN QUAD TUBE) RI 293 Page 1of 2

READ AND UNDER~AND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.

This fixture is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these Instructions for maintenance reference.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: WHEN USING ELECTRICAL EQUIPMENT BASIC SAFETY PRECAUTIONS MUST

ALWAYS BE OBSERVED INCLUDING THE FOLLOWING:

●TO PREVENT ELECTRICAL SHOCK, TURN OFF ELECTRICITY AT ELECTRICAL PANEL

BEFORE PROCEEDING.

●RISK OF ELECTRIC SHOCK. TO PREVENT ELECTRIC SHOCK, FOR PROPER OPERATION

AND SAFETY, THIS FIXTURE MUST BE GROUNDED.

●THIS FIXTURE IS INTENDED FOR INSTALLATION IN ACCORDANCE WITH NATIONAL

ELECTRIC CODE AND LOCAL REGULATIONS.

●TURN OFF POWER BEFORE I,AMPING AND RELAMPING.

-Donot install fixture on abranch circuit having aGround Fault Circuit Interrupter (GFCI). Typically

electronic ballasts may cause GFCI tripping.

WARNING—(RWK OF FIRE) DO NOT INSTALL INSULATION WITHIN 3INCHES OF FMTUF?ESIDES OR

WIRING COMPARTMENT, NOR ABOVE FIXTURE IN SUCH AMANNER TO ENTRAP HEAT

EXISTING CONSTRUCTION

=& p~@n

FIG.AFIG. BFIG. CFIG. DFIG. EFIG. F

LCUT OPENING U. WIRE-IN Ill. AllACH J-BOX IV. AITACH V. SNARON VI. PUSH-UP

CUT OPENING (Fig. A) MOUNTING RING

Use MOUNTING RING provided as atemplate to

cut ahole in the ceiling. Use inside diameter to

scribe hole.

.WIRE-IN (Fig. B)

Wire to supply leads. (For Cable, use built-in Cable

Clamp in J-BoxJ White fixture lead to neutral supply RING

lead. B!ack fixture lead to hot (120V)supply lead.

Bare fixture wire to supply ground. Use wirenuts

(local hardware item). Place all electrical

connections in the J-BOX. Attach J-BOX COVER J-BOX

onto J-BOX.

1.ATTACH J-BOX (Fig. C & G) NA

1. Attach J-BOX PIJ4TEto ceiling by pushing NAIL LO

TAB on J-BOX PIATE into ceiling, Fig. G.

2. Push LONG LEG of NAIL CLIPS (supplied in

parts bag) into RAISED BUMP of J-BOX PIATE

and SHORT LEG into ceiling, Fig. G.

3. Make sure that the J-BOX PLATE is securely

attached to the ceiling and the J-BOX is in the OPENING IN CEILING

position shown in Fig. G. FIG. G

1- I<*HTC> LBE1?”;?t;Z;f;,N2;;;l;,EZ;;Y

Iv.

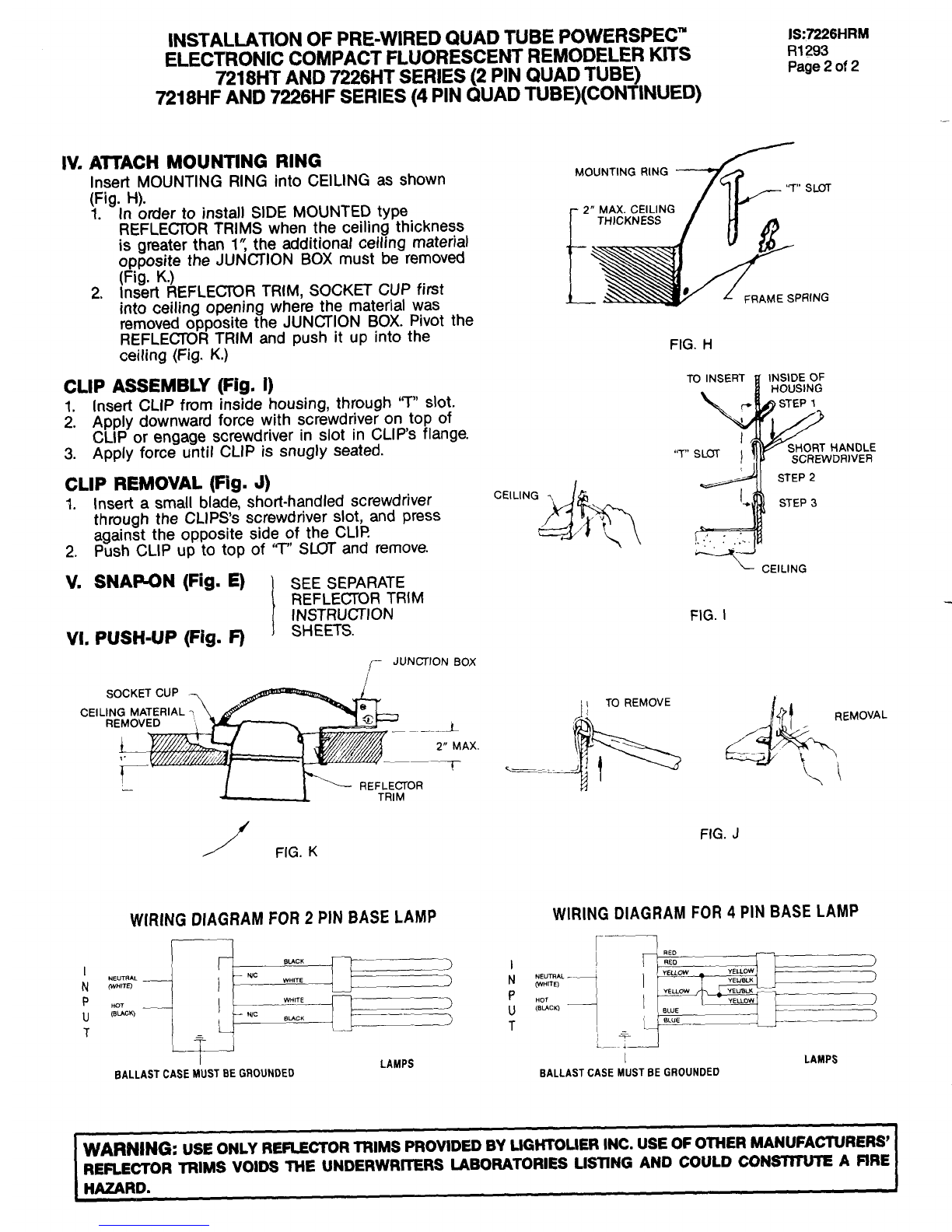

INSTALLATION OF PRE-WIRED QUAD TUBE POWERSPEC”

ELECTRONIC COMPACT FLUORESCENT REMODELER KITS

7218HT AND 7226HT SERIES (2 PIN QUAD TUBE)

7218HF AND 7226HF SERIES (4 PIN QUAD TUBE)(CONTINUED)

A7TACH MOUNTING RING

Insert MOUNTING RING into CEILING as shown

(Fig. H).

1. In order to install SIDE MOUNTED type

REFLECTORTRIMS when the ceiling thickness

is greater than 1‘<the additional ceiling material

opposite the JUNCTION BOX must be removed

(Fig. K.)

2. Inseri REFLECTOR TRIM, SOCKET CUP first

into ceiling opening where the material was

removed opposite the JUN~lON BOX. Pivot the

REFLECTORTRIM and push it up into the

ceiling (Fig. K.)

CLIP ASSEMBLY (Fig. 0

1. Insert CLIP from inside housing, through ‘T slot.

2. Apply downward force with screwdriver on top of

CLIP or engage screwdriver in slot in CLIPS flange.

3. Apply force until CLIP is snugly seated.

CLIP REMOVAL (Fig. J)

3. Insert asmall blade, short-handled screwdriver

through the CLIPSS screwdriver slot, and press

against the opposite side of the CLIF?

2. Push CLIP up to top of “T” SLUT and remove.

V. SNAFON (Fig. E)

SEE SEPARATE

REFLECIUR TRIM

INSTRUCTION

VI. PUSH-UP (Fig. F) SHEETS.

/r JUNCTION BOX

CEIL

.-1

2“ MAX.

—7

f“=- REFLECTOR

TRIM

/FIG. K

WIRHIJGDIAGRAM FOR 2PIN BASE LAMP

r— BLACK >

NEUTflAL

(wH!TQ 1~WHITE -1

WHITE

I&n —w~ucx

L- —

ILI

BALLASTCASE MUST BE GROUNDED LAMPS

IS:7226HRM

RI 293

Page2of 2

SLOT

RING

FIG. H

TO INSERT

1;::;:;

f+ STEP 1

‘1

‘T” SLOT SHORT HANDLE

SCREWDRIVER

4/%

---- STEP 2

CEILING \1+ STEP 3

/f ‘i\ )..’. : ,;. .

‘d CEILING

FIG. I

1! TO REMOVE AIREMOVAL

—.——

FIG. J

WIRING DIAGRAM FOR 4PIN BASE LAMP

,E.TRAL..+~-

RED

[

IRE9

NW2Low YELLOW

CMKTE1

+.L Zr o

YEUBLK

PvELLm YE”BLK

HOT YELLOW

u(BL4CKI BLUE

Te4uE c~

L—. +—

ILAMPS

BALLAST CASE MUST BE GROUNDED

—

WARNING: USE ONLY REFLECTOR TRIMS PROVIDED BY LIGNTOLIER INC. USE OF OTNER MANUFA~RERS’

REFLECTOR TRIMS VOIDS TNE UNDERWRITERS LABORATORIES LISTING AND COULD CONSTITUTE AFIRE
