1. Reading light with low iridescence anodized semi-specular aluminum reflector (flat white interior).

2. Perforated mesh lamp shield with white acrylic overlay.

3. Ambient light with flat white reflector (flat white interior).

4. Twin tube T5 lamps (2).

5. Optional night light 7/9 watt PL.

Wall

12" - 18"

from wall

Ceiling

9'6" max.

mounting

height

2" x 3" access plate with

(2) 7/8" dia. K.O.s Tabs for wire

supports

(4 places)

Mounting holes (8)

23-3/4"

(603mm) 14"

(356mm)

12-3/4"

(324mm)

4-7/8" (124mm)

2-1/32"

(52mm) 19-11/16" (500mm) 2-1/32"

(52mm)

23-3/4" (603mm)

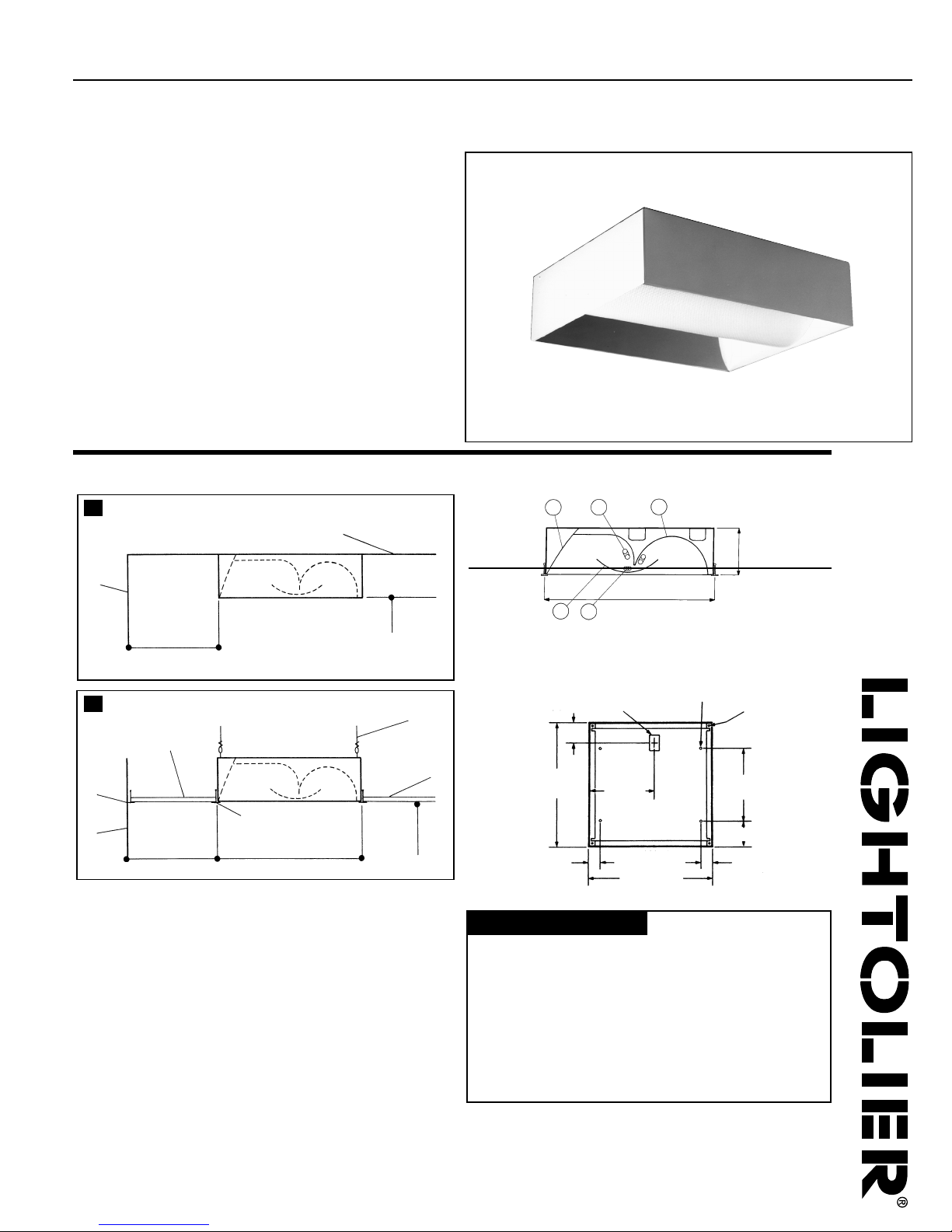

MOUNTING METHODS DIMENSIONS

SSurface

Exposed T-grid ceiling

12" - 18"

from wall

Wall angle

or T-bar

(by others)

Wall

Accoustical tile

(by others)

T-bar

(by others)

24"

48" (1219mm)

6-7/8"

(175mm)

9'-6" max.

ceiling height

Secure fixture

(4 places)

Accoustical tile

(by others)

Mount

MD*COFFER MDCG2BX

Page 1 of 4 2'x2' RECESSED OR SURFACE, MULTI-FUNCTION PATIENT LIGHTING

INDIRECT AMBIENT LIGHT WITH PERFORATED MESH SHIELD

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 SECTION 8/Folio R40-22

FEATURES

• Three integral lighting functions: indirect ambient, direct reading,

and optional night light.

• Precise light control for glare free patient environment.

• Installs as a one-piece unit.

• Recessed or surface mounted to ceiling which eliminates damage to

fixture from hospital equipment attached to patients bed.

• 6 7/8" deep.

• All lamps are shielded.

• All twin tube T5 lamps are accessible for relamping without tools.

• Optional low voltage electronic sequential switch mounted in fixture

for ambient and reading light controlled with pillow speaker

(optional by others).

• Optional Tamper resistant/Germ Shield.

• Meets NYC Code requirements. Chicago Plenum requirements

available.

3" 6" 12"

Wall

Bed

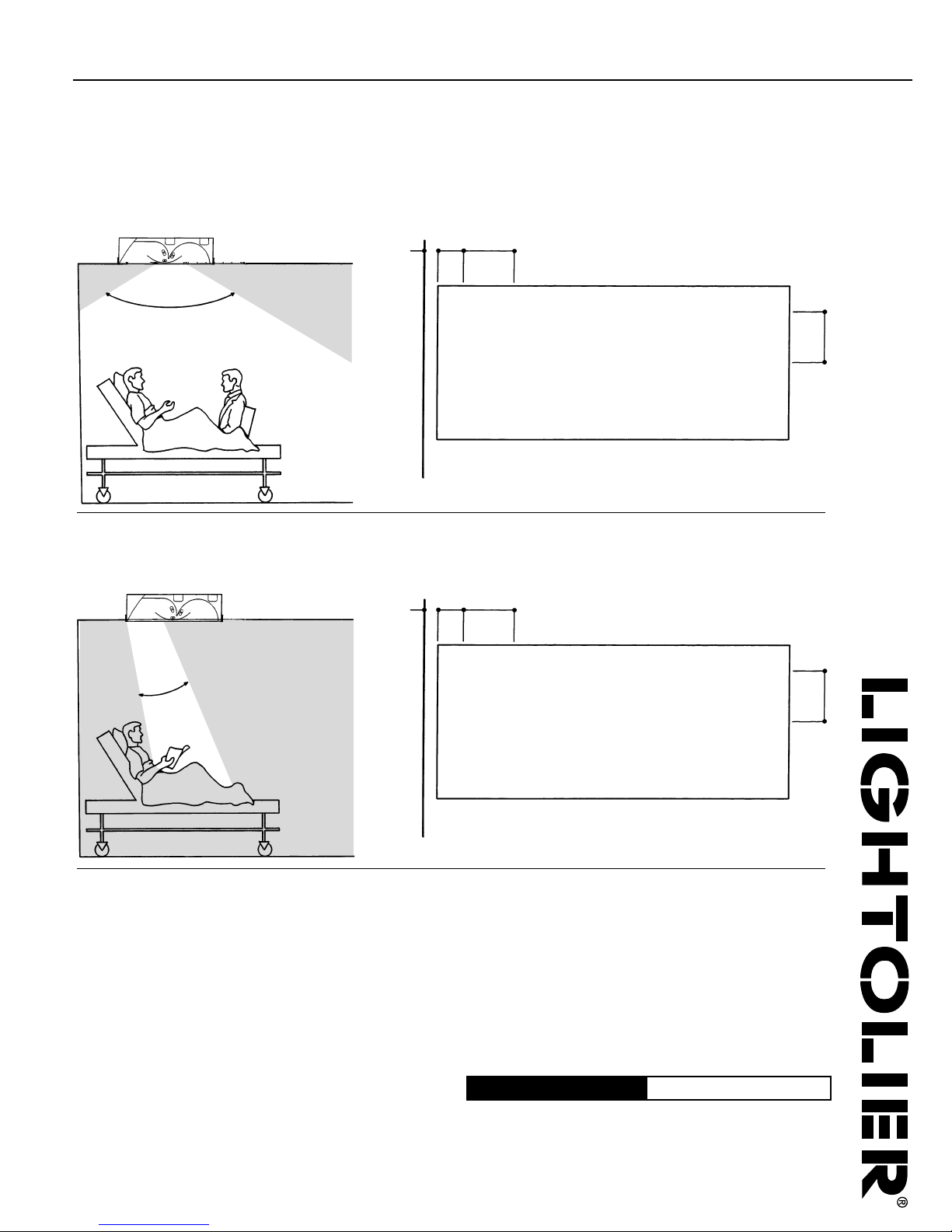

FOOTCANDLES ON BED

12"

AMBIENT LIGHT

Indirect illumination from twin tube T5 shielded by perforated mesh shield with white acrylic overlay.

No direct glare to patient.

No direct glare to patients visitor.

No direct glare to adjacent patients.

Lighted

Zone

14 15 15 14 12 12 7

14 16 16 14 12 12 8

14 15 15 14 12 12 7

3" 6" 12"

Wall

Bed

12"

READING LIGHT

Eliminates reflected glare from reading material (over shoulder illumination).

No direct glare to patient or visitors.

Controls light directly onto patients bed.

17 21 23 28 33 6 5

18 22 24 29 35 6 5

17 21 23 28 33 6 5

Lighted

Zone

Illumination at the

reading task ranges 45-

50 footcandles.

MD*COFFER MDCG2BX

Page 2 of 4 2'x2' RECESSED OR SURFACE, MULTI-FUNCTION PATIENT LIGHTING

INDIRECT AMBIENT LIGHT WITH PERFORATED MESH SHIELD

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 SECTION 8/Folio R40-22

Job Information Type:

3" 6" 12"

Wall

Bed

12"

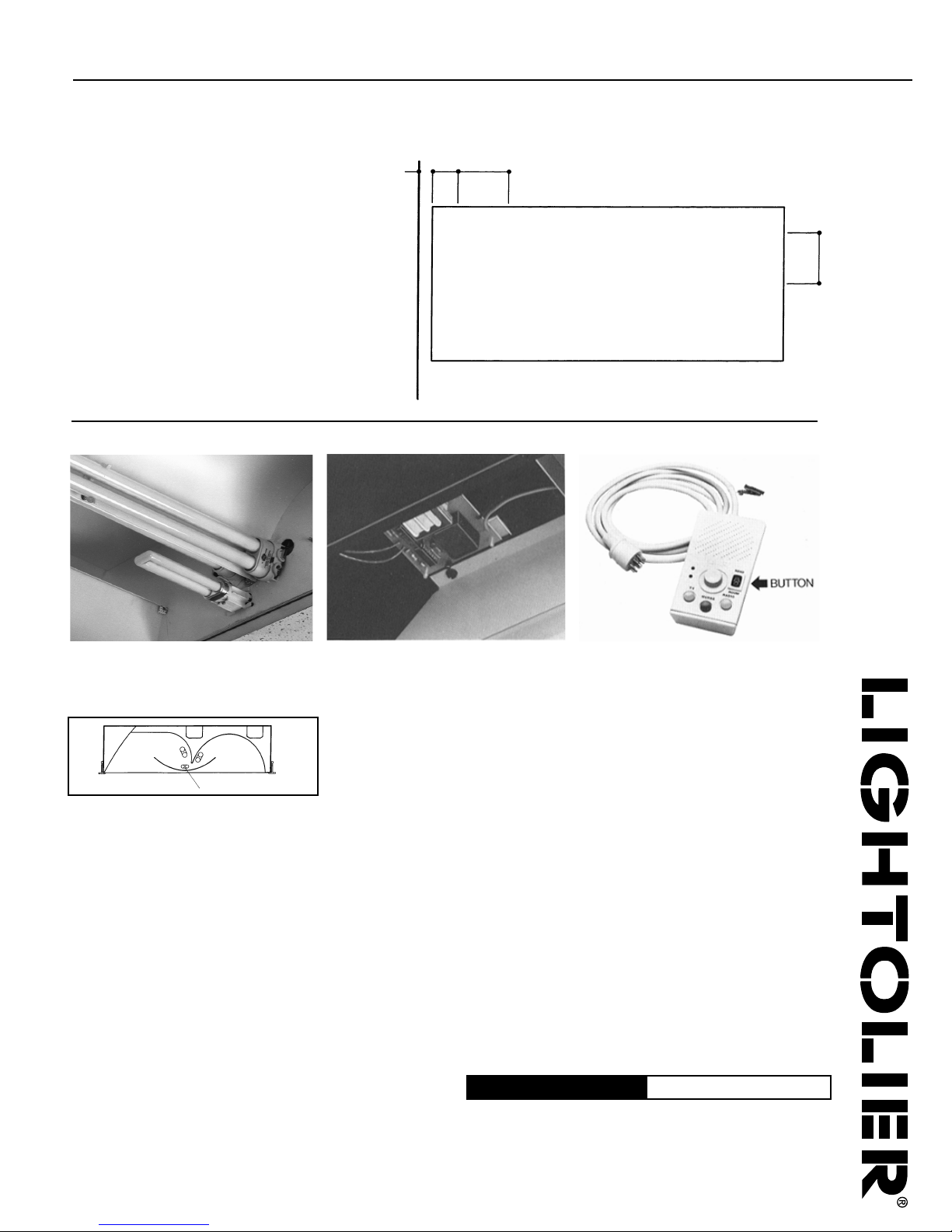

NIGHT LIGHT (Optional)

Indirect 9 or 7 watt PL lamp shielded by perforated mesh with

internal white acrylic overlay.

No glare to any patient.

Wired for independent switching.

OPTIONS

3433221

Sequential switch (SW) Pillow speaker (by others)

MD*Coffer’s optional low voltage (1-3 volts) sequential switch mounted in the fixture is listed in compliance

with UL 544 for medical and dental equipment.

SW Option (sequential switch): One red wire with black stripes and one yellow wire from the fixture can be

wired to a wall receptacle (by others) for use with that manufacturers pillow speaker. The pillow speaker is

used to control the television, call the nurse and control the lighting. To control the lighting it should be speci-

fied to have a normally open momentary contact switch.

Pressing this switch on the pillow speaker the first time, turns the ambient light on; pressed a second time,

turns the reading light on and the ambient light off; pressed a third time, turns both the ambient and reading

lights on; pressed a fourth time turns both lights off. Pressing the button again repeats the cycle.

DP Option (individual switches): One red wire, one red wire with black stripes and one yellow wire from the

fixture can be wired to a wall receptacle (by others) for use with manufacturers control systems (such as Hill-

Rom Side Com System). To control the lighting, it should be specified to have a normally open momentary

contact switch.

Pressing the first switch turns the ambient light on; pressed a second time, turns the ambient light off.

Pressing the second switch the first time, turns the reading light on; pressed a second time, turns the reading

light off.

TAMPER RESISTANT/GERM SHIELD

Germ Shield: Ideal for psychiatric wards and germ free environments. Fits lay-in grid

ceiling systems with 15/16" maximum ceiling tee face. The heavy duty welded extruded aluminum frame with

clear 1/8" thick polycarbonate lens is fixture to ceiling system sealed with a heavy duty gasket. Request Folio

R40-15 REV. A.

FOOTCANDLES ON BED

PL9 or PL7 Night Light (PL)

(Lamps not included)

Night Light

MD*COFFER MDCG2BX

Page 3 of 4 2'x2' RECESSED OR SURFACE, MULTI-FUNCTION PATIENT LIGHTING

INDIRECT AMBIENT LIGHT WITH PERFORATED MESH SHIELD

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 SECTION 8/Folio R40-22

Job Information Type:

ORDERING INFORMATION

Explanation of Catalog Number. Example: MDCG2BX120SW

MDC

MD*C

Recessed or

Surface,

Multi-function

Patient Light

with Perforated

Mesh Shield

CEILING

TYPE:

Same Unit

May Be Used

For: Grid (lay-in)

Or: Surface

Mounted

LAMP

QUANTITY:

(Ambient/

Reading)

2 Lamps

(Total)

BALLAST TYPE:

(Ambient Reading)

20THD 10THD

1 or 2 Lamp Mag. BX* —

1-2 Lamp Elec. SB* IB*

*Instant Start Standard

VOLTAGE:

120 or 277+

OPTIONS:

Add

appropriate

suffix to

catalog no., ie:

SW.

OPTIONS & ACCESSORIES

ACCESS PLATES: Top wiring access plate is shipped with fixture as

standard. When access plates are required in advance for wiring conve-

nience, specify separately. Catalog Number: ACP.

DRYWALL KIT: Order Catalog Number: FK92X2.

Request Folio OA30-10.

ELECTRONIC SEQUENTIAL SWITCH (Low Voltage): Switch factory

mounted in fixture for ambient and reading light convenience (con-

trolled by pillow switch, by others). SUFFIX: SW.

INDIVIDUAL SWITCHING (Low Voltage): Switches

mounted to

patients bed for use with manufacturers control

system (such as Hill-Rom Side Com System). SUFFIX: DP.

9/7 WATT NIGHT LIGHT: SUFFIX: PL (Lamp not included).

FUSING: Internal fast-blow fusing. SUFFIX: GLR.

Internal slow-blow fusing. SUFFIX: GMF.

RADIO INTERFERENCE FILTER: 120 or 277 volt, 50 or 60 Hz. One per

fixture is standard. SUFFIX: RF.

GERM SHIELD. Order Catalog Number: MD4CLGS22.

ELECTRICAL/WIRING OPTIONS: Consult factory.

SPECIFICATIONS

MATERIALS: Chassis parts are die-formed 20 gauge steel.

Reading light – low iridescence anodized 95% reflective, semi-

specular reflector. Ambient light – flat white acrylic contoured steel

reflector and perforated steel mesh shield with white acrylic overlay.

FINISH: Cavity (reading/ambient lights) — flat white acrylic interi-

or, minimum reflectance 86%. Phosphate undercoating. Chassis

exterior — white baked acrylic enamel.

ELECTRICAL: Thermally protected class “P” ballast C.B.M.

approved, non PCB. If K.O. is within 3" of ballast, use wire suitable

for at least 90°.

LABELS: I.B.E.W. UL and ULc Listed.

*Consult factory for 277 volt.
