Lig tolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679 8131 • Fax (508) 674 4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting 9176

Page 1 of 2 MiniFormsTMEllipse MR16

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Features

1. Lamp Bracket: Stamped steel with insulated end knob made of high tem

perature silicone rubber which allows for aiming adjustments while fixture

is on.

2. Socket: Bi pin base ceramic socket wired with No. 18 stranded Teflon leads

with fiberglass outer sleeve.

3. Transformer: Electronic low voltage transformer with integral radio frequen

cy interference filter and anti crossover circuit for increased reliability;

housed in extruded aluminum.

4. Track Attac ment Fitting: Molded polycarbonate, rotates into track and

locks on with push tab; integral polarity key guard.

5. Pus Tab: Locks and detaches unit from track.

6. Brass Contact: Extends up for connection to second circuit when used in

Advent®Lytespan track.

7. Tension Pivot Mounts: Steel. Allows for 180° horizontal rotation and 180°

vertical rotation.

8. Lamp Guard: Tempered glass; can be substituted with 2" filter.

9. Spring: Steel springs hold lamp in place.

10. Housing: Aluminum with ventilation holes.

Electrical/Dimming

Dimming controls: Use only dimmers specifically designed for use with elec

tronic transformers, like Lightolier Sunrise™ and Neptune Momentum QE™

series. Low voltage fixtures may produce audible sound when used with dim

mers, which may be objectionable in acoustically critical areas.

Labels

Ordering Information

Catalog No. Finis es Track Mountings Lamps

9176 WH Matte White All Lytespan MR16

9176 BK Matte Black Track Systems 50W Max.

9176 AL Metallic Aluminum

Advent®is a registered trademark of Lig tolier.

Lig tolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679 8131 • Fax (508) 674 4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

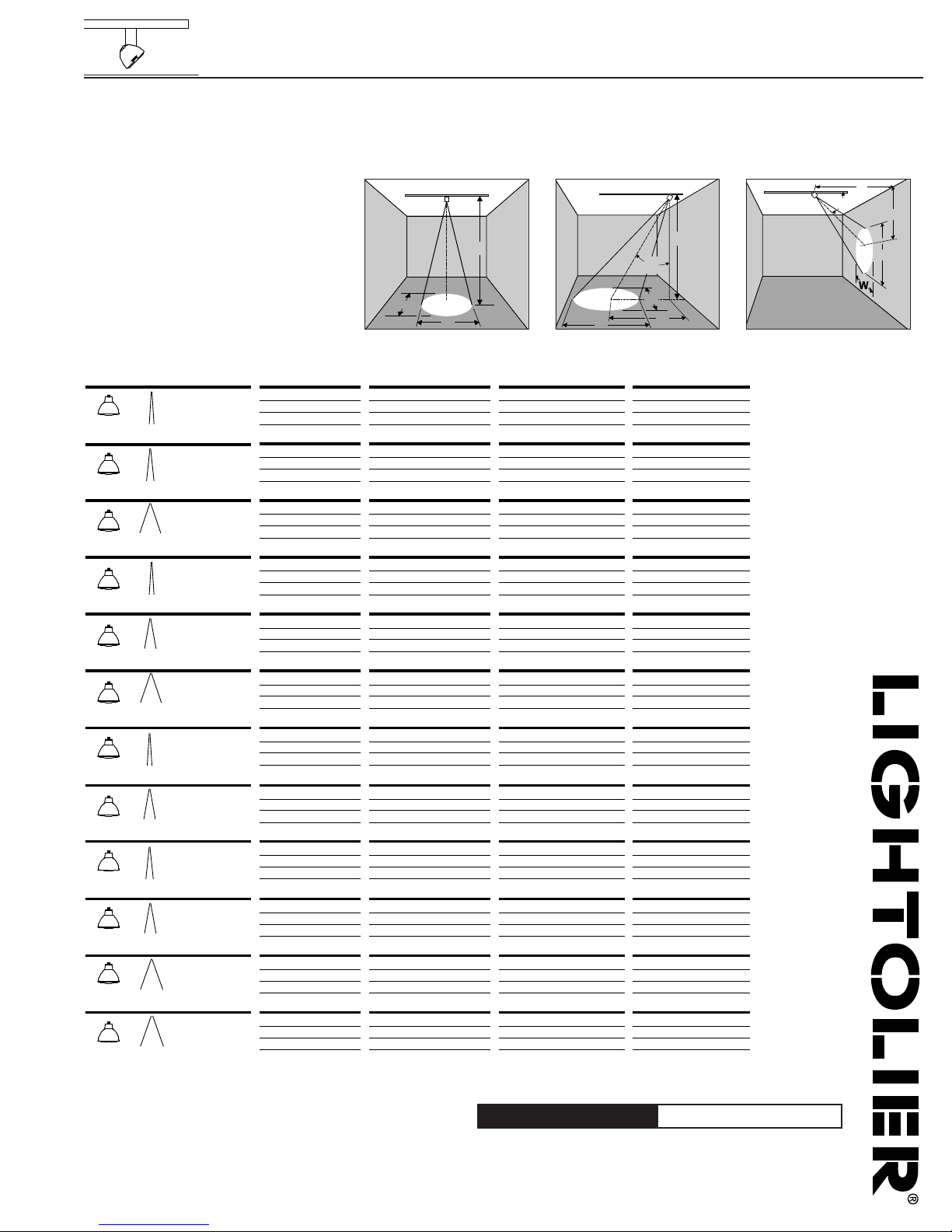

Lig ting Data

Aiming Angle: 0º 30º 45º or 60º Horizontal 30º 45º or 60º Vertical

LBeam length

WBeam width

CDistance to center of beam

DDistance

AAiming angle

FC Footcandles

Land Ware the outer points wherethe candlepower

drops to 50% of the maximum. FC are the initial

footcandles at the center of the beam.

Lamp O° Aiming Angle A = 30° Aiming Angle A = 45° Aiming Angle A = 60° Aiming Angle

FC L

8200 3000

20W MR16 (T-H)

VNSP (EZX) 7º

3600 3000

20W MR16 (T-H)

NSP (ESX) 13º

1850 4000

50W MR16 (T-H)

FL (EXN) 40º

13100 3500

42W MR16 (T-H)

VNSP (EZY) 9º

525 4000

20W MR16 (T-H)

FL (BAB) 40º

2' 131 1.5' 1.5'

3' 58 2.2' 2.2'

4' 33 2.9' 2.9'

5' 21 3.6' 3.6'

1600 4000

35W MR16 (T-H)

FL (FMW) 40 º

3900 4000

35W MR16 (T-H)

SP (FRA) 20º

6700 4000

35W MR16 (T-H)

NSP (FRB) 12º

7' 167 0.9' 0.9'

10' 82 1.2' 1.2'

13' 49 1.6' 1.6'

16' 32 2.0' 2.0'

DFCL W D CFCL W D CFCL W D CFCLW

Beam Spread

50% Max CP

Beam Center

C.P. Candelas

Rated

Life-Hrs

6' 3.5' 148 1.0' 0.8'

9' 5.2' 68 1.5' 1.3'

12' 6.9' 37 2.0' 1.7'

15' 8.7' 24 2.4' 2.1'

4' 4.0' 181 1.0' 0.7'

6' 6.0' 81 1.5' 1.0'

8' 8.0' 45 2.0' 1.4'

10' 10.0' 29 2.5' 1.7'

2' 3.5' 256 1.0' 0.5'

3' 5.2' 114 1.5' 0.7'

4' 6.9' 64 2.0' 1.0'

5' 8.7' 41 2.5' 1.2'

6' 100 1.4' 1.4'

8' 56 1.8' 1.8'

10' 36 2.3' 2.3'

12' 25 2.7' 2.7'

5' 2.9' 94 1.5' 1.3'

7' 4.0' 48 2.1' 1.8'

9' 5.2' 29 2.7' 2.4'

11' 6.4' 19 3.4' 2.9'

3' 3.0' 141 1.4' 1.0'

5' 5.0' 51 2.3' 1.6'

7' 7.0' 26 3.2' 2.3'

9' 9.0' 16 4.2' 2.9'

2' 3.5' 113 1.9' 0.9'

3' 5.2' 50 2.8' 1.4'

4' 6.9' 28 3.8' 1.8'

5' 8.7' 18 4.7' 2.3'

2' 1.2' 85 2.0' 1.7'

3' 1.7' 38 3.0' 2.5'

4' 2.3' 21 4.1' 3.4'

5' 2.9' 14 5.1' 4.2'

2' 2.0' 46 3.4' 2.1'

3' 3.0' 21 5.0' 3.1'

4' 4.0' 12 6.7' 4.1'

5' 5.0' 7 8.4' 5.1'

1' 1.7' 66 4.8' 1.5'

2' 3.5 16 8.7' 2.9'

3' 5.2' 7 14.5' 4.4'

4' 6.9' 4 19.3' 5.8'

6' 3.5' 157 1.7' 1.5'

9' 5.2' 70 2.5' 2.2'

12' 6.9' 39 3.4' 2.9'

15' 8.7' 25 4.2' 3.6'

4' 4.0' 192 1.7' 1.2'

6' 6.0' 85 2.6' 1.8'

8' 8.0' 48 3.4' 2.4'

10' 10.0' 31 4.3' 3.0'

2' 3.5' 272 1.7' 0.8'

3' 5.2' 121 2.6' 1.3'

4' 6.9' 68 3.5' 1.7'

5' 8.7' 44 4.3' 2.1'

6' 108 2.1' 2.1'

8' 61 2.8' 2.8'

10' 39 3.5' 3.5

12' 27 4.2' 4.2

5' 2.9' 101 2.4' 2.0'

7' 4.0' 52 3.3' 2.9'

9' 5.2' 31 4.3' 3.7'

11' 6.4' 21 5.2' 4.5'

4' 100 2.9' 2.9'

6' 44 4.4' 4.4'

8' 25 5.8' 5.8'

10' 16 7.3' 7.3'

3' 1.7' 115 3.0' 2.5'

5' 2.9' 42 5.1' 4.2'

7' 4.0' 21 7.1' 5.9'

9' 5.2' 13 9.1' 7.6'

3' 3.0' 153 2.2' 1.5'

5' 5.0' 55 3.6' 2.5'

7' 7.0' 28 5.1' 3.5'

9' 9.0' 17 6.6' 4.5'

2' 3.5' 122 3.1' 1.4'

3' 5.2' 54 4.7' 2.1'

4' 6.9' 30 6.2' 2.8'

5' 8.7' 20 7.8' 3.5'

3' 3.0' 63 5.0' 3.1'

4' 4.0' 35 6.7' 4.1'

5' 5.0' 23 8.4' 5.1'

6' 6.0' 16 10.1' 6.2'

1' 1.7' 200 4.8' 1.5'

2' 3.5 50 9.7' 2.9'

3' 5.2' 22 14.5' 4.4'

4' 6.9' 13 19.3' 5.8'

7' 178 1.5' 1.5'

10' 87 2.1' 2.1'

13' 51 2.7' 2.7'

16' 34 3.4' 3.4'

8' 205 1.3' 1.3'

12' 91 1.9' 1.9'

16' 51 2.5' 2.5'

20' 33 3.1' 3.1'

7' 4.0' 174 1.5' 1.3'

10' 5.8' 85 2.1' 1.8'

13' 7.5' 50 2.7' 2.4'

15' 9.2' 33 3.4' 2.9'

5' 5.0' 185 1.6' 1.1'

7' 7.0' 95 2.2' 1.6'

9' 9.0' 57 2.9' 2.0'

11' 11.0' 38 3.5' 2.4'

3' 5.2' 182 1.9' 0.9'

4' 6.9' 102 2.6' 1.3'

5' 8.7' 66 3.2' 1.6'

6' 10.4' 45 3.8' 1.9'

2400 4000

42W MR16 (T-H)

NFL (EYS) 27º

4' 150 1.9' 1.9'

6' 67 2.9' 2.9'

8' 38 3.8' 3.8'

10' 24 4.8' 4.8'

3' 1.7' 173 2.0' 1.7'

5' 2.9' 62 3.3' 2.8'

7' 4.0' 32 4.6' 3.9'

9' 5.2' 19 5.9' 5.0'

3' 3.0' 94 3.1' 2.0'

4' 4.0' 53 4.1' 2.7'

5' 5.0' 34 5.1' 3.4'

6' 6.0' 24 6.1' 4.1'

1' 1.7' 300 2.3' 1.0'

2' 3.5 75 4.6' 1.9'

3' 5.2' 33 7.0' 2.9'

4' 6.9' 19 9.3' 3.8'

10200 4000

50W MR16 (T-H)

NSP (EXT) 14º

8' 159 2.0' 2.0'

12' 71 2.9' 2.9'

16' 40 3.8' 3.9'

20' 26 4.9' 4.9'

7' 4.0' 135 2.3' 2.0'

10' 5.8' 66 3.3' 2.8'

13' 7.5' 39 4.3' 3.7'

15' 9.2' 28 5.3' 4.5'

5' 5.0' 144 2.5' 1.7'

7' 7.0' 74 3.5' 2.4'

9' 9.0' 45 4.5' 3.1'

11' 11.0' 30 5.5' 3.8'

3' 5.2' 142 3.1' 1.5'

4' 6.9' 80 4.1' 2.0'

5' 8.7' 51 5.1' 2.5'

6' 10.4' 35 6.2' 2.9'

3400 4000

50W MR16 (T-H)

NFL (EXZ) 27º

1150 4000

50W MR16 (T-H)

WFL (FNV) 5 5º

6' 94 2.9' 2.9'

8' 53 3.8' 3.8'

10' 34 4.8' 4.8'

12' 24 5.8' 5.8'

5' 2.9' 88 3.3' 2.8'

7' 4.0' 45 4.6' 3.9'

9' 5.2' 27 5.9' 5.0'

11' 6.4' 18 7.2' 6.1'

3' 3.0' 134 3.1' 2.0'

5' 5.0' 48 5.1' 3.4'

7' 7.0' 25 7.1' 4.8'

9' 9.0' 15 9.2' 6.1'

2' 3.5' 106 4.6' 1.9'

3' 5.2' 47 7.0' 2.9'

4' 6.9' 27 9.3' 3.8'

5' 8.7' 17 11.6' 4.8'

4' 116 2.9' 2.9'

6' 51 4.4' 4.4'

8' 29 5.8' 5.8'

10' 19 7.3' 7.3'

3' 1.7' 134 3.0' 2.5'

5' 2.9' 48 5.1' 4.2'

7' 4.0' 25 7.1' 5.9'

9' 5.2' 15 9.1' 7.6'

3' 3.0' 73 5.0' 3.1'

4' 4.0' 41 6.7' 4.1'

5' 5.0' 26 8.4' 5.1'

6' 6.0' 18 10.1' 6.2'

1' 1.7' 231 4.8' 1.5'

2' 3.5 59 9.7' 2.9'

3' 5.2' 26 14.5' 4.4'

4' 6.9' 14 19.3' 5.8'

3' 128 3.1' 3.1'

5' 46 5.2' 5.2'

7' 23 7.3' 7.3'

9' 14 9.4' 9.4'

3' 1.7' 83 4.6' 3.6'

5' 2.9' 30 7.8' 6.0'

7' 4.0' 15 10.7' 8.4'

9' 5.2' 9 13.7' 10.8'

2' 2.0' 102 5.7' 2.9'

3' 3.0' 45 8.6' 4.4'

4' 4.0' 25 11.4' 5.8'

5' 5.0' 15 14.3' 7.4'

1' 1.7' 144 22.3' 2.1'

2' 3.5 36 44.5' 4.2'

3' 5.2' 16 66.8' 6.2'

4' 6.9' 9 89.1' 8.3'

Lytespan®Track Lighting 9176

Page 2 of 2 MiniFormsTMEllipse MR16
