Lightolier ProSpec 26800 Manuale utente

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

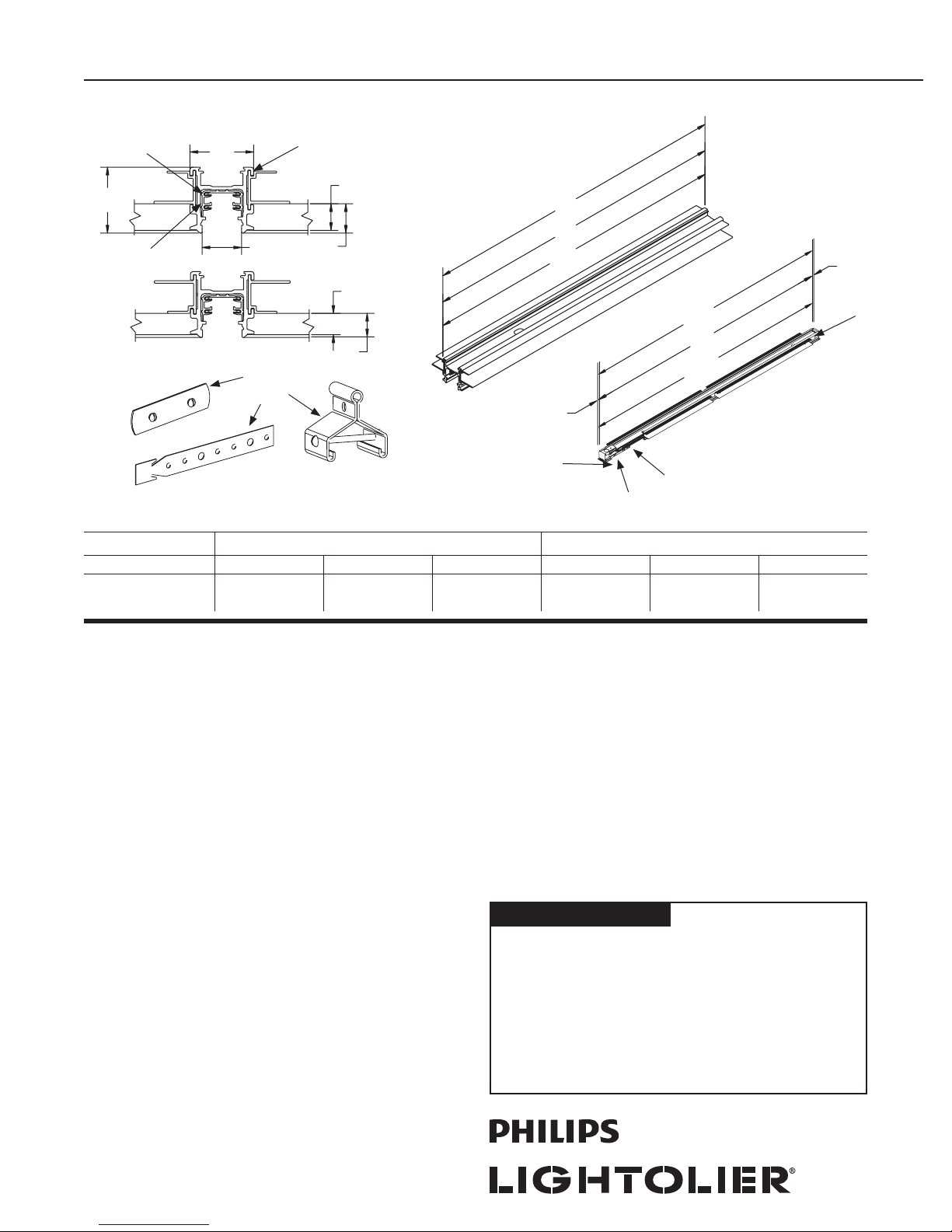

ProSpec™Flangeless Track Lighting 26800

Page 1 of 4 Recessed Flangeless Track

Catalog No.

Finishes Plain Track Feed Track

4' 8' 12' 4' 8' 12'

Matte White 26804WH 26808WH 26812WH 26801WH 26802WH 26813WH

Matte Black 26804BK 26808BK 26812BK 26801BK 26802BK 26813BK

Features

1. Track: 6063T-5 structural aluminum extrusion; average wall thickness .08.

2. Conductors: “U” shaped copper conductor, increases contact surface area

minimizes contact resistance provides reliable positive connection.

3. Insulated liner: .040" wall, high temperature extruded thermoplastic.

4. Dead End Cap: molded thermoplastic.

5. Feed Track: Electrical module built-in. Feeds power to track. May be field

cut. 7/8" dia. knockout accepts 3/8" or 1/2" electrical connector (by others)

6. Plain Track: May be field cut.

7. Hanger Clip: Item No. 26090. Heavy duty steel. For mounting track by cable.

8. Feed-in Connector Module: included with feed track.

9. Metal Spline: included with Plain and Feed Track. Locks track together.

10.Wire Cover: molded thermoplastic, included with all track connectors.

11. Mounting Strap: included with Plain and Feed Track.

12.Reversible Wing Brackets: Accommodates 1/2" or 5/8" Gypsum Board.

Mechanical

Track units plug together and lock securely to prevent accidental separation.

Track units may be field cut. ProSpec™ track fixtures can be attached at any point

along the track. Flush adapters can be inserted in any orientation to access the

circuit desired. Lever identifies which circuit is being used and is easily observed

from floor.

Electrical

(2) circuits. Each circuit is 120V, 60Hz, 20 AMP compatible. Each circuit has

dedicated neutral for maximum control flexibility. Track units are continuously

grounded throughout. Electrical conductors are concealed in an insulated liner

in the track. Intended for wiring to branch circuit building wire with ground, in

accordance with National and local codes.

Mounting

Recessed Flangeless Track may be mounted in dry ceiling systems only. The track

may be installed in insulated ceilings. There are three methods of mounting. (see

page 2)

1. Direct Mounting: field drill holes in the track and mount directly to a

structural member above track.

2. Mounting Straps: (included with plain and feed track) slide into the side

channel of the track and may be fastened to the building structure.

3. Cable Mounting: using the hanger clip (sold separately) which mounts

on top of the track. Ceiling cable or wire is fastened to the hanger clip and

building structure.

Finish

All painted finishes are baked enamel.

Labels

UL; I.B.E.W.

48"

[1219.2]

96"

[2438.4]

144"

[3657.6]

0898

11 7

1 11/16"

[42.9]

1 5/8"

[41.4]

[25.7]

5/8"

[15.9]

11/16

[17.5]

1/2"

[14.0]

5/8"

[15.4]

13/64"

[5.2]

13/64

[5.2]

47 5/8"

[1209.7]

95 5/8"

[2428.9]

143 5/8"

[3648.1]

Feed

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

ProSpec™Flangeless Track Lighting 26800

Page 2 of 4 Recessed Flangeless Track

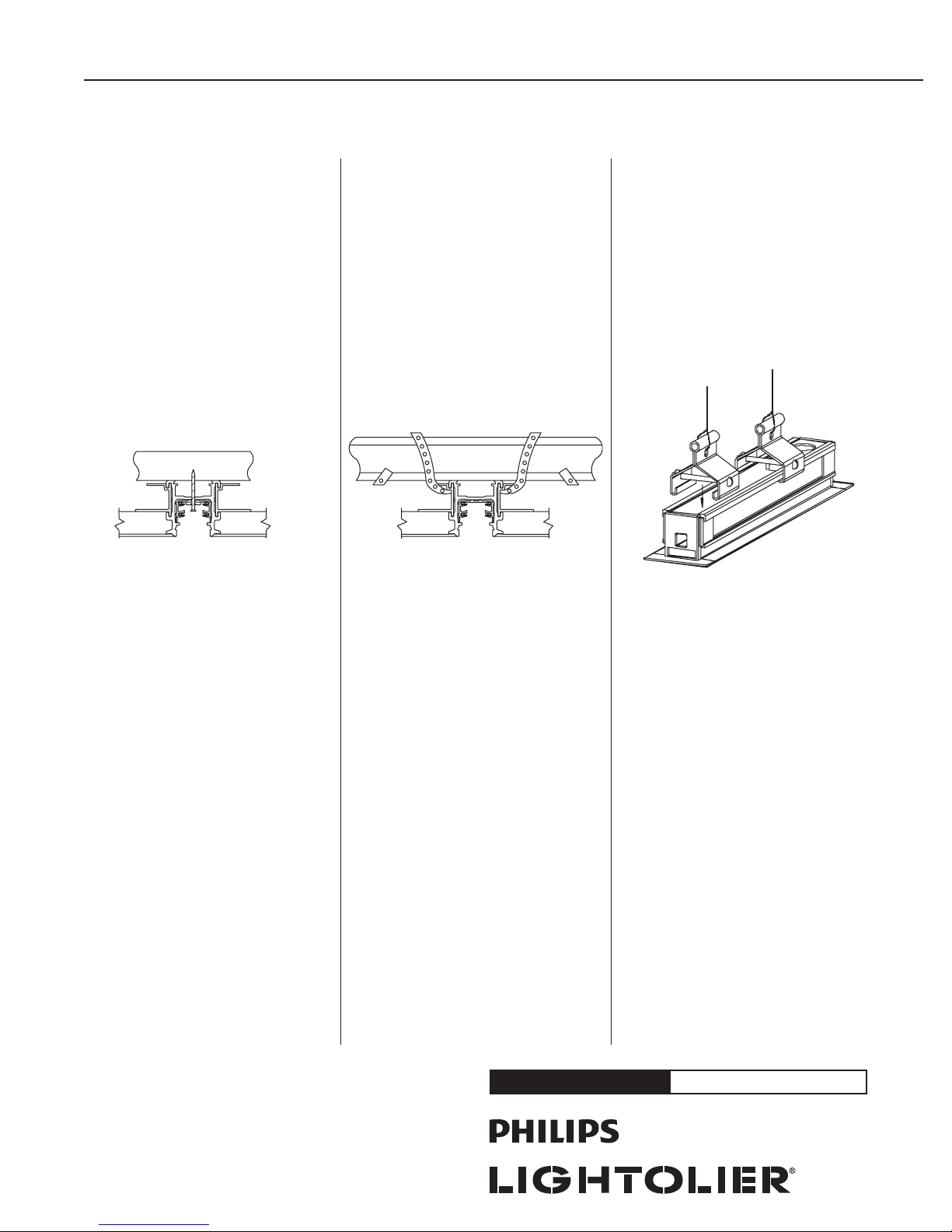

Recessed Track Mounting Systems

Direct Mounting

Requires field drilling of mounting holes and

mounting hardware. Nylon insulators are provided

with the Feed and Plain Track to insulate the

mounting screws. Use a number 6 flat head or

round head screw. The screw should be suitable

for the surface to which it will be attached. DO

NOT USE PLASTIC SCREWS. Steel screws are

recommended. Recommended number of mounting

holes: (2) per 4' track, (3) per 8' track, and (4) per

12' track. The holes should be evenly spaced along

the track length. Do not exceed 4' between sup-

ports. Additional supports may be added for heavily

loaded applications. Nylon insulators included; (3)

per 4' track, (4) per 8' track, (5) per 12' track.

Mounting Straps

Stamped Steel

Supplied with Feed Track and Plain Track. (6) per

4' Track, (8) per 8' Track, and (12) per 12' Track.

Mounting straps slide into the side channels of

the track. They can be formed and attached to the

building structure using screws, nails or by wrap-

ping around a structure. They should be positioned

evenly along the track length during mounting

to balance the load placed on the track. DO NOT

EXCEED 4' BETWEEN MOUNTING STRAPS.

Cable Mounting

HANGER CLIPS are not supplied with the track

units. ORDER SEPARATELY. (4) clips and locking

screws per catalog number.

Hanger clips attach at any point along the top of the

track. Cable or wire (by others) is attached to the

Hanger Clip and building structure. Recommended

number of clips (2) per 4' track, (3) per 8' track,

and (4) per 12' track. Space the mounting clips

evenly along the track. DO NOT exceed 4' between

Hanger Clips.

26090 Set of (4)

Hanger Clip

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

ProSpec™Flangeless Track Lighting 26800

Page 3 of 4 Recessed Flangeless Track

Recessed Track Power Feed Systems

Power Extension Connector

The housing is crafted from .075 nominal wall

6063-T5 aluminum. Replaces the Dead End Cover

at the end of the track to permit power continuity

around structural obstructions to another track

section. The connector is not polarized. Power can

be fed into the connector from above using a 3/8"

or 1/2" (trade size) connector (by others) or with the

Floating Splice Box (26660).

26846WH Matte White

26846BK Black

Mini-Coupler

Used to connect two pieces of track together

mechanically and electrically. Power cannot be feed

into the mini-coupler.

26049WH Matte White

[101.6]

4 3/16"

[106.4]

1 9/16"

[38.98]

Supply Connections

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

ProSpec™Flangeless Track Lighting 26800

Page 4 of 4 Recessed Flangeless Track

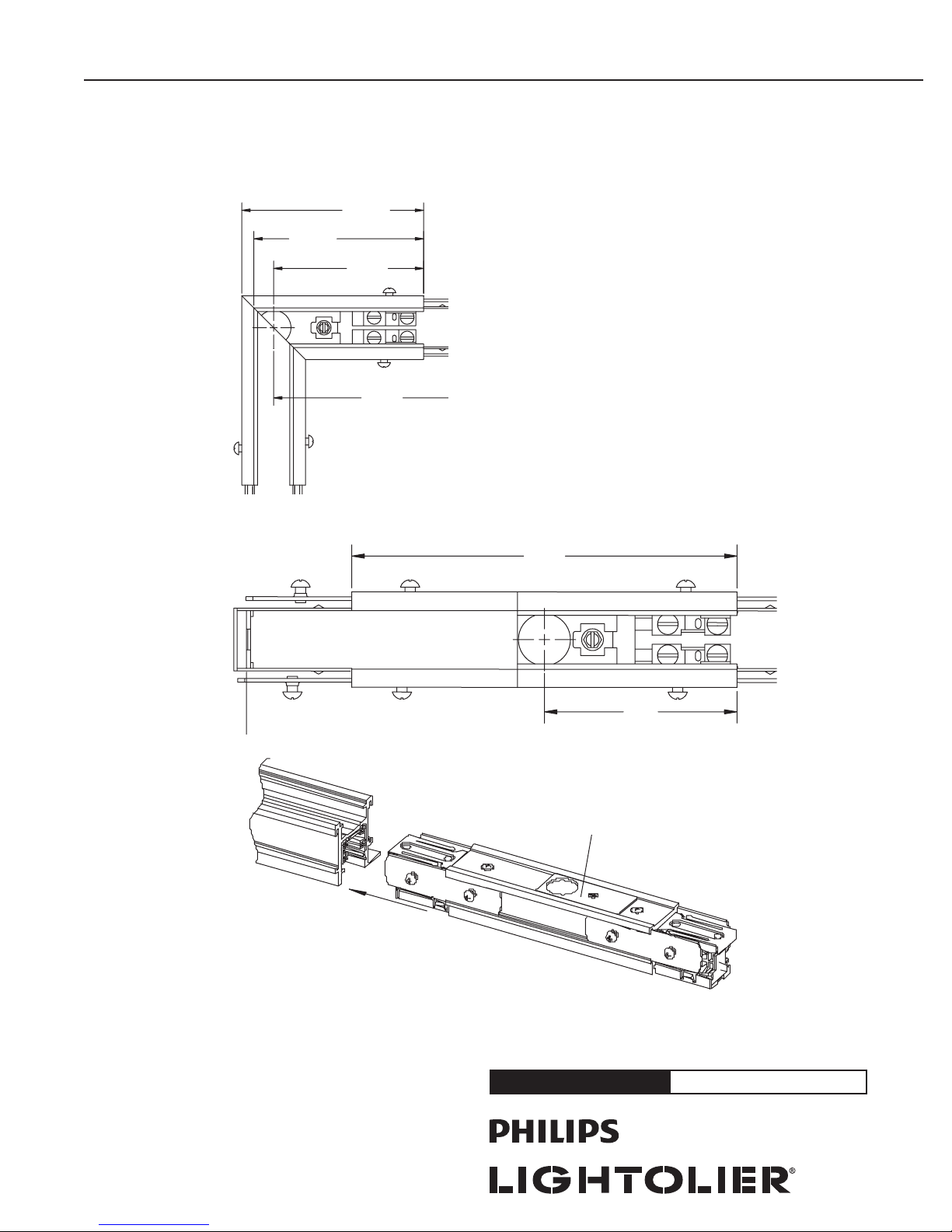

“L” Connector

The “L” connector is

pre-wired. Not polarized.

26850WH Matte White

26850BK Black

All connectors can be fed directly from above using a 3/8" or 1/2" electrical connector (by others).

Feed Connectors for Recessed Flangeless Patterns

4 3/8"

[110.6]

4 1/16"

[103.3]

3 9/16"

[91.3]

5 3/16"

[132.0]

6 1/8"

[156.4]

3 1/16"

[78.2]

9 1/2"

[241.8]

In-Line Connector

Permits power feed-in

between track units in a

straight run of track. The

“In-Line” connector is

pre-wired. Not polarized

26854WH Matte White

26854BK Black

In-Line Connector

Track Unit
