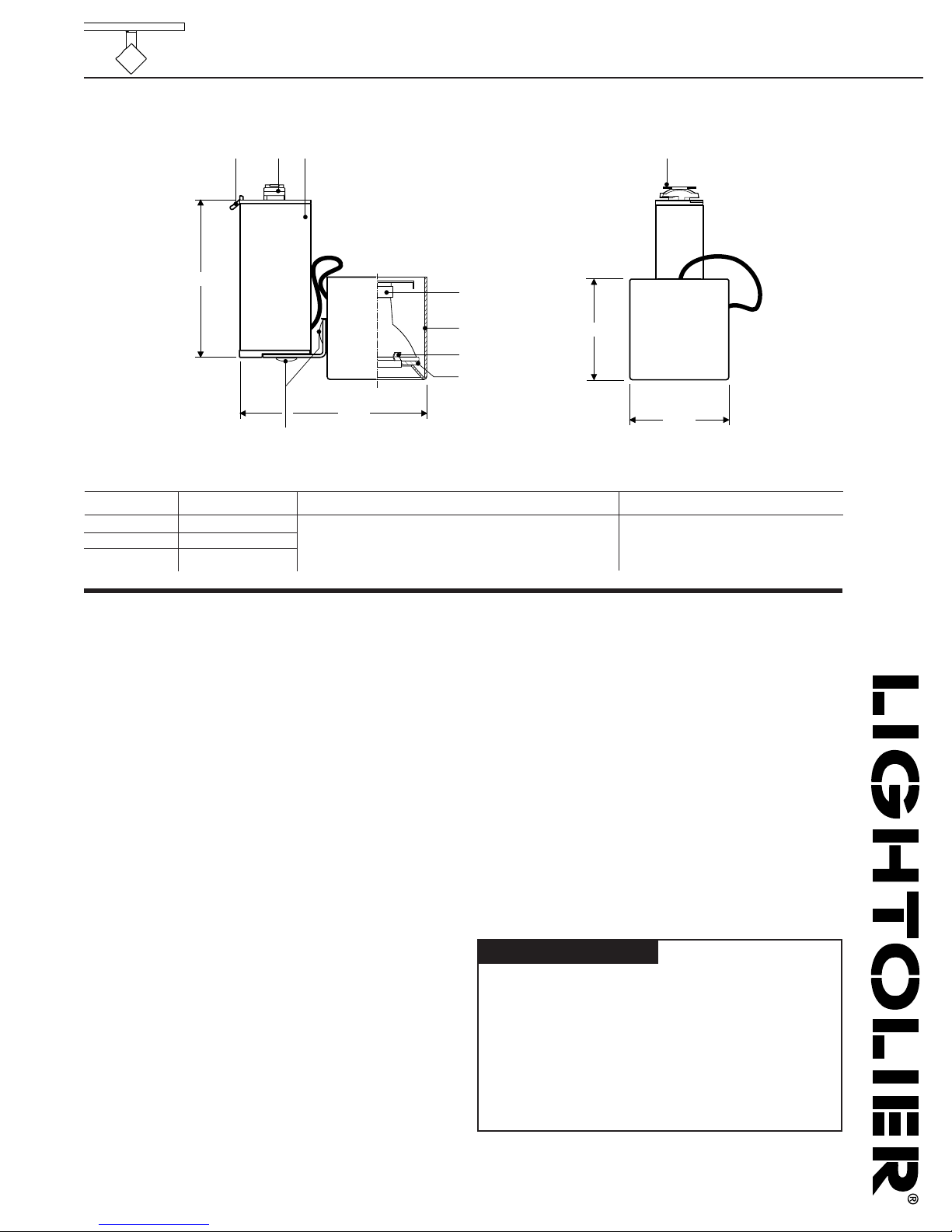

Lytespan®Track Lighting 9173B

Page 1 of 2 MiniFormsTMCylinder MR16

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Features

1. Housing: Aluminum.

2. Socket: Bi pin base ceramic socket wired with No. 18 stranded Teflon leads

with fiberglass outer sleeve.

3. Transformer: Electronic low voltage transformer with integral radio frequen

cy interference filter and anti crossover circuit for increased reliability;

housed in extruded aluminum.

4. Track Attac ment Fitting: Molded polycarbonate, rotates into track and

locks on with push tab; integral polarity key guard.

5. Pus Tab: Locks and detaches unit from track.

6. Brass Contact: Extends up for connection to second circuit when used with

Advent®Lytespan track.

7. Tension Pivot Mounts: Steel. Allows for 180° horizontal rotation and 180°

vertical rotation.

8. Lamp Guard: Tempered glass; can be substituted with 2" filter.

9. Spring: Steel spring holds lamp tight inside housing.

Electrical/Dimming

Dimming controls: Use only dimmers specifically designed for use with elec

tronic transformers, like Lightolier SunriseTM and Neptune Momentum QETM

series. Low voltage fixtures may produce audible sound when used with dim

mers, which may be objectionable in acoustically critical areas.

Labels

/4"

2 3/8"

/2"

2 3/8"

Ordering Information

Catalog No. Finis es Track Mountings Lamps

9173BWH Matte White All Lytespan MR16

9173BBK Matte Black Track Systems 50W Max.

Lig tolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679 8131 • Fax (508) 674 4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

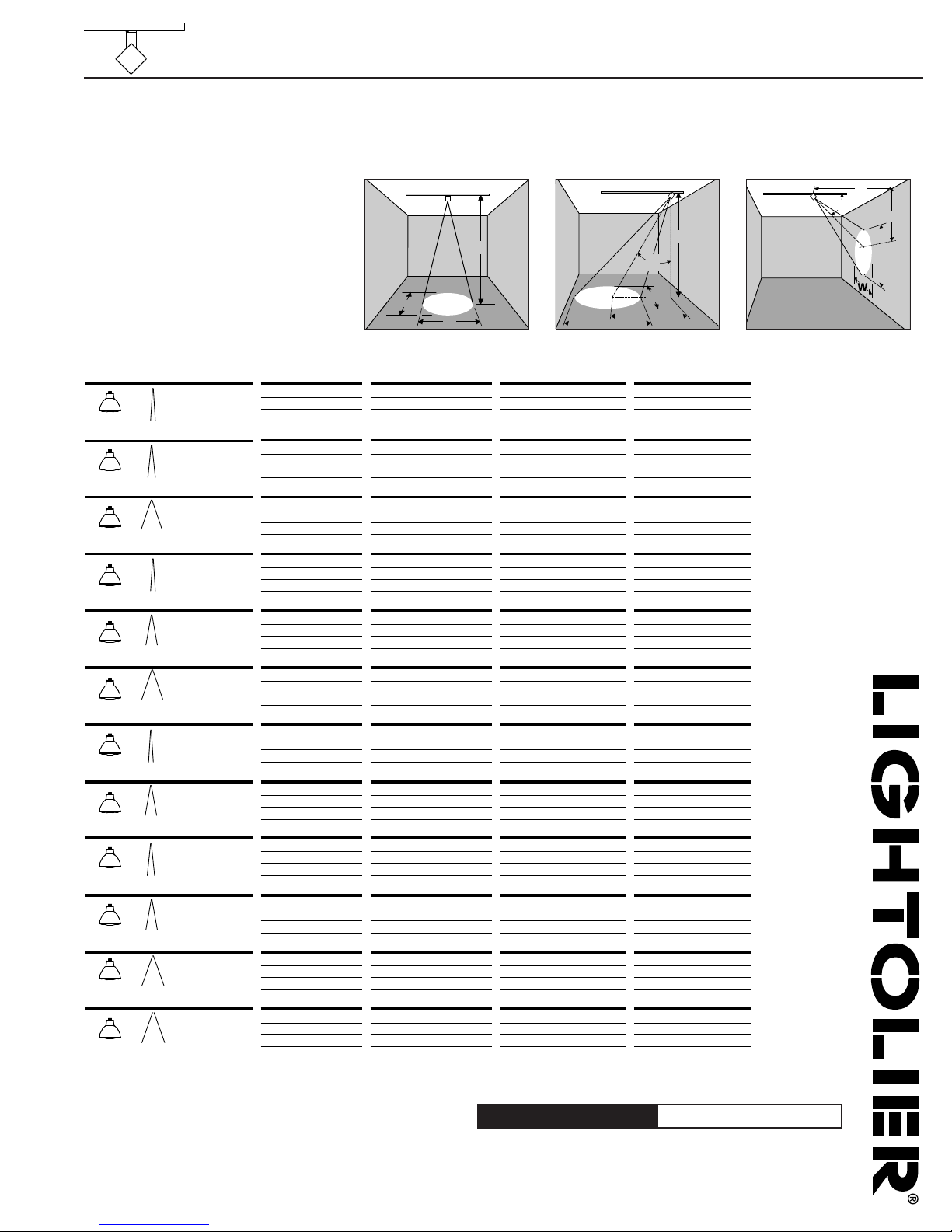

Lig ting Data

Aiming Angle: 0° 30° 45° or 60° Horizontal 30° 45° or 60° Vertical

LBeam length

WBeam width

CDistance to center of beam

DDistance

AAiming angle

FC Footcandles

Land Ware the outer points where the candlepower

drops to 50% of the maximum. FC are the initial

footcandles at the center of the beam.

Lamp O° Aiming Angle A = 30° Aiming Angle A = 45° Aiming Angle A = 60° Aiming Angle

FC L

8200 3000

20W MR16 (T-H)

VNSP (EZX) 7º

3600 3000

20W MR16 (T-H)

NSP (ESX) 13º

1850 4000

50W MR16 (T-H)

FL (EXN) 40º

13100 3500

42W MR16 (T-H)

VNSP (EZY) 9º

525 4000

20W MR16 (T-H)

FL (BAB) 40º

2' 131 1.5' 1.5'

3' 58 2.2' 2.2'

4' 33 2.9' 2.9'

5' 21 3.6' 3.6'

1600 4000

35W MR16 (T-H)

FL (FMW) 40 º

3900 4000

35W MR16 (T-H)

SP (FRA) 20º

6700 4000

35W MR16 (T-H)

NSP (FRB) 12º

7' 167 0.9' 0.9'

10' 82 1.2' 1.2'

13' 49 1.6' 1.6'

16' 32 2.0' 2.0'

DFCL W D CFCL W D CFCL W D CFCL W

Beam Spread

50% Max CP

Beam Center

C.P. Candelas

Rated

Life-Hrs

6' 3.5' 148 1.0' 0.8'

9' 5.2' 68 1.5' 1.3'

12' 6.9' 37 2.0' 1.7'

15' 8.7' 24 2.4' 2.1'

4' 4.0' 181 1.0' 0.7'

6' 6.0' 81 1.5' 1.0'

8' 8.0' 45 2.0' 1.4'

10' 10.0' 29 2.5' 1.7'

2' 3.5' 256 1.0' 0.5'

3' 5.2' 114 1.5' 0.7'

4' 6.9' 64 2.0' 1.0'

5' 8.7' 41 2.5' 1.2'

6' 100 1.4' 1.4'

8' 56 1.8' 1.8'

10' 36 2.3' 2.3'

12' 25 2.7' 2.7'

5' 2.9' 94 1.5' 1.3'

7' 4.0' 48 2.1' 1.8'

9' 5.2' 29 2.7' 2.4'

11' 6.4' 19 3.4' 2.9'

3' 3.0' 141 1.4' 1.0'

5' 5.0' 51 2.3' 1.6'

7' 7.0' 26 3.2' 2.3'

9' 9.0' 16 4.2' 2.9'

2' 3.5' 113 1.9' 0.9'

3' 5.2' 50 2.8' 1.4'

4' 6.9' 28 3.8' 1.8'

5' 8.7' 18 4.7' 2.3'

2' 1.2' 85 2.0' 1.7'

3' 1.7' 38 3.0' 2.5'

4' 2.3' 21 4.1' 3.4'

5' 2.9' 14 5.1' 4.2'

2' 2.0' 46 3.4' 2.1'

3' 3.0' 21 5.0' 3.1'

4' 4.0' 12 6.7' 4.1'

5' 5.0' 7 8.4' 5.1'

1' 1.7' 66 4.8' 1.5'

2' 3.5 16 8.7' 2.9'

3' 5.2' 7 14.5' 4.4'

4' 6.9' 4 19.3' 5.8'

6' 3.5' 157 1.7' 1.5'

9' 5.2' 70 2.5' 2.2'

12' 6.9' 39 3.4' 2.9'

15' 8.7' 25 4.2' 3.6'

4' 4.0' 192 1.7' 1.2'

6' 6.0' 85 2.6' 1.8'

8' 8.0' 48 3.4' 2.4'

10' 10.0' 31 4.3' 3.0'

2' 3.5' 272 1.7' 0.8'

3' 5.2' 121 2.6' 1.3'

4' 6.9' 68 3.5' 1.7'

5' 8.7' 44 4.3' 2.1'

6' 108 2.1' 2.1'

8' 61 2.8' 2.8'

10' 39 3.5' 3.5

12' 27 4.2' 4.2

5' 2.9' 101 2.4' 2.0'

7' 4.0' 52 3.3' 2.9'

9' 5.2' 31 4.3' 3.7'

11' 6.4' 21 5.2' 4.5'

4' 100 2.9' 2.9'

6' 44 4.4' 4.4'

8' 25 5.8' 5.8'

10' 16 7.3' 7.3'

3' 1.7' 115 3.0' 2.5'

5' 2.9' 42 5.1' 4.2'

7' 4.0' 21 7.1' 5.9'

9' 5.2' 13 9.1' 7.6'

3' 3.0' 153 2.2' 1.5'

5' 5.0' 55 3.6' 2.5'

7' 7.0' 28 5.1' 3.5'

9' 9.0' 17 6.6' 4.5'

2' 3.5' 122 3.1' 1.4'

3' 5.2' 54 4.7' 2.1'

4' 6.9' 30 6.2' 2.8'

5' 8.7' 20 7.8' 3.5'

3' 3.0' 63 5.0' 3.1'

4' 4.0' 35 6.7' 4.1'

5' 5.0' 23 8.4' 5.1'

6' 6.0' 16 10.1' 6.2'

1' 1.7' 200 4.8' 1.5'

2' 3.5 50 9.7' 2.9'

3' 5.2' 22 14.5' 4.4'

4' 6.9' 13 19.3' 5.8'

7' 178 1.5' 1.5'

10' 87 2.1' 2.1'

13' 51 2.7' 2.7'

16' 34 3.4' 3.4'

8' 205 1.3' 1.3'

12' 91 1.9' 1.9'

16' 51 2.5' 2.5'

20' 33 3.1' 3.1'

7' 4.0' 174 1.5' 1.3'

10' 5.8' 85 2.1' 1.8'

13' 7.5' 50 2.7' 2.4'

15' 9.2' 33 3.4' 2.9'

5' 5.0' 185 1.6' 1.1'

7' 7.0' 95 2.2' 1.6'

9' 9.0' 57 2.9' 2.0'

11' 11.0' 38 3.5' 2.4'

3' 5.2' 182 1.9' 0.9'

4' 6.9' 102 2.6' 1.3'

5' 8.7' 66 3.2' 1.6'

6' 10.4' 45 3.8' 1.9'

2400 4000

42W MR16 (T-H)

NFL (EYS) 27º

4' 150 1.9' 1.9'

6' 67 2.9' 2.9'

8' 38 3.8' 3.8'

10' 24 4.8' 4.8'

3' 1.7' 173 2.0' 1.7'

5' 2.9' 62 3.3' 2.8'

7' 4.0' 32 4.6' 3.9'

9' 5.2' 19 5.9' 5.0'

3' 3.0' 94 3.1' 2.0'

4' 4.0' 53 4.1' 2.7'

5' 5.0' 34 5.1' 3.4'

6' 6.0' 24 6.1' 4.1'

1' 1.7' 300 2.3' 1.0'

2' 3.5 75 4.6' 1.9'

3' 5.2' 33 7.0' 2.9'

4' 6.9' 19 9.3' 3.8'

10200 4000

50W MR16 (T-H)

NSP (EXT) 14º

8' 159 2.0' 2.0'

12' 71 2.9' 2.9'

16' 40 3.8' 3.9'

20' 26 4.9' 4.9'

7' 4.0' 135 2.3' 2.0'

10' 5.8' 66 3.3' 2.8'

13' 7.5' 39 4.3' 3.7'

15' 9.2' 28 5.3' 4.5'

5' 5.0' 144 2.5' 1.7'

7' 7.0' 74 3.5' 2.4'

9' 9.0' 45 4.5' 3.1'

11' 11.0' 30 5.5' 3.8'

3' 5.2' 142 3.1' 1.5'

4' 6.9' 80 4.1' 2.0'

5' 8.7' 51 5.1' 2.5'

6' 10.4' 35 6.2' 2.9'

3400 4000

50W MR16 (T-H)

NFL (EXZ) 27º

1150 4000

50W MR16 (T-H)

WFL (FNV) 5 5º

6' 94 2.9' 2.9'

8' 53 3.8' 3.8'

10' 34 4.8' 4.8'

12' 24 5.8' 5.8'

5' 2.9' 88 3.3' 2.8'

7' 4.0' 45 4.6' 3.9'

9' 5.2' 27 5.9' 5.0'

11' 6.4' 18 7.2' 6.1'

3' 3.0' 134 3.1' 2.0'

5' 5.0' 48 5.1' 3.4'

7' 7.0' 25 7.1' 4.8'

9' 9.0' 15 9.2' 6.1'

2' 3.5' 106 4.6' 1.9'

3' 5.2' 47 7.0' 2.9'

4' 6.9' 27 9.3' 3.8'

5' 8.7' 17 11.6' 4.8'

4' 116 2.9' 2.9'

6' 51 4.4' 4.4'

8' 29 5.8' 5.8'

10' 19 7.3' 7.3'

3' 1.7' 134 3.0' 2.5'

5' 2.9' 48 5.1' 4.2'

7' 4.0' 25 7.1' 5.9'

9' 5.2' 15 9.1' 7.6'

3' 3.0' 73 5.0' 3.1'

4' 4.0' 41 6.7' 4.1'

5' 5.0' 26 8.4' 5.1'

6' 6.0' 18 10.1' 6.2'

1' 1.7' 231 4.8' 1.5'

2' 3.5 59 9.7' 2.9'

3' 5.2' 26 14.5' 4.4'

4' 6.9' 14 19.3' 5.8'

3' 128 3.1' 3.1'

5' 46 5.2' 5.2'

7' 23 7.3' 7.3'

9' 14 9.4' 9.4'

3' 1.7' 83 4.6' 3.6'

5' 2.9' 30 7.8' 6.0'

7' 4.0' 15 10.7' 8.4'

9' 5.2' 9 13.7' 10.8'

2' 2.0' 102 5.7' 2.9'

3' 3.0' 45 8.6' 4.4'

4' 4.0' 25 11.4' 5.8'

5' 5.0' 15 14.3' 7.4'

1' 1.7' 144 22.3' 2.1'

2' 3.5 36 44.5' 4.2'

3' 5.2' 16 66.8' 6.2'

4' 6.9' 9 89.1' 8.3'
