Lytespan® Track Lighting System 8318

Page 1 of 2 PowerArc™ Modular Metal Halide 70W, 100W PAR38 Enclosed Spot

Finish

All painted finishes are baked enamel.

Electrical

See ballast module spec sheet.

Labels

UL, cUL

3 1/8"

(79mm)

2 3/8"

(60mm)

(76mm)

(178mm)

ø 2 5/16"

(58.5mm)

5 1/2"

(139mm)

ø 6 1/2"

(165mm)

Features

1. Housing: Die cast aluminum body.

2. Vertical Pivot: 0-90° vertical adjustment.

3. Horizontal Pivot: Die cast track adapter with infinite rotation.

4. Track Attachment Fitting: Molded polycarbonate, rotates into track.

5. Power Connector: 5kv rated with insulated pins. Connects to ballast

module. Keyed for polarity.

6. Shade: Die cast aluminum. Accepts Accessory Holders.

7. Socket: (not shown) 5kv pulse rated ceramic body socket with brass nickel

plated screw shell.

Accessories

Note: 70W for use with Accessory Holder and two accessories max.,

or Snoot and two accessories max.

100W for use with Snoot or Accessory Holder and one AL4HC

louver only.

8784 Accessory Holder. Accepts 2 Accessories Max.

83ED17S Snoot Accessory Holder. Accepts 2 Accessories Max.

ADF4 (4 3/4" dia.) Color Filters

AF4 (4 3/4" dia.) Diffusion Filters

AL4HC Hex Cell Louver

83EW18WH, BK, AL 18" Extension Wand

83EW48WH, BK, AL 48" Extension Wand

83EC72WH, BK 6' Extension Cord

83PCWH, BK Pipe Clamp

83MPTWH, BK Mounting Bracket

Ordering Information

Catalog No. Finishes Track Mountings Ballast Module Lamp

8318WH Matte White All Lytespan® Track systems and Multi- Use one of: PAR38 70W, 100W Ceramic

8318BK Matte Black point. All PowerArc™ Modular canopies, 83B70SE 83B70E Metal Halide

8318AL Metallic Aluminum extension wands, mounting brackets 83B10E

or pipe clamps. Not compatible with 83CY70E

ProSpec® or ATOM®.

See ballast for details

Compatible with

83B70E only

}

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan® Track Lighting System 8318

Page 2 of 2 PowerArc™ Modular Metal Halide 70W, 100W PAR38 Enclosed Spot

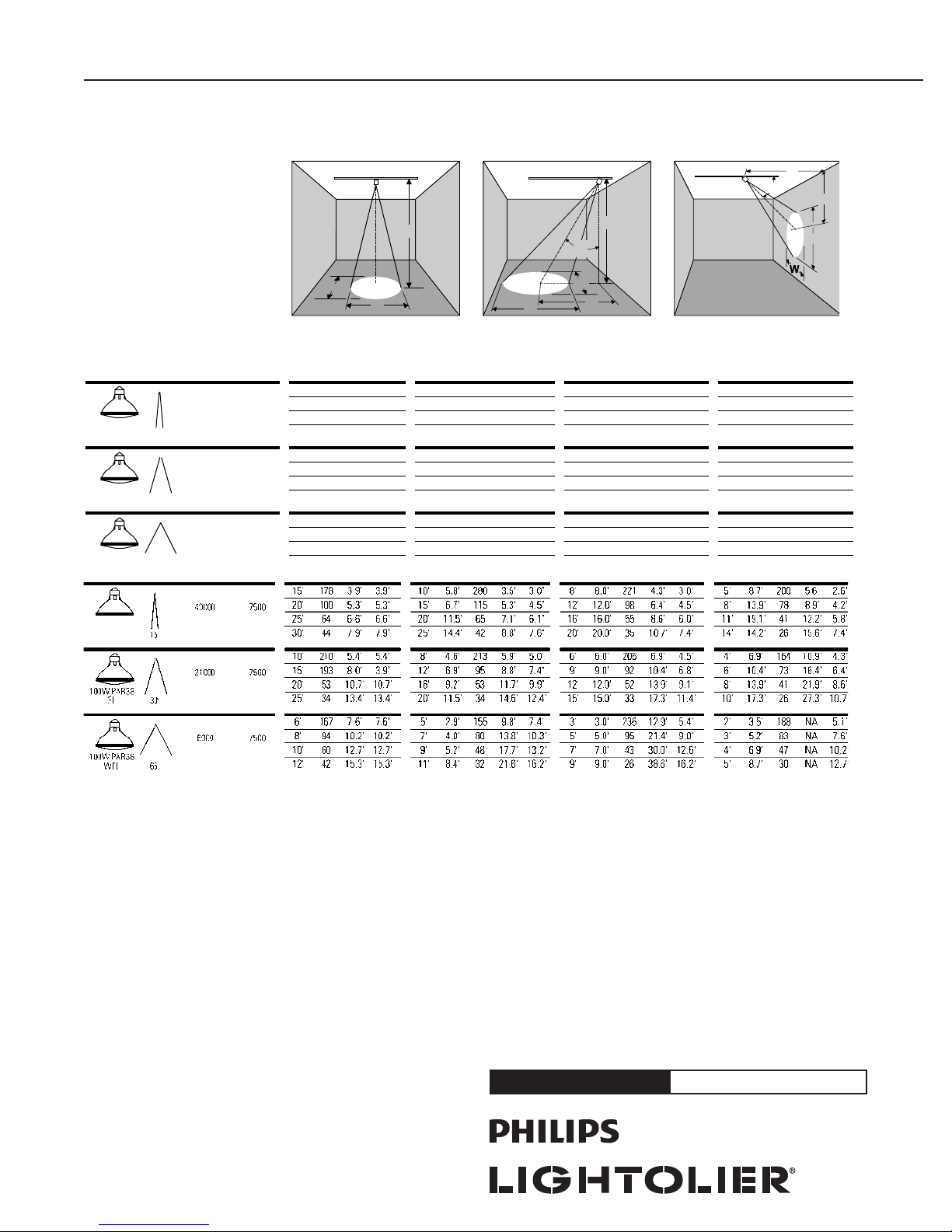

Lighting Data

D FC L W D C FC L W D C FC L W D C FC L W

Beam Spread

50% Max CP

Beam Center

C.P. Candelas

Rated

Life-Hrs

28000 7500

70W PAR38

SP 15ϒ

16000 7500

70W PAR38

FL 30ϒ

10' 280 2.6' 2.6'

15' 124 3.9' 3.9'

20' 70 5.3' 5.3'

25' 45 6.6' 6.6'

8' 4.6' 284 2.8' 2.4'

12' 6.9' 126 4.2' 3.6'

16' 9.2' 671 5.8' 4.9'

20' 11.5' 45 7.1' 6.1'

6' 6.0' 275 3.2' 2.2'

9' 9.0' 122 4.8' 3.4'

12' 12.0' 69 6.4' 4.5'

15' 15.0' 44 8.0' 5.6'

4' 6.9' 219 4.4' 2.1'

6' 10.4' 97 6.7' 3.2'

8' 13.9' 55 8.9' 4.2'

10' 17.3' 35 11.1' 5.3'

8' 250 4.3' 4.3'

12' 111 6.4' 6.4'

18' 63 8.8' 8.8'

20' 40 10.7' 10.7'

7' 3.5' 212 5.1' 4.3'

10' 4.0' 104 7.3' 6.2'

13' 5.8' 61 9.5' 8.0'

16' 7.5' 41 11.7' 9.9'

5' 5.0' 226 5.8' 3.8'

7' 7.0' 115 8.1' 5.3'

9' 9.0' 70 10.4' 6.8'

11' 11.0' 47 12.7' 8.3'

3' 5.2' 222 8.2' 3.2'

4' 6.9' 125 10.9' 4.3'

5' 8.7' 80 13.7' 5.4'

6' 10.4' 56 16.4' 6.4'

4000 7500

70W PAR38

WFL 65ϒ

6' 111 7.6' 7.6'

8' 63 10.2' 10.2'

10' 40 12.7' 12.7'

12' 28 15.3' 15.3'

5' 2.9' 104 9.8' 7.4'

7' 4.0' 53 13.8' 10.3'

9' 5.2' 32 17.7' 13.2'

11' 8.4' 21 21.6' 16.2'

3' 3.0' 157 12.9' 3.8'

5' 5.0' 57 21.4' 5.4'

7' 7.0' 29 30.0' 9.0'

9' 9.0' 17 38.6' 16.2'

2' 3.5' 125 NA 5.1'

3' 5.2' 58 NA 7.6'

4' 6.9' 31 NA 10.2'

5' 8.7' 20 NA 12.7'

DFC L

LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE

Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical

L Beam Length

W Beam Width

C Distance to center beam

D Distance

A Aiming Angle

FC Footcandles

L and W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

*Lamps are MasterColor Metal Halide by Philips Lighting.

Correlated Color Temperature = 3000K

Color Rendering Index = 83

100W PAR38
