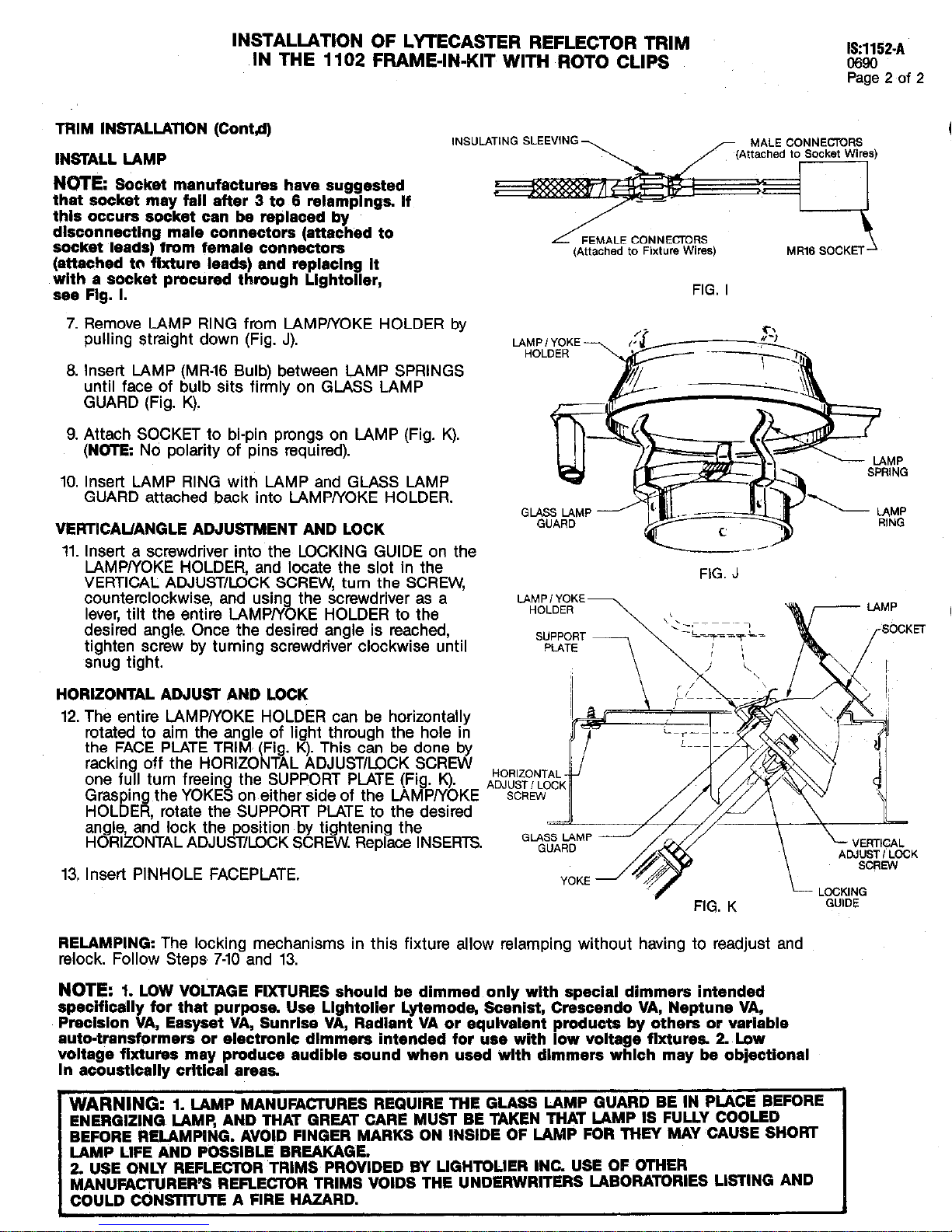

INSTALLATION OF LYTECASTER REFLECTOR TRIM 151152.A

IN THE 1102 FRAME-IN-KIT WITH ROTO CLIPS 0690

Page2of 2

TRIM lNSTALLATtON(Contd) INSULATING SLEEVING >-MA! FC.ONNHTCIRS

INSTALL LAMP “.. /{At~aci;di;”50CGt-tik.,

NmE Sooket manufactures have suggested

that socket may fall after 3to 6ralampinge. If

thla occurs sooket cart be replaced by

dlaconnectlng male connectom (anached to

socket Ieada) from female connectors

(attached to flstura leads) and replacing it

with asocket procured through Lightoller,

see Fig. L

FEMALE CONNECTORS

(Attached to Fixture WE.) MR16 SOCKET

FIG. I

7. Remove LAMP RING from IAMPNOKE HOLDER by

pulling straight down (Fig. J),

8. Insert LAMP (MR-16 Bulb) between LAMP SPRINGS

until face of bulb sits firmly on GLASS LAMP

GUARD (Fig. K).

9. Attach SOCKET to hi-pin prungs on LAMP (Fig. K),

(NUIT% No polarity of pins required).

10. Insert LAMP RING with LAMP and GLASS LAMP

GUARD attached back into IAMPNOKE HOLDER.

VERTICAUANGLE ADJUSTMENT AND LOCK

11. Insert ascrewdriver into the LOCKING GUIDE on the

LAMPNOKE HOLDER, and locate the slot in the

VERTICAL ADJUST/lQCK SCREW. turn the SCREW.

counterclockwise+ and using the screwdriver as a‘

lever, tilt the entire LAMP/’fOKE HOLDER to the

desired angle. Once the desired angle is reached,

tighten ecraw by turning screwdriver clockwise until

snug tight.

HORIZONTAL ADJUST AND LOCK

12. The entire lAMP/YOKE HOLDER can be horizontally

rotated to aim the angle of light through the hole in

the FACE PLATE TRIM (Fig. K). This can be done by

racking off the HORIZONTAL ADJUST/~CK SCREW

one full turn freein the SUPPORT PIATE (Fig. K).

Grasping the YOKE on either side of the LAMPNOKE

HOLDER. rotate the SUPPORT PLATE to tha desired

angle, and lock the poeition by tightening” the

HORIZONTAL ADJUSWU3CK SCREW. Replete INSERTS

13, Insert PINHOLE FACEPLATE,

““’’’K’v%

~– -’

FIG. J

RELAMPING The locking mechanism in this fixture allow relamping without having to readjust and

rslock. Follow Steps 7-10 and 13,

NOTE 1. LOW VOLTAGEFIXTURES should be dimmed only with speciai dimmers intended

specifically for that purpose Use Lightolier Lytemodq Soeniat, Crsacendo VA, Neptune VA,

Precision VA, Easyaet VA, Sunrise VA, Radiant VA or equlvalant products by others or variabie

auto-transformera or eiactronic dimmers intendad for use with iow voltage fixtures. 2. Low

voitage fisturas may produce audibie sound whan usad with dlmmere which may be objectionai

in acouaticaiiy criticai areas.

●

WARNING: 1. LAMP MANUFACWRES REQUiRE THE GLASS LAMP GUARD BE IN PLACE BEFORE

Energizing LAMR AND THAT GREAT CARE MUSr BE TAKEN THAT LAMP IS FULLY COOLED

BEFORE RELAMP!NG. AVOID FiNGER MARKS ON INSIDE OF LAMP FOR THEY MAY CAUSE SHORT

LAMP LIFE AND POSSIBLE BREAKAGE.

2. USE 0NL% REFLECIX)R “TRIMS PROViDED BY LiGHTOLIER INC. USE OF Uf’HER

MANUFA~URER’S REFLECTOR TRiMS VOIDS THE UNDERWRITERS LABORA~RIES LiSTING AND

‘COULD Constitute AFIRE HAZARD. J
