Narrow T5 Strip SV T5 Strip

Page 1 of 2 2” Wide 1 3/8” Deep, 22”, 34”, 46” or 92” Lengths, 1 or 2 Lamp, T5

Features

• Only 2" wide.

• Utilizes compact, high efﬁcency, T5 or T5HO lamps.

• Fully enclosed wiring.

• Optional white or specular, symmetric and assymetric reﬂector.

• Convenience outlet and switch K.O.s provided

• Push through lamp holders with rotor for secure lamp retention.

• Optional hangers and wires guards.

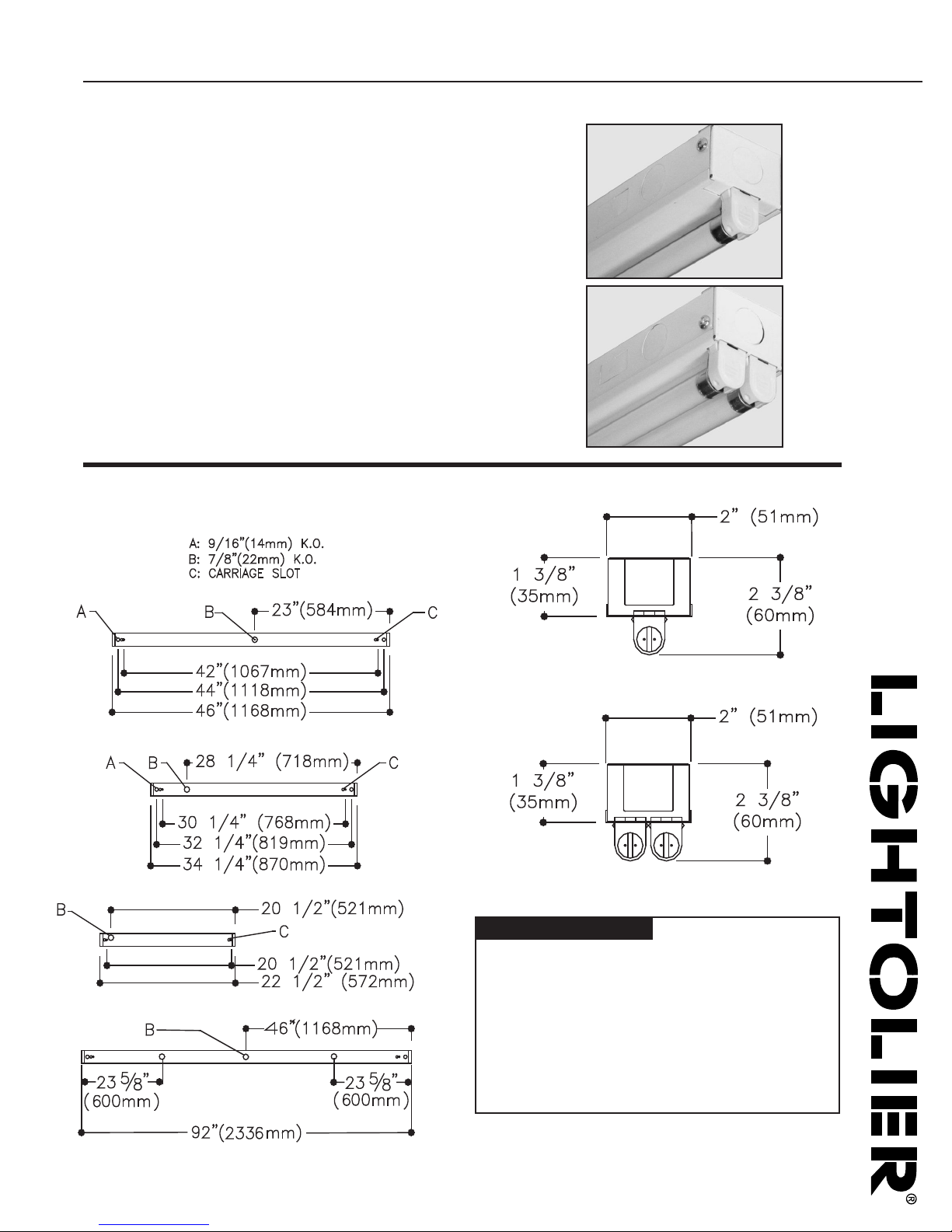

Dimensions

5/03

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Job Information Type:

Ordering Information

Explanation of Catalog Number. Example: SV4S228120PG

Options & Accessories

Stem and Canopy Sets: Suspend luminaire 12”, 18”, 24”, 36”, or 48”

from surface. (Two per luminaire is recommended. For 34”and 46”SV Strip only.)

Catalog number: SV5F12 (12”); SV5F18 (18”); SV5F24 (24”); SV5F36 (36”);

SV5F48 (48”).

Chain Hanging Kit: Includes two 5’heavy duty link chains with sturdy “V”hook

for ﬁxture suspension. (34”and 46”Strip only.) Catalog number: EE9HC

Wire Guard: White wire guard. Catalog number: For SV Strip T5 34”; SV5GXW3.

For SV Strip T5 46”; SV5GXW4.

Reﬂector: Consult speciﬁcation sheet (folio H120-22 & H120-20).

Radio Interference Filter: 120, 277 or UNV volt, 50 or 60 Hz. Sufﬁx: R

Ballast Options: For other ballast options, consult factory

Speciﬁcations

Materials: Chassis parts are die-formed heavy gauge cold rolled steel,1-3/8”

deep x 2”channel width.

Speciﬁcations (continued)

Finish: Chassis exterior - phosphate undercoating, baked white acrylic

matte high reﬂectance paint ﬁnish.

Electrical: HPF, thermally protected class “P”ballast. If K.O.s are within 3”of

ballast use wire suitable for at least 90˚.

Labels: Listed by

Voltage

UNV = 120/277V

120 = 120V

277 = 277V

Options:

Strip

Narrow Strip T5

2” wide x 1 3/8” deep

channel

Lamp Conﬁguration:

S = Single Fixture

D = Double Fixture

Master/Satellite Fixture

and Quick Connect Ballast Type

PG = Electronic T5 Program Start, Less than 10 THD

PI = Electronic T5 Instant Start, <10 THD

(14W, 21W or 28W only, no UNV voltage)

PF = LOLT5 Power Spec Dimming (1-Lamp 54 watt only)

PJ = 1-4LT Electronic T5 instant start, less than

10 THD (54 watt only)

Lamp Type:

( Nominal 22” )

14 = 14W T5

24 = 24W T5 HO

( Nominal 34” )

21= 21W T5

39 = 39W T5 HO

( Nominal 46” )

28 = 28W T5

54 = 54W T5 HO

Lamp Quantity:

1 or 2*

Nominal

Fixture

Length:

2 = Nominal 22”

3 = Nominal 34”

4 = Nominal 46”

8 = Nominal 92”

Narrow T5 Strip SV T5 Strip

Page 2 of 2 2”Wide 1 3/8”Deep, 22”, 34”, 46”or 92”Lengths, 1 or 2 Lamp, T5

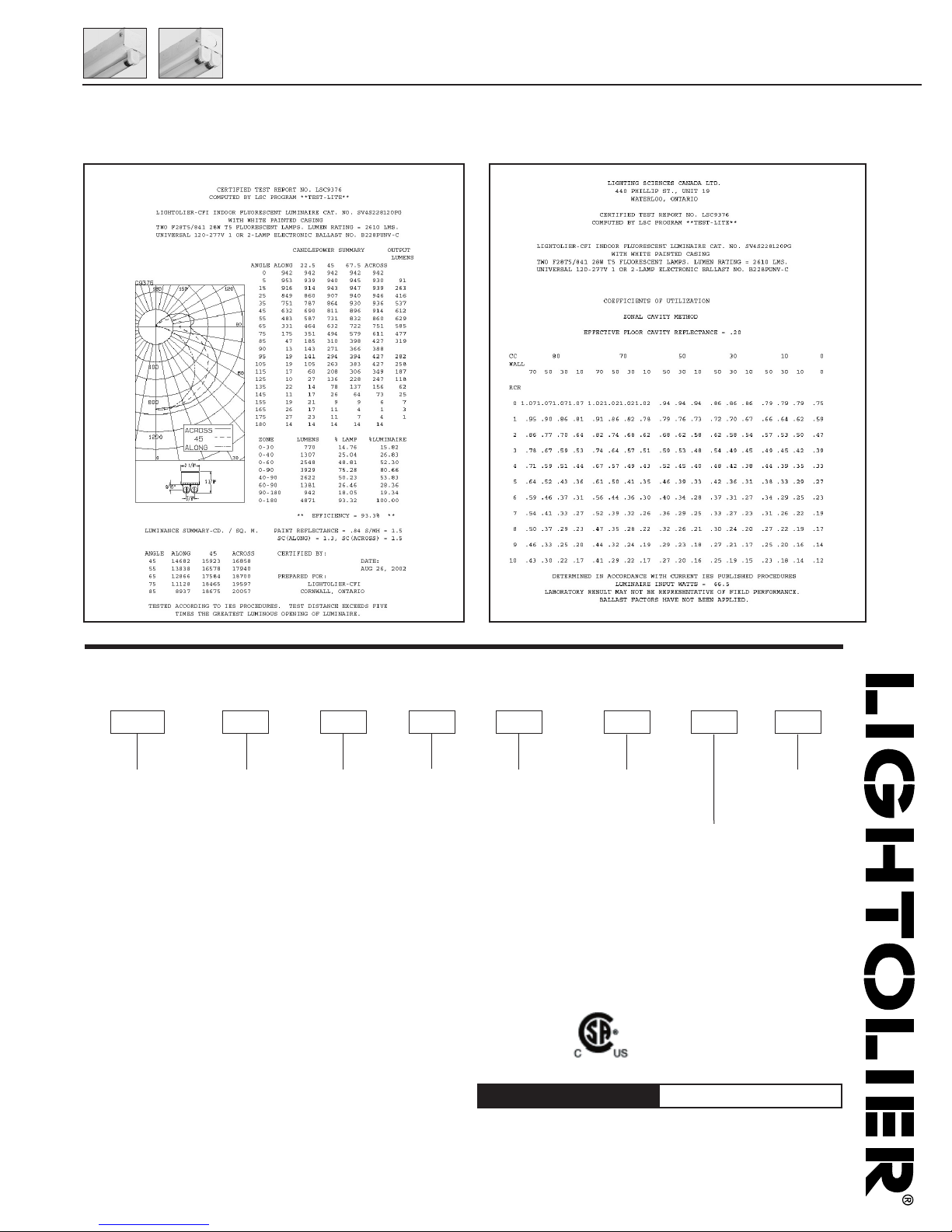

Photometry Model No. SV4S228120PG

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 •Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Job Information Type:

* 92”Fixture have Lamps in tandem

ie 1 = 1 Lamp in tandem (2 Lamps total)

2 = 2 Lamp in tandem (4 Lamps total)
