Lightolier Lytespan 23S35BT Manuale utente

Lytespan®Track Lighting System 23S35BT

Page 1 of 2 Alcyon HID 35W CDM-Tm PGJ5

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier is a Philips group brand

3 13/16 in

[97 mm]

1/4 in

[6 mm]

6 5/16 in

[160 mm]

6 7/16 in

[163 mm]

1 1/2 in

[38 mm]

7 in

[178 mm]

7 13/16 in

[199 mm]

3 5/16 in

[84 mm]

1 1/16 in

[27 mm]

3 9/16 in

[ 90 mm]

1 15/16 in

[50 mm]

Ordering Information

Catalog No. Finish Mounting Lamps Reflectors

23S35BTAL Aluminum For use with Lytespan Radius, Basic and Advent 35W CDM-Tm PGJ5 Base 23MHRF, 23MHRS, 23MHRNF,

23S35BTBK Black Track. Not compatible with extension wands Ceramic Metal Halide 23MHRFCCZ, 23MHRSCCZ, 23MHRNFCCZ

23S35BTWH White or slope ceiling adapters. For monopoint Philips REFLECTORS SOLD SEPARATELY

applications refer to spec sheet 6172.

Features

1. Track Attachment Fitting: Locking lever for mechanical/

electrical connection.

2. Brass Contact: Extends for connection to second circuit (Advent track only).

3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation.

Position may be locked using an allen key.

4. Vertical Pivot: 0-90° vertical adjustment with aiming indicator. Position

may be locked using an allen key.

5. Fixture Housing: Die cast aluminum

6. Ballast Housing: Molded polycarbonate

7. Safety Lens: Tempered 1/8" glass. Meets or exceeds UL safety requirement

for metal halide lamps.

8. On/Off Switch: Rocker switch to disconnect power to the ballast.

9. Accessory Cartridge: Hinged and captive; retaining ring included. Inside

painted black to reduce glare.

10.Safety Locking Lever: Locks ballast housing to track.

Finish

All Painted finishes are baked enamel.

Accessories

Accessory Holder: Integral

Accessories: Accepts 1 snoot plus 2 lenses or 1 louver plus 1 lens.

When using 2 accessories, remove safety lens provided.

Lens: AF25, ADF25 Series

Louver: AL25HC

Reflector

Interchangeable reflectors available to allow for desired beam spread.

REFLECTORS SOLD SEPARATELY.

Electrical

Electronic Ballast

Input Voltage: 120V, 50/60Hz

Power Factor: 0.9

Input Power: 45W

Max. Input Current: 0.40A

ANSI Code: C(M)179/E

Do not use on dimming circuit.

Labels

UL, cUL

Job Information Type:

Lightolier is a Philips group brand

Lytespan®Track Lighting System 23S35BT

Page 2 of 2 Alcyon HID 35W CDM-Tm PGJ5

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

22361 9000

35W BT-5, 23MHRS

10°

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

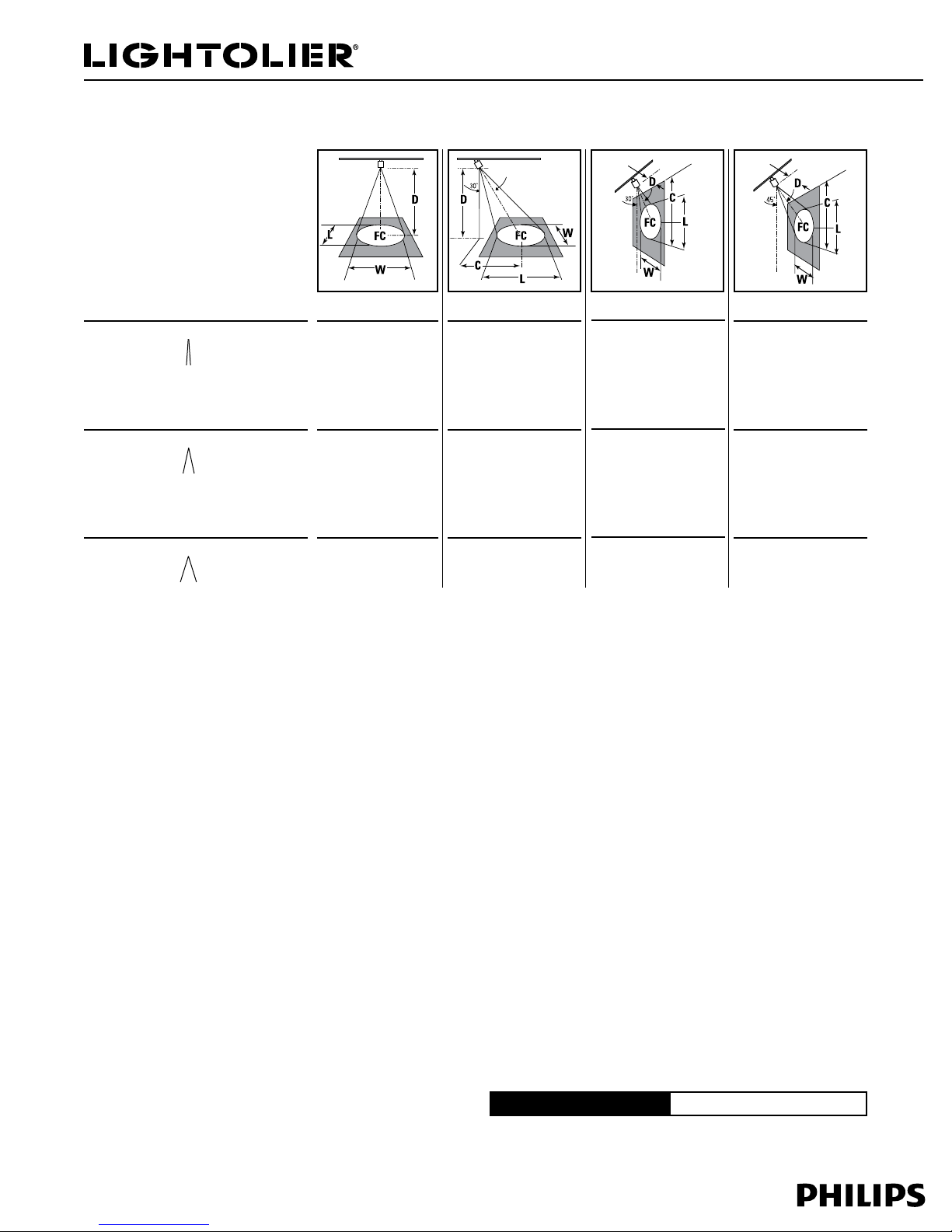

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length DDistance

WBeam Width AAiming Angle

C Distance to center beam FC Footcandles

Land W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp

manufacturers for availability and performance.

CBCP = Center Beam Candle Power.

D FC L W D C FC L W D C FC L W D C FC L W

8' 4.6' 227 1.9' 1.6'

10' 5.8' 145 2.3' 2.0'

12' 6.9' 101 2.8' 2.4'

14' 8.1' 74 3.3' 2.8'

4' 4.0' 494 1.4' 1.0'

5' 5.0' 316 1.8' 1.2'

6' 6.0' 220 2.1' 1.5'

7' 7.0' 161 2.5' 1.7'

3' 5.2' 311 2.1' 1.0'

4' 6.9' 175 2.9' 1.4'

5' 8.7' 112 3.6' 1.7'

6' 10.4' 78 4.3' 2.1'

10' 224 1.7' 1.7'

12' 155 2.1' 2.1'

14' 114 2.4' 2.4'

16' 87 2.8' 2.8'

4568 9000

35W BT-5, 23MHRNFF

25°

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.) D FC L W D C FC L W D C FC L W D C FC L W

6' 3.5' 82 3.6' 3.1'

8' 4.6' 46 4.8' 4.1'

10' 5.8' 30 6.0' 5.1'

12' 6.9' 21 7.2' 6.1'

2' 2.0' 404 1.9' 1.3'

3' 3.0' 179 2.8' 1.9'

4' 4.0' 101 3.7' 2.5'

5' 5.0' 65 4.7' 3.1'

2' 3.5' 143 4.2' 1.8'

3' 5.2' 63 6.2' 2.7'

4' 6.9' 36 8.3' 3.5'

5' 8.7' 23 10.4' 4.4'

6' 127 2.7' 2.7'

8' 71 3.5' 3.5'

10' 46 4.4' 4.4'

12' 32 5.3' 5.3'

3411 9000

35W BT-5, 23MHRF

35°

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.) D FC L W D C FC L W D C FC L W D C FC L W

6' 3.5' 62 5.2' 4.4'

8' 4.6' 35 7.0' 5.8'

10' 5.8' 22 8.7' 7.3'

12' 6.9' 15 10.4' 8.7'

2' 2.0' 301 2.8' 1.8'

3' 3.0' 134 4.2' 2.7'

4' 4.0' 75 5.6' 3.6'

5' 5.0' 48 7.0' 4.5'

2' 3.5' 107 7.2' 2.5'

3' 5.2' 47 10.8' 3.8'

4' 6.9' 27 14.4' 5.0'

5' 8.7' 17 18.0' 6.3'

6' 95 3.8' 3.8'

8' 53 5.0' 5.0'

10' 34 6.3' 6.3'

12' 24 7.6' 7.6'

Note: For Champagne Bronze (CCZ), multiply FC values by 0.64. CCZ Champagne Bronze reector "warms" the beam to 2700K.
