Lightolier LL Series Manuale utente

LL Series

THERMOPLASTIC LED EXIT

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: Illumination

of the exit stencil face is

accomplished with long-lasting,

high-output Light Emitting

Diodes (LEDs). Hot spots and

striations are eliminated by

the internal “light chamber”

specially designed around the

high-performance LED array.

Housing: Impact-resistant, UL

94, 5 VA thermoplastic housing

with NFPA-complaint, field-

selectable chevrons. Chevrons

can be easily removed and

re-installed. White housing

is standard, black housing is

available as an option. Stencil

face is easily removed for

installation, maintenance and

inspection. Housing design

simplifies installation, and

does not require hard wire

terminations inside of the

exit housing. The installation

process enables the installer

to easily make all wiring

connections in the junction

box, while all mechanical

connections between the exit

housing and canopy are made

tool free. Universal top, side,

or back mounting. Canopy

furnished with all models. No

canopy needed for back-to-wall

mounting.

Operating Temperature

Range: Damp Location

68°F (20°C) to 104°F (40°C)

Electronics: AC Only -

120/277 VAC dual voltage

input. Self-Powered - 120/277

VAC dual voltage input with

surge-protection, solid-state

circuitry provides for a reliable

charging system. Standard

features include low voltage

disconnect, AC lockout and

brownout protection.

Electrical Specifications:

AC Only Red and Green:

0.026 A (120 VAC)

0.012 A (277 VAC)

Self-Powered Red and Green:

0.033 A (120 VAC)

0.017 A (277 VAC)

Battery

Maintenance free, sealed nickel

cadmium battery supplies

90 minutes of emergency

power, and has an operating

temperature range of 68°F

(20°C) to 104°F (40°C).

Code Compliance

UL 924 and UL damp location

listed. NFPA 101, NEC, BOCA,

OSHA and IBC illumination

standards

Warranty

Five year full electronics

warranty. Five year full plus

five year prorated battery

warranty.

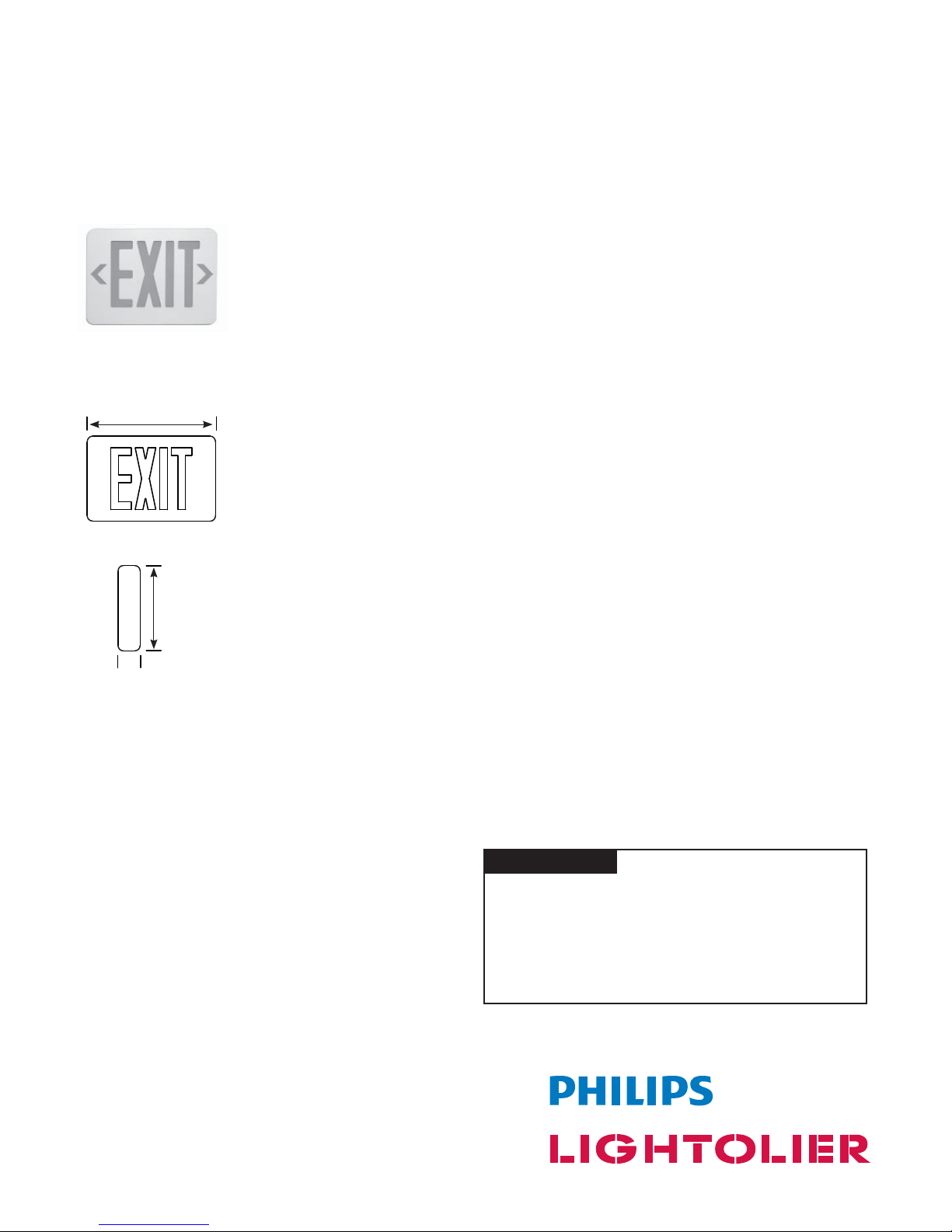

LLNURW

8.25"

(20.95 cm)

12.25"

(31.11 cm)

1.75"

(4.5 cm)

LL Series

THERMOPLASTIC LED EXIT

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

LL Series July 6, 2012

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

LL = LL Series

LED Exit

R= Red

G= Green

Letter Color

SD = Self-Diagnostics (white finish only)

Factory Installed Options

Note

Standard product is furnished with white housing, white stencil and canopy for universal mounting, single, or double face.

U= Universal

Stencil Faces

A= AC Only

N= Nickel

Cadmium

Battery

W= White

B= Black

Face/Housing Color
