Lightolier Lytecaster 1062LV Manuale utente

70˚

Lytecaster®Recessed Downlighting 1062LV

Page 1 of 2 5” Aperture Low Voltage Elbow Reflector Trim

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

1062LV/1000LV

Standard MR16

1062LV/1000LVR

Remodeler/Non-IC

6 5/8”

1062LV/1000LVNT

MR16 Remote

Transformer

6 5/8”

7 1/4”

1062LV/1004ICV/N

0™AirSeal®

Insulated Ceiling

Features

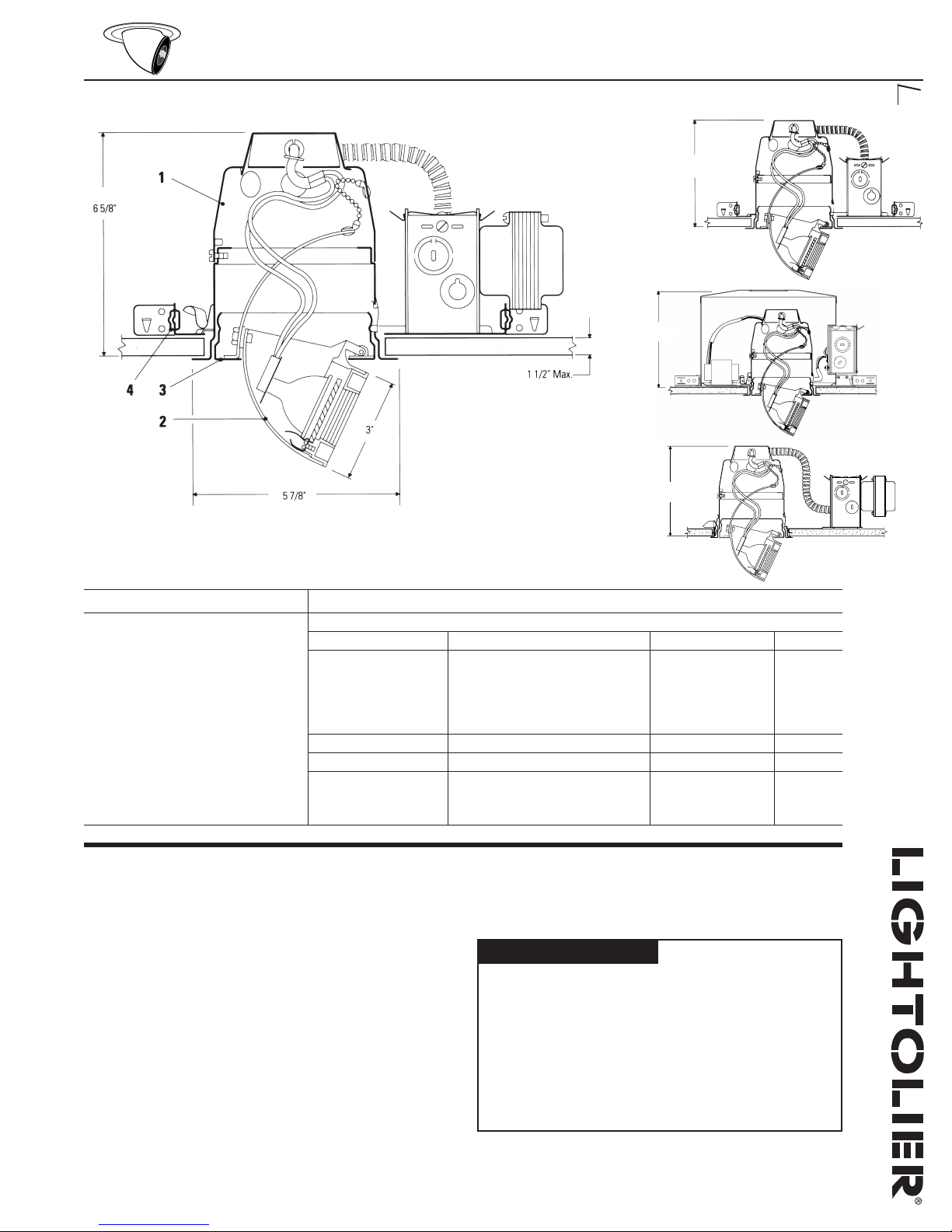

1. Housing: Hydroformed aluminum, .040” thick (18 ga.): matte white trim

flange.

2. Elbow: Seamless; die cast aluminum with stepped conical baffle for low

brightness. Matte white finish outside; matte black inside.

3. Support Ring Assembly: Provides 358° horizontal rotation and 0° to 70°

vertical adjustment. Matte white finish.

4. Frame-In Kit: (1000LV standard frame shown) Other frames listed above and

shown on the right. See Frame-In Kit specification sheets for more details.

Options & Accessories

Retaining Clips: 1955 - For Installing in Existing Ceiling.

MR16 Framing Projector: 6497 - Attaches to elbow

Extra Wide Trim Flange: 1957 - 7" Outside diameter.

MR16 Replacement Socket: 1975A

Labels

UL (Suitable for Damp Locations), I.B.E.W.

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

1062LV

Matte White

Low Voltage

Frame-In Kit Ceiling Type Lamping Height

1000LV

1000LVR

1000LVE1

1000LVE2

1000LVRE1

Non-IC

Non-IC Remodeler

42W - 75W MR16 6 5/8"

1000LVNT Non-IC Remote Trans 20W - 65W MR16 6 5/8"

1004ICV/N AirSeal®IC 20W - 50W MR16 7 1/4"

1000ICV

1920LV (1002P1)

Conversion Kit 20W- 35W MR16 7 5/16"

70˚

Lytecaster®Recessed Downlighting 1062LV

Page 2 of 2 5” Aperture Low Voltage Elbow Reflector Trim

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

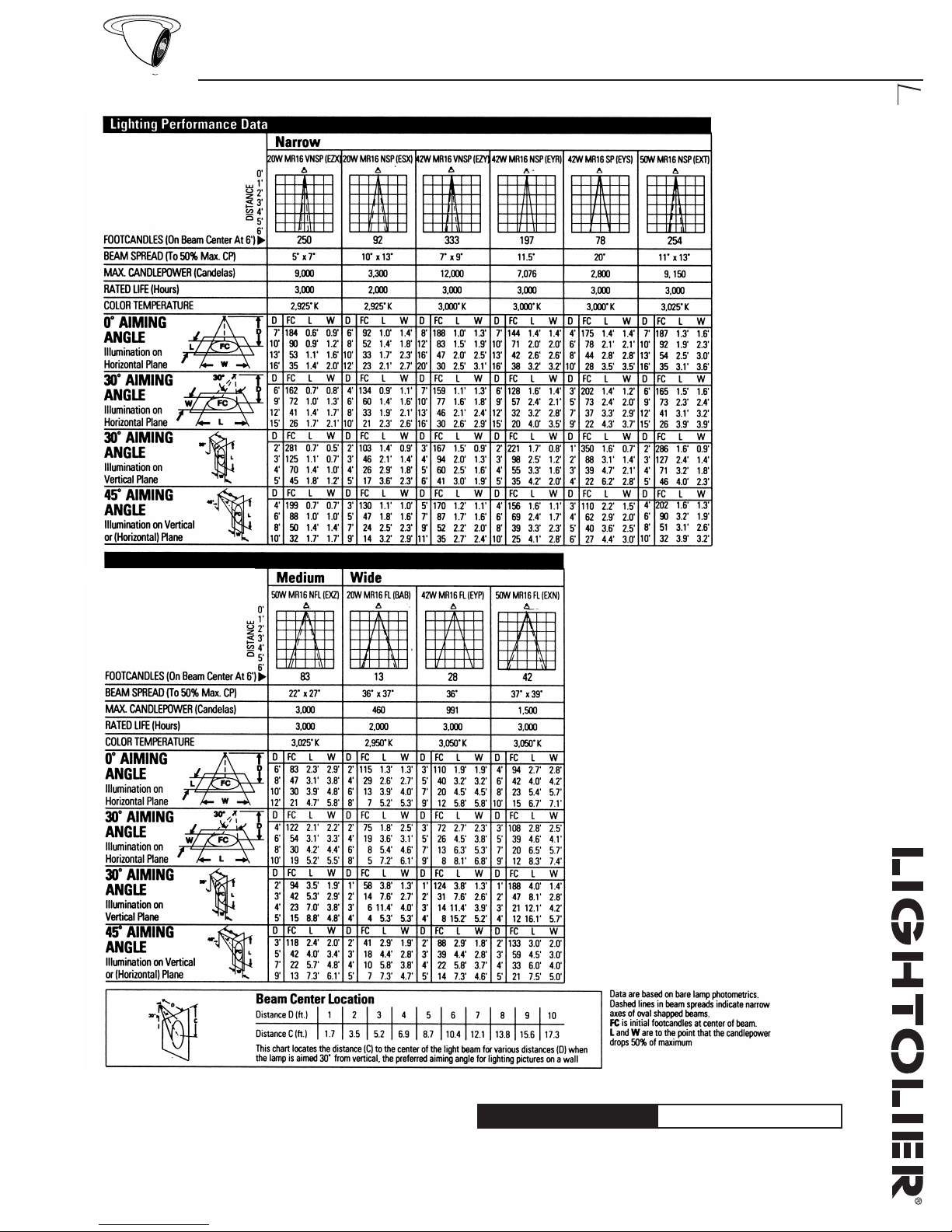

To convert lighting data for a lower wattage incandescent lamp of the same type,

multiply the footcandle (or candlepower) values by the ratio of the lumens of the

two lamps. The coefficients of utilization remain the same.
