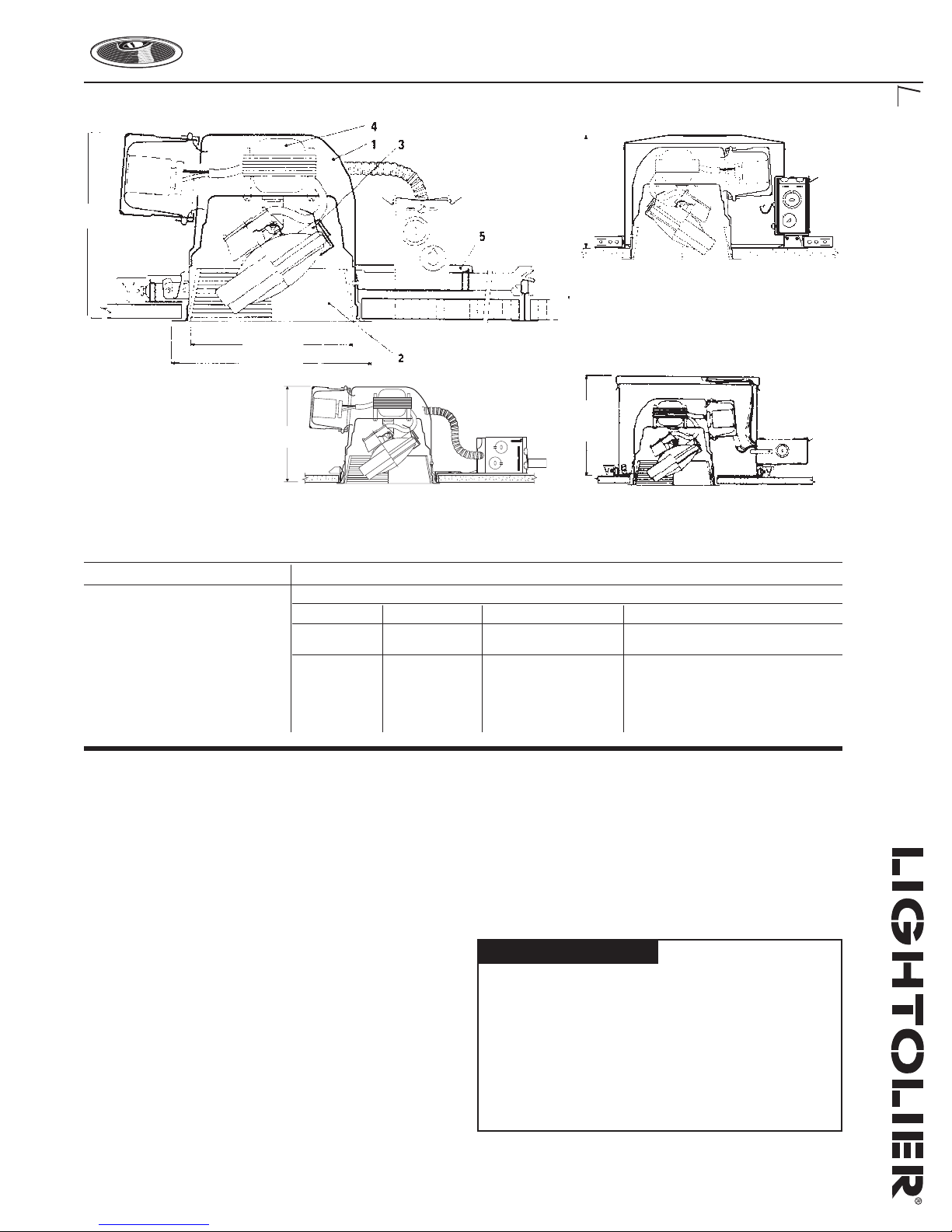

Lytecaster®Recessed Downlighting 1155

Page 1 of 2 6 3/4" Aperture Low Voltage Adjustable - PAR36 Reflector Trim

Features

1. Housing: Hydroformed aluminum, .040" thick (18 ga.); matte white trim

flange.

2. Baffle or Cone: Matte black or white step baffle of die cast aluminum with

stepped conical surface for low brightness. Or hydroformed aluminum cone,

.040" minimum thickness with satin anodized or specular Alzak®finish in

colors noted above.

3. Lampholder Assembly: Provides 358˚ horizontal rotation and 0˚ to 35˚

vertical adjustment. Spring lamp clips allow snap-on/snap-off lamping.

4. Transformer: Magnetic; 120V primary, 5.5V or 12V secondary operation;

built-in voltage selector switch. Removable from below.

5. Frame-In Kit: See Frame-In Kit specification sheets for more details.

Dimming Information

Dimming Controls: use only dimmers specifically designed for use with

magnetic transformers, like Lightolier Onset® , Sunrise® series LV or VA

dimmers, or any Lightolier Controls dimming system. Low voltage fixtures may

produce audible sound when used with dimmers, which may be objectionable in

acoustically critical areas.

Options & Accessories

Lytegems®: See 1300 Series or 1400 Series

Specification sheets.

Extra Wide Flange Trim Ring: 1954 - 8 5/8” O.D.

Retaining Clips: 1955 - For Installation in Existing Ceiling

Labels

UL (Suitable for Damp Locations), I.B.E.W.

1155/1102P1 Series

Standard

9 1/4”

1155/1100DEEP IC Series

Insulated Ceiling

7 1/8”

6 1/4”

7 9/16”

9 1/4”

1” Max.

1155/1103R

0™ Non-IC

Remodeler Ring

7 1/4”

1155/1104ICX/N

0™ AirSeal®

Insulated Ceiling

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

Incandescent

Frame-In Kit Ceiling Type Lamping Height

1155 Matte Black Step Baffle 1102P1 Non-IC 25-50W PAR36, 12V 7 1/8”

1155WH Matte White Step Baffle 1103R Non-IC Remodeler 25W PAR36, 5.5V 7 1/8”

1163 Specular Gold Alzak®Cone 1100IC IC 25-50W PAR36, 12V 7 5/16”

1164 Specular Clear Alzak®Cone 1100DICM Deep IC 25W PAR36, 5.5V 9 1/4”

1100DAICM Deep AirSeal® IC 9 1/4”

1104ICX/N AirSeal® IC 7 1/4”

35˚

M 1155

Lytecaster®Recessed Downlighting 1155

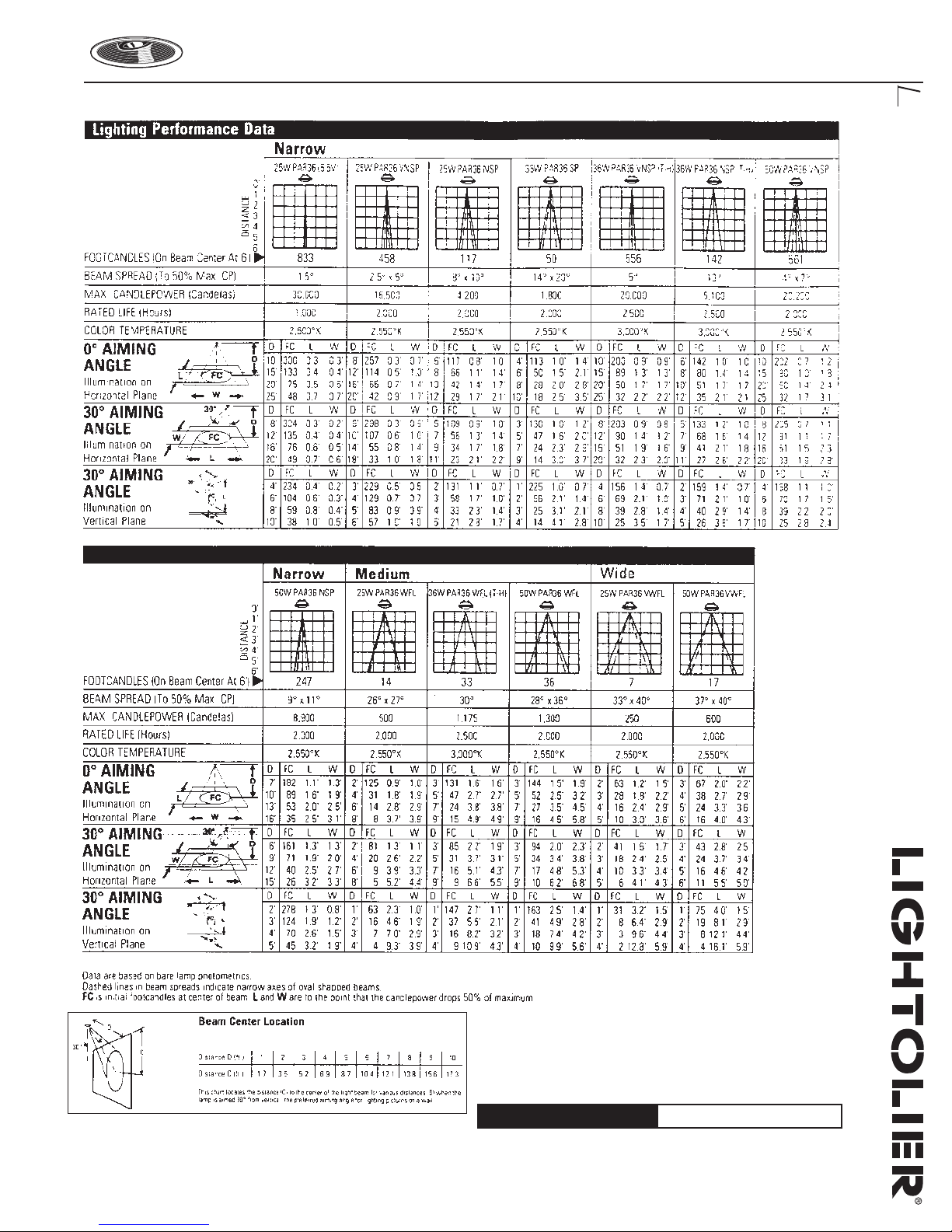

Page 2 of 2 6 3/4" Aperture Low Voltage Adjustable - PAR36 Reflector Trim
