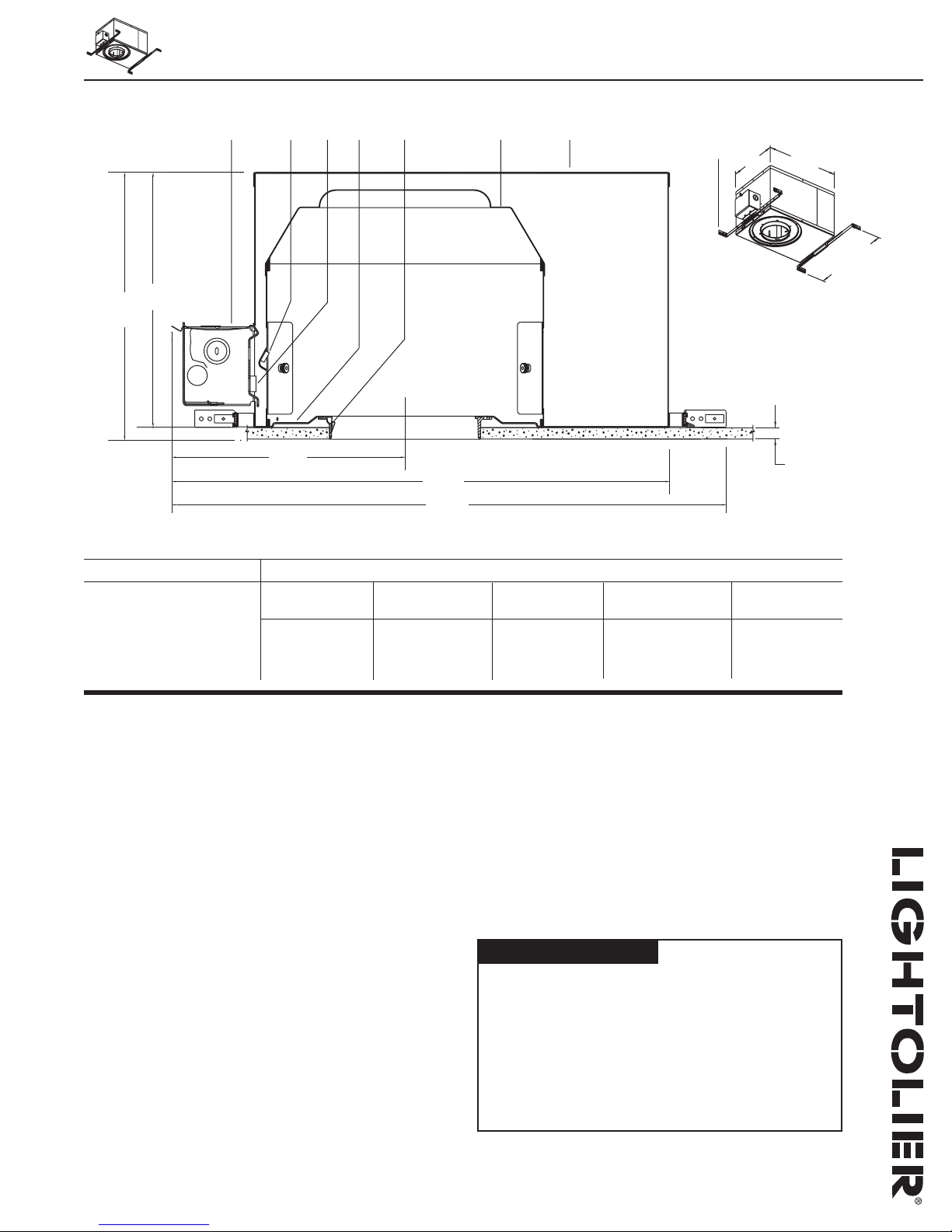

Calculite®Evolution Recessed Downlight C6DAIC

Page 1 of 1 6" Aperture Deep Incandescent 120V IC AirSeal® Frame-In Kit

20 3/4"

763421

*11 5/8" min. is for

up to 1/2" thick ceiling.

24 1/4"

10 1/4"

12 1/8" max.

11 5/8" min.* 11 1/8"

1" Max. Ceiling Thk.

Adjustment

(mounting bars

included)

13 3/4" to 24"

13 1/2" 18 1/8"

Ceiling Cutout: 6 11/16” Dia.

Frame-In Kit Reflector Trim

C6DAIC Open Open Adjustable Open Lensed

Downlight Downlight Accent Wall Washer/Downlight Wall Washer

C6AD C6P38D C6P38A C6AW C6P38L

100W A19, MB19 120W PAR38 90W PAR38 100W BT15, MB19 90W PAR38

100W BT15 200W A21

200W A21

Features

1. Outer Housing: Raw aluminum 0.036" (18ga.) allows for heat dissipation.

Top and bottom covers, aluminum 0.050" (16 ga.). Top cover removable for

top access.

2. Housing: Steel, 0.03" (22 ga.). Top Cover: Aluminum, 0.04" (14 ga.). Matte

black finish. AirSeal®housing minimizes air leakage to less than 2CFM at

1.57 PSF (or 75pa) in accordance with ASTM E283, which complies with

Model Energy Code and Washington State Energy Code and reduces heat

loss and condensation in ceiling.

3. Mounting Frame: Die-cast aluminum for dry or plaster ceilings. Locks into

position along length of mounting bars with locking screws.

4. Retaining Springs: Precision-tooled steel springs secure reflector trim to

mounting frame for quick, tool-less installation.

5. Mounting Bars: Galvanized steel, 0.06" (16 ga.). Bars pivot for easy

installation and wire-in below ceiling line. Bars extend to accommodate

16" to 24" O.C. joist spacing. Integral self-tapping screws secure to wood

or metal construction. Built-in tabs for locking to T-bars without the need

of accessories.

6. Snap-In Connectors: Keyed to accept power and socket harnesses

which are provided with reflector trim.

7. Junction Box: Galvanized steel .063" (14 ga.). UL listed for maximum of

4 No. 12 AWG 90°C through branch circuit conductors. Accessible from

inside and outside of fixture. Outside J-Box door is hinged for maximum

opening. Snap-in plug is provided on inside cover for quick connection to

power harness.

8. Thermal Protector: Meets NEC and UL requirements.

9. Reflector Trim: Compatible reflector trims are listed above. See separate

reflector trim specification sheets for complete catalog numbers and

details.

Options & Accessories

Chicago Plenum Consult Factory

Labels

UL Listed (Type I.C., Suitable for damp locations), I.B.E.W.

Complies with Air Leakage Requirements stated in the Model Energy Code,

Washington State Energy Code and Title 24.
