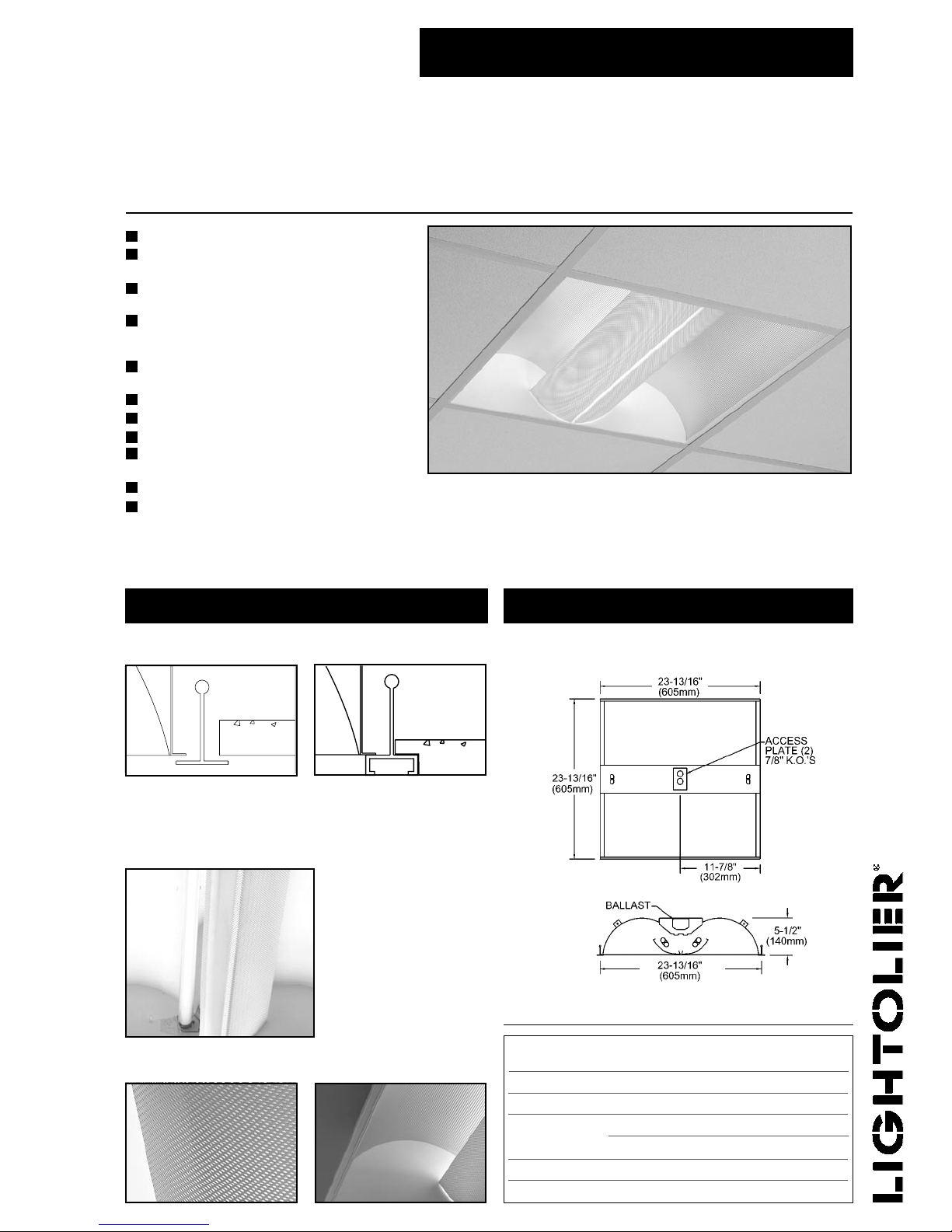

ALTER METALYTE

2’ X 2’ RECESSED DIRECT/INDIRECT FLUORESCENT

2 LAMP, TT5 BI-TUBE, 5 1/2” DEEP

MICROPERFORATED MESH LAMP SHIELD

STATIC

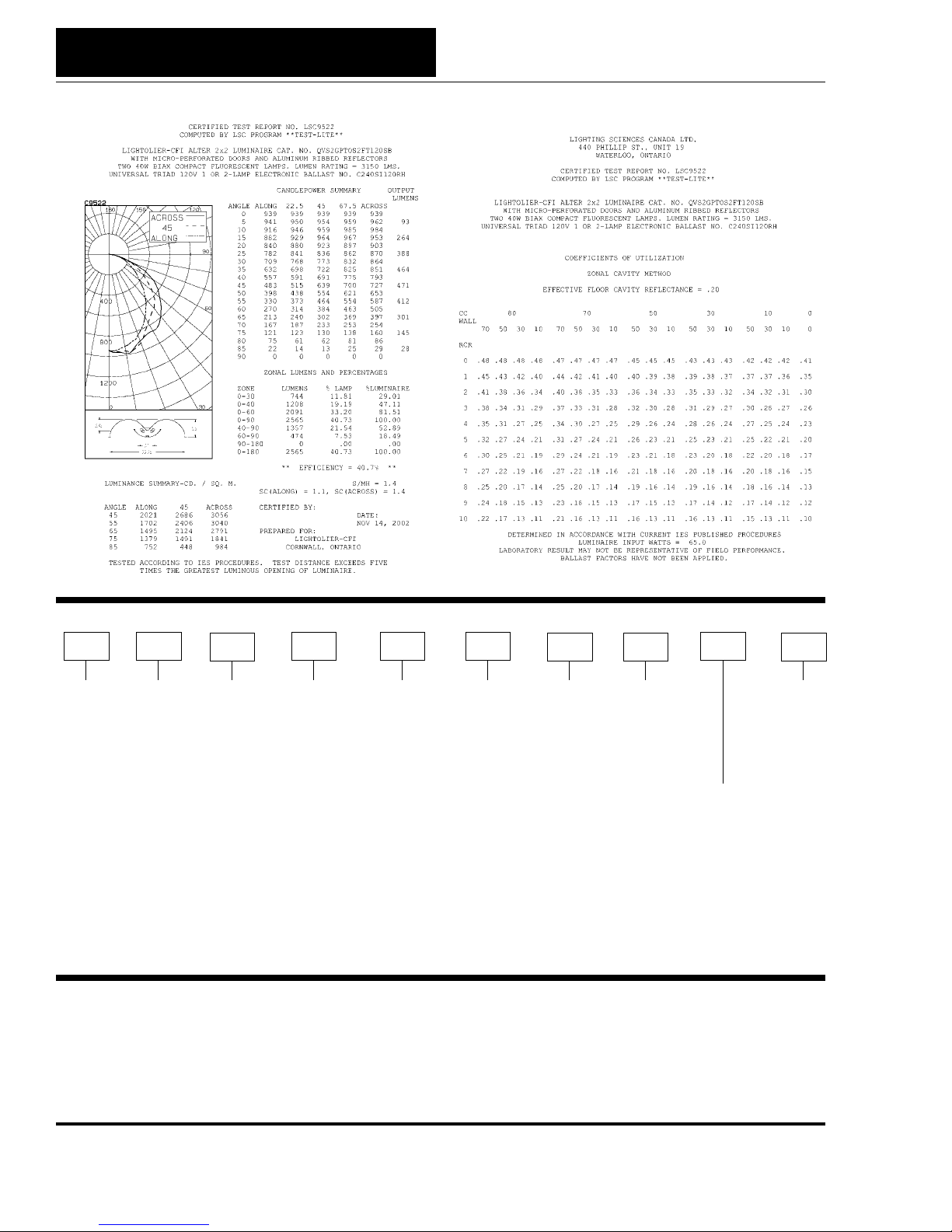

Efficiency 40.7%.

Semi-specular aluminum reflectors with

lengthwise ridges.

Swing down microperforated lamp shield for

easy relamping and maintenance.

Alter soft white film on inside of mesh conceals

lamp image providing balance between

reflected and direct light.

Fully recessed luminaire and lamp

compartment.

Specular interior reflector.

One piece body for easy installation.

Exclusive socket locks lamp into place.

Easy access to ballast through lamp

compartment.

Fits standard T-Grid ceilings.

Optional acrylic drop-down visual element.

MOUNTING METHODS/FEATURES DIMENSIONS

FIXTURE TYPE

JOB INFORMATION:

VOLTS

L10-50

QVS2GPTOS2FT

Swing down optical system for

easy relamping and maintenance

Microperforated mesh lamp shields

Ceiling compatibility

Suited to standard exposed T-grid

ceilings Suited to standard exposed Slot T-grid ceilings

2 x 40W

Sem-specular aluminum reflector

with lengthwise ridges

Genlyte Thomas Company

ORDERING INFORMATION Explanation of Catalogue Number Example: QVS2GPTOS2FT120SB

SPECIFICATIONS

MATERIALS: One piece chassis constructed from die formed 20 gauge

cold rolled steel. Optic - Semi-specular matte aluminum reflector with

lenghtwise ridges. Soft white acrylic film on inside of lamp shield conceals

lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic

matte paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast (Bi-tube

type). If K.Os are within 3” of ballast use wire suitable for at least 90C.

LABELS: Listed by CSA, UL

QVS2GPTOS2FT

QVS

QUALITY

VISUAL

STATIC

FIXTURE

WIDTH

CEILING

TYPE

LAMP

SHIELD

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH

120

VOLTAGE

120,277

347

OPTIONS

Standard exposed

T-grid ceilings

(NOMINAL 24”)

FT = TT5

Bi-tube

R =Radio Interface Filter

O =Emergency Lighting

System (for Canada)

N =Emergency Lighting

System (for U.S.)

Recessed direct

indirect soft light

optical system

CLEAR POLISHED

ACRYLIC DROP

DOWN VISUAL ELEMENT

OS =Open slot (no acrylic)

OP =One Piece (no center slot)

GC =Clear acrylic

GG =Clear acrylic / Green projected color face

GB =Clear acrylic / Blue projected color face

GR = Clear acrylic / Red projected color face

We reserve the right to change, materials and finish in any way that will not alter installed appearance or reduce function and performance.

ALTER METALYTE

2’ X 2’ RECESSED DIRECT/INDIRECT FLUORESCENT

OS 2 FT

2’ PT=Metallic

Reflector /

Microperforated

Mesh

lamp shield

BALLAST

SB: 40W TT5 Elect.

BE: 50W TT5 Elect.

BD: 55W TT5 Elect.

PB: 40W TT5 PowerSpec HDF Dimming †

DA: iGEN DALI †

† Not available in 347V.

Genlyte Thomas Company

631 Airport Road, Fall River, MA 02720 - Tel. (508) 679-8131

C.F.I. Division of Canlyte, Inc.

525 Education Road, Cornwall, Ontario

Canada K6H 6C7 - (613) 938-6221
