Lightolier SLB1SFSVA232 Manuale utente

SLB Surface Box 1' x 4' Fluorescent SLB1SFSVA232

Page 1 of 2 Flat Steel or Regressed Aluminum Frame, 2 Lamp T8 or T12

Features

• Shallow 4" deep body.

• Positive cam-action latches frame on either side.

• Efﬁciency 56.2% (2 T8).

• Center mounted ballast compartment (2 lamps).

• Snap-on wiring channel cover removed without tools.

• Matte black light seal on both sides to prevent light leaks.

• Spot welded one-piece construction.

Mounting Methods Dimensions

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

(102mm)

12" (305mm)

19" (483mm)

3" (76mm)

2-1/2"

(64mm)

2" (51mm)

Dia. K.O.

7/8" (22mm)

Dia. K.O.

11 Places

24" (610mm)

48" (1219mm)

FS: Flat Steel lens frame (standard)

RA: Regressed aluminum lens frame

Stem mounting (four per ﬁxture is required) One-piece construction

SLB Surface Box 1' x 4' Fluorescent SLB1SFSVA232

Page 2 of 2 Flat Steel or Regressed Aluminum Frame, 2 Lamp T8 or T12

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Job Information Type:

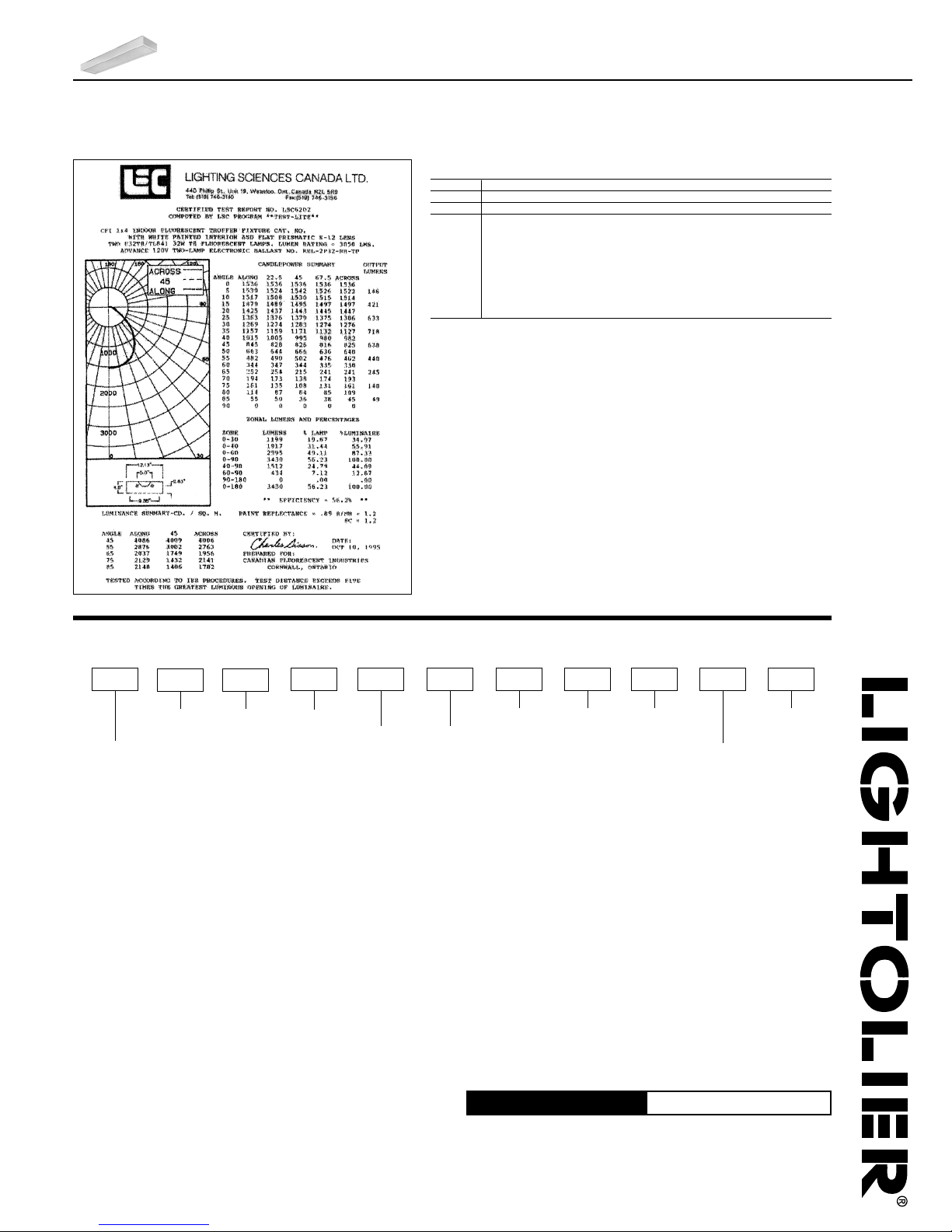

Photometry Model No. SLB1SFSVA232120SO

Ordering Information

Explanation of Catalog Number. Example: SLB1SFSVA232120SO

Options & Accessories

Fusing: Internal fast-blow fusing. Sufﬁx: GLR.

Internal slow-blow fusing. Sufﬁx: GMF.

Electrical/Wiring Options: Consult factory.

Radio Interference Filter: 120 or 277 volt, 50 or 60 Hz. One per ﬁxture.

Sufﬁx: R. One per ballast, Sufﬁx: B.

Stem and Canopy Sets: Suspends ﬁxture 6", 12" 18" or 24" from surface. (Four

per ﬁxture is recommended. Catalog Number: ASC6 CSP (6"), ASC12 CSP (12"),

ASC18 CSP (18"), ASC24 CSP (24").

Speciﬁcations

Performance: In an installation of 2 lamp 32W luminaires in a room cavity

ratio of 1, with a reﬂectance of 80% ceiling, 50% wall, 20% ﬂoor, the C.U. shall

not be less than .60. To prevent glare the average brightness at 65° shall not

exceed 2037 candelas per square meter. To control veiling reﬂections, luminaire

output in the 30–90° zone shall be not less than 65%.

Materials: Chassis parts are die-formed 20 gauge cold rolled steel.

Finish: White baked polyester powder coat.

Electrical: Thermally protected class “P” ballast C.B.M. approved, non PCB. If

K.O. is within 3" of ballast, use wire suitable for at least 90°.

Labels: I.B.E.W./UL and C-UL.

SLB Surface:

Lens Frame

Surface

Fluorescent

Body Style:

Surface Box

Fixture

Width

Ceiling Type:

S = Surface

Lens

Frame:

FS = Flush full-

size steel

frame

RA = Regressed

ﬂush full-

size

aluminum

frame

Lamp

Quantity:

2 = 2 Lamp

Lamp/Fixture

Length:

32 = T8

34 = T12

(Nominal 48")

Voltage:

120 or 277

Ballast Type:

1 & 2 Lamp Mag. T12 LE

<20THD<10THD

1 & 2 Lamp Elec. T8 SO* HI*

LOL Dimming T8 PS*–

*Instant Start Standard

Other dimming options. Consult factory.

Options:

Add appropriate

sufﬁx to catalog

no, ie: (GLR)

Lens

Shielding Type:

VA = Pattern 12

lens, .095"

nominal pris-

matic lens

(standard).

see options

and consult

factory.

SLB2SFSVA232120SO

coefﬁcients of utilization — zonal cavity method

RF 20 20 20

RC 80 50 30

RW 70 50 30 50 30 10 50 30 10

1626058 565554 545352

2585451 514846 494745

3534845 464340 454240

4494439 423836 403735

5463935 373431 363331

6423631 343027 333027

7393228 312724 302724

8362925 282421 272421

9332622 252119 252119

10 31 24 20 23 19 17 23 19 17

room cavity ratio

2850
