Lightolier STEM KIT Manuale utente

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

LIGHTOLIER a GENLYTE company.

631 Airport Road, Fall River, MA 02720

INSTRUCTION SHEET NO.

IS:FACSA36

0697 Page 1 of 2

INSTALLATION OF STEM KIT TO CALCULITE®COMPACT FLUORESCENT CYLINDER.

STEM KITS ARE SUITABLE FOR DAMP OR DRY LOCATIONS.

A. TO INSTALL STEM KIT ON CEILING

NOTE: STEM may be shortened by cutting STEM to desired

length. This must be done before hanging. Detach STEM from

STEM KIT by loosening SET SCREW from BALL SWIVEL. Be

sure that LEAD WIRES are completely out of STEM. Cut STEM,

then drill 1/8” diameter hole through the STEM 3/16” from

end. Be certain to deburr after cutting or slotting. (Fig. 1) (A

slot made with a file or hacksaw will also work.) Reassemble

STEM and BALL SWIVEL.

1. Bring SUPPLY LEAD WIRES from the OUTLET BOX through

the center hole of the MOUNTING STRAP. For sloped ceil-

ings, position opening in MOUNTING STRAP facing upward,

then thread SCREWS through MOUNTING STRAP to OUTLET

BOX. (Fig. 2 &3)

2. Slide CANOPY down STEM to rest on STEM JOINT. (Fig. 3)

3. Hook BALL SWIVEL on MOUNTING STRAP. Make sure

GROOVE in BALL SWIVEL aligns with TAB in MOUNTING

STRAP. (Fig. 4)

4. Slide SAFETY CLIP to MOUNTING STRAP and tighten

SCREW. (Fig. 4)

5. Make electrical connections: connect FIXTURE GROUND to

the ELECTRICAL SYSTEM GROUND. WHITE FIXTURE LEAD

or LEAD WITH TRACER MARK to WHITE SUPPLY WIRE.

BLACK FIXTURE LEAD or FIXTURE LEAD WITHOUT TRACER

MARK to BLACK SUPPLY LEAD, with WIRE NUTS (provided).

Push all splice connections into OUTLET BOX.

6. Align TABS in CANOPY with notches in MOUNTING STRAP.

Slide CANOPY up over MOUNTING STRAP and push up

against ceiling. (Fig. 3)

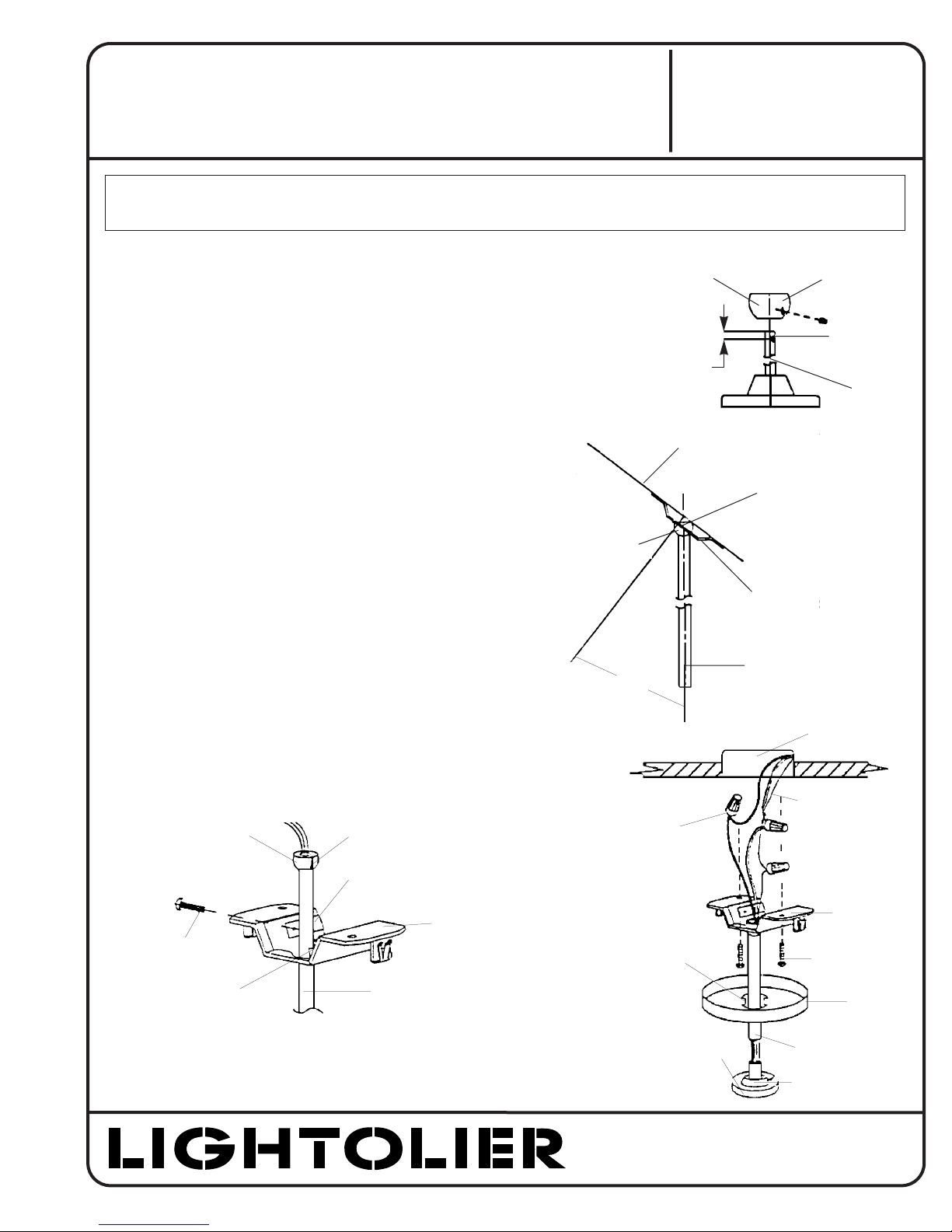

BALL SWIVEL

1/8” DIA.

SET SCREW

3/16”

Fig. 1 STEM

38°

CEILING LINE

BALL ALIGN-

MOUNTING STRAP

STEM

OPENING

Fig. 2

Fig. 3

OUTLET BOX

(BY OTHERS)

SUPPLY LEAD

MOUNTING

STRAP

MOUNTING

CANOP

STEM

STEM JOINT

ADAPTER PLATE

TABS

WIRE NUTS

Fig. 4

BALL SWIV- GROOVE

SAFETY CLIP

MOUNTING

STRAP

STEM

TAB

SCREW

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

LIGHTOLIER a GENLYTE company.

631 Airport Road, Fall River, MA 02720

INSTRUCTION SHEET NO.

IS:FACSA36

0697 Page 2 of 2

B. TO ATTACH FIXTURE TO STEM

1. Attach (2) SPRING CLIPS to FIXTURE HOUSING by sliding

SPRING CLIPS onto (2) raised pockets on top of FIXTURE

HOUSING. (Fig. 5)

2. Make electrical connections: connect STEM KIT FIXTURE

GROUND to HOUSING FIXTURE GROUND. STEM KIT

FIXTURE WHITE LEAD to HOUSING FIXTURE WHITE LEAD.

STEM KIT FIXTURE BLACK LEAD to HOUSING FIXTURE

BLACK LEAD. Use WIRE NUTS (provided).

3. Align (2) holes in COVER with (2) SPRING CLIPS secured

on top of FIXTURE HOUSING. (Fig. 6) Assemble FIXTURE

HOUSING to STEM KIT using (2) SCREWS (provided).

SPRING CLIP

RAISED POCK-

SCREWS

(2) PROVIDED

COVER

WIRE NUT

(3) PROVIDED

SPRING

CLIPS

(PROVIDED)

FIXTURE

HOUSING

Fig. 5

Fig. 6
