ProSpec™Track Lighting 26230W

Page 1 of 2 Wall Wash Ring PAR30

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lighto ier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • ( 08) 679-8131 • Fax ( 08) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Track attachment fitting: Die-cast aluminum with separate mechanical

and electrical functions. Fitting cannot be engaged or disengaged while fix-

ture is powered. Polarity is not a concern with ProSpec track because of its

symmetrical positioning of circuits within the track, adapters are reversed to

access one or the other circuit.

2. Stem: /8" O.D. .049" wall, stainless steel.

3. Horizonta Locking feature: Machined knob mechanisms permit the lock-

ing of horizontal aiming position. Adjustment range is: horizontal 0-3 0°.

Indicator guide with 4 ° intervals allows precise fixture aiming.

4. Vertica Locking feature: Machined knob mechanisms permit the locking

of vertical aiming position. Adjustment range is: vertical 0° (nadir) - 90°.

Indicator guide with 1 ° intervals allows precise fixture aiming

5. Lampho der: Porcelain, medium base, nickel plated screw shell, #18 ga.

braided SF-1 leads.

6. Housing: 20 ga. (.036) steel.

7. Lamp and accessory support: .032 steel, flared for easy entry of reflector

assembly, matte black finish.

8. Kick ref ector assemb y: Holds one accessory behind the spread lens;

example: color filter, UV filter, Heat filter. Assembly is removable from front

using a twist and lock motion.

9. Ref ector: Embossed texture anodized aluminum; reflects light towards

upper portion of wall and ceiling line.

10. Lever: Energizes fixture by 90° rotation.

11. C amping tabs: Expands or releases gripper springs from track ledge; grip-

per springs hold attachment fitting securely within track.

Finish

All painted finishes are powder coated baked enamel.

Ordering Information

Cata og No. Finishes Mountings Lamps

26230W WH Matte White ProSpec™Track System PAR30 7 W Max. (Short Neck)

26230W BK Matte Black

Options & Accessories

Accessories: 3 3/4" dia. series. Filters, lenses, screens and louvers.

Holds one accessory behind the spread lens. Order accessories separately

E ectrica

Electrical components: Polycarbonate moldings.

Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U"

shaped track conductors.

Labe s

UL; I.B.E.W.

4-7/8"

11-5/8"

ProSpec Track System

7-7/8"

9-1/4"

7-1/4"

Pivot

ProSpec™Track Lighting 26230W

Page 2 of 2 Wall Wash Ring PAR30

Lighto ier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • ( 08) 679-8131 • Fax ( 08) 674-4710

We reserve the right to change details of design, materials and finish.

1' 14 8 15

2'281328

3'362136

4' 31 21 31

5' 28 14 28

6'13913

7' 9 7 9

8' 7 5 7

9'545

1' 8 4 8

2' 19 18 19

3' 36 17 37

4' 38 15 38

5' 18 18 18

6' 11 7 11

7' 7 5 7

8' 4 3 4

9' 3 2 3

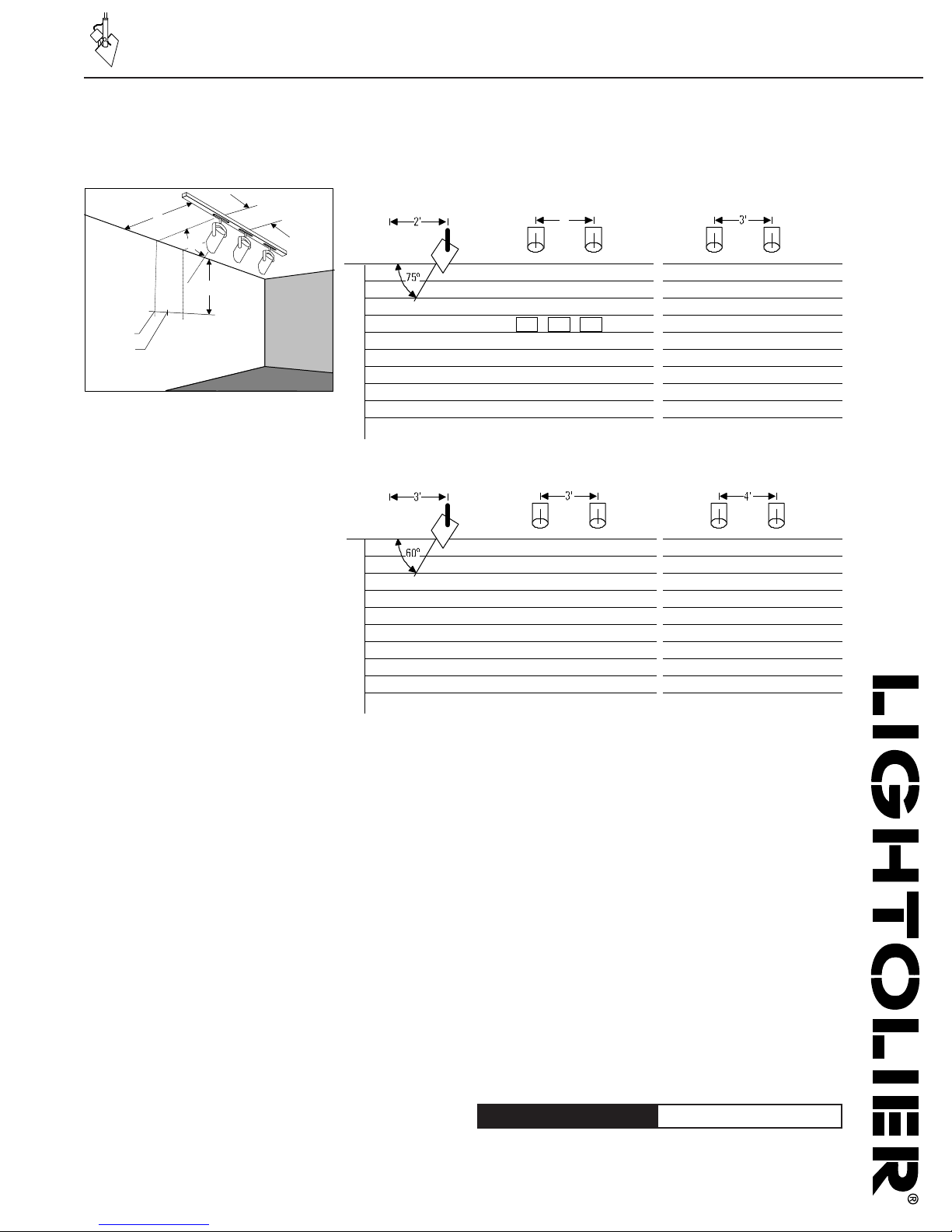

Lighting Data

FOOTCANDLES ON WALL: Multiple Units 75W PAR 30 FL

EXAMPLE: With track located 2' from wall and

multiple units spaced 2' on center and aimed

75∫from horizontal, the illumination on wall 3'

from ceiling will be 36 f.c. beneath units and

21 f.c. between units.

2"2"

36 f.c.

21 f.c.

75°

Track 2' from Wall-- 2' and 3' On Center

Track Dist.

from Wall

Track 3' from Wall-- 3' and 4' On Center

1' 7 2 7

2' 18 6 18

3' 34 11 34

4' 27 18 27

5' 16 7 16

6' 18 5 18

7' 6 3 6

8' 4 2 4

9' 2 2 2

Footcandles are average and rounded off and are based on

a minimum of five units.

For 50W PAR 30 FL, multiply footcandles by 0.55.

Distance From Ceiling in Feet

Track Dist.

from Wall

Distance From Ceiling in Feet

1' 12 4 12

2'18718

3'311231

4' 25 12 25

5' 16 9 16

6'11711

7' 7 5 7

8' 5 3 5

9'434
