Architectural Decorative Soli 48024ALU

Page 1 of 2 ADA Wall Mounted, 2 Light T-5

Features

1. Lamp Enclosure: (2) Extruded aluminum. See above for finish.

2. End Cap: (2) Die cast aluminum. See above for finish.

3. Housing: Extruded aluminum. See above for finish.

4. Cover: (2) Die cast aluminum. Used to enclose 4" octagonal junction box.

5. Mounting Plate: Extruded aluminum provided with (6) 7/8" diameter knock-

outs along it's length for direct conduit connections.

Lamping (by others)

Linear Fluorescent: 28W T5 or 54W T5 HO, Mini Bipin

Electrical

Lampholders: G5 (Mini-Bipin) base with rotor for securing lamp. cULus Listed.

Ballast: Electronic, HPF, Universal voltage 120V-277V.

28 Watt 54 Watt

Voltage 120 277 120 277

Total Input Watts 64 63 120 117

Max. Line Current (Amps) 0.55 0.23 1.0 0.43

Ballast Factor 1.03 1.03 1.0 1.0

Min. Starting Temp: 0°F/-18°C

THD<10%

Options

Dimming: (Voltage Specific/54W HO lamps)

Add MX1 suffix code (for 120V) to Cat. No.

Add MX2 suffix code (for 277V) to Cat. No.

example: 48024AL54MX1

Emergency: Integral Bodine LP550 emergency battery pack, test switch and

light, add E suffix code to Cat. No.

DALI: Digital Dimming System ballast 120/277V. Add DA suffix code to Cat. No.

Labels

cULus Listed. Suitable for Damp Locations

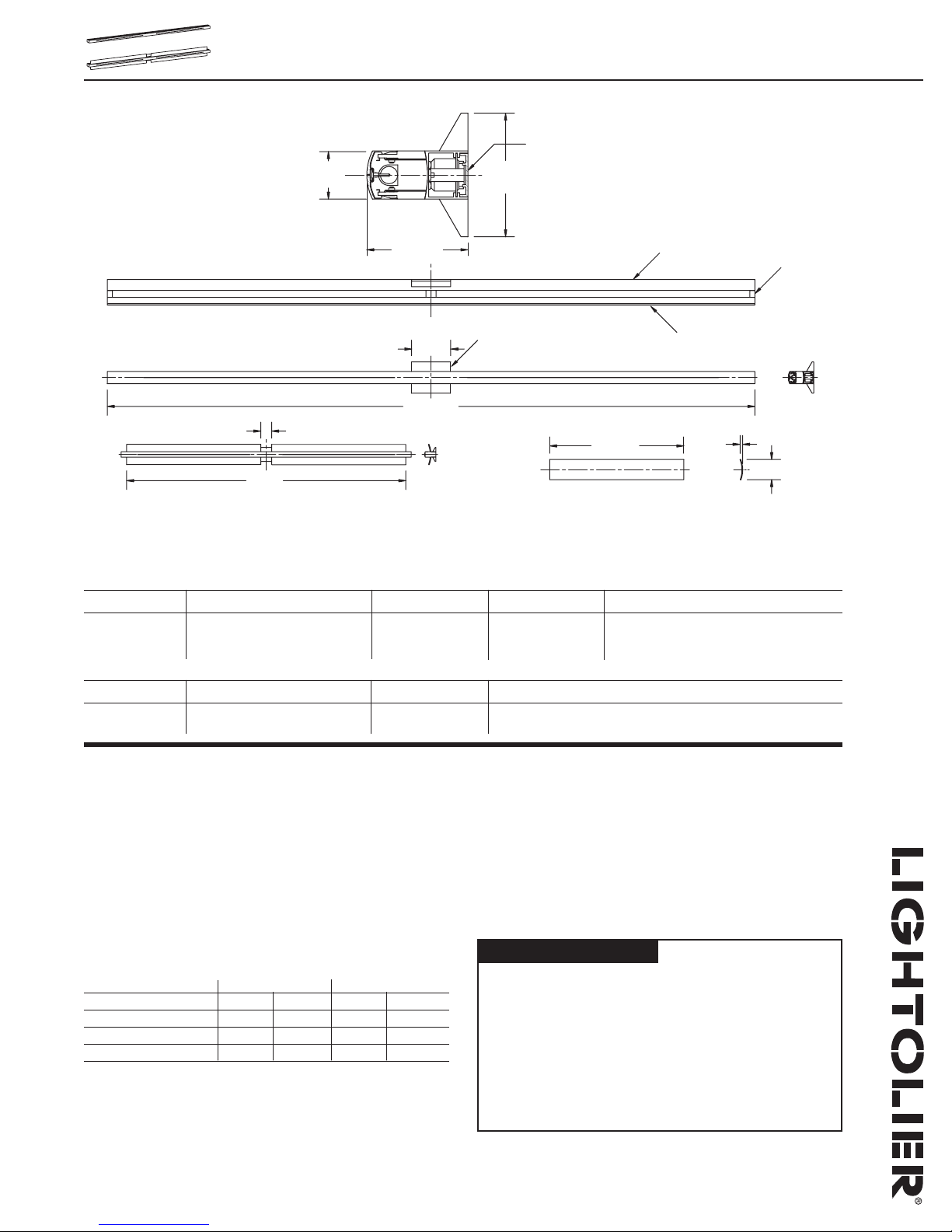

Luminaire Shown With

40876 or 40916 Diffusers

(2x) 40876 Glass Diffuser

(2x) 40916 Acrylic Diffuser

See Detail

Above

Note: Luminaire can be ordered with or without diffuser shield. Order each separately.

4 1/2"

(114mm)

1 3/4"

(44.5mm)

3 11/16"

(94mm)

5 5/8"

(143mm)

92 7/8"

(2359mm)

3 1/2" (89mm)

89 3/8"

(2270mm)

42 15/16"

(1091mm) 7/8"

(22mm)

6 1/2" (165mm)

Fixture Ordering Information

Catalog No. Finish Wattage Voltage Lamping

48024ALU Metallic Aluminum Powder Coated 2 x 28W 120/277V T-5, Mini-Bipin

48024AL54U Metallic Aluminum Powder Coated 2 x 54W 120/277V T-5 HO, Mini-Bipin

HO denotes High Output

Diffuser Ordering Information (Order diffuser separately)

Catalog No. Description Dimensions Finish

40876 Curved Glass Diffuser (3/16" Thick) 6.5" W x 42 15/16" L Etched Outside/ White Ceramic coated inside. Polished edges.

40916 Curved Acrylic Diffuser (3/16" Thick) 6.5" W x 42 15/16" L Translucent white Acrylic. Textured both sides.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Architectural Decorative Soli 48024ALU

Page 2 of 2 ADA Wall Mounted, 2 Light T-5

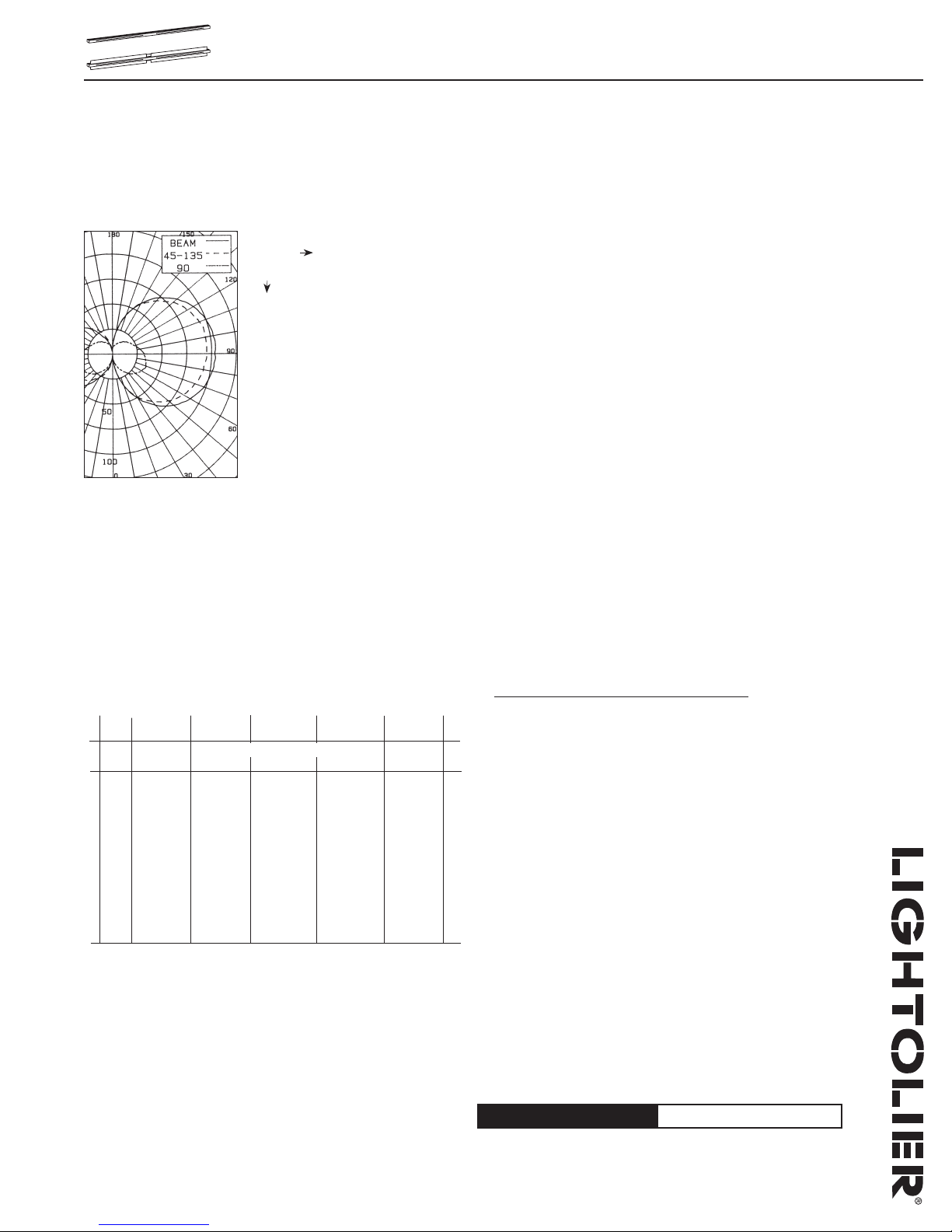

Tested according to IES procedures.

Test distance exceeds five times the greatest luminous opening of luminaire.

CANDLEPOWER

ZONE 90 67.5 45 22.5 Beam

DEG.

CANDELAS

0 2 2 2 2 2

5 5 4 5 6 6

15 10 13 24 27 25

25 16 30 42 45 43

35 22 41 56 59 59

45 28 52 68 70 74

55 32 60 78 80 85

65 35 67 85 87 94

75 35 72 91 92 100

85 33 75 94 95 103

95 30 77 95 97 104

105 26 77 95 96 102

115 22 74 90 92 97

125 20 68 84 85 90

135 17 61 74 76 79

145 14 50 63 66 66

155 12 41 50 53 50

165 9 25 33 35 33

175 7 11 14 15 15

180 6 6 6 6 6

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-30 18 0.7 2.87

0-40 43 1.6 6.61

0-60 128 4.9 19.69

0-90 323 12.4 49.44

40-90 279 10.7 42.83

60-90 194 7.4 29.75

90-180 330 12.7 50.56

0-180 653 25.0 100.00

** EFFICIENCY = 25.0% **

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

0 27 27 27 25 25 25 21 21 21 17 17 17 14 14 14 12

1 21 20 19 20 18 17 16 15 14 13 12 12 10 10 9 8

2 18 16 14 16 15 13 13 12 11 11 10 9 8 7 7 5

3 15 13 11 14 12 10 11 10 8 9 8 7 7 6 6 4

4 13 11 9 12 10 8 10 8 7 8 6 5 6 5 4 3

5 12 9 7 11 8 7 9 7 6 7 5 4 5 4 3 2

6 10 8 6 9 7 6 8 6 5 6 5 4 5 3 3 2

7 9 7 5 8 6 5 7 5 4 5 4 3 4 3 2 2

8 8 6 5 8 6 4 6 5 3 5 4 3 4 3 2 1

9 7 5 4 7 5 4 6 4 3 4 3 2 3 2 2 1

10 7 5 3 6 4 3 5 4 3 4 3 2 3 2 1 1

DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

% WALL REFLECTION

CERTIFIED TEST REPORT NO. 2221FR

COMPUTED BY LSI PROGRAM **TEST-LITE**

LIGHTOLIER ARCHITECTURAL DECORATIVE LUMINAIRE SOLI

CAT. NO. 48023ALU / 40876, ETCHED GLASS SHIELD

1-28W SYLVANIA T-5 LAMP. LUMEN RATING = 2610 LMS.

UNIVERSAL BALLAST #B228PUNVC

Prepared For:

Lightolier

Fall River, MA

Date: May 11, 2003

Note:

Data shown is for one 4 foot Soli section only

For 54 watt lamp, multiply calculated foot-

candle values by 1.7

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.
