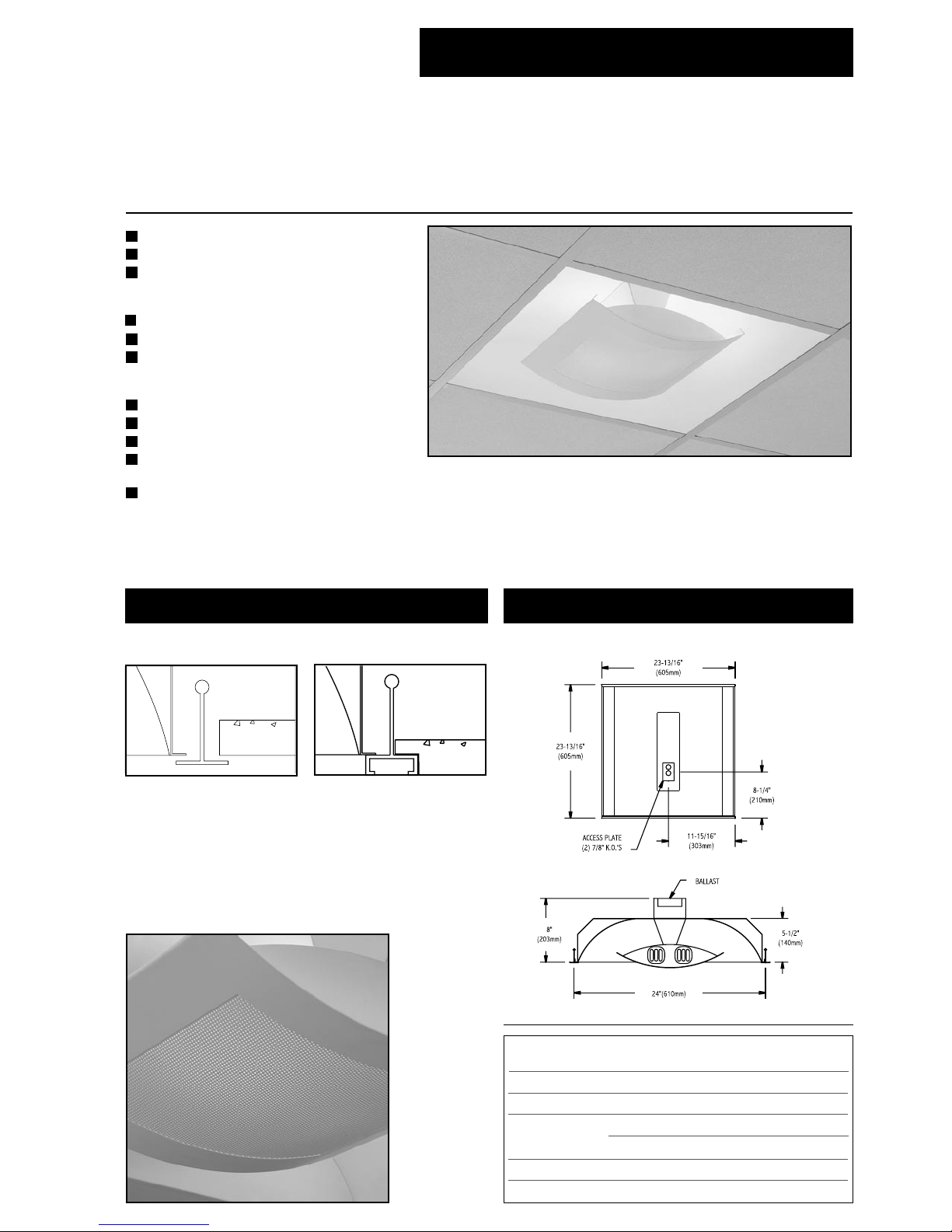

Lightolier QVS2GPASQ2TT Manuale utente

ALTER WINDOWS

2’ X 2’ RECESSED FLUORESCENT

2 LAMP, TTT TRIPLE TUBE, 8” DEEP

SOLID WHITE PERIMETER LAMP SHIELD /

WHITE MESH CENTER STATIC

Efficiency 46.7%.

Utilizes two triple tube (TTT) lamps.

Alter soft white film inside of microperforated

lamp shield conceals lamp image and provides

balance between reflected and direct light.

Choice of two lamp shields.

95% reflective Alter soft white paint finish.

Multi-texture lamp shield provides a gradation

of light effect that creates visual interest and

architectural detail.

Unique symmetrical design elements.

Fits standard T-grid, exposed slot-T-grid.

Swing-down design for easy relamping.

No visible welding, screws, latches,

springs, holes, rivets or plastic supports.

Easy access to ballast through lamp

compartment.

MOUNTING METHODS/FEATURES DIMENSIONS

FIXTURE TYPE

JOB INFORMATION:

VOLTS

L10-46

QVS2GPASQ2TT

Ceiling compatibility

Suited to standard exposed T-grid

ceilings Suited to standard exposed Slot T-grid ceilings

2 x 32W

Genlyte Thomas Company

Multi-Texture Lamp Shield

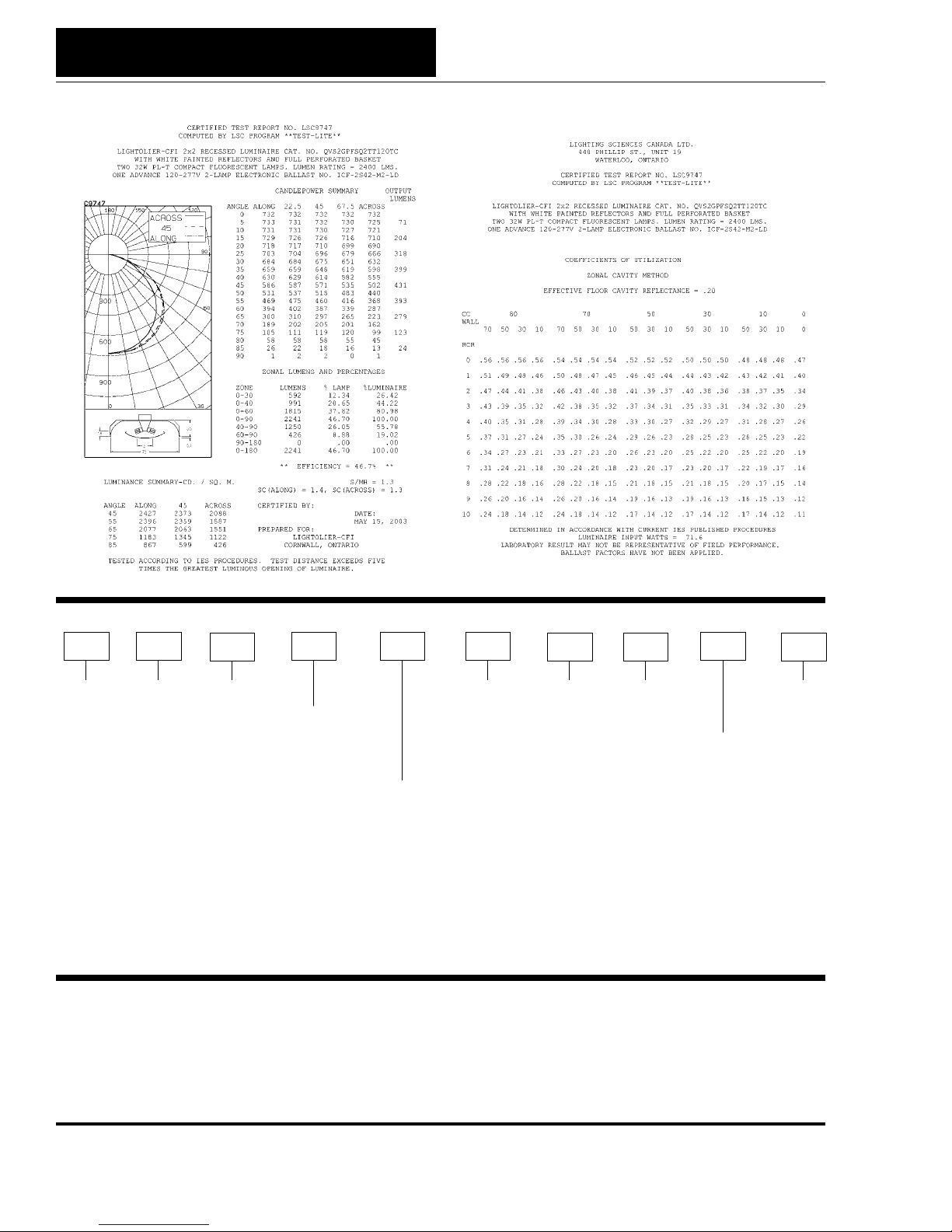

ORDERING INFORMATION Explanation of Catalogue Number Example: QVS2GPASQ2TT120TC

SPECIFICATIONS

MATERIALS: One piece chassis constructed from die formed 20 gauge

cold rolled steel. Reflectors - 95% reflectance baked white acrylic matte

paint finish. Soft white acrylic film on inside of lamp shield conceals lamp

image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic

matte high reflectance paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast (Bi-tube

type). If K.Os are within 3” of ballast use wire suitable for at least 90C.

LABELS: Listed by CSA, UL

QVS2GPASQ2TT

QVS

FAMILY

QVS: Quality

Visual Louver

LUMINAIRE

WIDTH

24"

CEILING

TYPE

G=Grid

LAMP

SHIELD

PC = solid white

perimeter lamp

shield / white mesh

inner area with solid

center

PA = solid white

perimeter lamp

shield / white mesh

center

LAMP

QUANTITY

LAMP

TT = TTT Triple

Tube

120

VOLTAGE

120,277

347

OPTIONS

BALLAST

TC = Electronic 2 x 32W TTT 4 pin

TD = Electronic 2 x 42W TTT 4 pin

PD = Electronic Dimming

2 x 42W TTT 4 pin*

* Not available in 347V.

SHIELD

DETAILING

SQ= Square

Windows basket

We reserve the right to change, materials and finish in any way that will not alter installed appearance or reduce function and performance.

ALTER WINDOW

2’ X 2’ RECESSED FLUORESCENT

SQ 2 TT

Genlyte Thomas Company

631 Airport Road, Fall River, MA 02720 - Tel. (508) 679-8131

C.F.I. Division of Canlyte, Inc.

525 Education Road, Cornwall, Ontario

Canada K6H 6C7 - (613) 938-6221
