ProSpec™Track Lighting 26036

Page 1 of 2 Low Voltage Cylinder PAR36/AR111

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Track attachment fitting: die-cast aluminum with separate mechanical and

electrical functions. Fitting cannot be engaged or disengaged while fixture is

powered. Polarity is not a concern with ProSpec track because of its sym-

metrical positioning of circuits within the track, adapters are reversed to

access one or the other circuits.

2. Stem: 5/8" O.D. .049" wall, stainless steel.

3. Locking feature: die-cast aluminum mechanism permits the locking of the

horizontal and vertical positions simultaneously by clamping jaws. When the

stainless steel braking lever is released, the horizontal and vertical functions

remain fully tensioned to hold aiming positions. Adjustment range is: hori-

zontal 0-340°; vertical 0° (NADIR) -90°.

4. Housing: 20 ga. (.036") steel, hemmed front edge for stiffness, prevents

chipping and enhances appearance.

5. Lamp Rotation stop/lock: 180° lamp rotation with locking knob.

6. Lamp and accessory support: .032 steel, flared for easy entry of cartridge

matte black finish.

7. Lens retaining ring: .125" spring steel.

8. Accessory cartridge: formed aluminum, installs and removes with a twist

and lock action. Holds three accessories max. and cross blade baffle. AR111

50W holds two accessories, clear glass guard and crossblade baffle.

9. Cross blade baffle: .070 extruded aluminum. 1" deep, removable.

10. Lever: energizes fixture electrically by 90° rotation.

11. Clamping tabs: expands or releases gripper springs from track ledge; grip-

per springs hold attachment fitting securely within track.

12. Transformer: 75W magnetic transformer 200° C insulation system 120V pri-

mary, 11.5V/5.5 dual tap secondary.

13. Switch: two position slide for 5.5V or 11.5V operation.

14. Tempered Clear Glass Guard: (included) Required when using AR111

Lamp.

Finish

All painted finishes are powder coated baked enamel.

Ordering Information

Catalog No. Finishes Mountings Lamps

26036M WH Matte White ProSpec™Track System PAR36 (5.5V and 12V); 75W Max.

26036M BK Matte Black AR111; 75W Max.

50W Max. with Accessories

Options & Accessories

Accessories: 4 3/4" dia. series. Filters, lenses, screens and louvers.

50W max.when using accessories.

Electrical

Electrical components: Polycarbonate moldings.

Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U"

shaped track conductors.

Dimming

Dimming controls: use only dimmers specifically designed for use with

magnetic transformers, like Lightolier Onset®, Sunrise® series LV or VA

dimmers, or any Lightolier Controls dimming system. Low voltage fixtures

may produce audible sound when used with dimmers, which may be

objectionable in acoustically critical areas.

Labels

UL, I.B.E.W.

Fixture MOL = 11-1/2"

8 1/8"

34567 8 9

10 11

2 1/4"

Stem

5 3/4" Dia.

Accessories

Ordered

Separately

4 3/8"

ProSpec Track System

3 1/4"

6 5/8"

ProSpec™Track Lighting 26036

Page 2 of 2 Low Voltage Cylinder PAR36/AR111

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

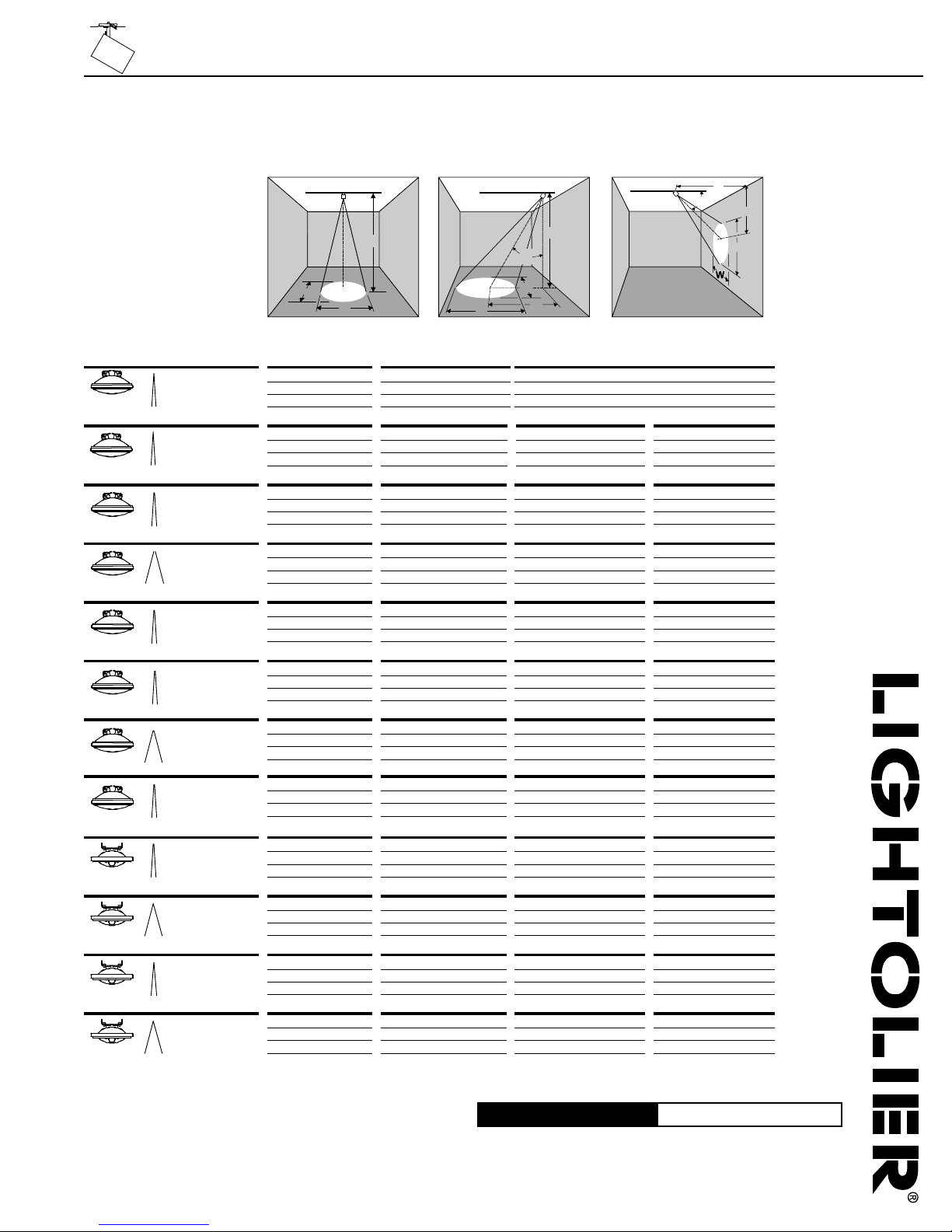

Lighting Data

LBeam length

WBeam width

CDistance to center of beam

DDistance

AAiming angle

FC Footcandles

Land W are the outer points where the

candlepower drops to 50% of the

maximum. FC are the initial

footcandles at the center of the beam.

FC L

Aiming Angle: 0°30°45°or 60°Horizontal 30°45°or 60°Vertical

LAMP 0°AIMING ANGLE A=30°AIMING ANGLE A=45°AIMING ANGLE A=60°AIMING ANGLE

DFCL W D C FCL W D CFCL W D CFCL W

Beam Spread

50% Max CP

Beam Center

C.P. Candelas

Rated

Life-Hrs

4' 6.9' 23.4 0.7' 0.4'

6' 10.4' 104 1.0' 0.6'

8' 13.9' 59 1.4' 0.8'

10' 17.3' 38 1.7' 9.0'

6' 6.0' 295 0.5' 0.4'

9' 9.0' 131 0.8' 0.7'

12' 12.0' 74 1.0' 0.9'

15' 16.0' 47 1.2' 1.1'

8' 4.8' 304 0.5' 0.5'

12' 5.9' 135 0.7' 0.7'

16' 9.2' 76 0.9' 1.0'

20' 11.5' 49 1.2' 1.2'

10' 300 0.4' 0.5'

15' 133 0.7' 0.8'

20' 75 0.9' 1.0'

25' 48 1.1' 1.3'

30,000 1000

25W PAR36

(5.5V) 2.5°x 3°

25000 4000

35W PAR36

VNSP (T-H) 5°

10' 250 0.9' 0.9'

15' 111 1.3' 1.3'

20' 63 1.7' 1.7'

25' 40 2.2' 2.2'

8' 4.6' 254 0.9' 0.8'

12' 6.9' 113 1.4' 1.2'

16' 9.2' 63 1.9' 1.6'

20' 11.5' 41 2.3' 2.0'

6' 6.0' 246 1.0' 0.7'

9' 9.0' 109 1.6' 1.1'

12' 12.0' 61 2.1' 1.5'

15' 15.0' 39 2.6' 1.9'

4' 6.9' 195 1.4' 0.7'

6' 10.4' 87 2.1' 1.0'

8' 13.9' 49 2.8' 1.4'

10' 17.3' 31 3.5' 1.7'

900 4000

35W PAR36

WFL (T-H) 30°

8000 4000

35W PAR36

NSP (T-H) 8°

7' 163 1.0' 1.0'

10' 80 1.4' 1.4'

13' 47 1.8' 1.8'

16' 31 2.2' 2.2'

4' 4.0' 177 1.1' 0.8'

6' 6.0' 79 1.7' 1.2'

8' 8.0' 44 2.2' 1.6'

10' 10.0' 28 2.8' 2.0'

2' 3.5' 250 1.1' 0.6'

3' 5.2' 111 1.7' 0.8'

4' 6.9' 63 2.3' 1.1'

5' 8.7' 40 2.8' 1.4'

3' 100 1.6' 1.6'

5' 36 2.7' 2.7'

7' 18 3.8' 3.8'

9' 11 4.8' 4.8'

3' 1.7' 65 2.2' 1.9'

5' 2.9' 23 3.7' 3.1'

7' 4.0' 12 5.1' 4.3'

9' 5.2' 7 6.6' 5.6'

2' 2.0' 80 2.3' 1.5'

3' 3.0' 35 3.5' 2.3'

4' 4.0' 20 4.6' 3.0'

5' 5.0' 13 5.8' 3.8'

1' 1.7' 113 2.7' 1.1'

2' 3.5 28 5.6' 2.1'

3' 5.2' 13 8.2' 3.2'

4' 6.9' 7 10.9' 4.3'

6' 3.5' 144 1.1' 1.0'

9' 5.2' 64 1.7' 1.5'

12' 6.9' 36 2.2' 1.9'

15' 8.7' 23 2.8' 2.4'

40000 4000

50W PAR36

VNSP (T-H) 5°

10' 400 0.9' 0.9'

15' 178 1.3' 1.3'

20' 100 1.7' 1.7'

25' 64 2.2' 2.2'

8' 4.6' 406 0.9' 0.8'

12' 6.9' 180 1.4' 1.2'

16' 9.2' 101 1.9' 1.6'

20' 11.5' 65 2.3' 2.0'

6' 6.0' 393 1.0' 0.7'

9' 9.0' 175 1.6' 1.1'

12' 13.0' 98 2.1' 1.5'

15' 15.0' 63 2.6' 1.9'

4' 6.9' 313 1.4' 0.7'

6' 10.4' 139 2.1' 1.0'

8' 13.9' 78 2.8' 1.4'

10' 17.3' 50 3.5' 1.7'

(by GE )

11000 4000

50W PAR36

NSP (T-H) 8°

8' 172 1.1' 1.1'

12' 76 1.7' 1.7'

16' 43 2.2' 2.2'

20' 28 2.8' 2.8'

7' 4.0' 146 1.3' 1.1'

10' 5.8' 71 1.9' 1.6'

13' 7.5' 42 2.4' 2.1'

16' 9.2' 28 3.0' 2.6'

5' 5.0' 156 1.4' 1.0'

7' 7.0' 79 2.0' 1.4'

9' 9.0' 48 2.5' 1.8'

11' 11.0' 32 3.1' 2.2'

3' 5.2' 153 1.7' 0.8'

4' 6.9' 86 2.3' 1.1'

5' 8.7' 55 2.8' 1.4'

6' 10.4' 38 3.4' 1.7'

1300 4000

50W PAR36

WFL (T-H) 30°

3' 144 1.6' 1.6'

5' 52 2.7' 2.7'

7' 27 3.8' 3.8'

9' 16 4.8' 4.8'

3' 1.7' 94 2.2' 1.9'

5' 2.9' 34 3.7' 3.1'

7' 4.0' 17 5.1' 4.3'

9' 5.2' 10 6.6' 5.6'

2' 2.0' 115 2.3' 1.5'

3' 3.0' 51 3.5' 2.3'

4' 4.0' 29 4.6' 3.0'

5' 5.0' 18 5.8' 3.8'

1' 1.7' 163 2.7' 1.1'

2' 3.5' 41 5.5' 2.1'

3' 5.2' 18 8.2' 3.2'

4' 6.9' 10 10.9' 4.3'

31500 2000

75W PAR36

VNSP 4°x 7°

10' 315 0.7' 1.2'

15' 140 1.0' 1.8'

20' 79 1.4' 2.4'

25' 50 1.7' 3.1'

8' 4.6' 320 0.7' 1.1'

12' 6.9' 142 1.1' 1.7'

16' 9.2' 80 1.5' 2.3'

20' 11.5' 51 1.9' 2.8'

6' 6.0' 309 0.8' 1.0'

9' 9.0' 137 1.3' 1.6'

12' 12.0' 77 1.7' 2.1'

15' 15.0' 48 2.1' 2.6'

4' 6.9' 246 1.1' 1.0'

6' 10.4' 109 1.7' 1.5'

8' 13.9' 62 2.2' 2.0'

10' 17.3' 39 2.8' 2.4'

50000 2000

50W AR111

NSP (T-H) 5°

15' 222 1.3' 1.3'

20' 125 1.7' 1.7'

25' 80 2.2' 2.2'

30' 56 2.6' 2.6'

10' 5.8' 325 1.2' 1.0'

15' 8.7' 144 1.7' 1.5'

20' 11.5' 81 2.3' 2.0'

25' 14.4' 52 2.9' 2.5'

8' 8.0' 276 1.4' 1.0'

12' 12.0' 123 2.1' 1.5'

16' 16.0' 69 2.8' 2.0'

20' 20.0' 44 3.5' 2.5'

5' 8.7' 250 1.8' 0.9'

8' 13.9' 98 2.8' 1.4'

11' 19.1' 52 3.9' 1.9'

14' 24.2' 32 4.9' 2.4'

3000 2000

50W AR111

FL (T-H) 30°

6' 83 3.2' 3.2'

8' 47 4.3' 4.3'

10' 30 5.4' 5.4'

12' 21 6.4' 6.4'

5' 2.9' 78 3.7' 3.1'

7' 4.0' 40 5.1' 4.3'

9' 5.2' 24 6.6' 5.6'

11' 6.4' 16 8.1' 6.8'

3' 3.0' 118 3.5' 2.3'

4' 4.0' 42 5.8' 3.8'

5' 5.0' 22 8.1' 5.3'

6' 6.0' 13 10.4' 6.8'

2' 3.5' 94 5.5' 2.1'

3' 5.2' 42 8.2' 3.2'

4' 6.9' 23 10.9' 4.3'

5' 8.7' 15 13.7' 5.4'

25000 2000

75W AR111 SP

(T-H) 10°

10' 250 1.7' 1.7'

15' 111 2.6' 2.6'

20' 63 3.5' 3.5'

25' 40 4.4' 4.4'

8' 4.6' 254 1.9' 1.6'

12' 6.9' 113 2.8' 2.4'

16' 9.2' 63 3.7' 3.2'

20' 11.5' 41 4.7' 4.0'

6' 6.0' 246 2.1' 1.5'

9' 9.0' 109 3.2' 2.2'

12' 13.0' 61 4.2' 3.0'

15' 15.0' 39 5.3' 3.7'

4' 6.9' 195 2.9' 1.4'

6' 10.4' 87 4.3' 2.1'

8' 13.9' 49 5.7' 2.8'

10' 17.3' 31 7.2' 3.5'

4500 2000

75W AR111

FL (T-H) 30°

6' 125 3.2' 3.2'

8' 70 4.3' 4.3'

10' 45 5.4' 5.4'

12' 31 6.4' 6.4'

5' 2.9' 117 3.7' 3.1'

7' 4.0' 60 5.1' 4.3'

9' 5.2' 36 6.6' 5.6'

11' 6.4' 24 8.1' 6.8'

3' 3.0' 177 3.5' 2.3'

4' 4.0' 64 5.8' 3.8'

5' 5.0' 32 8.1' 5.3'

6' 6.0' 20 10.4' 6.8'

2' 3.5' 141 5.5' 2.1'

3' 5.2' 63 8.2' 3.2'

4' 6.9' 35 10.9' 4.3'

5' 8.7' 23 13.7' 5.4'

Job Information Type:

Indice

Altri manuali Lightolier Apparecchio di illuminazione

Lightolier

Lightolier Lytecaster 1071 Manuale utente

Lightolier

Lightolier Alter Dome QVC2GPFOS1FT Manuale utente

Lightolier

Lightolier 1102T series Istruzioni per l’uso

Lightolier

Lightolier Lytespan 9276 Manuale utente

Lightolier

Lightolier GUARDSMAN GV4WB332 Manuale utente

Lightolier

Lightolier Lytecel LCS6G20LW228 Manuale utente

Lightolier

Lightolier Calculite C6P38L Manuale utente

Lightolier

Lightolier Lytespan 8258WH Manuale utente

Lightolier

Lightolier Calculite ProSpec PA3P3810 Manuale utente

Lightolier

Lightolier Calculite ProSpec PB4P3075 Manuale utente

Lightolier

Lightolier KD SERIES HO Manuale utente

Lightolier

Lightolier Decorative Arco 4511 Manuale utente

Lightolier

Lightolier WA Series 232 Manuale utente

Lightolier

Lightolier Lytecaster 1035 Manuale utente

Lightolier

Lightolier Lytespan 8103 Manuale utente

Lightolier

Lightolier Calculite 7065AZ Manuale utente

Lightolier

Lightolier Lytecaster 1062LV Manuale utente

Lightolier

Lightolier Calculite ProSpec PB2T4 Manuale utente

Lightolier

Lightolier Calculite ProSpec PB3A1175 Manuale utente

Lightolier

Lightolier Lytecaster 1052LV Manuale utente

Lightolier

Lightolier Lytespan 9530 Manuale utente

Lightolier

Lightolier RADIANCE PENDANT FIXTURES Guida

Lightolier

Lightolier SLB1SFSVA232 Manuale utente

Lightolier

Lightolier Lytecaster 385X Manuale utente

Manuali Apparecchio di illuminazione popolari di altre marche

Emos

Emos CLASSIC ZY1431T Manuale utente

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuale utente

Hedler

Hedler C 12 silent Manuale utente

Blizzard Lighting

Blizzard Lighting Puck: CSI Manuale utente

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuale utente

Lightmaxx

Lightmaxx Shaft 5R Manuale utente

Triarch

Triarch 31083 Manuale utente

Philips

Philips 32614 Series Manuale utente

IKEA

IKEA TIVED Manuale utente

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuale utente

Martin

Martin MAC 250 Krypton Manuale utente

Cooper Lighting

Cooper Lighting Halo L3232E Manuale utente

Stageline

Stageline ODW-2410RGBW Manuale utente

Light Sky

Light Sky Tornado Series Manuale utente

ArtFox

ArtFox Beam 15R extreme Manuale utente

GLG

GLG multispot 330 Manuale utente

Home Accents Holiday

Home Accents Holiday TY052-1924-1 Manuale utente

SELF Electronics

SELF Electronics FLEX Manuale utente
