Lightolier Lytecaster 2045 Manuale utente

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytecaster®Recessed Downlighting 2045

Page 1 of 2 3 3/4" Aperture Deep Downlight Reflector Trim

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

Incandescent

Frame-In Kit Installation Type Lamping Height

2045 Specular Gold 2002P1 Non-IC 60W BT15 6"

2046 Specular Clear 2003R Non-IC Existing 6"

2046CD Clear Diffuse

2045/2003R

0™

Non-IC Remodeler

2045/2002P1

Standard Incandescent

Features

1. Deep Reflector: Hydroformed aluminum, .040 thick (18 ga.); specular clear

or gold finish; matte white trim, self flanged.

2. Frame-In Kit: (2002P1 standard frame shown). Other frames listed above

and shown on the right. See Frame-In Kit specification sheets for more

details.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

Lytecaster®Recessed Downlighting 2045

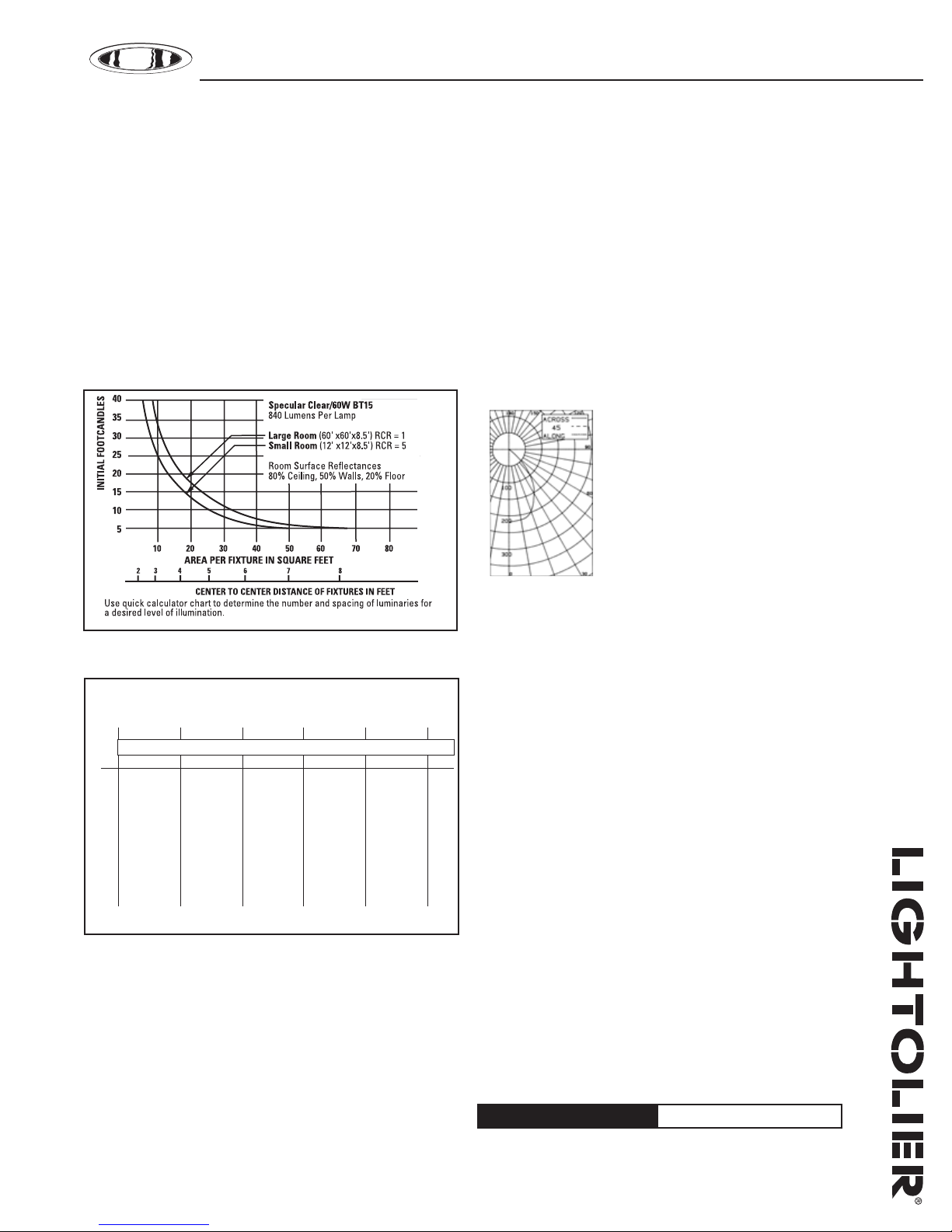

Page 2 of 2 3 3/4" Aperture Deep Downlight Reflector Trim

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

To convert lighting data for a lower wattage incandescent lamp of the same type, multiply the

footcandle (or candlepower) values by the ratio of the lumens of the two lamps.The coefficients of

utilization remain the same.

Candlepower Curve

Report 1267FR

Efficiency = 36.0%

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

.36

.34

.32

.30

.27

.25

.23

.21

.20

.18

.16

ROOM CAVITY RATIO

20% FLOOR CAVITY REFLECTANCE

DOWNLIGHT SPACING RATIO = 1.2

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10

0 .43 .43 .43 .42 .42 .42 .40 .40 .40 .38 .38 .38 .37 .37 .37

1 .40 .39 .39 .39 .39 .38 .38 .37 .37 .37 .36 .36 .35 .35 .35

2 .37 .36 .35 .37 .36 .35 .36 .35 .34 .35 .34 .33 .34 .33 .32

3 .35 .33 .32 .34 .33 .32 .33 .32 .31 .33 .32 .31 .32 .31 .30

4 .33 .31 .29 .32 .30 .29 .31 .30 .29 .31 .29 .28 .30 .29 .28

5 .30 .28 .27 .30 .28 .27 .29 .28 .26 .29 .27 .26 .28 .27 .26

6 .28 .26 .25 .28 .26 24 .27 .26 .24 .27 .25 .24 .26 .25 .24

7 .26 .24 .22 .26 .24 .22 .25 .24 .22 .25 .23 .22 .25 .23 .22

8 .24 .22 .21 .24 .22 .20 .24 .22 .20 .23 .22 .20 .23 .21 .20

9 .23 .20 .19 .22 .20 .19 .22 .20 .19 .22 .20 .19 .21 .20 .18

10 .21 .19 .17 .21 .19 .17 .20 .18 .17 .20 .18 .17 .20 .18 .17

% WALL REFLECTANCE

Single Unit 60W BT15

Ht. to Floor Footcandles Beam Dia.

4' 13 5'

6' 6 7'

8' 3 9'
