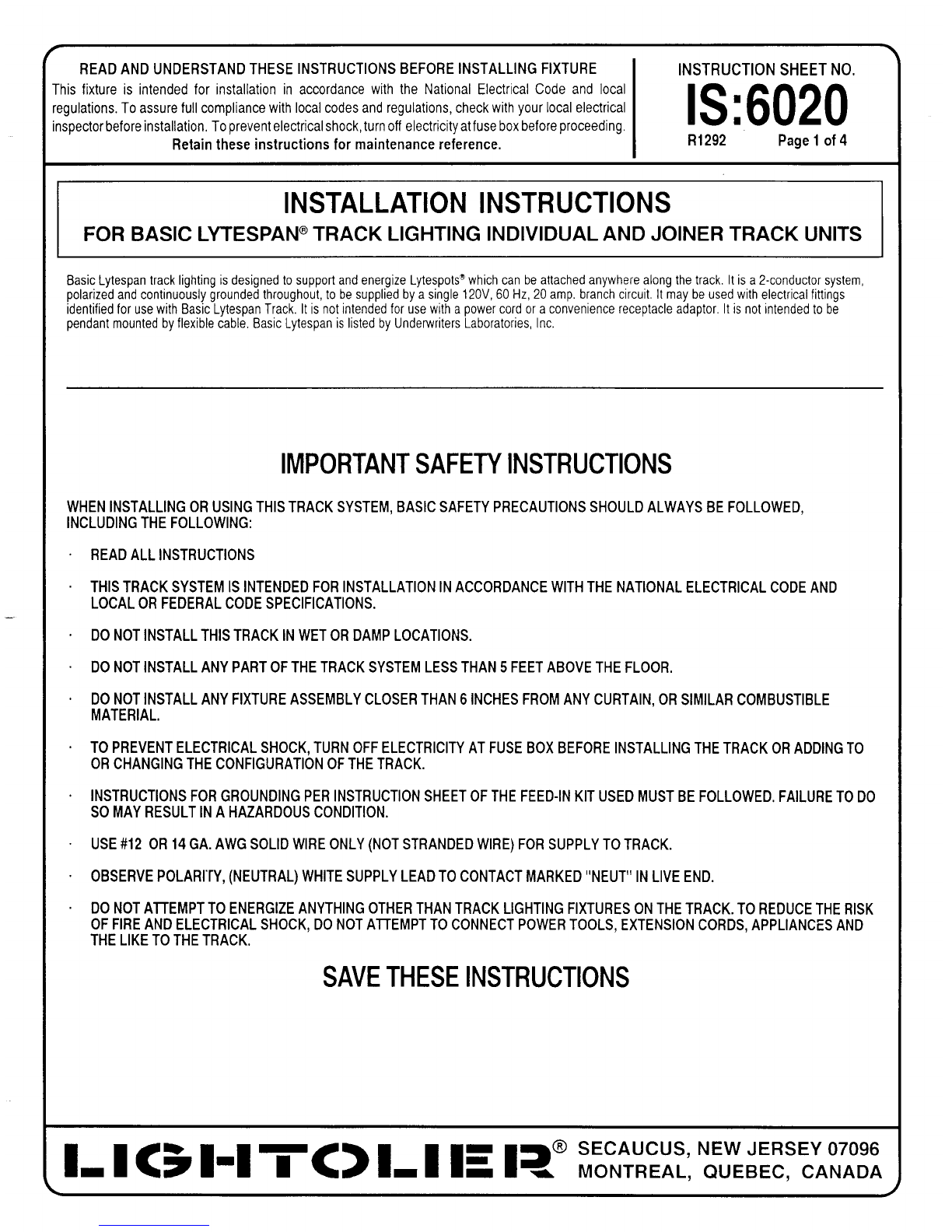

Lightolier Lytespan Track Lighting Manuale utente

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE INSTRUCTION SHEET NO,

This fixture is intended for installation in accordance with the National Electrical Code and local

regulations. To assure full compliance with local codes and regulations, check with your local electrical

Inspector before installation, To prevent electrical shock, turnoff electricity at fuse box before proceeding, IS:6020

Retain these instructions for maintenance reference. R1292 Page 1of 4

INSTALLATION INSTRUCTIONS

FOR BASIC LYTESPAN@TRACK LIGHTING INDIVIDUAL AND JOINER TRACK UNITS

Basic Lytespan track lighting is designed to support and energize LytespotsS which can be attached anywhere along the track. It is a2-conductor system,

polarized and continuously grounded throughout, to be supplied by asingle 120V, 60 Hz, 20 amp. branch circuit It maybe used with electrical fittings

identified for use with Basic Lytespan Track, It is not intended for use with apower cord or aconvenience receptacle adaptor. It is not intended to be

pendant mounted by flexible cable. Basic Lytespan is listed by Underwriters Laboratories, Inc.

IMPORTANT SAFETY INSTRUCTIONS

WHEN INSTALLING OR USING THIS TRACK SYSTEM, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED,

INCLUDING THE FOLLOWING:

~READ ALL INSTRUCTIONS

“THIS TRACK SYSTEM IS INTENDED FOR INSTALLATION IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE AND

LOCAL OR FEDERAL CODE SPECIFICATIONS.

.DO NOT INSTALL THIS TRACK IN WET OR DAMP LOCATIONS.

~DO NOT INSTALL ANY PART OF THE TRACK SYSTEM LESS THAN 5FEET ABOVE THE FLOOR,

oDO NOT INSTALL ANY FIXTURE ASSEMBLY CLOSER THAN 6INCHES FROM ANY CURTAIN, OR SIMILAR COMBUSTIBLE

MATERIAL.

‘TO PREVENT ELECTRICAL SHOCK, TURN OFF ELECTRICITY AT FUSE BOX BEFORE INSTALLING THE TRACK OR ADDING TO

OR CHANGING THE CONFIGURATION OF THE TRACK.

oINSTRUCTIONS FOR GROUNDING PER INSTRUCTION SHEET OF THE FEED-IN KIT USED MUST BE FOLLOWED, FAILURE TO DO

SO MAY RESULT IN AHAZARDOUS CONDITION.

~USE #12 OR 14 GA. AWG SOLID WIRE ONLY (NOT STRANDED WIRE) FOR SUPPLY TO TRACK.

~OBSERVE POLARITY, (NEUTRAL) WHITE SUPPLY LEAD TO CONTACT MARKED “NEUT” IN LIVE END.

“DO NOT AllEMPT TO ENERGIZE ANYTHING OTHER THAN TRACK LIGHTING FIXTURES ON THE TRACK. TO REDUCE THE RISK

OF FIRE AND ELECTRICAL SHOCK, DO NOT AllEMPT TO CONNECT POWER TOOLS, EXTENSION CORDS, APPLIANCES AND

THE LIKE TO THE TRACK.

SAVE THESE INSTRUCTIONS

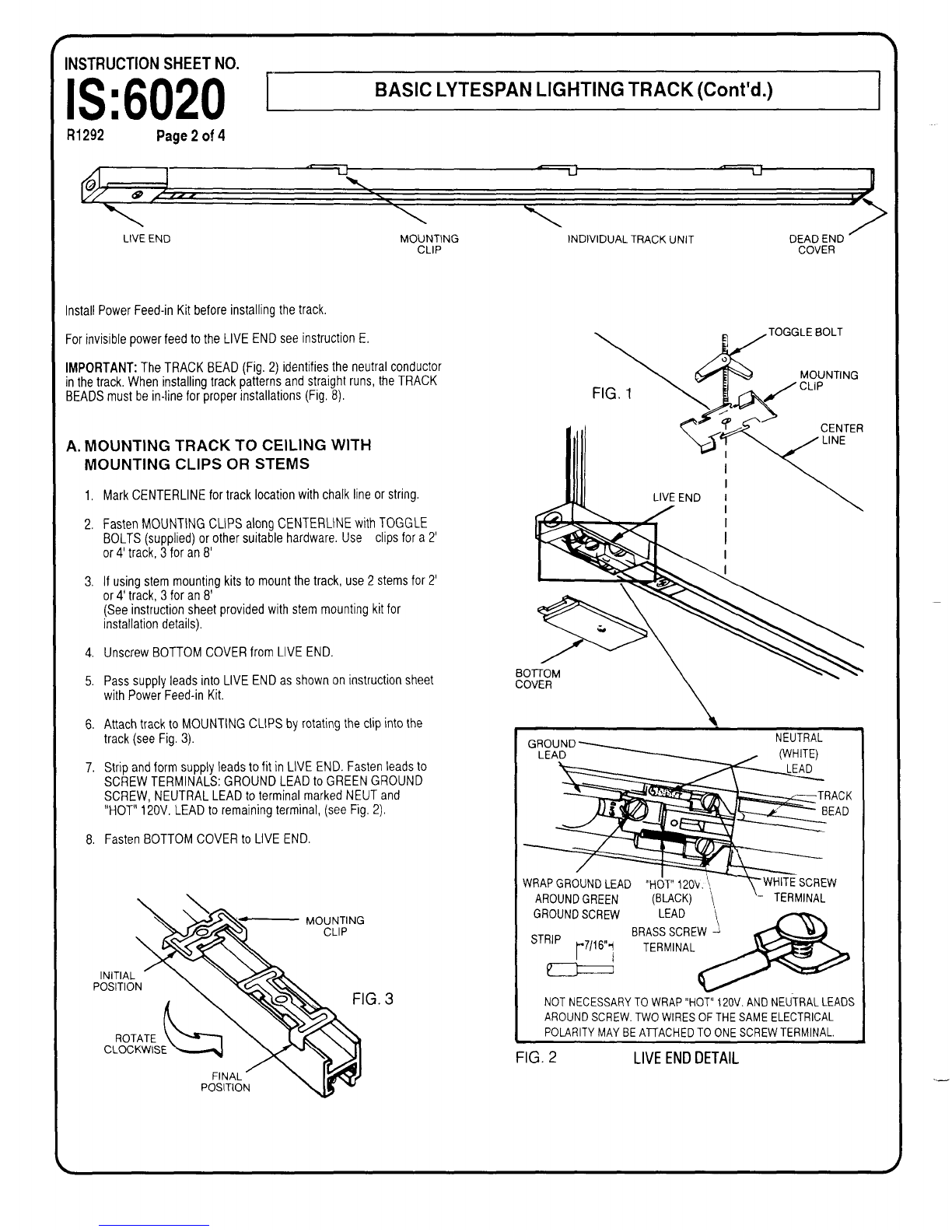

1-1<51-1 TC> LIE1?”i%iEL:;&:sWRR

and 12' track. Do not exceed 4' between clips.

and 12' track. Do not exceed 4' between stems

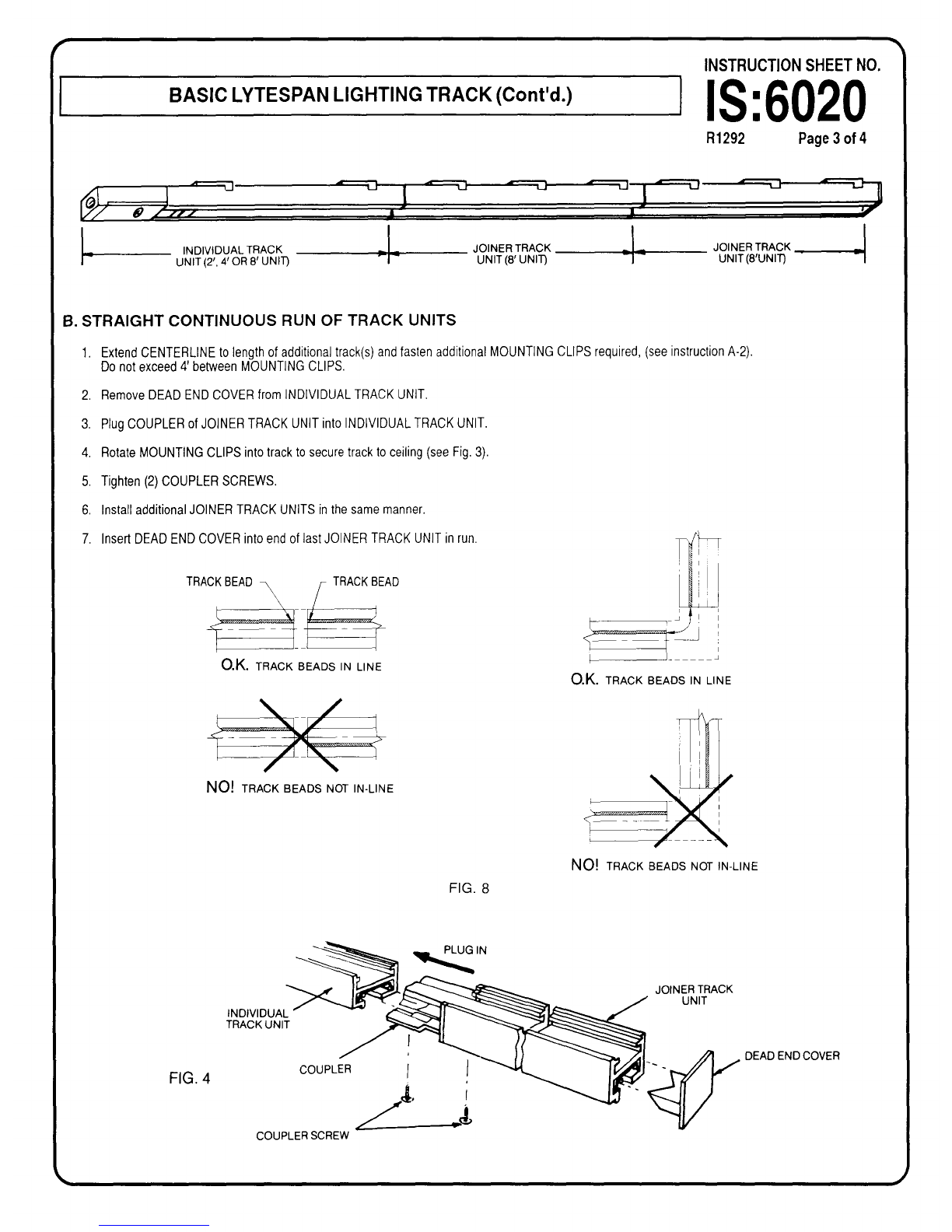

INSTRUCTION SHEET NO.

BASIC LYTESPAN LIGHTING TRACK (Cent’d.) IIS:6020

R1292 Page 3of 4

INDIVIDUALTRACK

UNIT(2), 4’OR 8’ UNIO ~J:kYF;?:$T&J:kYFF:iY4

B. STRAIGHT CONTINUOUS RUN OF TRACK UNITS

Extend CENTERLINE to length of additional track(s) and fasten additional MOUNTING CLIPS required, (see instruction A-2).

Do not exceed 4’ between MOUNTING CLIPS.

Remove DEAD END COVER from INDIVIDUAL TRACK UNIT.

Plug COUPLER of JOINER TRACK UNIT into INDIVIDUAL TRACK UNIT.

Rotate MOUNTING CLIPS into track to secure track to ceiling (see Fig, 3).

Tighten (2) COUPLER SCREWS.

Install additional JOINER TRACK UNITS in the same manner.

Insert DEAD END COVER into end of last JOINER TRACK UNIT in run.

TRACKBEAD 1r‘RACK ‘EAD

O.K. TRACK BEADS IN LINE

No! TRACK BEADS NOT IN.LINE

FIG. 4

O.K. TRACK BEADS IN LINE

No! TRACK BE~~s NOT lN.~,NE

FIG. 8

,ND,V,DUAL*

TRACKUNIT

--=%, 7!117

COUPLER

COUPLERSCREW

DEADENDCOVER
