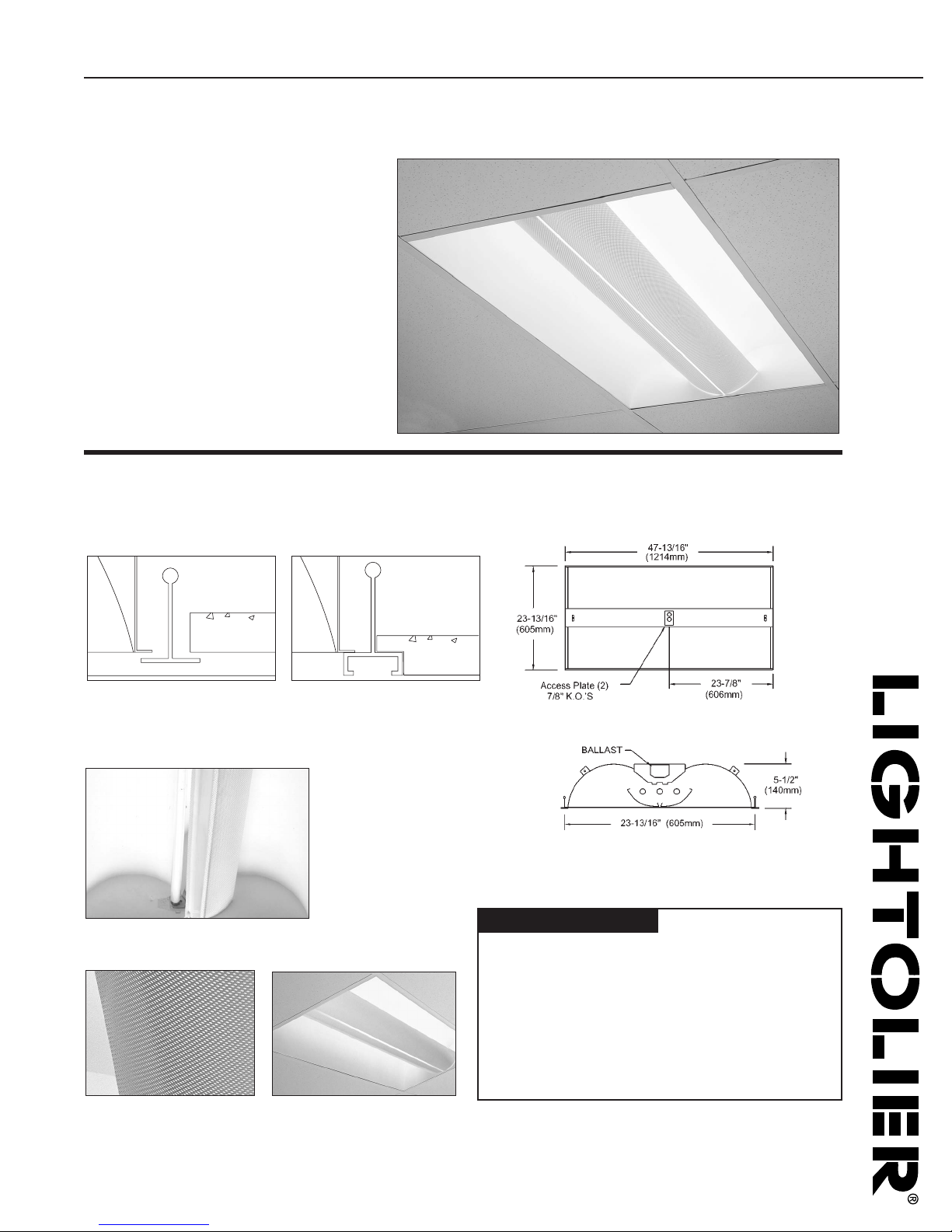

Mounting Methods / Features Dimensions

Microperforated mesh

lamp shields

Also available with solid opaque swing-

down lamp shield

Ceiling compatibility

Swing down optical system for

easy relamping and maintenance

Suited to standard exposed

T-grid ceilings

Suited to standard exposed

Slot T-grid ceilings

ALTER SOFT LIGHTS QVS2GPFOS332

Page 1 of 2 2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT 3 LAMP, T8,

5 1/2” DEEP MICROPERFORATED MESH LAMP SHIELD, STATIC

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L30-20

Features

•Efficiency 54.5%.

•Swing down microperforated lamp shield for easy

relamping and maintenance.

•Alter soft white film on inside of mesh conceals lamp

image providing balance between reflected and direct

light.

•Fully recessed luminaire and lamp compartment.

•95% Reflective Alter soft white paint finish.

•Specular interior reflector.

•One piece body for easy installation.

•Easy access to ballast through lamp compartment.

•Fits standard T-Grid ceilings.

•Optional acrylic drop-down visual element.

Ordering Information Explanation of Catalog Number Example: QVS2GPFOS33212003

FIXTURE

WIDTH:

2’

CEILING TYPE:

Standard

exposed

T-grid ceilings

LAMP SHIELD:

PF = Microperforated

SD = Solid

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH:

(NOMINAL 48”)

32 = 32W T8

VOLTAGE:

120V

277V

347V

BALLAST:

OC = Magnetic T8

03 =Electronic T8 instant start 3LPB*

R3 =Electronic rapid start, 3LPB*

PS =PowerSpec HDF Dimming T8

(Not available in 347V.)

*LBP : Lamp per ballast

OPTIONS:

R =Radio Interference Filter

O=Emergency Lighting System

(for Canada)

N =Emergency Lighting System

(for U.S.)

SPECIFICATIONS

MATERIALS: One piece chassis constructed from die formed

20 gauge cold rolled steel. Reflectors - 95% reflectance baked white acrylic matte

paint finish. Specular interior reflector. Soft white acrylic film on inside of lamp

shield conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic matte

high reflectance paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast. If K.Os are

within 3” of ballast use wire suitable for at least 90C.

Photometry

2 G 3 40

QUALITY

VISUAL

STATIC

Recessed direct

indirect soft

light optical

system

QVS

CLEAR POLISHED

ACRYLIC DROP

DOWN VISUAL

ELEMENT:

OS = Open slot (no acrylic)

OP = One Piece (no center slot)

GC = Clear acrylic

GG = Clear acrylic / Green projected color face

GB = Clear acrylic / Blue projected color face

GR = Clear acrylic / Red projected color face

ALTER SOFT LIGHTS QVS2GPFOS332

Page 2 of 2 2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT 3 LAMP, T8,

5 1/2” DEEP MICROPERFORATED MESH LAMP SHIELD, STATIC

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L30-20

Job Information Type:

LABELS: Listed by
