Lightolier Lytecaster 1101FEL Manuale utente

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

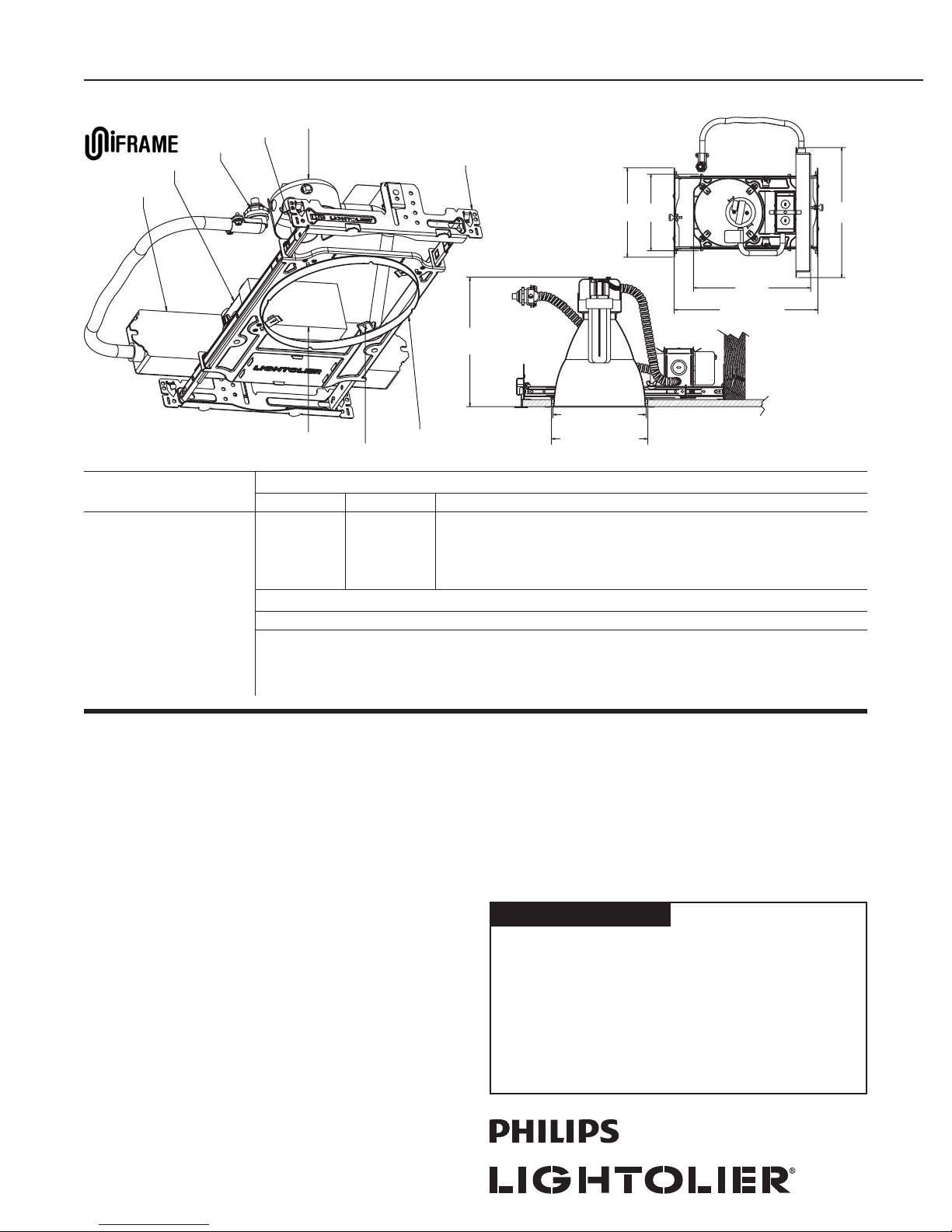

Lytecaster® Performance Recessed CFL Downlighting 1101FEL

Page 1 of 1 6 ¾" Aperture, 1 Light, Compact Fluorescent, Non-IC, Hi Lumen, Emergency, Frame-In Kit

Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.

UniFrame™

Frame-In Kit

UniFrame™ Compact Fluorescent Performance Series Reflector Trims

Vertical Open Horizontal Open Horizontal Wet Location Lensed

1101F2642UEL

26w Quad/Triple, GX24q-3 Base

120v – 0.33amp max

277v – 0.14amp max

32w Triple, GX24q-3 Base

120v – 0.40amp max

277v – 0.17amp max

42w Triple, GX24q-4 Base

120v – 0.53amp max

277v – 0.23amp max

1101CLIE

1101CDIE

1101HCLIE

1101HCDIE

1101HCLCIE (Clear Lens)

1101HCDFIE (Fresnel Lens)

Universal Series Reflector Trims

Cone

1113IE

1113CDIE

1113WHIE

Features

1. Mounting Frame: .036" (#20ga.) Galvanized Steel. Accommodates all

ceilings up to 1-1/2" thick.

2. Trim Clips: “Push In / Twist Out” Stainless Steel clips hold reflector flush

to ceiling.

3. Junction Box: 2" x 4" x 3-1/2" (22cu.in.) .032" (#22ga.) galvanized steel.

UL Listed for maximum of 8 (#12ga.) through branch circuit conductors.

4. UniFrame™ Mounting System – Grid Ceiling: Tool free mounting in

grid ceilings. .036" (20ga.) Galvanized Steel interlocking slide bars adjust

to 24-1/8" long accommodating 24" O.C. Ceiling Grid. Adjustable speed

clamps for positive attachment to grid ceiling systems.

5. UniFrame™ Mounting System – Wood Joist Ceiling: Integral nailing

tabs, alignment guides, fastener holes and bendable strapping guides for

wood joist installation. Galvanized Steel interlocking slide bars adjust

from 12-15/16" to 24-1/8" long to accommodate 16" and 24" O.C. joist

spacing, with or without strapping.

6. Ballast: 120V – 277V UL Listed Electronic Ballast, end of lamp life protec-

tion, class “P” thermally protected, class “A” sound rating.

7. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18

AWM leads to ballast.

8. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to

reflector trim by spring clip for precise optic alignment.

9. Emergency Battery: High lumen output. 90 minute battery backup,

complete with integrated test switch.

For O.A. Height See

Trim Specification

6 3/4" Frame

Aperture

6 15/16" Ceiling

Cutout

9" 7 3/4"

12 15/16" Min

24 1/8" Max

13 1/8"

11 7/8"

Average Lumen Output with Battery Pack

Lamp Lumen Output (1 Lamp)

26W CF Quad 4-Pin 725*

32W CF Quad 4-Pin 1050*

42W CF Quad 4-Pin 1300*

* Manufacturers Specifications

Labels: cULus Listed. Suitable for Dry Locations.

Accessories: 1967A Extra Thick Ceiling Adapter (up to 2" thk)
