631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

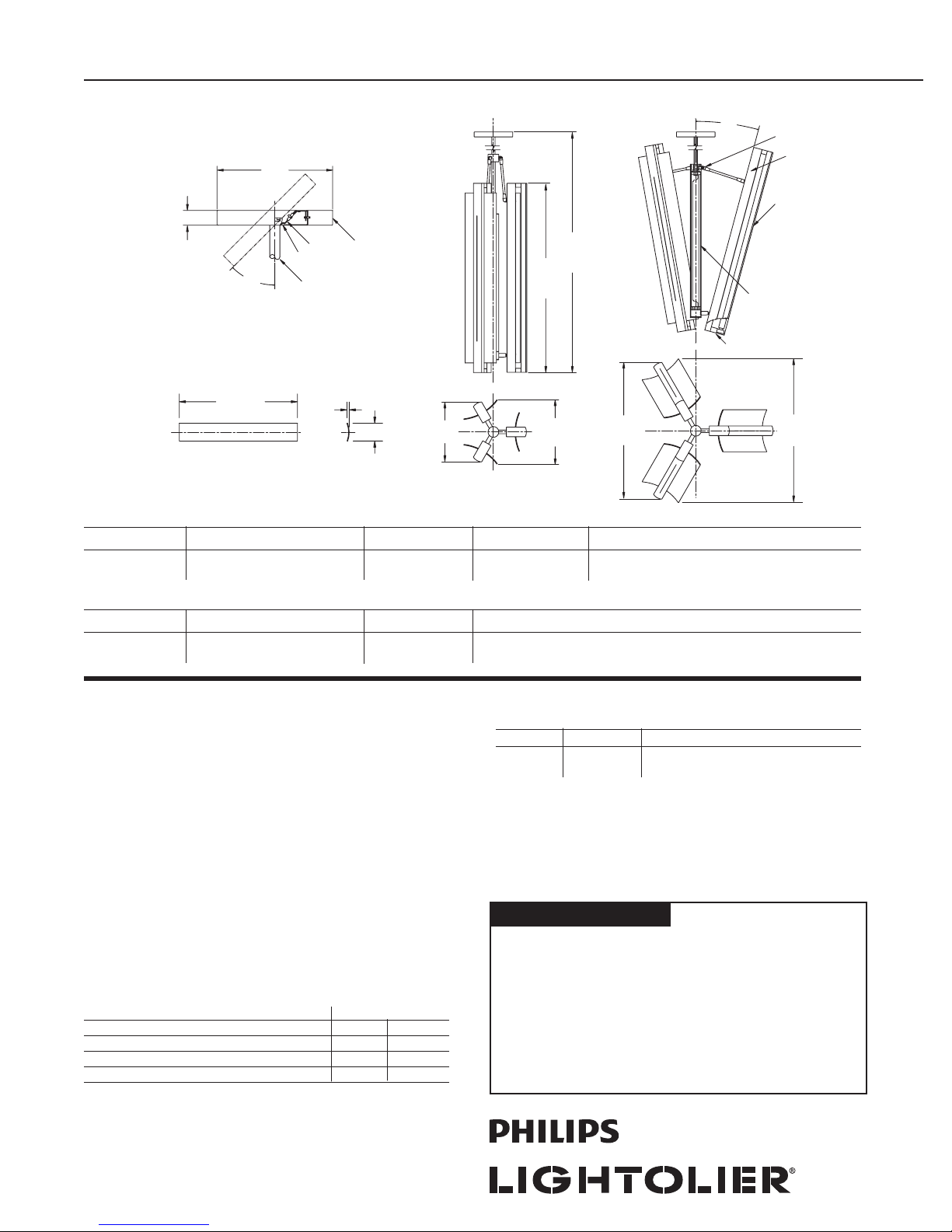

Architectural Decorative Soli 48339ALU

Page 1 of 1 3' Atria: 3 Light, T-5 Pendant

Features

1. Canopy: 18 GA. (.048) die formed steel. See above for finish.

2. Crossbar: 14 GA. Die formed steel. For mounting to 4" octagonal junc-

tion boxes.

3. Swivel: Die cast aluminum. Allows for a maximum ceiling slope of 45°.

Complies with California earthquake codes.

4. Stem: 5/8" diameter steel tubing. See above for finish.

5. Pivot Joint: Formed steel. Allows each luminaire arm to splay outward to a

maximum of 15° from vertical.

6. Housing: Extruded aluminum. See above for finish.

7. Lamp Enclosure: Extruded aluminum. See above for finish.

8. Center Support: Heavy wall steel tubing. See above for finish.

9. End Cap: Die Cast aluminum. See above for finish.

Lamping (by others)

Linear Fluorescent: 39W T5 HO, Mini Bipin

Electrical

Lampholders: G5 (Mini-Bipin) base with rotor for securing lamp. cULus Listed.

Ballast: Electronic, HPF, Universal voltage 120V-277V.

39 Watt

Voltage 120V 277V

Total Input Watts 137 125

Max. Line Current (Amps) 1.07 0.46

Ballast Factor 0.97 0.97

Min. Starting Temp: 0°F/-18°C

THD<10%

Options:

Suspension Kits (for longer drops)

Catalog No. Description Finish

4SXT48AL 48" Stem Metallic Aluminum Powder Coat

4SXT96AL 96" Stem Metallic Aluminum Powder Coat

Labels:

cULus Listed. Suitable for Damp Locations

Ø7"

(178)

1" (25)

MAX.

34 5/8"

(879)

26 3/8"

(670)

25"

(635)

11 3/4"

(298.5)

11"

(279)

40875- Glass Diffuser

40915- Acrylic Diffuser

Canopy/Stem

Detail

54"

(1372)

32 1/8"

(816) 7/8"

(22)

6 1/2" (165)

( ) Denotes dimensions in mm

Note: Luminaire can be ordered with or without diffuser shield. Order each separately.

Fixture Ordering Information

Catalog No. Finish Wattage Voltage Lamping

48339ALU Metallic Aluminum Powder Coated 3 x 39W 120/277V T-5 HO, Mini-Bipin

HO denotes High Output

Diffuser Ordering Information (Order diffuser separately - 3 Diffusers required per fixture)

Catalog No. Description Dimensions Finish

40875 Curved Glass Diffuser (3/16" Thick) 6 1/2" W x 32 1/8" L Etched outside/ White ceramic coated inside. Polished edges.

40915 Curved Acrylic Diffuser (3/16" Thick) 6 1/2" W x 32 1/8" L Translucent white acrylic. Textured both sides.
