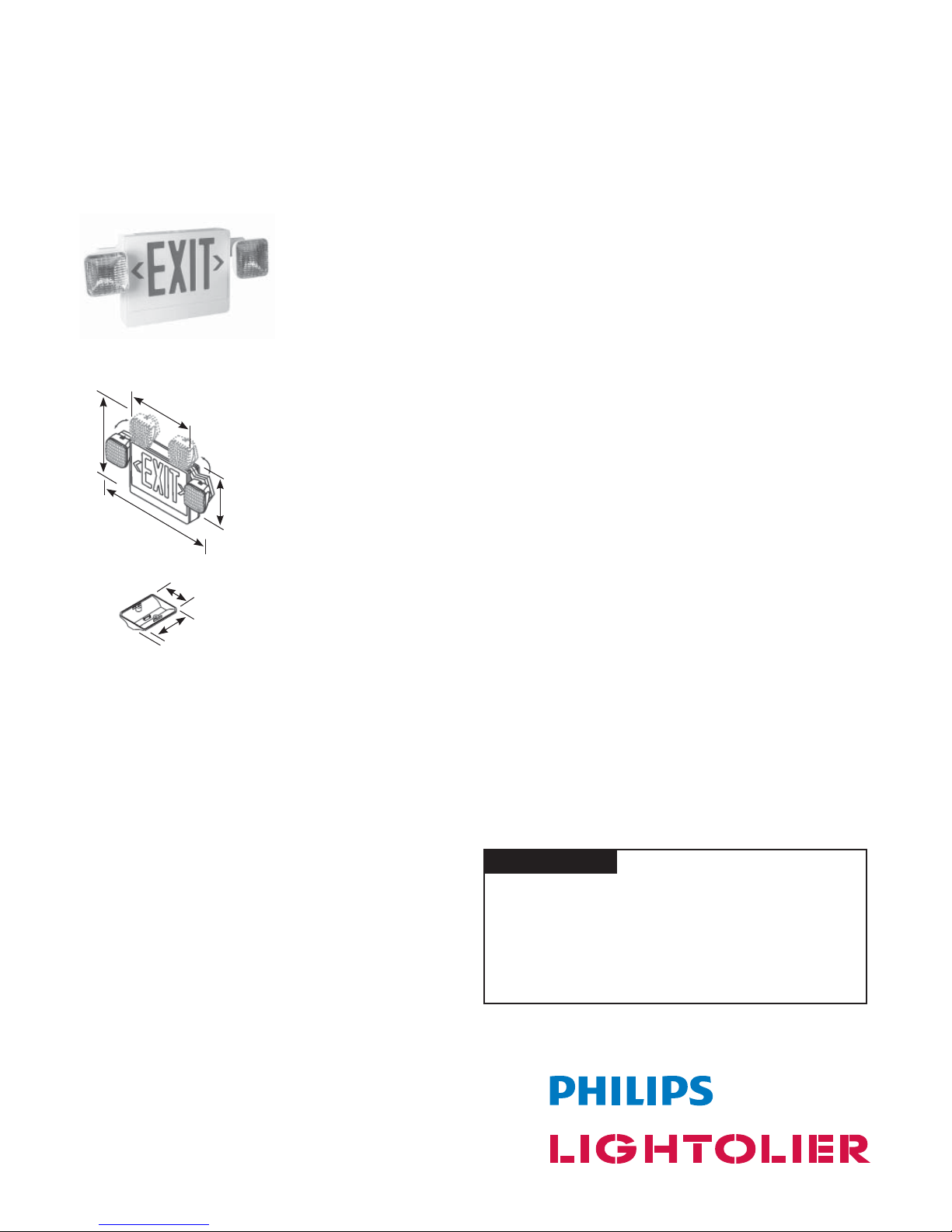

COMBINATION THERMOPLASTIC LED EXIT

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: Emergency

illumination is provided by

two high-performance lamp

reflector systems integral to

the product housing. Each lamp

head can be positioned on

top, side or “in-between.” The

standard lamp reflector system

incorporates a high-intensity

5.4 W, T-5 wedge base

tungsten lamp. Illumination of

the exit face is accomplished

with long-lasting, high-output

Light Emitting Diodes (LEDs)

without hot spots or striations.

Housing: Impact-resistant, UL

94 5 VA thermoplastic housing

with NFPA-compliant field-

selectable chevrons. Chevrons

can be installed/removed

from outside the exit housing.

Thermoplastic backplate

is provided with mounting

knockouts for easy installation

to standard junction boxes.

Installation is further simplified

by the use of snap-together

backplate and housing. Canopy

is furnished with all models.

Operating Temperature

Range: Damp Location

50°F (10°C) to 104°F (40°C)

Electronics: 120/277 VAC

dual voltage input with surge-

protection, solid-state circuitry

provides for a reliable charging

system. Charging system is

complete with low voltage

disconnect, AC lockout,

brownout protection, AC

indicator lamp and test switch.

Electrical Specifications:

Red:

0.027 A (120 VAC)

0.012 A (277 VAC)

Green:

0.030 A (120 VAC)

0.013 A (277 VAC)

Code Compliance

UL 924 and UL damp location

listed. NFPA 101, NEC, BOCA,

OSHA and IBC illumination

standards.

Warranty

Three year full electronics

warranty. One year full plus

four year prorated lead calcium

battery warranty.

LLC2UR

21.62"

(54.9 cm)

16.3"

(41.4 cm)

4.63"

(11.8 cm)

1.0"

(2.5 cm)

5.9"

(15.0 cm)

10.12"

(25.7 cm)

15.62"

(39.7 cm)

LLC2 Series

COMBINATION THERMOPLASTIC LED EXIT

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

LLC2 Series September 11, 2012

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

LLC2 = LLC Series

II Combination

Emergency Exit

LLC2

U= Universal

Stencil Faces

R= Red

G= Green

Letter Color

SD = Self-Diagnostics

12R = 12 W Remote Capability1,2

Factory Installed Options

Note

1) 12R not available with SD. For remote lamp heads, see remote heads specification sheet.

2) 12R only available in white housing.

B= Black

W= White

Stencil Face/Housing Color
