Lightolier LP-21 Manuale utente

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LP-21

1BHFPG -JOFBS1FSG-ZUFDN8BMM.PVOU-JHIU51FS'PPU/PNJOBM4FDUJPO

#

Module Ordering Information

Style Series Lamps Type Options

2= 2 Lt Cross T8 = T8 Lamps 4= 4-Foot U= Uni-voltage Blank = No Options

Section 8= 8-Foot E= Emergency Pack DS = Dual Switched

D1 = Dimming 120v X4 = 4th through wire

D2 = Dimming 277v

LP W 2 T8

Complete ordering instructions below.

Features

1. Housing: 18 gauge steel. Die-formed steel end cap withconcealed access

holes for through wiring. No exposed fasteners or hardware.

2. Lamping: Two F32T8 fluorescent lamp per 4-Foot section. Provided by others.

3. Reflector: Precision die-formed specular aluminum.

4. Diffuser: Opal Acrylic.

Electrical

Ballast is universal voltage, <10% THD, .88 ballast factor, instant start. 3 con-

ductor, 18 gauge wire. Color-coded quick connectors allow ease of connection

for joiner modules. For special circuiting consult factory. Factory installed ballast

disconnect allows the ballast to be disconnected fromand reconnected to incoming

power under load without turning the entire circuit off.

Dimming: 120/277 VAC.

Emergency Battery Pack: 32 watt: 450 lumens @ 90 minutes.

Labels

UL, cUL and I.B.E.W.

Finish

Powder coated baked white enamel. Customcolors available, consult factory.

Options

Dual Switching: Order the DS option for separate row switching. DS option

automatically ships with the X4 option included.

X4 Wire: Order X4 modules for remainder of the run when using dimming

and/or switched emergency battery pack modules.

Emergency Circuiting: Special circuiting - consult factory.

Ordering Instructions

Individual Fixtures:

1. Order number of MODULES required.

2. Order one END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one END SET per run.

4. Order one JOINER CONNECTOR per MODULE in run minus one.

Length Ballast

8.00” (20.32cm)

3.00”

(7.62cm)

2.50”

(6.35cm)

0.25”(0.64cm)

0.25” (0.64cm)

Half Scale

PERF

3.35" (8.51cm)

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

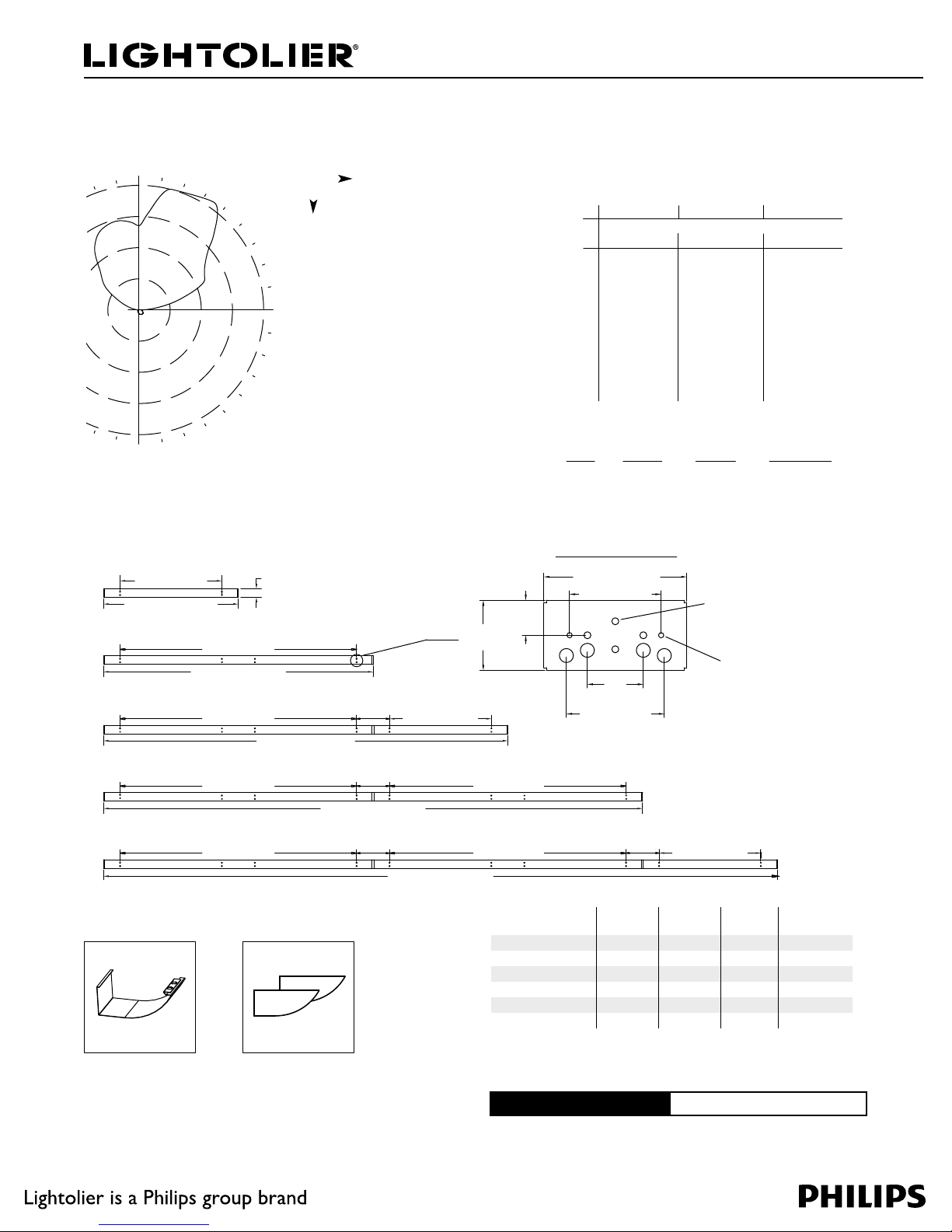

Lighting Systems LP-21

1BHFPG -JOFBS1FSG-ZUFDN8BMM.PVOU-JHIU51FS'PPU/PNJOBM4FDUJPO

#

Mounting Accessories

Fixture Lengths & Mounting Locations

LPWE End Set

One set of a left and

right plate to finish

the run.

LPWC Joiner Connector

Covers the joint

between modules

80” (203.20cm)

98-1/2” (250.19cm)

80” (203.20cm)

245-1/2” (623.57cm)

13.50”

(34.29cm)

18.00”

(45.72cm)

18.00”

(45.72cm)

13.50”

(34.29cm)

80” (203.20cm)

40” (101.60cm)

147-1/2” (374.65cm)

196-1/2” (499.11cm)

40” (101.60cm)

4’

8’

12’

16’

20’

3” (7.62cm)

49-1/2” (125.73cm)

5.100” (12.95cm)

MOUNTING PLATE DETAIL

0.5” (1.27cm) DIMPLE

WITH 0.187” (0.47cm)

HOLE IN CENTER

1/4-20x1/2 STUDS

(USED TO ATTACH FIXTURE

TO MOUNTING PLATE)

3.275” (8.32cm)

2.500”

(6.35cm)

1.250”

(3.18cm)

2.000”

(5.08cm)

3.500” (8.89cm)

190

200

350

340

180

170

160

150

140

130

120

110

100

9090

400

800

1200

1600

Performance

CANDLEPOWER CURVE CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

ROOM CAVITY RATIO

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY RE-

FLECTANCE

80 70 50

WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

0707070606060424242

1636058545250363534

2585349494542323028

3524641454036282523

4484135413531252220

5443630373127221917

6403226342823191714

7372823312520171412

8342620292218161311

931231827201614119

10 29 21 16 25 18 14 13 10 8

20% FLOOR CAVITY REFLECTANCE

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-90 172 3.0 4.1

90-180 4026 69.4 95.9

0-180 4198 72.4 100.0

REPORT NO: LRL 1200-6D

CAT. NO: LPW2T84U

LAMPS: 2-F32T8

LUMENS: 2900

EFFICIENCY: 72.4%

180 1081 1081 1081 1081 1081

175 1234 1211 1168 1093 1091

165 1604 1554 1462 1198 1041

155 1544 1460 1428 1258 955

145 1685 1625 1414 1223 829

135 1354 1425 1360 1014 665

125 959 967 941 885 509

115 931 864 703 710 341

105 555 551 491 326 158

95 154 163 134 121 29

90 30 25 16 11 6

85 35 31 20 11 8

75 46 41 31 17 11

65 51 46 35 20 11

55 69 66 57 44 34

45 65 62 53 42 33

35 68 64 57 49 41

25 62 60 55 49 43

15 58 58 55 52 48

552 5149 49 48

045 4545 45 45

4' (121.92cm)

Module

8' (243.84cm)

Module End Set Connector

4' (121.92cm) Run 11

8' (243.84cm) Run 11

12' (365.76cm) Run 111 1

16' (487.68cm) Run 21 1

20' (609.60cm) Run 121 2

24' (731.52cm) Run 31 2
