Lightolier LSBW-1 Manuale utente

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LSBW-1

1BHFPG -ZUFTQSFBEÜ-4#4PMJE8BMM.PVOU-JHIU51FS'PPU/PNJOBM4FDUJPO

#

Features

1. Housing: Extruded aluminum. Die-cast end cap mechanically attached with

no exposed fasteners or hardware.

2. Lamping: One T5, 28 or 54 watt (as specified) fluorescent lamp per 4-foot

nominal section. Provided by others.

3. Reflector: Precision die-formed, semi-specular aluminum.

Electrical

Ballast - <10% T.H.D., .98 ballast factor, pre-heat start. 18 gauge wire. Color-

coded quick connectors allow ease of connection for joiner modules. For special

circuiting, consult factory. Factory installed ballast disconnect allows the ballast

to be disconnected fromand reconnected to incoming power under load without

turning the entire circuit off.

Dimming - 120/277 VAC, 1% dimming level.

Emergency Battery Pack - 28 Watt: 520 Lumens @ 90 min.

54 Watt: 700 Lumens @ 90 min.

Ordering Instructions

Individual Fixtures:

1. Order number of MODULES required.

2. Order one END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES to complete the run.

3. Order one END SET per run.

Labels

UL, cUL and I.B.E.W.

Complete ordering instructions below.

Ordering Information

Type Lamps Length Shielding Ballast Voltage Finish

1 = 1-Lamp T5 4 = 4-Foot A = Solid 28 = 28W T5 1 = 120 Volt AL = Aluminum

8 = 8-Foot 54 = 54W T5 2 = 277 Volt WH = White

5E = 54W T5 Emergency Pack

2E = 28W T5 Emergency Pack

5D = 54W T5 Dimming

LSBW 1 A

Mountings

Dual-screw, draw-tight connector to create hairline seambetween joiner modules.

Finish

Powder coated baked white or aluminumfinish.

Customcolors available, consult factory.

11-3/8" (28.89cm)

8-1/2" (21.59cm)

1-3/4"

(4.45cm)

3-1/2" (8.89cm)

12 3

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt #

Lighting Systems LSBW-1

1BHFPG -ZUFTQSFBEÜ-4#4PMJE8BMM.PVOU-JHIU51FS'PPU/PNJOBM4FDUJPO

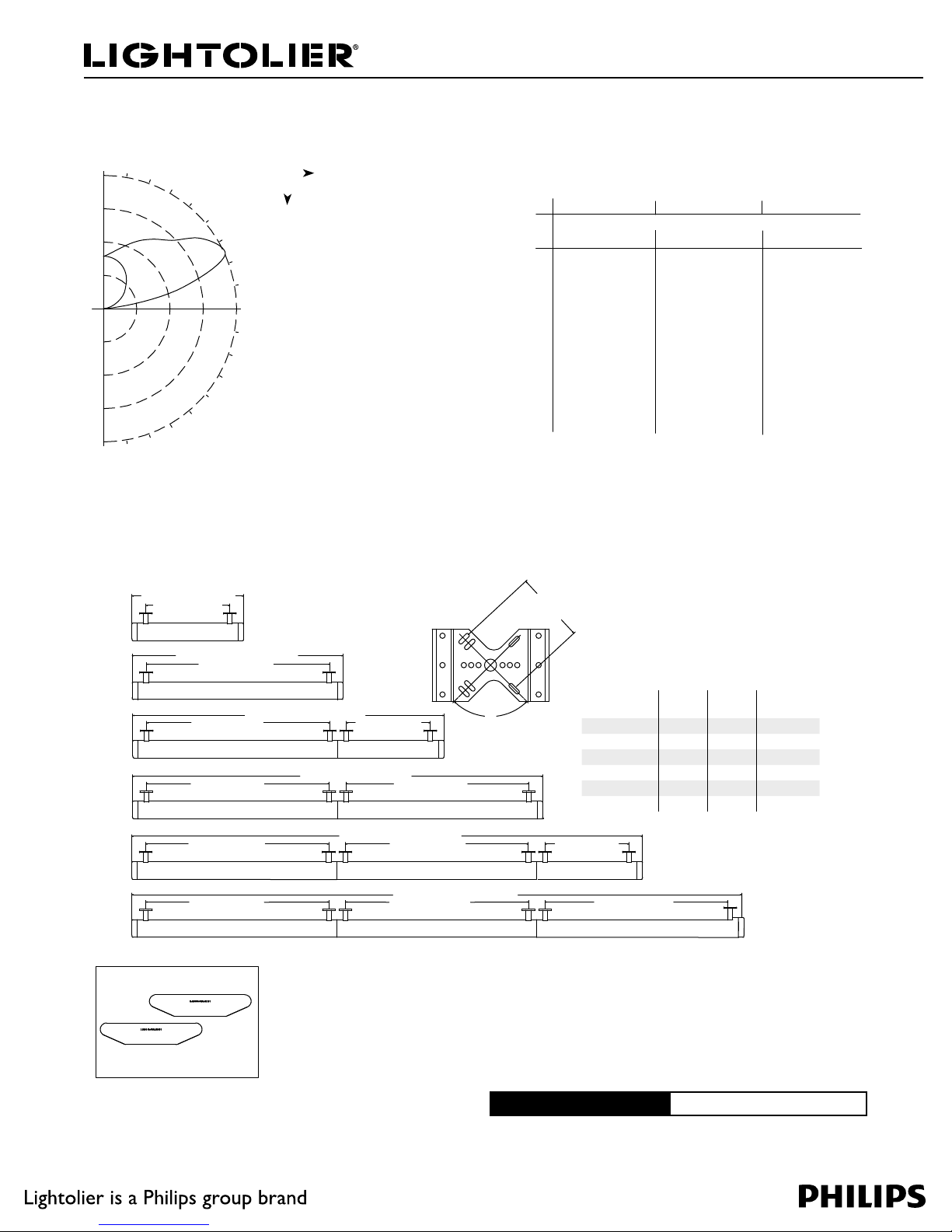

Fixture Lengths & Mounting Locations

53-1/4"

(135.26cm) (OAL)

40"(101.60cm)

101-1/4" (257.18cm) (OAL)

80" (203.20cm)

149-1/4" (379.10cm) (OAL)

80" (203.20cm)40"(101.60cm)

197-1/4" (501.02) (OAL)

80" (203.20cm)80" (203.20cm)

245-1/4" (622.94cm) (OAL)

80" (203.20cm) 80" (203.20cm)

293-1/4" (744.86cm) (OAL)

80" (203.20cm)80" (203.20cm)80" (203.20cm)

40"(101.60cm)

4-Foot

8-Foot

12-Foot

16-Foot

20-Foot

24-Foot

90°

3.5"

(8.89cm)

Performance Distribution is Symmetrical

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY

REFLECTANCE

80 70 50

% WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

085 8585 7373 7350 50 50

177 7470 6663 6043 42 40

270 6459 6055 5138 35 33

364 5651 5448 4433 30 28

458 5043 5043 3729 26 23

553 4437 4538 3226 23 20

649 3932 4133 2823 20 17

745 3528 3830 2521 17 15

841 3125 3527 2219 15 13

938 2822 3324 1917 14 11

10 36 26 20 30 22 17 15 12 10

235

470

705

940

110

120

130

150

140

160

170

180

100

Candlepower Curve

Candlepower Summary

ZONE 0 22 45 67 90

180 370 370 370 370 370

175 369 372 377 384 385

165 353 374 406 438 438

155 326 370 437 499 519

145 280 356 466 565 598

135 222 323 482 627 681

125 172 300 529 799 859

115 109 267 635 881 948

105 53 571 556 579 580

95 14 106 77 57 56

90 3 4 5 5 5

85 0 0 0 0 0

75 0 0 0 0 0

65 0 0 0 0 0

55 0 0 0 0 0

45 0 0 0 0 0

35 0 0 0 0 0

25 0 0 0 0 0

15 0 0 0 0 0

500000

000000

Report No: LRL 300-1Q

Cat No: LSB14A28

Lamps: 1 F28T5

Lumens: 2900

Efficiency: 89.2%

ZONAL LUMEN SUMMARY

ZONE LUMENS % BARELAMP % LUMINAIRE

0 - 90 0 0.0 0.0

90 - 180 2588 89.2 100.0

0 - 180 2588 89.2 100.0

20% FLOOR CAVITY REFLECTANCE

Calculations are for 28 watt T5 lamps. For 54 watt T5 lamps, multiply by 1.7.

End Set : LSBWEWH: White

LSBWEAL: Aluminum

Order one per run of fixtures.

Accessories

DEG.

CANDELAS

4-Foot

Module

8-Foot

Module LSBWE

4-Foot Run 11

8-Foot Run 11

12-Foot Run 11 1

16-Foot Run 21

20-Foot Run 12 1

24-Foot Run 31
