Lytecaster®Recessed Downlighting 2011

Page 1 of 2 3 3/4" Aperture Pin Hole Reflector Trim

Features

1. Reflector: Hydroformed aluminum, .040" thick (18 ga.); matte white trim flange.

2. Pinhole: Die formed aluminum, .040" thick (18 ga.). Aperture plate and inner

shield, matte black inside, matte white finish outside. Cuts off glare at normal

viewing angles.

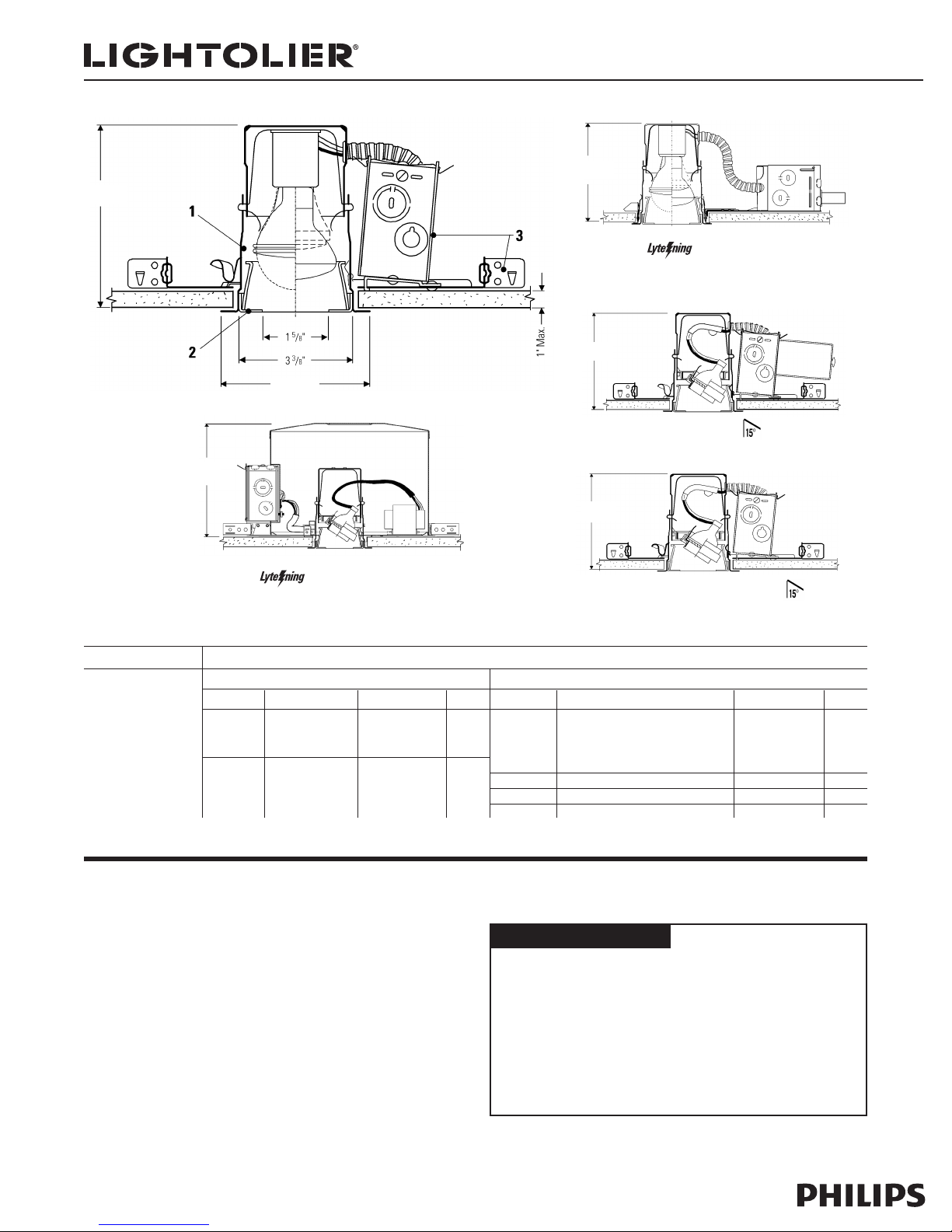

3. Frame-In Kit: (2002P1 standard frame shown) Other frames shown on the right.

See Frame-In Kit specification sheet for more detail.

Options & Accessories

Retaining Clips: 1955 - For Installing in Existing Ceiling

Labels

UL (Suitable for Damp Locations), I.B.E.W

2011/2002P1

Standard Incandescent

2011/2000LVNT

Low Voltage Remote Transformer

2011/2004ICV/N

™AirSeal® Insulated Ceiling

2011/2003R

™ NON-IC Remodeler Ring

5 3/8”

5 1/2”

2011/2000LV/2000LVRE1

Standard Low Voltage

5 1/2”

5 3/8”

7 1/4”

4 1/2”

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

Line Voltage Low Voltage

Frame-In Kit Install Type Lamping Height Frame-In Kit Installation Type Lamping Height

2011 Matte White 2002P1 Non-IC 40W A19 5 1/2" 2000LV Standard Non-IC 5 3/8"

Faceplate 45W PAR16 2000LVR Remodeler Non-IC 5 3/8"

50W R20, PAR20 2000LVE1 Electronic Low Voltage Non-IC 120V 20W-50W MR16 5 3/8"

2003R Non-IC 40W A19 5 1/2" 2000LVE2 Electronic Low Voltage Non-IC 277V 5 3/8"

Remodeler 50W R20, PAR20 2004ICV/N Lytening AirSeal® IC 20W-37W MR16 7 1/4"

60W PAR16 2000LVNT Low Voltage Remote Transformer 20W-42W MR16 5 3/8"

2000AICV Lytening AirSeal® IC 20W-35W MR16 7 5/16"

* 60W A19 with 2003R
