Lightolier Lytespan 6310 Manuale utente

Ordering Information

Catalog No. Mountings Finish Lamps

6310 All Lytespan Track Systems Matte White 100W R30

75W PAR30

Lytespan®Track Lighting System 6310

Page 1 of 2 Basic Wall Washer

Features

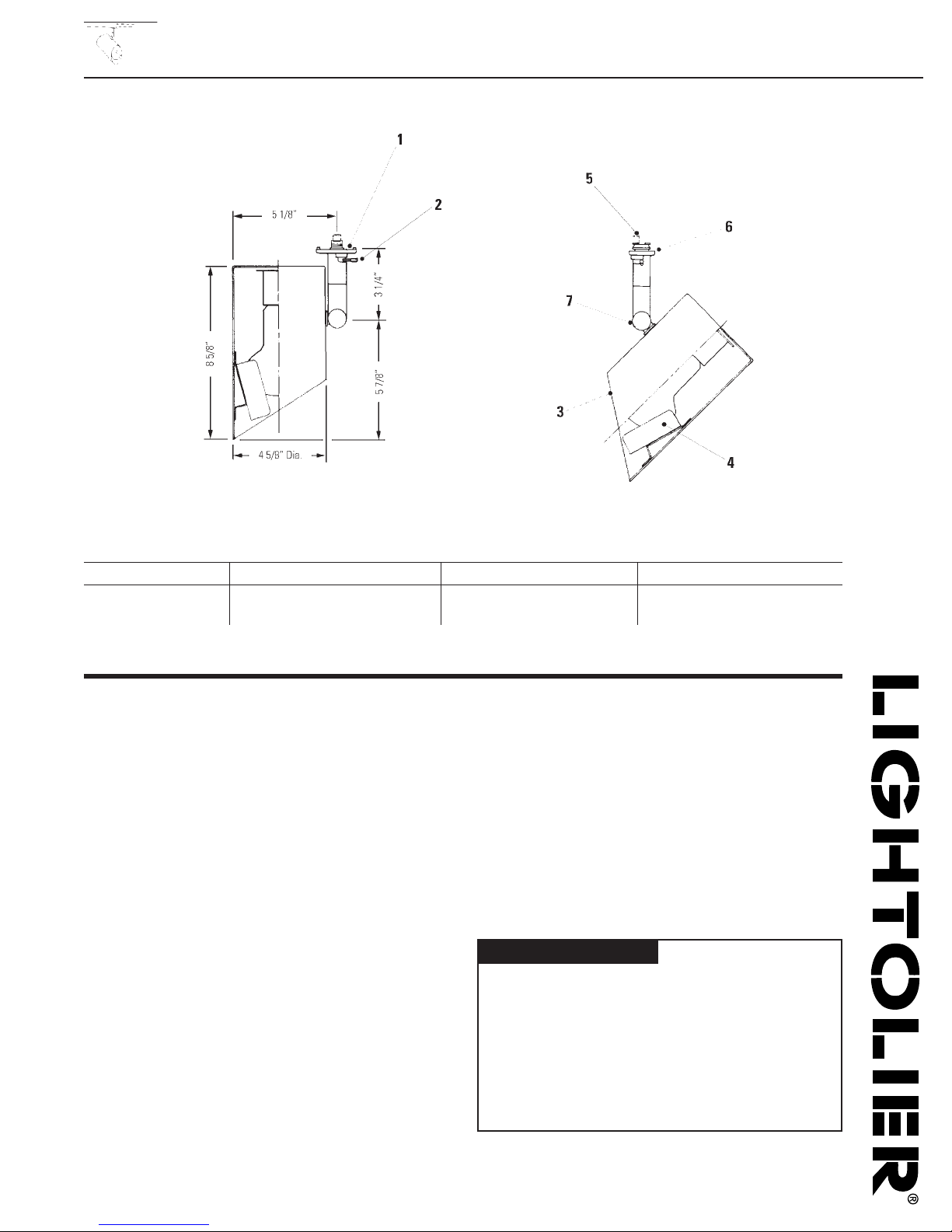

1. Lytespan Attachment Fitting: die-cast zinc alloy.

2. Lever: locks attachment fitting electrically and mechanically anywhere

along track.

3. Housing: .040” aluminum.

4. Reflector: embossed texture; anodic processed aluminum.

5. Movable Brass Contact: extends for connection to 2nd circuit in Advent

Lytespan Track.

6. Polarity Keyway

7. Swivel: die-cast zinc alloy. 90° vertical x 350° horizontal adjustment.

Options & Accessories

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided

SF-1 leads.

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting System 6310

Page 2 of 2 Basic Wall Washer

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lighting Data

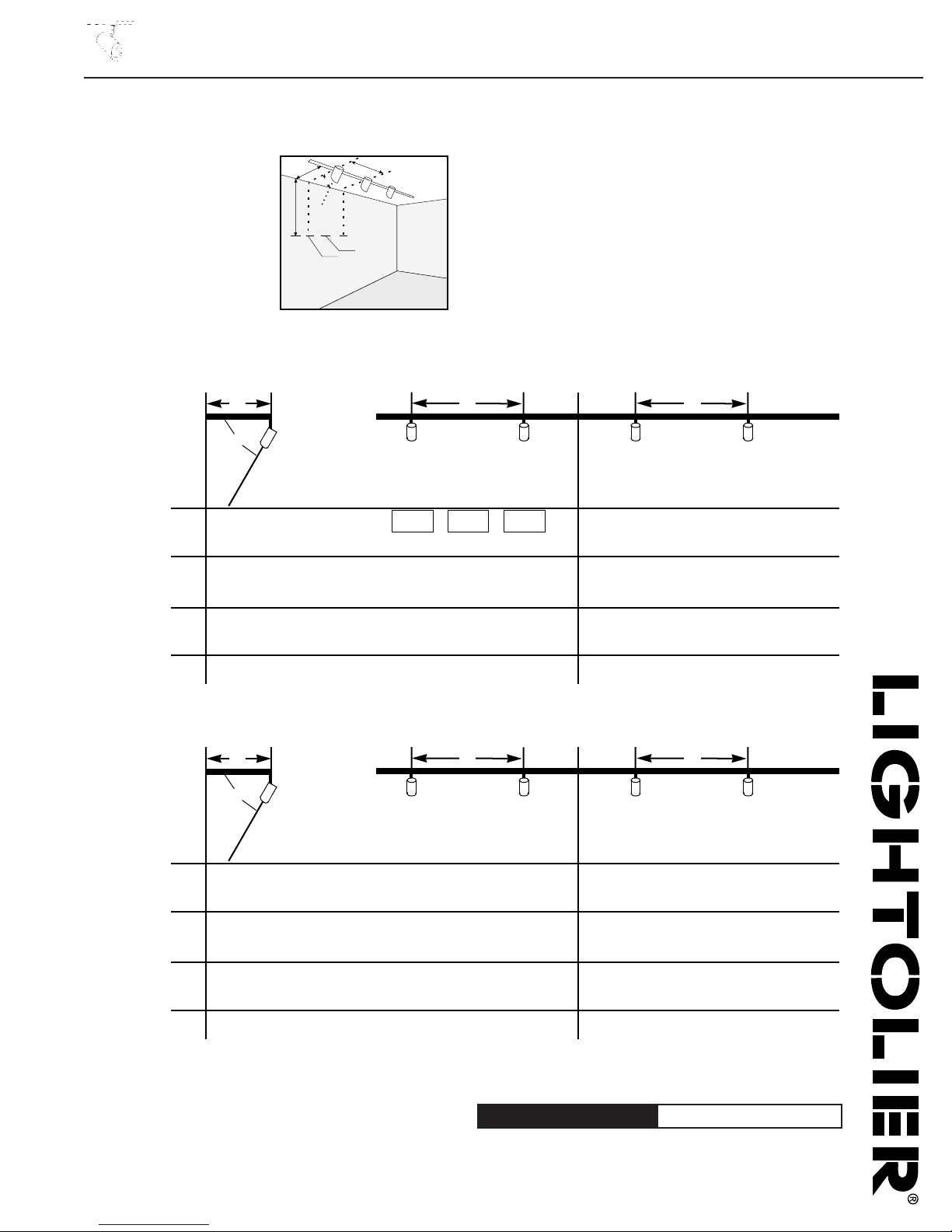

TRACK 2 FEET FROM WALL

EXAMPLE: With multiple 75 watt R30 FL

units located 2" from wall, 2" on center

and aimed 60°from horizontal, the illumi-

nation on the wall 3" down from the ceil-

ing is 52 footcandles beneath fixtures and

49 footcandles between fixtures.

Footcandles are average and rounded off

and are based on a minum of five units.

For 100W R30 FL, multiply footcandles by

1.5.

Footcandles on Wall from Multiple Units ñ 75W R30 FL

1" 79 71 79 65 35 65

2" 78 65 78 60 37 60

3" 52 49 52 38 29 38

4" 29 31 29 21 21 21

5" 17 17 17 11 12 11

6" 12 13 12 8 8 8

7" 777 454

8" 555 333

9" 454 333

Distance From Ceiling

2" 2" 3"

60°

TRACK 3 FEET FROM WALL

1" 34 32 34 29 17 29

2" 36 30 36 29 25 29

3" 34 26 34 27 21 27

4" 24 22 24 19 17 19

5" 17 16 17 14 11 14

6" 11 10 11 8 7 8

7" 888 555

8" 565 454

9" 565 434

Distance From Ceiling

3" 3" 4"

60°

2' 2'

49 f.c.

52 f.c.
