Lightolier Lytespan 7520 Manuale utente

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting System 7520

Page 1 of 2 Dramalux Lytespot®

7520

7530

Lytespan®Track Lighting System 7520

Page 1 of 2 Dramalux Lytespot®

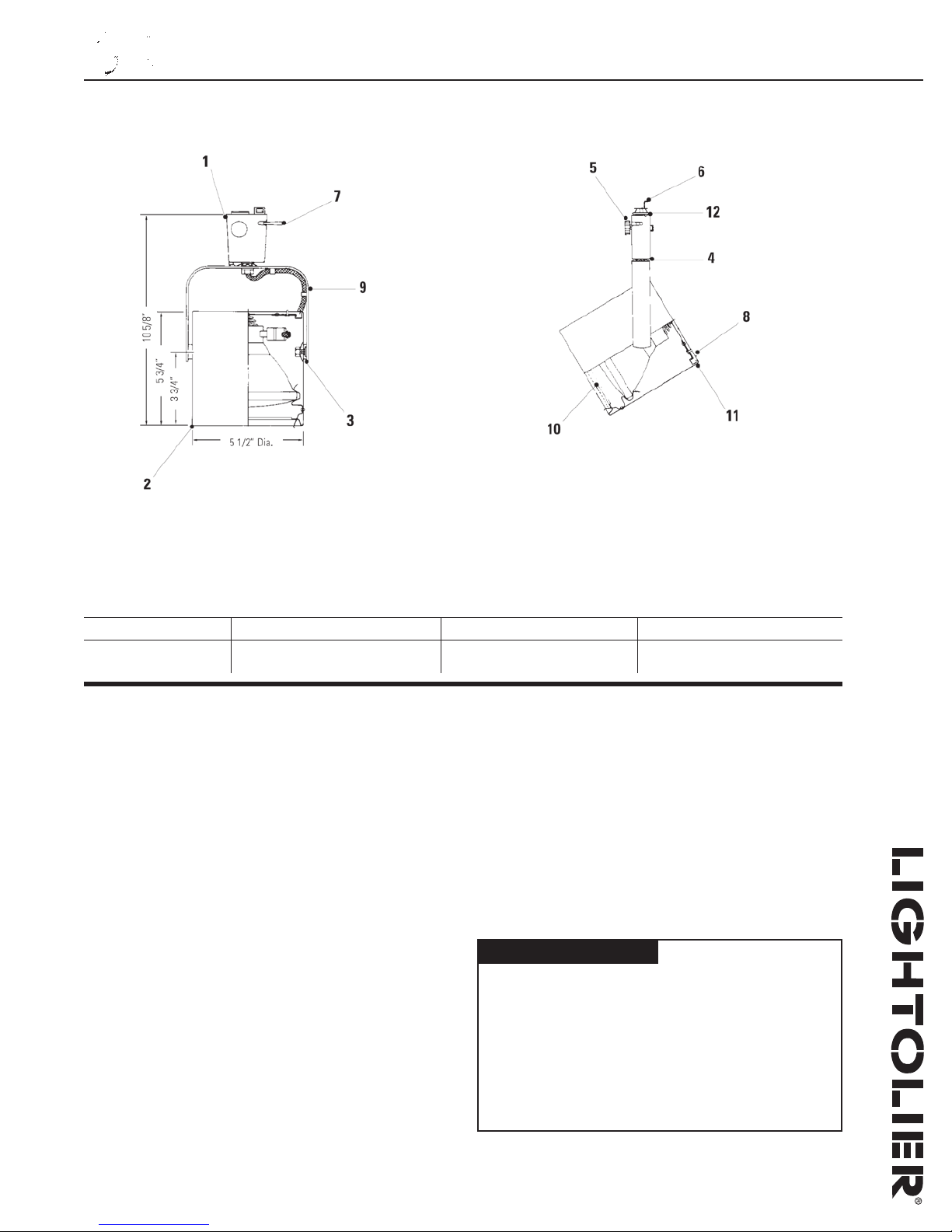

Features

1. Lytespan Attachment Fitting: Molded polycarbonate .075” wall thickness.

Integral color.

2. Housing: .040” aluminum.

3. Trunion Mounting: Permently-tensioned with internal spring washer and

vibration-resistant nut.

4. Pivot: Permanently-tensioned; provides 350° stop horizontal adjustment.

5. Expansion Clamp: Fingertip squeeze-release for quick attachment; thumb-

screw lock for rigid mounting.

6. Movable Brass Contact: Extends for connection to 2nd circuit in Advent

Lytespan Track.

7. Lever: Energizes unit.

8. Latch: Opens hinged back for relamping.

9. Yoke: .093” steel.

10. Regressed Filters, Lenses, Etc.: Retained by spring clips.

11. Annular Opening for Ventilation

12. Polarity Keyway

Electrical

Porcelain socket, side prong, nickel plated screw shell. No. 18 braided SF-1

leads.

Options & Accessories

4 3/4” Dia. Series Color Filters, Heat Filter, Spread Lens, Louver, 7650

(See Lightolier Specification Sheets AF, AF2AS, AL4CC).

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

Ordering Information

Catalog No. Mountings Finish Lamps

7520 All Lytespan Track Systems Matte Black 150W PAR38/3 (side prong)

7530 Matte White

Job Information Type:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting System 7520

Page 2 of 2 Dramalux Lytespot®

7520

7530

DFC L

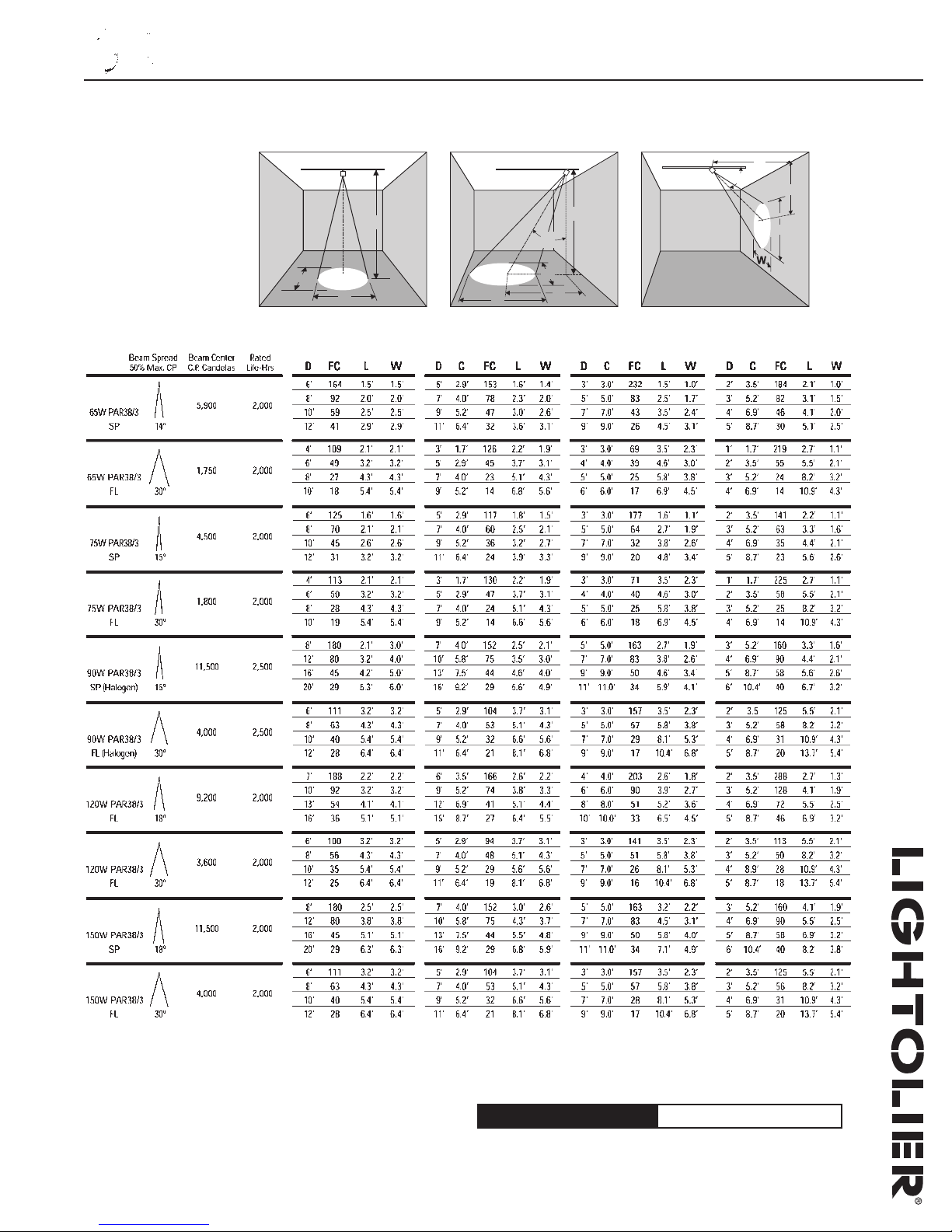

Lighting Data

Aiming Angle

L Beam Length

W Beam Width

C Distance to center beam

D Distance

A Aiming Angle

FC Footcandles

Land Ware the outer points where

the candle power drops to 50% of the

manimum. FC are the initital footcandles

at the center of the beam.

Lamp

0° AIMING ANGLE A=30° AIMING ANGLE A=45° AIMING ANGLE A=60° AIMING ANGLE

0° 30°, 45° or 60° Horizontal 30°, 45° or 60° Vertical
