Lightolier Lytespan 83W6 Manuale utente

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

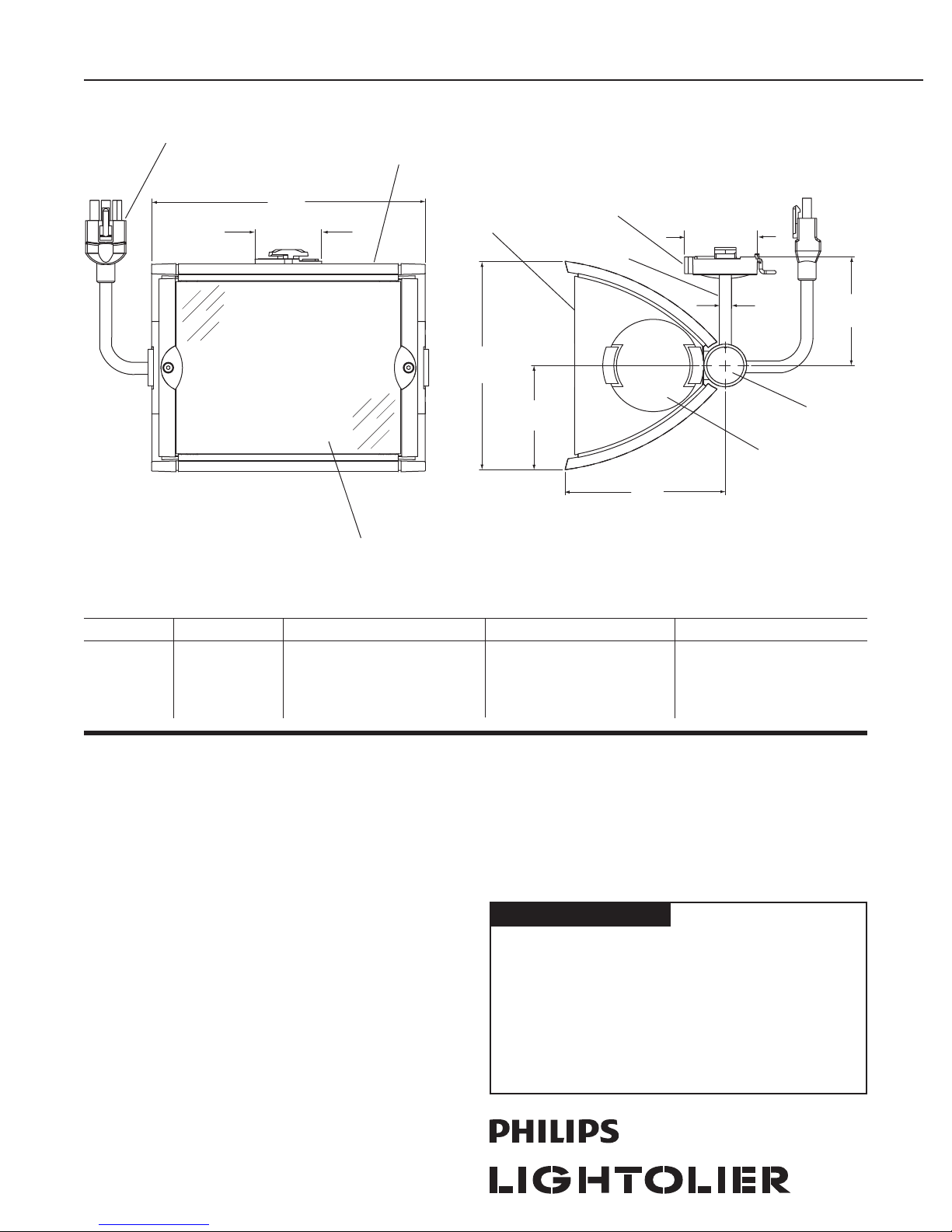

Lytespan Track Lighting System 83W6

Page 1 of 2 PowerArc Modular T-6 Single Ended Metal Halide Wall Washer

1 9/16"

(40mm)

6 3/8"

(162mm)

9/32"

(7mm)

2 5/8"

(67mm)

3 3/4"

(95mm)

2 7/16"

(62mm)

4 7/8"

(124mm)

1 11/16"

(43mm)

Features

1. Housing: 0.10" thick extruded aluminum body.

2. Vertical Pivot: 0 - 180° vertical adjustment.

3. Horizontal Pivot: Die cast track adapter with infinite rotation.

4. Track Attachment Fitting: Molded polycarbonate; rotates into track.

5. Safety Lens: Tempered 1/8" glass. Meets or exceeds U.L. safety

requirements for metal halide lamps.

6. Lamp Cartridge: Die cast aluminum. Allows easy side relamping without

removal of lens.

7. Power Connector: 5kv rated with insulated pins. Connects to ballast

module. Keyed for polarity.

8. End Caps: Die cast aluminum.

9. Lampholder: (not shown) G12 base, 5kv pulse rated. High temperature

ceramic body with CuSn nickel plated contacts.

Accessories

83EW18WH, BK, AL 18" Extension Wand

83EW48WH, BK, AL 48" Extension Wand

83EC72WH, BK 6' Extension Cord

83PCWH, BK Pipe Clamp

83MPTWH, BK Mounting Bracket

Electrical

See ballast module spec sheet.

Finish

All painted finishes are baked enamel.

Labels

UL, cUL

Ordering Information

Catalog No. Finishes Track Mountings Ballast Module Lamp

83W6WH Matte White All Lytespan Track Systems and Multi- Use one of: T6, G12 base, Single Ended

83W6BK Matte Black point. PowerArc™ Modular canopies, 83B39E 83CY70E Ceramic Metal Halide, 70W Max.

83W6AL Metallic Aluminum extension wands, mounting brackets or 83CY39E 83B70E

pipe clamps. Not compatible with 83B70SE

ProSpec or ATOM 83B39LE

}

Compatible with

83B39LE, 83B70E

ballasts only

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

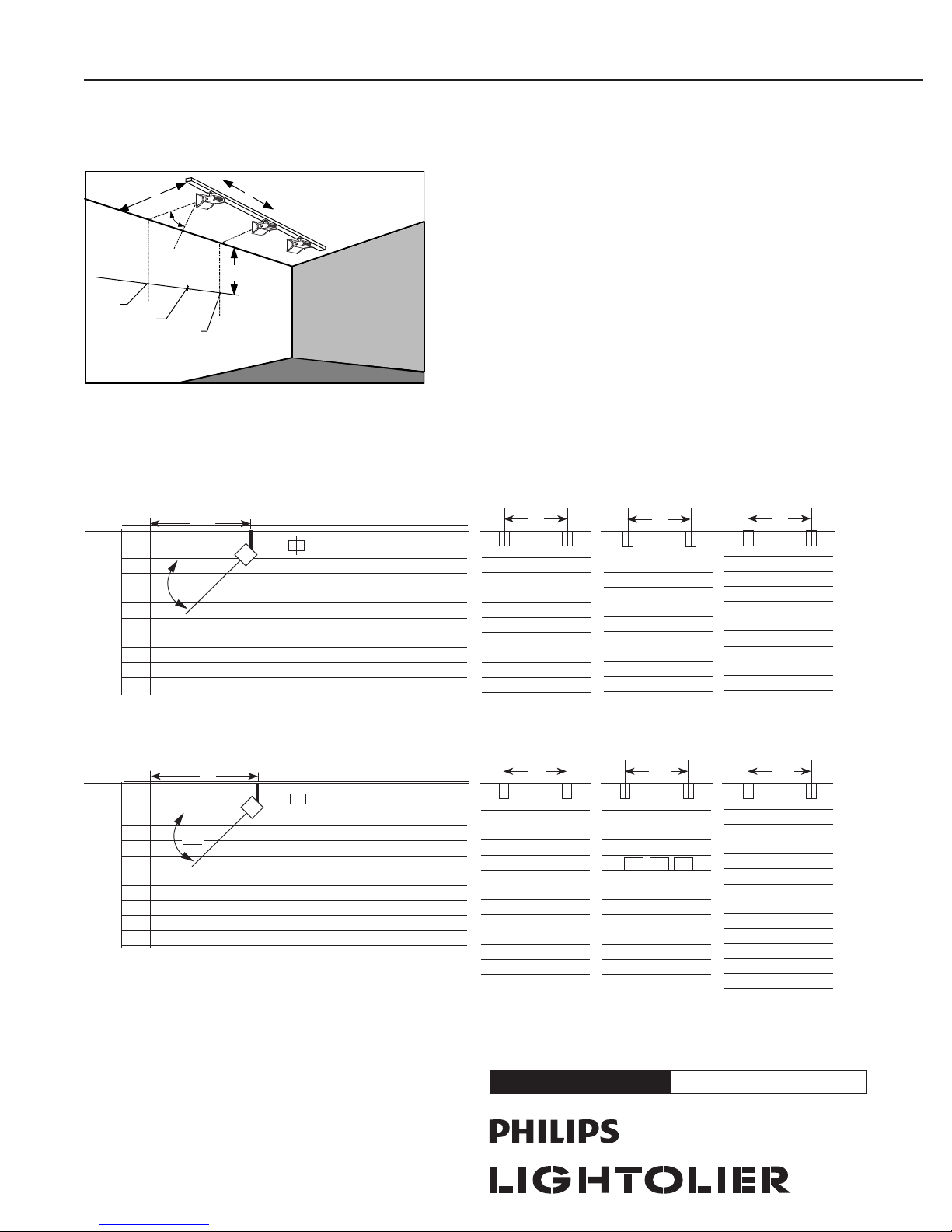

Lytespan Track Lighting System 83W6

Page 2 of 2 PowerArc Modular T-6 Single Ended Metal Halide Wall Washer

Distance From Ceiling

Lamp Information:

70W CDM T6 Single Ended Metal Halide.

Initial Lumens: 6600

CRI: 82

Rated Avg. life: 9,000 - 15,000 hrs.

For 39W Multiply by 0.5.

Lighting Data

1' 153 129 70 30 13 6

2' 127 111 73 38 16 6

3' 85 76 56 34 17 7

4' 57 51 40 28 16 9

5' 39 35 20 21 13 8

6' 26 25 20 16 11 7

7' 17 16 14 11 9 6

8' 12 11 10 8 7 5

9' 8 8 7 6 5 4

104 150 184

159 149 159

120 118 120

93 90 93

67 65 67

53 52 53

39 38 39

29 29 29

23 23 23

Footcandles on Wall

Track 3 Feet From Wall Single Unit Multiple Units

163 63 163

132 76 132

90 69 91

67 59 68

47 42 47

37 35 37

27 26 27

20 20 20

16 16 16

50°

Example: With track located 4' from wall and multiple units spaced 8'

on center and aimed 50˚ from horizontal, the illumination on wall 4' from

ceiling will be 50.c. beneath units and 37 f.c. between units.

1' 72 67 46 24 9 3

2' 84 76 56 36 19 9

3' 65 61 48 34 21 11

4' 48 45 38 29 19 12

5' 35 33 28 23 17 11

6' 26 25 21 18 14 10

7' 20 19 17 14 11 8

8' 15 14 13 11 9 7

9' 11 11 10 9 7 6

77 57 77

91 72 91

74 69 74

60 57 60

47 45 47

38 36 38

31 28 31

24 22 24

19 18 19

15 14 15

12 11 12

10 9 10

76 23 76

87 37 87

67 41 67

50 37 50

38 32 38

31 26 31

24 21 24

19 17 19

15 14 15

12 11 12

10 9 10

8 7 8

75 7 75

86 15 86

66 21 66

49 22 49

36 21 36

28 19 28

21 16 21

16 13 16

13 11 13

10 9 10

8 7 8

6 6 6

Track 4 Feet From Wall Single Unit Multiple Units

6' * 8' * 10' *

Distance From Ceiling

Footcandles are average and rounded off and data for multiple units are based on a minimum of five units.

Footcandles on wall:

50ϒ

50 f.c.

37 f.c.

50 f.c.

0' 1' 2' 3' 4' 5'

Beam Center

169 98 169

139 109 139

99 91 99

76 73 76

54 52 54

43 41 43

31 31 31

23 23 23

19 19 19

50°

For 39W: Multiply values by 0.5 Rated Lamp Life 9,000 - 12,000 Hrs.
