Lightolier LP-23 Manuale utente

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LP-23

1BHFPG -JOFBS1FSG-ZUFDN8BMM.PVOU-JHIU#JBY1FShDN/PNJOBM4FDUJPO

#

Module Ordering Information

Style Series Lamps Type Length Options

2= 2 Lt Cross B4 = 40w Biax 4= 4-Foot U= Uni-voltage Blank = No Options

Section B5 = 50w Biax 8= 8-Foot E= Emergency Pack DS = Dual Switched

D1 = Dimming 120v X4 = 4th through wire

D2 = Dimming 277v

LP W 2

Complete ordering instructions below.

Features

1. Housing: 18 gauge steel. Die-formed steel end cap with concealed access

holes for through wiring. No exposed fasteners or hardware.

2. Lamping: Four FT40W or FT50W fluorescent lamp per 4-Foot section. Provided

by others.

3. Reflector: Precision die-formed specular aluminum.

4. Diffuser: Opal Acrylic.

Electrical

Ballast is universal voltage, <10% THD, .88 ballast factor, instant start. 3 con-

ductor, 18 gauge wire. Color-coded quick connectors allow ease of connection

for joiner modules. For special circuiting consult factory. Factory installed ballast

disconnect allows the ballast to be disconnected fromand reconnected to incoming

power under load without turning the entire circuit off.

Dimming: 120/277 VAC.

Emergency Battery Pack: 40 watt: 450 lumens @ 90 minutes.

Labels

UL, cUL and I.B.E.W.

Finish

Powder coated baked white enamel. Customcolors available, consult factory.

Options

Dual Switching: Order the DS option for separate row switching. DS option

automatically ships with the X4 option included.

X4 Wire: Order X4 modules for remainder of the run when using dimming

and/or switched emergency battery pack modules.

Emergency Circuiting: Special circuiting - consult factory.

Ordering Information

Individual Fixtures:

1. Order number of MODULES required.

2. Order one END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one END SET per run.

4. Order one JOINER CONNECTOR per MODULE in run minus one.

Ballast

8.00” (20.32cm)

3.00”

(7.62cm)

2.50”

(6.35cm)

0.25”(0.64cm)

0.25” (0.64cm)

Half Scale

PERF

3.35" (8.51cm)

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LP-23

1BHFPG -JOFBS1FSG-ZUFDN8BMM.PVOU-JHIU#JBY1FShDN/PNJOBM4FDUJPO

#

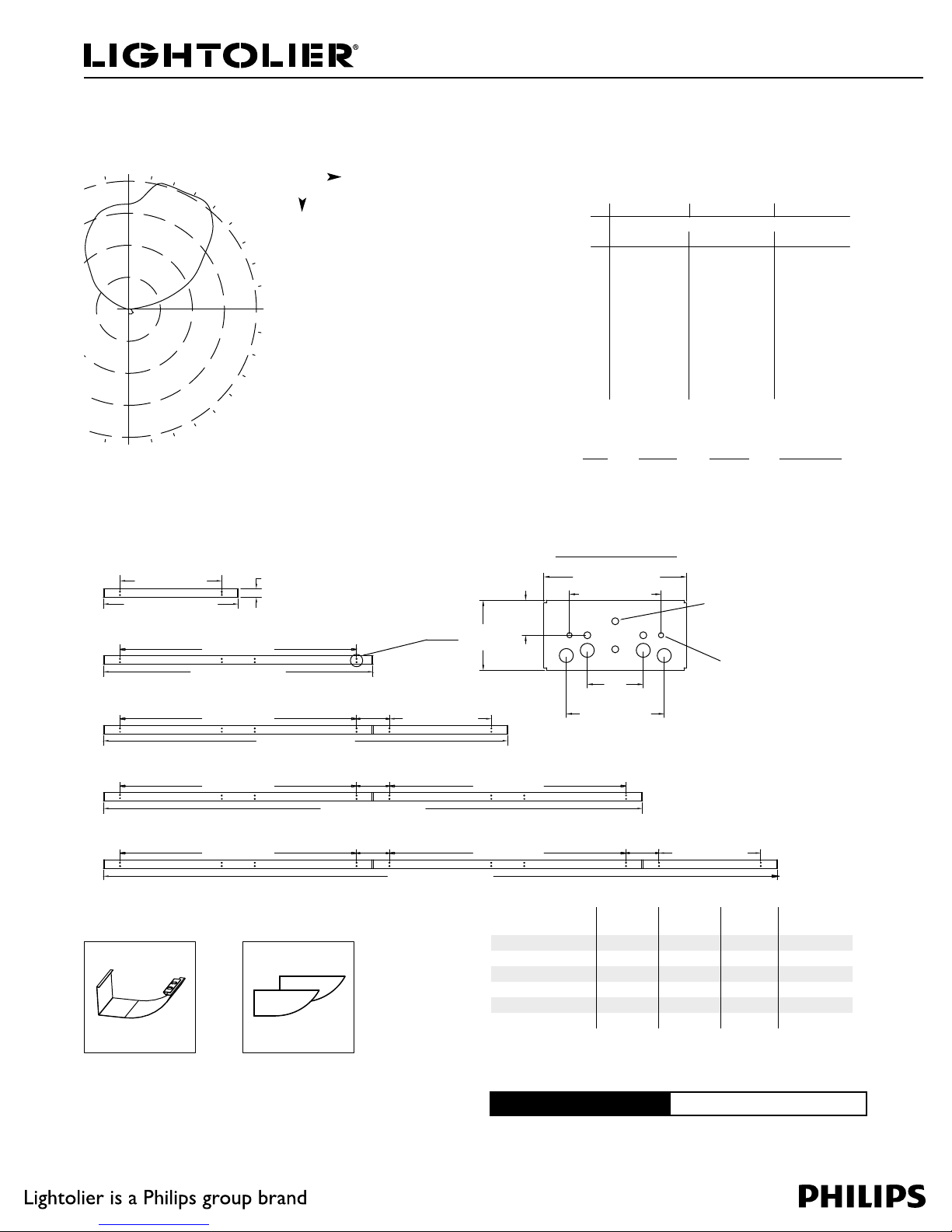

Mounting Accessories

Fixture Lengths & Mounting Locations

LPWE End Set

One set of a left and

right plate to finish

the run.

LPWC Joiner Connector

Covers the joint

between modules

80” (203.20cm)

98-1/2” (250.19cm)

80” (203.20cm)

245-1/2” (623.57cm)

13.50”

(34.29cm)

18.00”

(45.72cm)

18.00”

(45.72cm)

13.50”

(34.29cm)

80” (203.20cm)

40” (101.60cm)

147-1/2” (374.65cm)

196-1/2” (499.11cm)

40” (101.60cm)

4’

8’

12’

16’

20’

3” (7.62cm)

49-1/2” (125.73cm)

5.100” (12.95cm)

MOUNTING PLATE DETAIL

0.5” (1.27cm) DIMPLE

WITH 0.187” (0.47cm)

HOLE IN CENTER

1/4-20x1/2 STUDS

(USED TO ATTACH FIXTURE

TO MOUNTING PLATE)

3.275” (8.32cm)

2.500”

(6.35cm)

1.250”

(3.18cm)

2.000”

(5.08cm)

3.500” (8.89cm)

170

160

150

140

130

110

120

100

0909

180

350

190

775

1550

2325

3100

Performance

CANDLEPOWER CURVE CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

180 2545 2545 2545 2545 2545

175 2624 2646 2590 2534 2556

165 3153 2984 2894 2601 2488

155 3142 3018 2950 2534 2297

145 3198 3074 2871 2432 2043

135 2894 2826 2669 2130 1672

125 2226 2342 2170 1830 1340

115 1681 1677 1668 1451 920

105 881 885 859 858 475

95 97 113 113 218 106

90 56 50 34 25 21

85 69 61 42 26 20

75 89 82 62 37 27

65 96 89 68 42 25

55 143 140 119 96 74

45 131 124 107 86 69

35 137 132 117 100 86

25 125 120 111 99 88

15 117 116 110 104 98

5 104 102 101 99 98

08989898989

ROOM CAVITY RATIO

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

WALL REFLECTANCE

20% FLOOR CAVITY REFLECTANCE

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-90 357 2.8 4.2

90-180 8161 64.8 95.8

0-180 8519 67.6 100.0

REPORT NO: LRL 1200-6A

CAT. NO: LPW2B44U

LAMPS: 4-F40BX

LUMENS: 3150

EFFICIENCY: 67.6%

70 1050 3050 3070 50 30

4' (121.92cm)

Module

8' (243.84cm)

Module End Set Connector

4' (121.92cm) Run 11

8' (243.84cm) Run 11

12' (365.76cm) Run 111 1

16' (487.68cm) Run 21 1

20' (609.60cm) Run 121 2

24' (731.52cm) Run 31 2
