Lytespan®Track Lighting 8675B

Page 1 of 2 Focal Jack Sof-Tech®Open Ring MR16

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

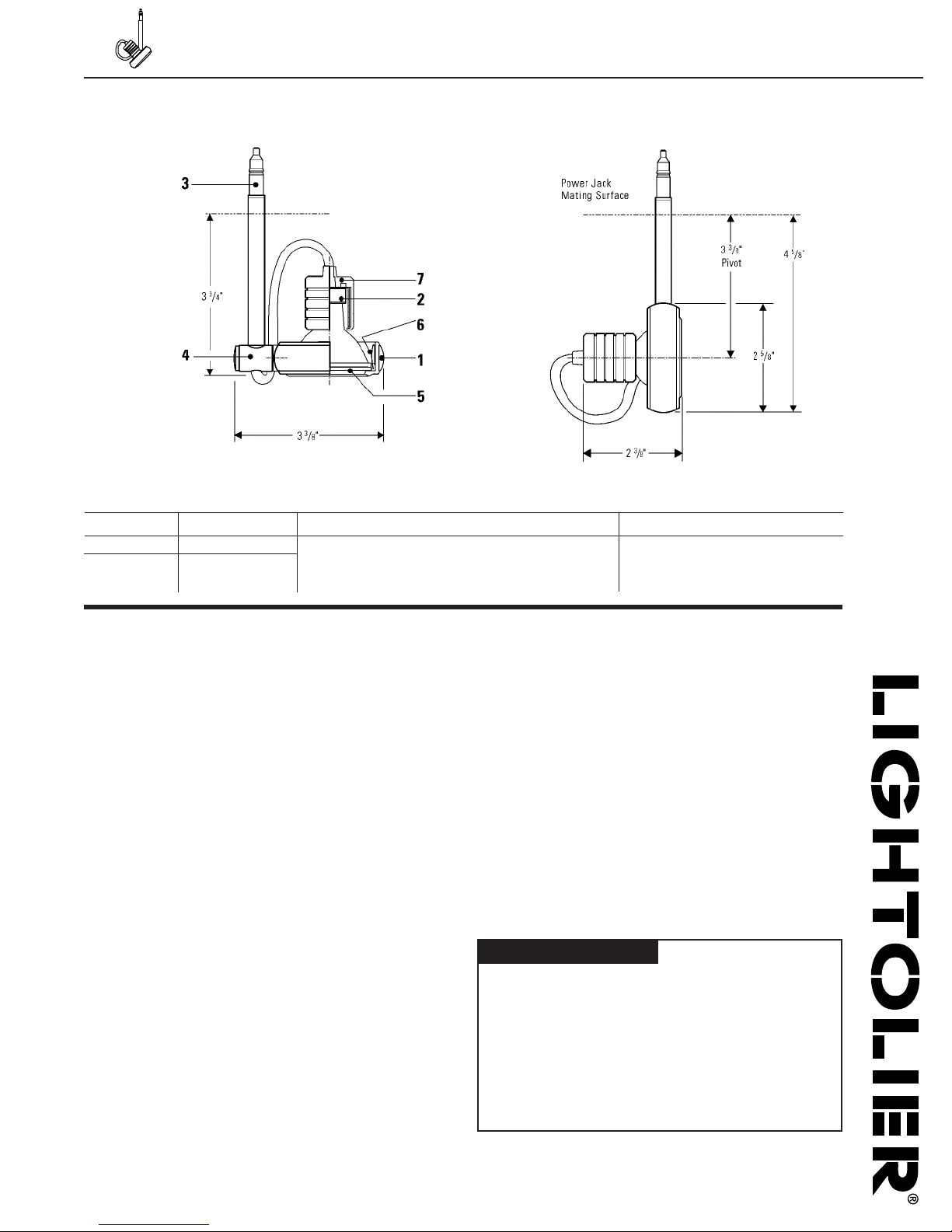

Features

1. Ring: die-cast aluminum with cool grip insulation band, a high temperature

silicone rubber which allows aiming adjustments while fixture is on.

2. Socket: bi-pin base ceramic socket, prewired with 18 ga. stranded Teflon

leads with fiberglass outer sleeve.

3. Male Jack Connector: mounted in 3/8" dia. stainless steel stem. Plugs

into any 8600 Power Jack or Extender Stem. Allows for 360° horizontal

rotation.

4. Tension Pivot Mount: die-cast aluminum. Allows for 180° vertical rotation.

5. Lamp Guard: tempered glass.

6. Spring: steel springs hold lamp and housing in place.

7. Socket Boot: high temperature insulated silicone rubber encases socket.

Finish

All painted finishes are powder coated baked enamel.

Options & Accessories

Accessory Holder 7662 Sof-Tech series; holds one accessory.

All 2" Color Filters AF2 Series

Prismatic Spread Lens AF2SY

Beam Elongator AF2AS

UV Filter AF2UV

Beam Smoother AF2LF

Hexcell Louver AL2HC

Electrical/Dimming

For dimming information refer to Power Jack specification sheets.

Labels

Ordering Information

Catalog No. Finishes Mountings Lamps

8675B WH Matte White All Power Jacks MR16 Bi-Pin

8675B BK Matte Black Note: For wall mounting, additional bushing required 50W Max

(Item No. 58622).

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 67 - 710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lighting Data

Aiming Angle: 0° 30° 45° or 60° Horizontal 30° 45° or 60° Vertical

LBeam length

WBeam width

CDistance to center of beam

DDistance

AAiming angle

FC Footcandles

Land Ware the outer points where the candlepower

drops to 50% of the maximum. FC are the initial

footcandles at the center of the beam.

Lamp O° Aiming Angle A 30° Aiming Angle A 45° Aiming Angle A 60° Aiming Angle

 or 60°

1850 4000

50W MR16 (T-H)

FL (EXN) 40°

1150 4000

50W MR16 (T-H)

WFL (FNV) 55°

12000 4000

75W MR16 (T-H)

NSP (EYF) 14°

4900 4000

75W MR16 (T-H)

NFL (EYJ) 25°

2100 4000

75W MR16 (T-H)

FL ( EY C) 42°

3400 4000

50W MR16 (T-H)

NFL (EXZ) 27°

525 4000

20W MR16 (T-H)

FL (BAB) 40°

2' 131 1.5' 1.5'

3' 58 2.2' 2.2'

4' 33 2.9' 2.9'

5' 21 3.6' 3.6'

13100 3500

42W MR16 (T-H)

VNSP (EZY) 9°

3900 4000

35W MR16 (T-H)

SP (FRA) 20°

8700 4000

35W MR16 (T-H)

NSP (FRB) 12°

3600 3000

20W MR16 (T-H)

NSP (ESX) 13°

8200 3000

20W MR16 (T-H)

VNSP (EZX) 7°

7' 167 0.9' 0.9'

10' 82 1.2' 1.2'

13' 49 1.6' 1.6'

16' 32 2.0' 2.0'

DFCL W D C FCL W D CFCL W D CFCL W

Beam Spread

50% Max CP

Beam Center

C.P. Candelas

Rated

Life-Hrs

6' 3.5' 148 1.0' 0.8'

9' 5.2' 66 1.5' 1.3'

12' 6.9' 37 2.0' 1.7'

15' 8.7' 24 2.4' 2.1'

4' 4.0' 181 1.0' 0.7'

6' 6.0' 81 1.5' 1.0'

8' 8.0' 45 2.0' 1.4'

10' 10.0' 29 2.5' 1.7'

2' 3.5' 256 1.0' 0.5'

3' 5.2' 114 1.5 0.7'

4' 6.9' 64 2.0' 1.0'

5' 8.7' 41 2.5' 1.2'

6' 100 1.4' 1.4'

8' 58 1.8' 1.8'

10' 38 2.3' 2.3'

12' 25 2.7' 2.7'

5' 2.8' 94 1.5' 1.3'

7' 4.0' 48 2.1' 1.8'

9' 5.2' 29 2.7' 2.4'

11' 6.4' 19 3.4' 2.9'

3' 3.0' 141 1.4' 1.0'

5' 5.0' 51 2.3' 1.6'

7' 7.0' 28 3.2' 2.3'

9' 9.0' 18 4.2' 2.9'

2' 3.5' 113 1.9' 0.9'

3' 5.2' 50 2.8' 1.4'

4' 6.9' 28 3.8' 1.8'

5' 8.7' 18 4.7' 2.3'

2' 1.2' 85 2.0' 1.7'

3' 1.7' 38 3.0' 2.5'

4' 2.3' 21 4.1' 3.4'

5' 2.9' 14 5.1' 4.2'

2' 2.0' 45 3.4' 2.1'

3' 3.0' 21 5.0' 3.1'

4' 4.0' 12 6.7' 4.1'

5' 5.0' 7 8.4' 5.1'

1' 1.7' 66 4.8' 1.5'

2' 3.5 16 9.7' 2.9'

3' 5.2' 7 14.5' 4.4'

4' 6.9' 4 19.3' 5.8'

6' 3.5' 157 1.7' 1.5'

9' 5.2' 70 2.5' 2.2'

12' 6.9' 39 3.4' 2.9'

15' 8.7' 25 4.2' 3.6'

4' 4.0' 192 1.7' 1.2'

6' 6.0' 85 2.6' 1.8'

8' 8.0' 48 3.4' 2.4'

10' 10.0' 31 4.3' 3.0'

2' 3.5' 272 1.7' 0.8'

3' 5.2' 121 2.6' 1.3'

4' 6.9' 68 3.5' 1.7'

5' 8.7' 44 4.3' 2.1'

6' 108 2.1' 2.1'

8' 61 2.8' 2.8'

10' 39 3.5' 3.5'

12' 27 4.2' 4.2'

5' 2.9' 101 2.4' 2.0'

7' 4.0' 52 3.3' 2.9'

19' 5.2' 31 4.3' 3.7'

111' 6.4' 21 5.2' 4.5'

8' 205 1.3' 1.3'

12' 91 1.9' 1.9'

16' 51 2.5' 2.5'

20' 33 3.1' 3.1'

7' 4.0' 174 1.5' 1.3'

10' 5.8' 85 2.1' 1.8'

13' 7.5' 50 2.7' 2.4'

3' 3.0' 153 2.2' 1.5'

5' 5.0' 55 3.6' 2.5'

7' 7.0' 28 5.1' 3.5'

9' 9.0' 17 6.6' 4.5'

2' 3.5' 122 3.1' 1.4'

3' 5.2' 54 4.7' 2.1'

4' 6.9' 30 6.2' 2.8'

5' 8.7' 20 7.8' 3.5'

16' 9.2' 33 3.4' 2.9'

5' 5.0' 185 1.6' 1.1'

7' 7.0' 95 2.2' 1.6'

9' 9.0' 57 2.9' 2.0'

11' 11.0' 38 3.5' 2.4'

3' 5.2' 182 1.9' 0.9'

4' 6.9' 102 2.6' 1.3'

5' 8.7' 66 3.2' 1.6'

6' 10.4' 45 3.8' 1.9'

7' 178 1.5' 1.5'

10' 87 2.1' 2.1'

13' 51 2.7' 2.7'

16' 34 3.4' 3.4'

6' 94 2.9' 2.9'

8' 53 3.8' 3.8'

10' 34 4.8' 4.8'

12' 24 5.8' 5.8'

5' 2.9' 88 3.3' 2.8'

7' 4.0' 45 4.6' 3.9'

9' 5.2' 27 5.9' 5.0'

11' 6.4' 18 7.2' 6.1'

3' 3.0' 134 3.1' 2.0'

5' 5.0' 48 5.1' 3.4'

7' 7.0' 25 7.1' 4.8'

9' 9.0' 15 9.2' 6.1'

2' 3.5' 106 4.6' 1.9'

3' 5.2' 47 7.0' 2.9'

4' 6.9' 27 9.3' 3.8'

5' 8.7' 17 11.6' 4.8'

4' 116 2.9' 2.9'

6' 51 4.4' 4.4'

8' 29 5.8' 5.8'

10' 19 7.3' 7.3'

3' 1.7' 134 3.0' 2.5'

5' 2.9' 48 5.1' 4.2'

7' 4.0' 25 7.4' 5.9'

9' 5.2' 15 9.1' 7.6'

3' 3.0' 73 5.0' 3.1'

4' 4.0' 41 6.7' 4.1'

5' 5.0' 26 8.4' 5.1'

6' 6.0' 18 10.1' 6.2'

1' 1.7' 231 4.8' 1.5'

2' 3.5' 58 9.7' 2.9'

3' 5.2' 26 14.5' 4.4'

4' 6.9' 14 19.3' 5.8'

3' 128 3.1' 3.1'

5' 46 5.2' 5.2'

7' 23 7.3' 7.3'

9' 14 9.4' 9.4'

3' 1.7' 83 4.6' 3.6'

5' 2.9' 30 7.8' 6.0'

7' 4.0' 15 10.7' 8.4'

9' 5.2' 9 13.7' 10.8'

2' 2.0' 102 5.7' 2.9'

3' 3.0' 45 8.6' 4.4'

4' 4.0' 25 11.4' 5.9'

5' 5.0' 16 14.3 7.4'

1' 1.7' 144 22.3' 2.1'

2' 3.5 36 44.5 4.2'

3' 5.2' 16 66.8' 6.2'

4' 6.9' 9 89.1' 8.3'

8' 188 2.0' 20'

12' 83 2.9' 2.9'

16' 47 3.9' 3.9'

20' 30 4.9' 4.9'

7' 4.0' 159 2.3' 2.0'

10' 5.8' 78 3.3' 2.8'

13' 7.5' 46 4.3' 3.7'

16' 9.2' 30 5.3' 4.5'

5' 5.0' 170 2.5' 1.7'

7' 7.0' 87 3.5' 2.4'

9' 9.0' 52 4.5' 3.1' 11' 11.0' 35 5.5' 3.8'

3' 5.2' 167 3.1' 1.5'

4' 6.9' 94 4.1' 2.0'

5' 8.7' 60 5.1' 2.5'

6' 10.4' 42 6.2' 2.9'

6' 136 2.7' 2.7'

8' 77 3.5' 3.5'

10' 49 4.4' 4.4'

12' 34 5.3' 5.3'

5' 2.9' 127 3.0' 2.6'

7' 4.0' 65 4.2' 3.6'

9' 5.2' 39 5.4' 4.6'

11' 6.4' 26 6.0' 5.6'

3' 3.0' 192 2.8' 1.9'

5' 5.0' 69 4.7' 3.1'

7' 7.0' 35 6.5' 4.4' 9' 9.0' 21 8.4' 5.6'

2' 3.5' 153 4.2' 1.8'

3' 5.2' 68 6.2' 2.7'

4' 6.9' 38 8.3' 3.5'

5' 8.7' 25 10.4' 4.4'

4' 131 3.1' 3.1'

6' 58 4.6' 4.6'

8' 33 6.1' 6.1'

10' 21 7.7' 7.7'

3' 1.7' 152 3.2' 2.7'

5' 2.9' 55 5.4' 4.4'

7' 4.0' 28 7.5' 6.2'

9' 5.2' 17 9.7' 8.0'

3' 3.0' 82 5.4' 3.3'

4' 4.0' 46 7.2' 4.3'

5' 5.0' 30 9.0' 5.4' 6' 6.0' 21 10.8' 6.5'

1' 1.7' 263 5.5' 1.5'

2' 3.5' 66 11.0' 3.1'

3' 5.2' 29 15.5' 4.6'

4' 6.9' 16 22.0' 6.1'
