Lytespan Track Lighting 7610

Page 1 of 2 Basic Mini-Swivel

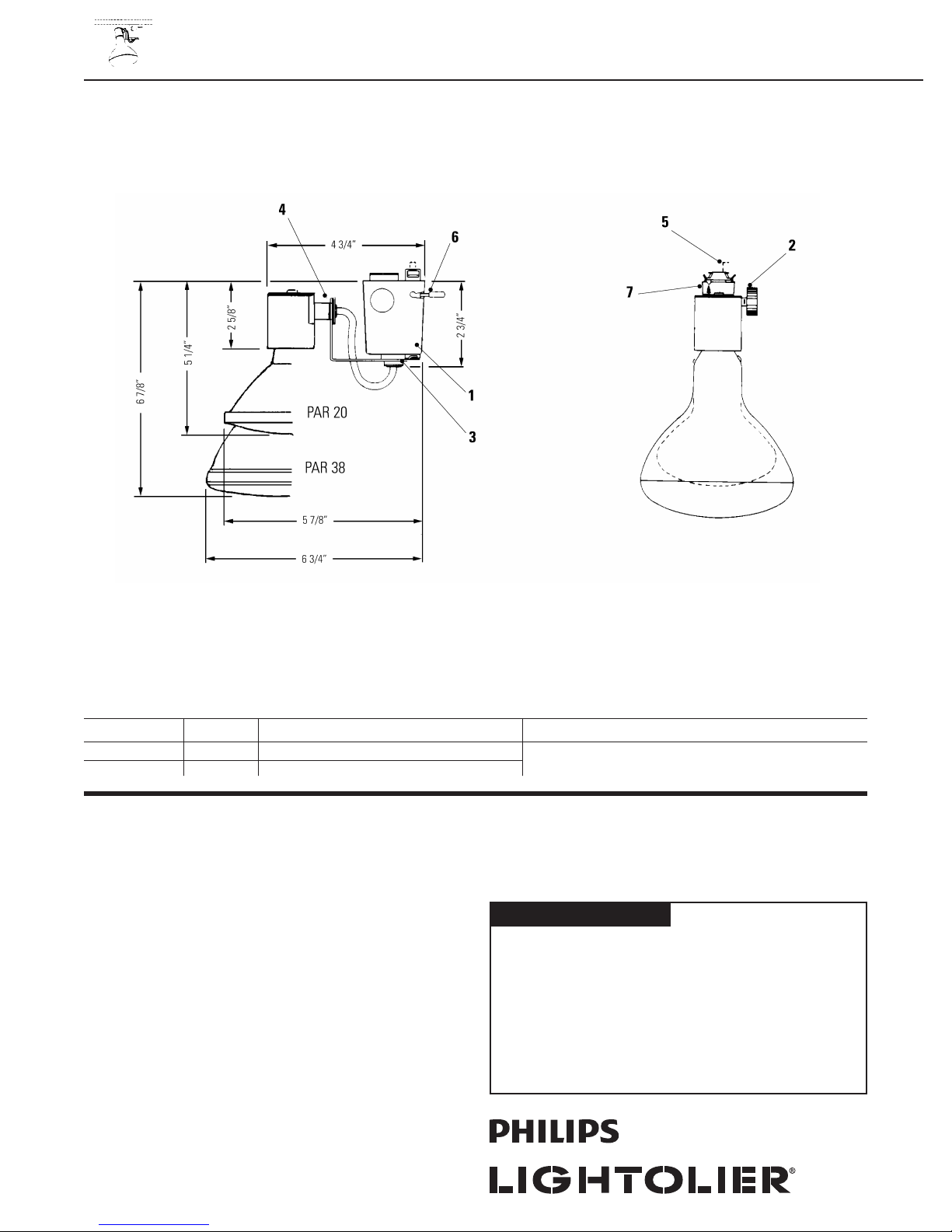

Features

1. Lytespan Attachment Fitting: Molded polycarbonate .075” wall thickness.

Integral color.

2. Expansion Clamp: Fingertip squeeze-release for quick attachment;

thumbscrew lock for rigid mounting.

3. Offset Arm: Permanently-tensioned with spring washer and vibration-

resistant nut. Horizontal rotation through 350°.

4. Pivot: Socket permanently-tensioned; Vertical Motion 180º.

5. Movable Brass Contact: Extends for connection to 2nd circuit in Advent

Lytespan Track.

6. Lever: energizes unit.

7. Polarity Keyway

Electrical

Porcelain socket, medium base, nickel plated screw shell.

No. 18 braided SF-1 leads.

Finish

All painted finishes baked enamel.

Labels

UL; I.B.E.W.

Ordering Information

Catalog No. Finish Description Mounting

7610 Matte White All Lytespan Track System 75W R20, 100W R30, 50W PAR20, 75W PAR30,

250W PAR38, (150W Cool Beam) 300W R40, 75W PAR30

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytespan Track Lighting 7610

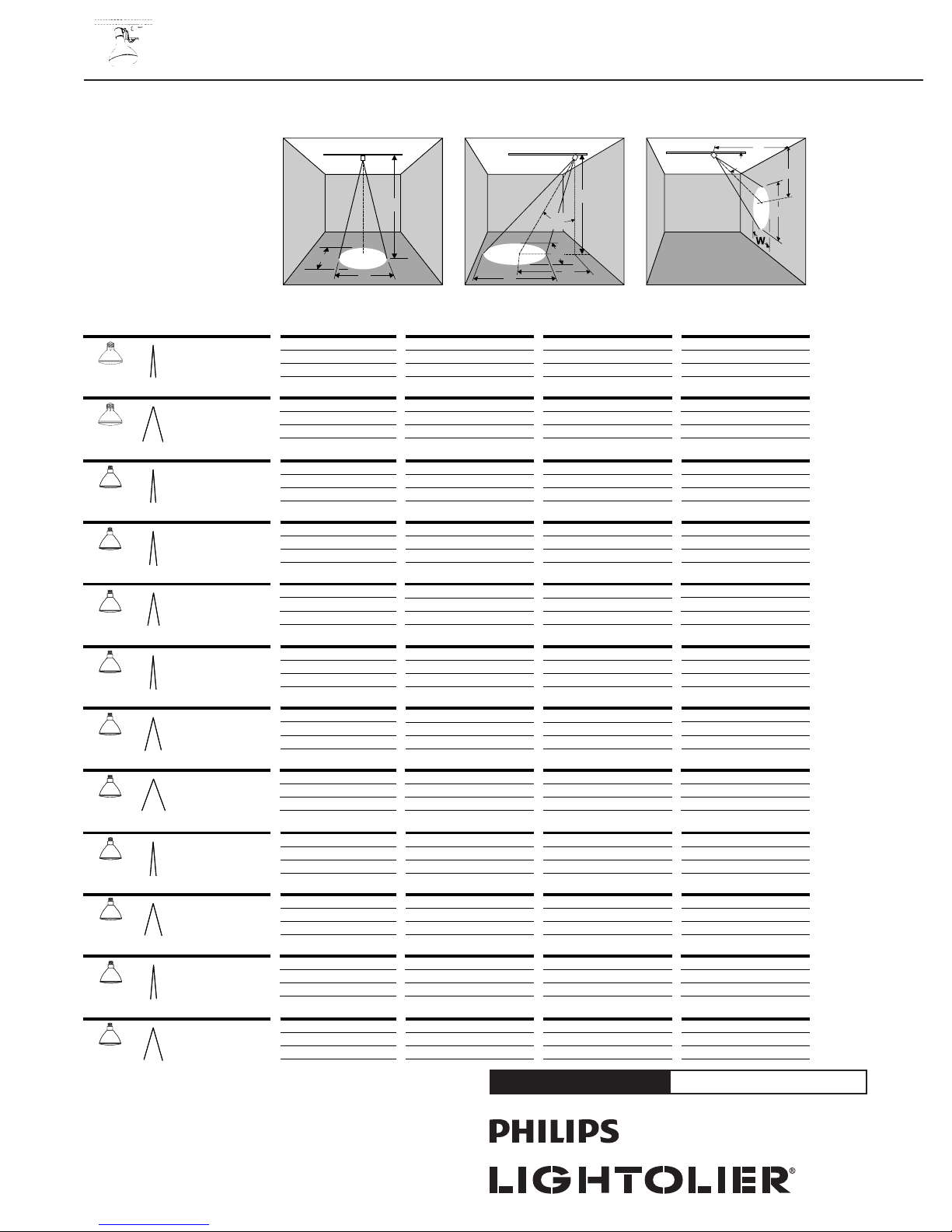

Page 2 of 2 Basic Mini-Swivel
