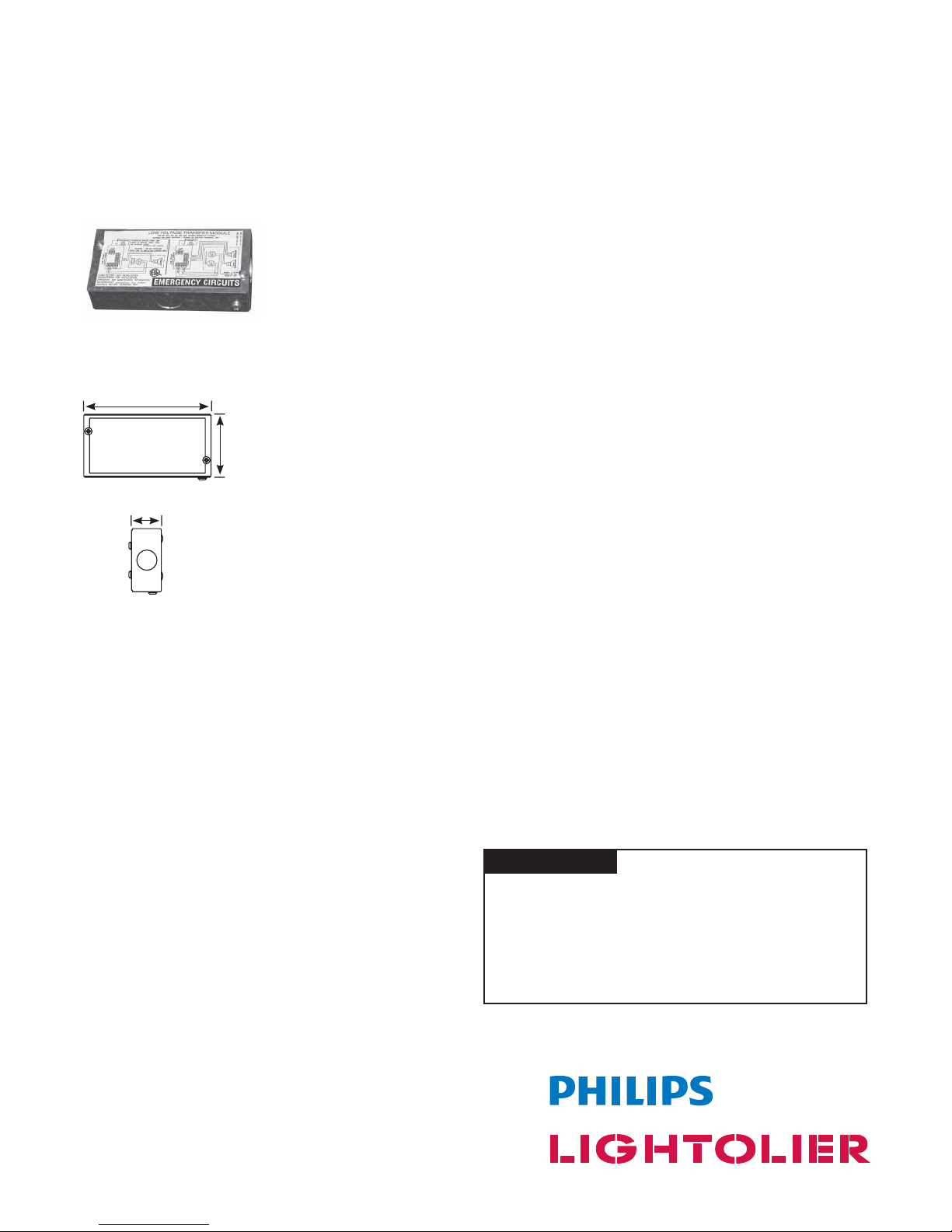

LOW VOLTAGE TRANSFER CIRCUIT FOR DOWN-LIGHTING

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: The low voltage

transfer circuit is a two channel

device providing switching for

up to 75 W per channel and is

designed to convert existing

low-voltage lighting into

emergency lighting when paired

with a 12 VDC emergency

battery unit.

Housing: Housing and

cover are constructed of

20 gauge galvanized steel.

Three knockouts for conduit

attachment are provided. A

grounding lead is provided

inside the housing.

Operating Temperature

Range:

32°F (0°C) to 122°F (50°C)

Electronics: Load - Reverse

polarity protected with low

battery voltage disconnect

(standard in all Lightolier

emergency battery units).

Special Requirement -

Determine the maximum

wattage draw of the down-light

fixture and be certain that the

12 VDC emergency supply

unit equipment is capable

of sustaining that load for a

minimum of 90 minutes as

required by code.

Electrical Specifications:

Input Power Requirements at

12 VAC - .72 W

Output Power Requirements

at 12 VDC - 2 channel at 75 W

maximum each

Code Compliance

Listed for insulated ceiling

systems (IC Rated). Damp

location listing standard. ETL

listed to UL 924 standards.

Warranty

Three years full warranty.

LTC

2.725"

(6.921 cm)

5.5"

(13.97 cm)

1.29"

(3.277 cm)

LTC Series

LOW VOLTAGE TRANSFER CIRCUIT FOR DOWN-LIGHTING

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

LTC Series August 12, 2011

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

LTC = Low Voltage

Transfer Circuit

LTC

Installation

One Lamp observe

proper

polarity

12 VDC

Emergency

Unit

Equipment

indicates

original

wiring path

Low Voltage

Transfer Module

Xfmr 1

Lighting

Fixture

Xfmr 1

Lamp 1

12 V 75 W MAX

Lamp 1

Xfmr 1 Xfmr 2

LAMP CONN L1 L1 L2 L2

AC1 AC1 AC2 AC2

EMERGENCY

POWER INPUT

L- L+

Two L amp observe

proper

polarity

12 VDC

Emergency

Unit

Equipment

indicates

original

wiring path

Low Voltage

Transfer Module

Xfmr 1

Lighting

Fixture Xfmr 1

Lamp 1

12 V 75 W MAX

Lamp 1

Xfmr 1 Xfmr 2

LAMP CONN L1 L1 L2 L2

AC1 AC1 AC2 AC2

EMERGENCY

POWER INPUT

L- L+

Xfmr 2

Lamp 2

12 V 75 W MAX

Lamp 2

Xfmr 2
