Lightolier MJ2 Series Manuale utente

MJ2 Series

CHICAGO STEEL UNIT

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

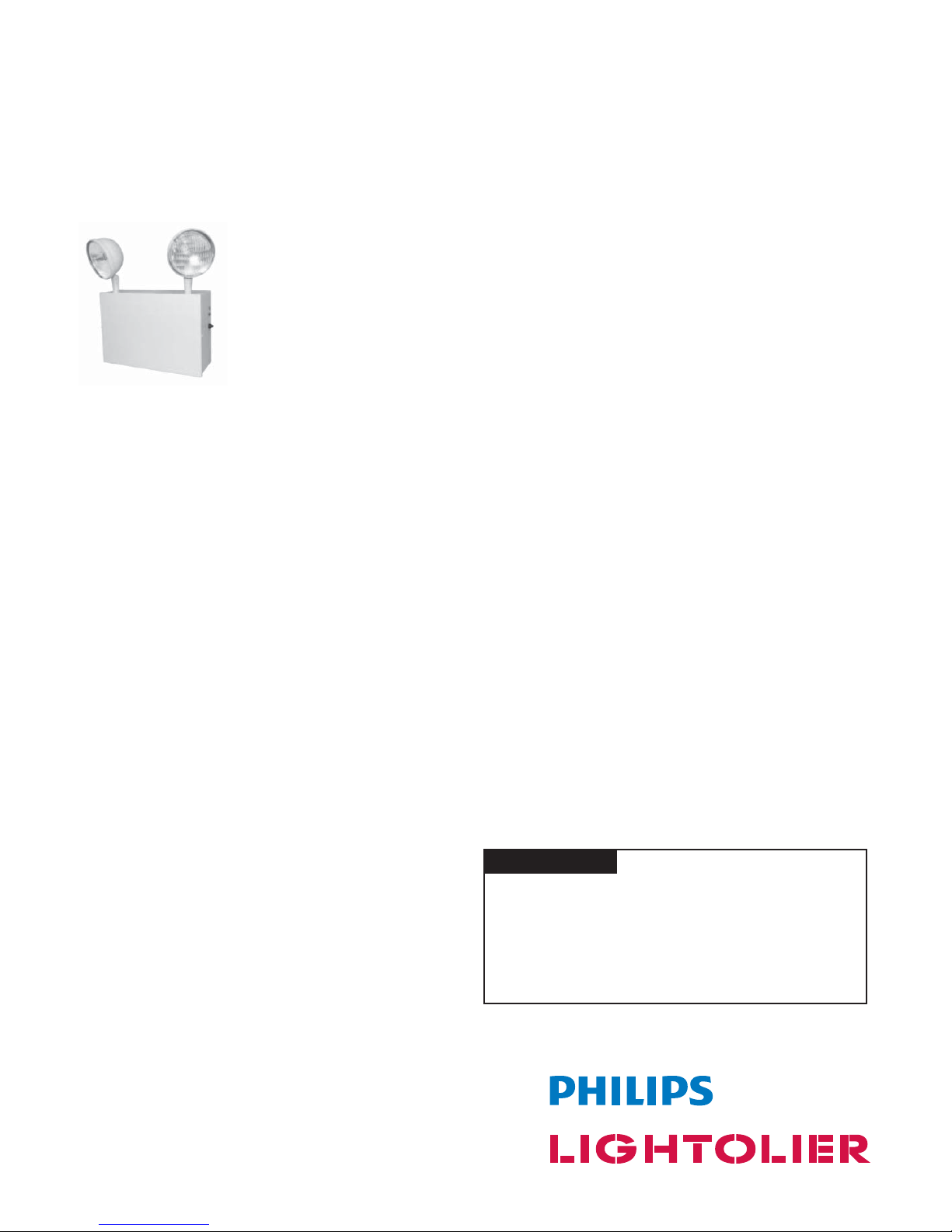

Features

Illumination: High output

incandescent sealed beam

lamps provide glare-free light

distribution. 6 or 12 V, 12 W

bi-pin halogen has an expected

life of 100 hours.

Housing: Heavy duty steel

cabinet is finished in neutral

cream baked-on powder

paint providing scratch and

corrosion resistance. All

metal lamp housing and swivel

assemblies in neutral cream

color to match unit housing.

Lamp heads are fully adjustable

and feature lockable swivels.

Battery: Maintenance-free,

sealed, lead calcium battery

has an estimated service life

of 5 years, and an operating

temperature range of

68°F (20°C) to 86°F (30°C).

Nickel cadmium batteries are

optional.

Electronics: 120/277 VAC

dual voltage input with surge-

protected, solid-state circuitry.

Fully automatic, temperature

compensating, variable rate

float charging system is

complete with low voltage

disconnect, AC lockout,

brownout protection, AC

indicator lamp and test switch.

Code Compliance

All models are UL 924 listed

and meet NFPA 101 Life Safety

Code, NEC, OSHA and City of

Chicago codes.

Warranty

Three year unit warranty

(excludes lamps). One year full

plus four year prorated battery

warranty (lead calcium). Five

year full plus five year prorated

battery warranty (nickel

cadmium).

MJ2132LH12W

MJ2 Series

CHICAGO STEEL UNIT

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

MJ2 Series September 19, 2011

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

MJ2 = Chicago

Steel Unit

MJ2

6 V, Lead Calcium

32L = 32 W

52L = 52 W

12 V, Lead Calcium

104L = 104 W

6 V, Nickel Cadmium

26N = 26 W

12 V, Nickel Cadmium

30N = 30 W

52N = 52 W

Battery Wattage

1= 6 V

2= 12 V

Voltage

W= Neutral

Cream

Housing Color

V= Voltmeter1

A= Ammeter1

A1H = Add One Lighting Head (25 & 30 W units)

LC = 3-Conductor Line Cord - 120 VAC

TD-120 = 15-Minute Re-Transfer Time Delay (120 V)

TD-277 = 15-Minute Re-Transfer Time Delay (277 V)

B= Black Finish - Housing and Lamp Heads

SX = Self-Diagnostic Circuit

Factory Installed Options

H12 = Halogen

12 W

Lamp Type

H12

Note

1) Unit has provisions for one meter option only.

Accessories (order as a separate item)

MJB1 = Mounting Bracket

MJS1 = Mounting Shelf (25 & 30 W units)

MJS2 = Mounting Shelf (50 W units)

MJS3 = Mounting Shelf (72 & 100 W units)

MJS6 = Mounting Shelf (125 & 250 W units)

MJPG1 = Wire Guard (6 V models)

MJPG2 = Wire Guard (12 V models)

MJ908W08 = Matching Remote Head - Single (6 V, 12 W Halogen)

MJ908W54 = Matching Remote Head - Single (12 V, 12 W Halogen)

MJ909W08 = Matching Remote Head - Double (6 V, 12 W Halogen)

MJ909W54 = Matching Remote Head - Double (12 V, 12 W Halogen)

4.75"

(12.0 cm)

6.5"

(16.5 cm)

2.875"

(7.3 cm)

MJ2132L/26N/30N

MJ2152L/N

MJ22104L

MODEL # D" W" H"

9.0"

(22.9 cm)

8.135"

(20.6 cm)

2.875"

(7.3 cm)

12.25"

(31.1 cm)

8.25"

(21.0 cm)

4.135"

(10.5 cm)

12.25"

(31.1 cm)

8.25"

(21.0 cm)

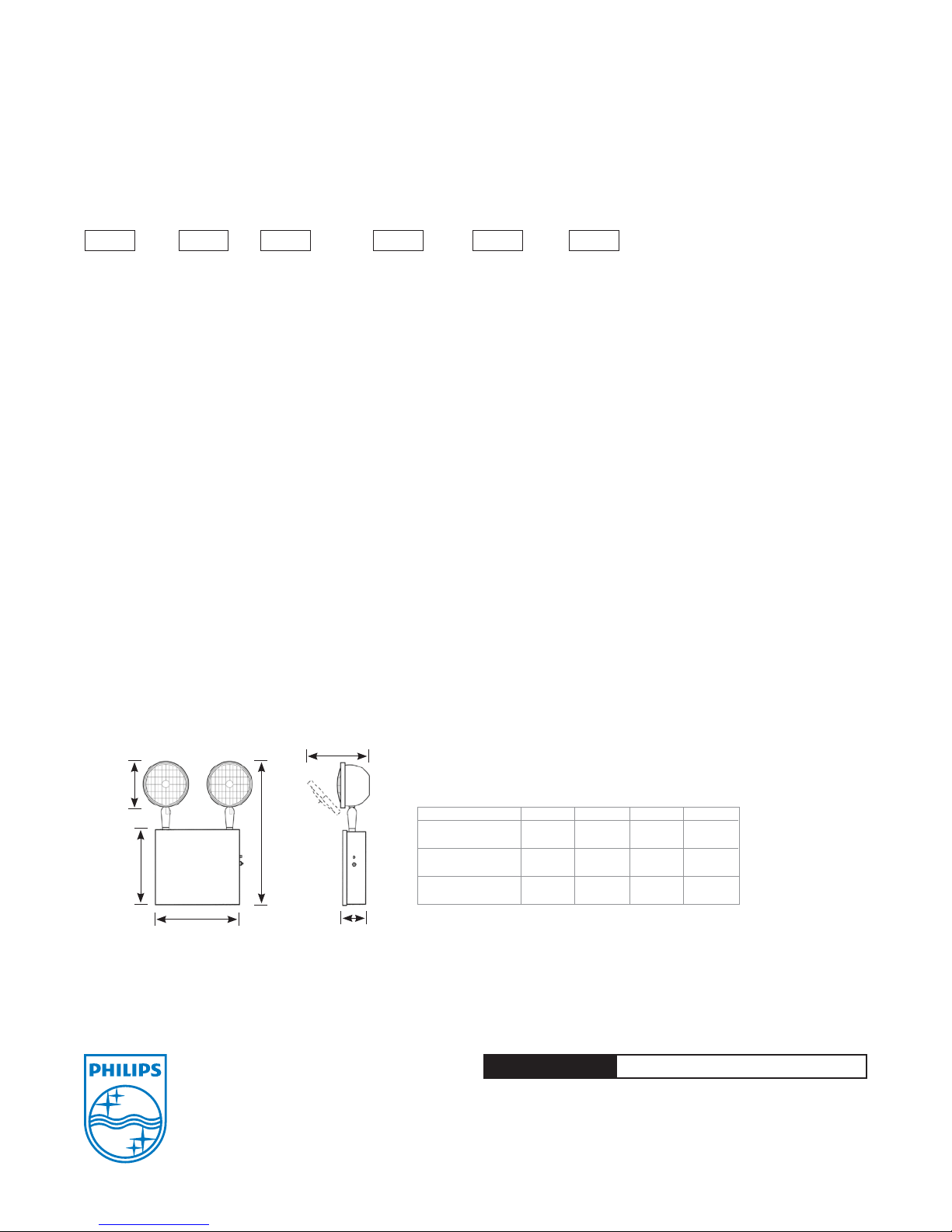

DIMENSIONS

14.135"

(35.9 cm)

14.25"

(36.2 cm)

14.25"

(36.2 cm)
