Lightolier Lytespan 6294 Manuale utente

Lytespan®Track Lighting 6294

Page 1 of 1 Tron 16 Electronic

6294

6295

6497

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

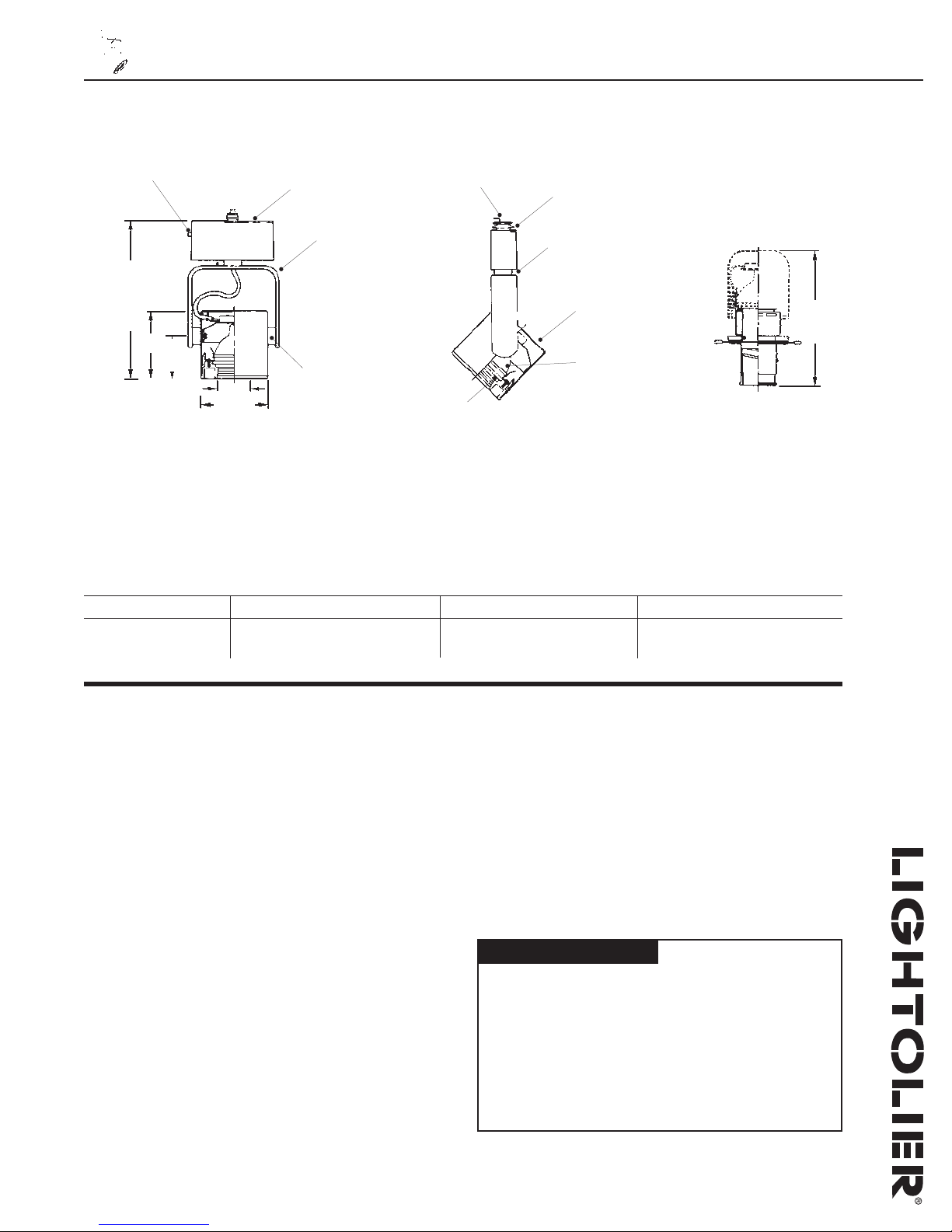

Features

1. Transformer Housing: Die-cast aluminum. Fitter twists onto track and

locks on.

2. Housing: .040” aluminum.

3. Step Baffle: Die-cast aluminum with stepped conical surface for low

brightness. Matte black finish.

4. Trunion Mounting: Tensioned with internal spring washer and vibration-

resistant nut.

5. Pivot Mounting: Tensioned; 350° stop.

6. Movable Brass Contact: Extends for connection to 2nd circuit in Advent

Lytespan Track.

7. Polarity Key

8. Push Tab: Molded polycarbonate. Detaches unit.

9. Yoke: .187” extruded aluminum.

10. Lamp Guard: Tempered glass.

Electrical/Dimming

Light-weight, electronic, low voltage transformer with integral radio frequency

interface filter; constant output lamp voltage to maintain rated lamp life and

light output. Two-pin base socket, pre-wired with No. 18 braided SF-1 leads

with fiberglas braided outer sleeve. For dimming control, use only those

dimmers specifically designed for use with electronic transformers like

Lightolier’s Sunrise and Neptune Momentum QE series. Call (800) 526-2731 for

further information.

Options and Accessory

2” Series Color Filters, Louver, Spread Lens (See Lightolier Specification

Sheet 7472).

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

6 3/4” Max.

3”

1 7/8”

1 5/8” Dia.

3” Dia.

6 1/2”

Fixture MOL = 7 3/4”

Framing Projector

Accessory

(Order Separately)

Ordering Information

Catalog No. Mountings Finish Lamps

6294 All Lytespan Track Systems Matte White 20W-50W, MR-16 12V

6295 Matte Black

6497

Matte Black Framing Projector (For performance data see Lightolier Specification Sheet 6497)

Lytespan®Track Lighting 6294

Page 1 of 2 Tron 16 Electronic

6294

6295

6497

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

DFC L

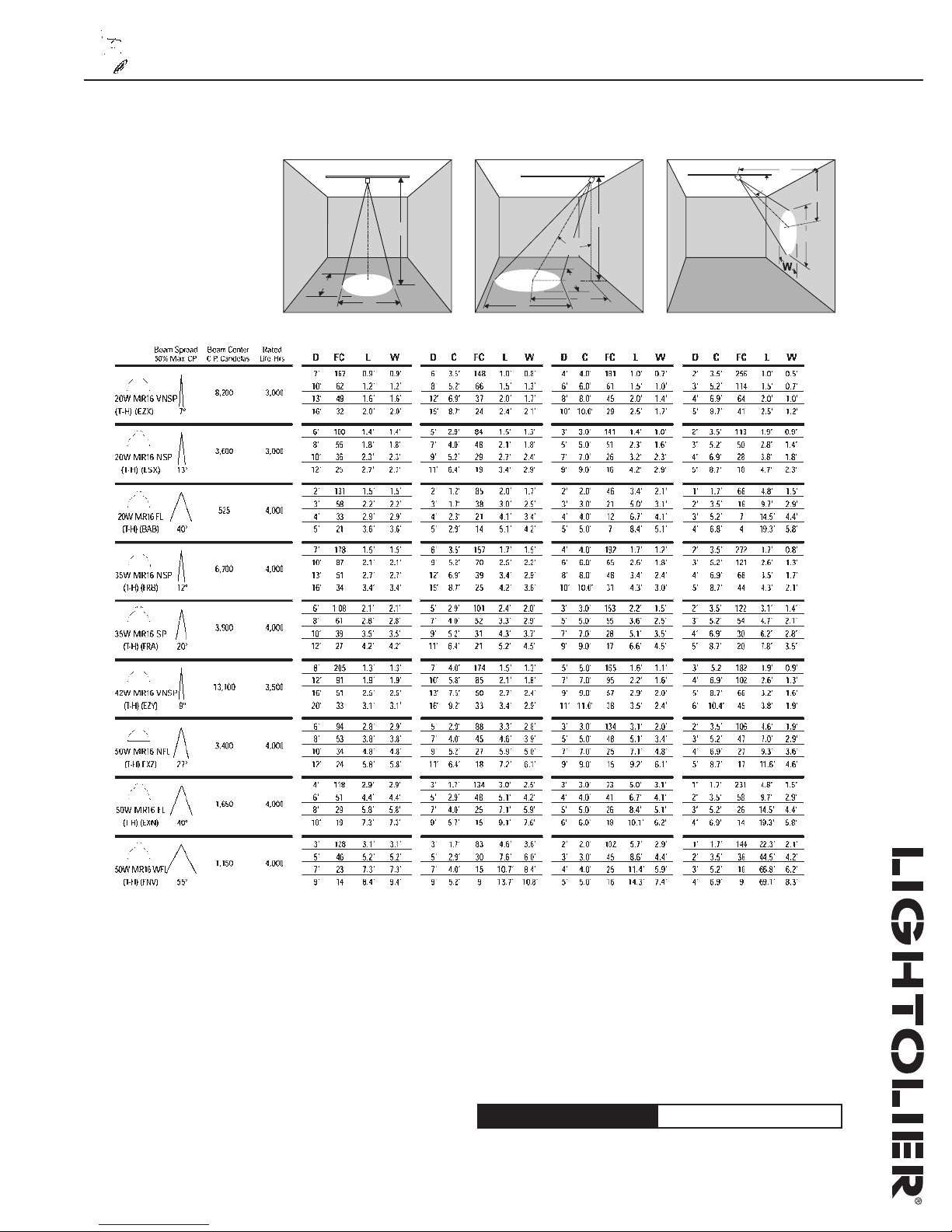

Lighting Data

LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE

Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical

L Beam Length

W Beam Width

CDistance to center beam

D Distance

A Aiming Angle

FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.
