Lightolier ProSpec DRP11 Manuale utente

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

ProSpec™ Track Lighting System DRP11

Page 1 of 2 Director® Low Voltage Spot PAR36/AR111

Ordering Information

Catalog No. Finishes Track Mounting Lamp

DR2PS11WH White Compatible with all ProSpec Track Systems. AR111, 75W Max.

DR2PS11BK Black PAR36 12V, 75W Max.

DR2PS11SL Silver

Description

Remote controlled spotlight that can be mounted anywhere along the track

and remotely aimed through the use of a hand-held controller.

Features

1. Full remote control of pan and tilt movement to aim at any object below the

luminaire.

2. Lamp brightness can be adjusted in 1% steps.

3. Compatible with external dimming systems.

4. Positions and dim setting can be recorded for future use.

5. Continuous movement and sequencing option.

6. Die-cast aluminum housing.

7. Electronic low voltage transformer.

Labels

cULus Classified

6 1/2"

(165)

2 13/32"

(61)

8 3/4"

(222)

4 1/2"

(114)

11 3/4"

(298)

( ) Denotes dimensions in mm

Requires Laser

Remote Control

for Operation

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

ProSpec™ Track Lighting System DRP11

Page 2 of 2 Director® Low Voltage Spot PAR36/AR111

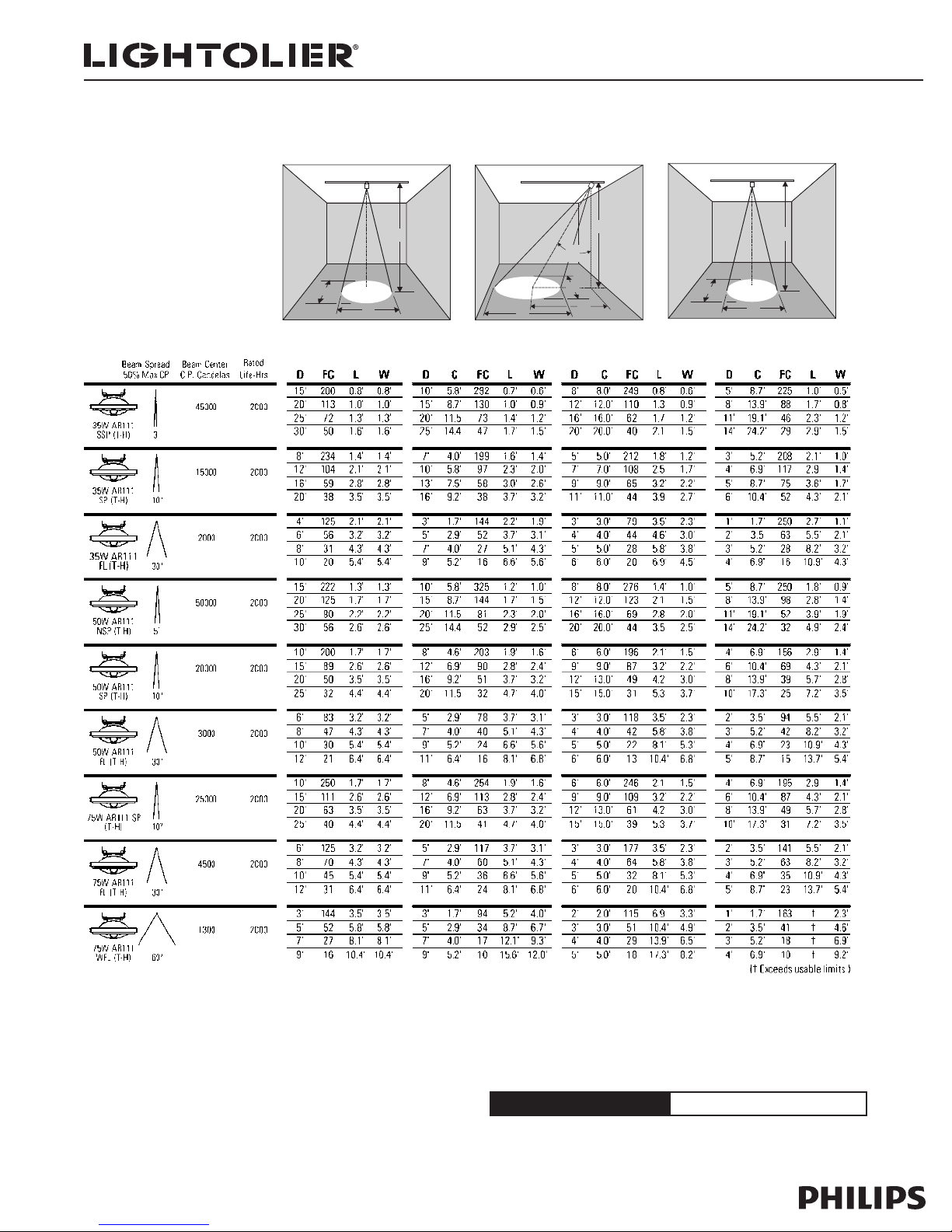

Lighting Data

LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE

Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical

L Beam Length

W Beam Width

CDistance to center beam

D Distance

A Aiming Angle

FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.
