Lightolier LP-19 Manuale utente

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LP-19

1BHFPG -JOFBS1FSG-ZUFDN8BMM.PVOU-JHIU51FS'PPU/PNJOBM4FDUJPO

#

Complete ordering instructions below.

Features

1. Housing: 18 gauge steel. Die-formed steel end cap with concealed access

holes for through wiring. No exposed fasteners or hardware.

Provided by others.

2. Lamping: One F28T5 or F54T5 fluorescent lamp per 4-Foot section.

3. Reflector: Precision die-formed specular aluminum.

4. Diffuser: Opal Acrylic.

Electrical

Ballast is universal voltage, <10% THD, .88 ballast factor, instant start. 3 con-

ductor, 18 gauge wire. Color-coded quick connectors allow ease of connection

for joiner modules. For special circuiting consult factory. Factory installed ballast

disconnect allows the ballast to be disconnected fromand reconnected to incoming

power under load without turning the entire circuit off.

Dimming: 120/277 VAC

Emergency Battery Pack: 28 watt: 520 lumens @ 90 minutes.

54 watt: 700 lumens @ 90 minutes.

Labels

UL, cUL and I.B.E.W.

Finish

Powder coated baked white enamel. Customcolors available, consult factory.

Options

Dual Switching: Order the DS option for separate row switching. DS option

automatically ships with the X4 option included.

X4 Wire: Order X4 modules for remainder of the run when using dimming

and/or switched emergency battery pack modules.

Ordering Information

Individual Fixtures:

1. Order number of MODULES required.

2. Order one END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one END SET per run.

4. Order one JOINER CONNECTOR per MODULE in run minus one.

Module Ordering Information

Style Series Lamps Type Options

1= 1 Lt Cross T5 = T5 Lamps 4= 4-Foot U= Uni-voltage Blank = No Options

Section HO = T5 HO 8= 8-Foot E= Emergency Pack DS = Dual Switched

Lamps D1 = Dimming 120v X4 = 4th through wire

D2 = Dimming 277v

LP W 1

Length Ballast

Emergency Circuiting: Special circuiting - consult factory.

8.00” (20.32cm)

3.00”

(7.62cm)

2.50”

(6.35cm)

0.25”(0.64cm)

0.25” (0.64cm)

Half Scale

PERF

3.35" (8.51cm)

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LP-19

1BHFPG -JOFBS1FSG-ZUFDN8BMM.PVOU-JHIU51FS'PPU/PNJOBM4FDUJPO

#

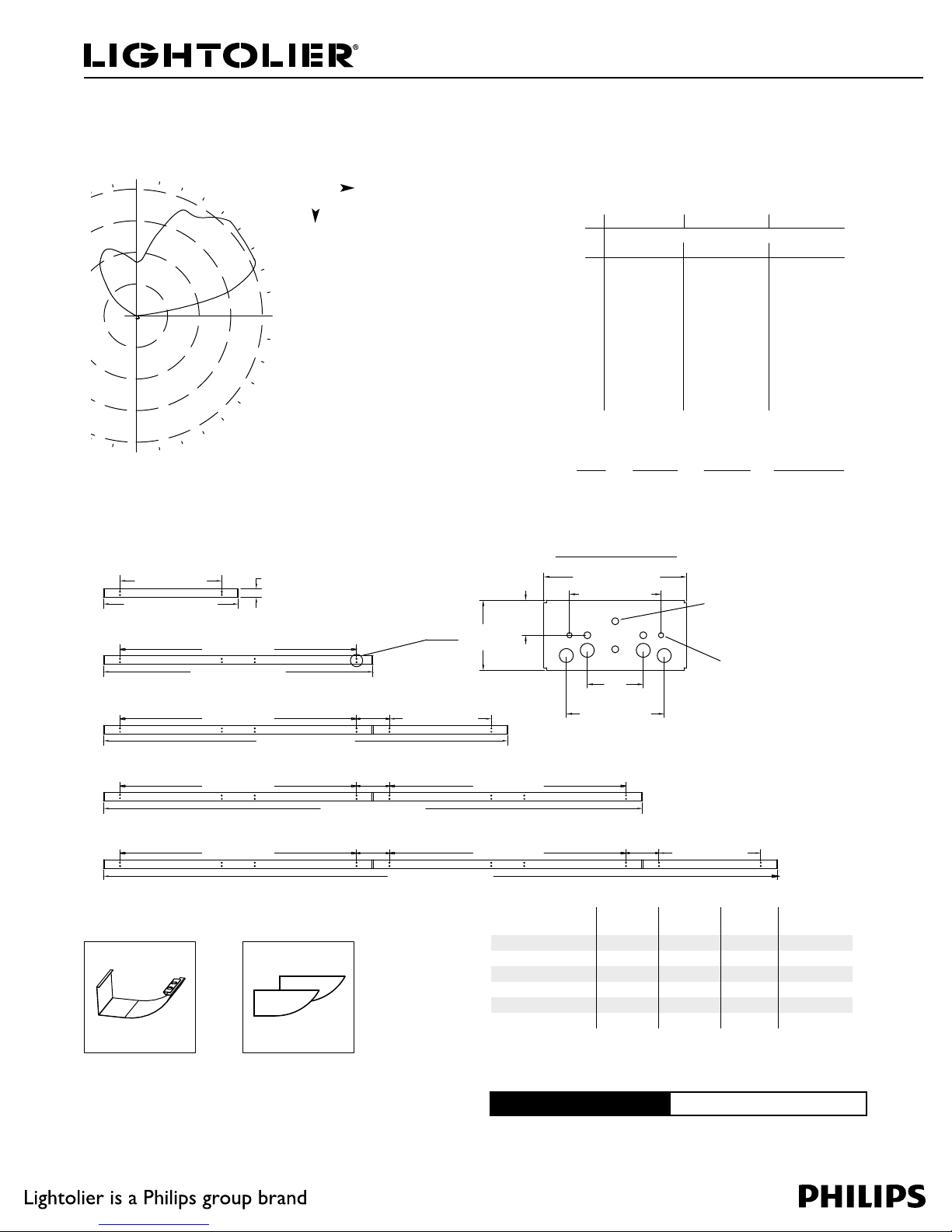

Performance

190

350

180

170

160

150

140

130

120

110

100

9090

400

800

1200

1600

CANDLEPOWER CURVE

CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

180 677 677 677 677 677

175 704 703 685 665 682

165 1088 972 860 698 660

155 1476 1404 1119 723 605

145 1360 1346 1316 795 531

135 1690 1519 1139 841 433

125 1611 1586 1265 805 231

115 1661 1559 1247 671 248

105 1241 1152 992 558 127

95 30 31 122 252 33

90 22 22 14 12 5

85 23 21 15 10 0

75 30 28 21 13 0

65 33 30 23 14 0

55 50 49 43 35 28

45 43 41 36 30 24

35 47 44 40 35 31

25 41 41 38 34 41

15 40 41 39 37 36

53637363535

03232323232

ROOM CAVITY RATIO

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY

REFLECTANCE

80 70 50

WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

072727265 6565535353

166636060 5755474544

260565255 5147424038

355494550 4541383532

451443946 4036343028

547393443 3632302724

643353039 3328272421

740322736 3025252119

837292434 2722231917

934262131 2420211715

10 32 24 19 29 22 18 18 15 13

20% FLOOR CAVITY REFLECTANCE

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-90 120 2.4 3.1

90-180 3767 75.3 96.9

0-180 3887 77.7 100.0

REPORT NO: LRL 1200-6F

CAT NO: LPW1H04U

LAMPS: 1 F54T5

LUMENS: 5000

EFFICIENCY: 77.7%

Mounting Accessories

Fixture Lengths & Mounting Locations

LPWE End Set

One set of a left and

right plate to finish

the run.

LPWC Joiner Connector

Covers the joint

between modules

80” (203.20cm)

98-1/2” (250.19cm)

80” (203.20cm)

245-1/2” (623.57cm)

13.50”

(34.29cm)

18.00”

(45.72cm)

18.00”

(45.72cm)

13.50”

(34.29cm)

80” (203.20cm)

40” (101.60cm)

147-1/2” (374.65cm)

196-1/2” (499.11cm)

40” (101.60cm)

4’

8’

12’

16’

20’

3” (7.62cm)

49-1/2” (125.73cm)

5.100” (12.95cm)

MOUNTING PLATE DETAIL

0.5” (1.27cm) DIMPLE

WITH 0.187” (0.47cm)

HOLE IN CENTER

1/4-20x1/2 STUDS

(USED TO ATTACH FIXTURE

TO MOUNTING PLATE)

3.275” (8.32cm)

2.500”

(6.35cm)

1.250”

(3.18cm)

2.000”

(5.08cm)

3.500” (8.89cm)

4' (121.92cm)

Module

8' (243.84cm)

Module End Set Connector

4' (121.92cm) Run 11

8' (243.84cm) Run 11

12' (365.76cm) Run 111 1

16' (487.68cm) Run 21 1

20' (609.60cm) Run 121 2

24' (731.52cm) Run 31 2
