RC
RC
LS
LD
LC
LS
3-1/8"
13/16"
5-5/8"

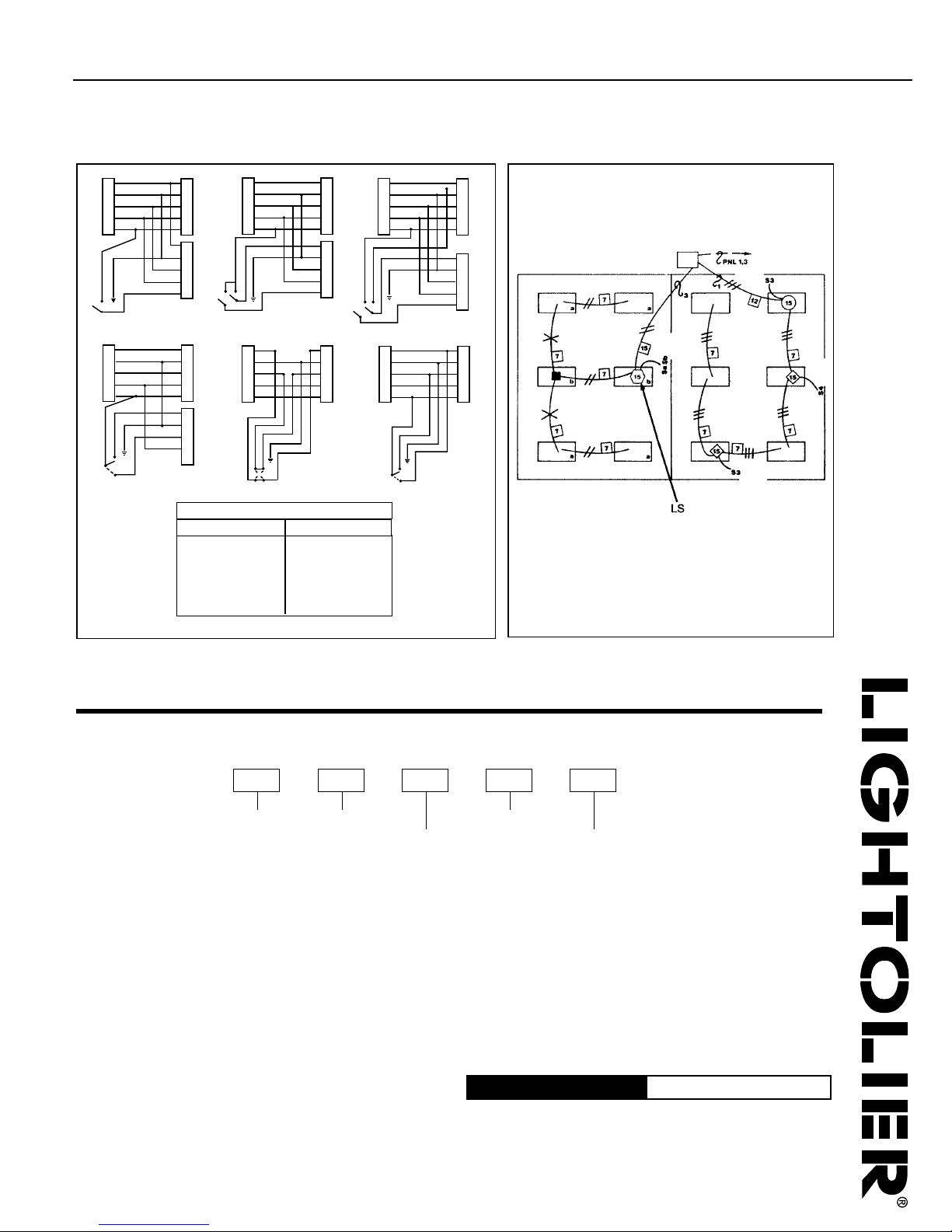

The single-level, multi-level, two circuit and single-level first 3-way switching
units provide power-in/power-out and switched power-out for local line voltage
lighting control. The second 3-way and 4-way switching units provide switched
power-in and switched power-out only for local line voltage lighting control.
POWER-CONNECT™ LS CABLE
Page 1 of 2 LIGHTING SWITCH UNIT
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier a Genlyte Thomas Company www.lightolier.com
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902 OPTIONS/ACCESSORIES/Folio OA40-15
FEATURES
• Unit is low profile, 5-5/8" x 3-1/8" x 13/16".
• Die cast housing with zinc plated steel cover plate.
• Internal wires are #12 AWG THHN stranded copper, 600 volt, plus a
bare #12 AWG solid tinned copper ground conductor.
• Switch leg conductors are #12 AWG THHN solid tinned copper
ground conductor.
• 6 inch tap leads.
• 1/2" K.O. connector for mounting to junction box.
• I.B.E.W. UL and C-UL Labeled.
