D/N SUPER HI-RES. VARI-FOCAL INFRARED IP CAMERA

IPR454X/458X W/S N/P

INSTRUCTION MANUAL

MERIT LILIN ENT. CO., LTD

http://www.meritlilin.com 66-IPR454CSE

All the safety and operating instructions should be read before the unit is operated.

The safety and operating instructions should be retained for future reference.

All warnings on the unit and in the operating instructions should be adhered to.

All operating and user instructions should be followed.

Only a qualified electrician should make electrical connections.

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

All cable runs must be within permissible distance.

This unit must be properly and securely mounted to a supporting structure capable of sustaining the weight

of the unit.

IMPORTANT SAFEGUARDS

SAFETY PRECAUTIONS

1. Read Instructions

2. Retain Instructions

3. Head Warnings

4. Follow Instructions

5. Electrical Connections

6. Attachments

7. Cable Runs

8. Mounting

CAUTION

RISK OF ELECTRIC SHOCK

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT OPEN COVER.

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated "dangerous voltage" within the

product's enclosure that may be of sufficient magnitude

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

to constitute a risk of electric shock to persons.

the literature accompanying the unit.

Unpack carefully. Electronic components can be damaged if improperly handled or dropped. If an item appears

to have been damaged in shipment, replace it properly in its carton and notify the shipper.

Be sure to save:

1. The shipping carton and packaging material. They are the safest material in which to make future shipments

of the equipment.

2. This Installation and Operating Instruction.

If the unit ever needs repair service, the customer should contact our dealer or branch for authorization to

return and shipping instructions.

UNPACKING

SERVICE

Do not drop or strike this equipment.

Do not install the equipment near any naked flames or heat sources

Do not expose this unit ot rain, moisture, smoke or dust environment.

Do not cover the opening of the cabinet with cloth and plastic or to install this unit in poor

ventilated places. Allow 10cm between this unit and its surroundings

Do not continue to operate the unit under abnormal conditions such as detection of smoke,

strange smell or no display on screen while power is turned on.

Do not touch the power connection with wet hands.

Do not damage the power cord or leave it under pressure.

Do not operate this unit near magnet, speaker system, etc., to avoid unnecessary magnetic

interference.

Connection cables should be grounded properly.

Caution

Executive Summary

IPR454X/458X W/S is an outdoor Infrared IP camera build in H.264 AVC (Advanced Video

Coding) video compression. H.264 AVC video compression engine supports high video quality,

full D1 resolution, bandwidth efficiency with PPPoE and DDNS.

Also it provides higher bit rate of internet and diverse alarm functions such as external alarm

or movement video detection E-mail or FTP. Moreover, IPR454X/458X W/S can do remote

surveillance with Java or Windows Mobile cell phone. The software R&D engineer can use HTTP

protocol (HTTPAPI) to develop related software, and integrate them with existing application

software system.

IPR454X/458X W/S is ideal solution for remote video monitoring via Internet.

Unit : mm

105

112

347

387

211.5

82.55

SUN SHIELD

TOP COVER

BOTTOM CHASSIS

BRACKET

PAN ADJUSTMENT SCREW

TILT ADJUSTMENT SCREW

WINDOW

SENSOR CAP

Chapter 1. Part Description & Dimension

Chapter 2. Installation

1. Take out the bracket from the box first. Put the power cable, RJ-45 network cable and video

cable through the bracket and then fix it ot the wall (FIG.1 & FIG.2)

FIG. 1 FIG. 2

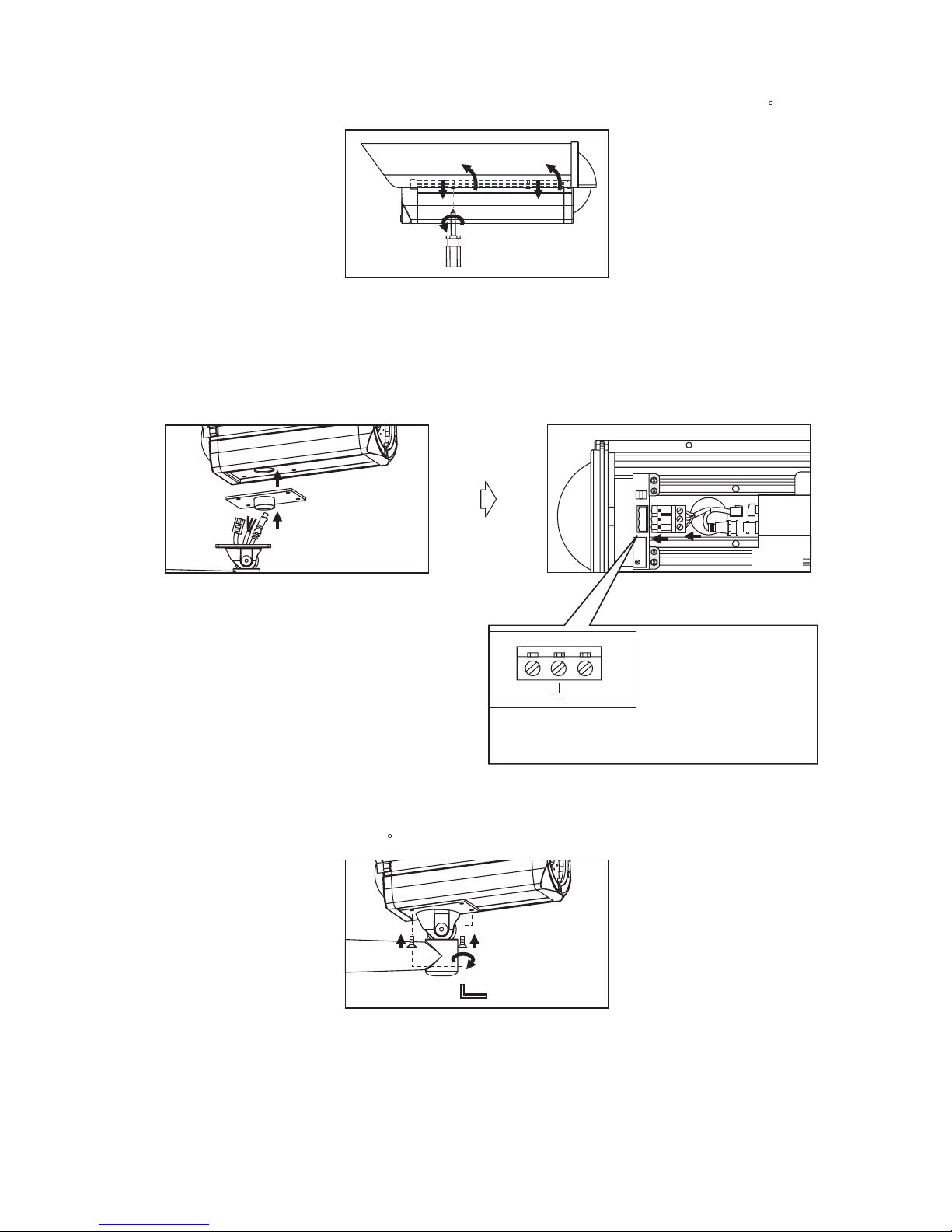

2. Secondly, take out the camera body and open the top cover with screw driver (FIG.3)

FIG. 3

3. Put the power cable, RJ-45 network cable and video cable through the bracket rubble first and

then go through the bottom of camera body (FIG.4). Plug and fix the power cable to the terminal,

plug the RJ-45 network cable to RJ-45 LAN connector, and plug the video cable to output of the

camera (FIG.5).

FIG. 4

FIG. 6

4. Next, use the provided 1/4"-20UNC screws (silver-4pcs) to fix the camera body on the bracket

with hexagon screw driver (FIG.6)

Note :

When using two-cord

power cable, please

connect them to

"Live" and "Neutral".

Live

Earth

Neutral

FIG. 5

FIG. 7

5. Loosen the pan and tilt adjustment screw on the bracket to turn the camera body to the desired

angle and then tighten the screws (FIG.7)

6. First, adjust the lens on focus and zoom to form the optimal video image after that tighten the

screws. Adjust the IRIS level VR to form the optimal image brightness (FIG.8). Please refer to

Chapter 5 Before Access PIH-036/038IP.

FIG. 9 FIG. 10

7. Replace the top cover and tighten the screws (FIG.9 & FIG.10)

IRIS LEVEL

FOCUS or ZOOM

ZOOM or FOCUS

FIG. 8

Chapter 3. System Overview

Top View

AlarmIn/Out Connector

VideoOutJack

PowerLED indicator

(GreenLED)

RJ-45Jack

LoadDefaultButton

Input/Output Device

Component Description

Chapter 4. IPR454X/458X System Architectures

For connecting IPR454X/458X to the network, please follow one of the system architectures:

Hardware Installation for LAN access

HUB

Internet / Ethernet

Lan

Hardware Installation for Internet access

HUB

Lan

Router

N.O.

COM

N.C.

ALARM IN

GND

Chapter 8. Specifications

Chapter 8-1. Camera

Model No.

Lens

Power Input Voltage

System

Sync. Mode

Pick Up Element

Effective Pixels

Chip Size

Horizontal & Vertical

Sync. Frequency

Scanning System

Infrared Cut Filter

Resolution

Minimum Illumination

S/N Ratio

Auto Gain Control

White Balance

Aperture Correction

Power Consumption

Back Light Compensation

Video Output

Operating Temperature

Gamma Characteristic

IP Rating

Infrared

LED Beam Spread

Peak Wavelength

Radiant Distance

Dimension

Weight

Focal Length

Iris

Angleofview

IPR454XW

9 ~ 22mm 9 ~ 22mm

NTSC or PAL

AC24V ( 10%)

Internal

1/3" Super HAD CCD Sensor

768(H) x 494(V) [NTSC]

752(H) x 582(V) [PAL]

5.59mm(H) x 4.68mm(V)

15.734 KHz / 59.94Hz [NTSC]

15.625 KHz / 50Hz [PAL]

2:1 Interlace

Auto / Schedule / Day(Color) / Night(Mono)

Color: 540TV Lines , Mono: 600TV Lines

Color: 0.05Lux at F1.4,

Mono: 0.01Lux at F1.4

0Lux with IR

More Than 50dB (AGC-OFF)

36dB Variable Gain

ATW

Horizontal, Vertical

17W

Auto

CVBS 1.0Vp-p, 75ohm

IP66

850nm

50M 60M 50M 60M

-10 ~ +50 (14 ~ 122 )

Body:120mm(W) x 112mm(H) x 387mm(D), Bracket: 211.5mm(L)

2200g

=0.45

IPR454XS IPR458XW IPR458XS

Design and specifications are subject to change without notice.

D/N HI-RES. VARI-FOCAL INFRARED IP CAMERA

AC100~240V

Window 78 Heat Resistant Glass

3.3 ~ 12mm 3.3 ~ 12mm

F1.4

89.8 ~ 23.9 89.8 ~ 23.932.1 ~ 13.1 32.1 ~ 13.1

63.6 ~ 17.9 63.6 ~ 17.923.3 ~ 9.8 23.3 ~ 9.8

125.7 ~ 29.9 125.7 ~ 29.941.9 ~ 16.3 41.9 ~ 16.3

Chapter 8-2. IP System

66-IPR454CSE-1

Design and specifications are subject to change without notice.

Video Compression

Video Bitrate

Security

Resolution

Frame Rate

Video Streaming

Motion

Maintenance

Mobile Phone and PDA Support

Video Display

Users

Client PC Requirement

CAVLC/CABAC

CPU, Memory

Network Interface

Network Protocols

System Integration

Alarm Input / Output

H.264/AVC Main Profile, Level 3 (I/P/B frames), Motion JPEG

Full D1: 720x480 (NTSC) / 720 x 576 (PAL)

CIF: 352 x 240 (NTSC) / 352 x 288 (PAL)

H.264: up to 30/25 FPS at full D1 resolution

JPEG: 1 FPS at CIF

Simultaneous Motion JPEG and H.264 AVC Main Profile

Program Stream (PS) / Transport Streams (TS)

15*10 motion detection zone

Image upload over FTP and e-mail by motion detection

Firmware update via HTTP

Firmware available at web site

Free eMobile software for Java mobile phone, Windows Mobile 5/6, and PDA

3GPP H.264 w/video via Podcast, compatible with CorePlayer

VLC: H.264 HTTP, unicast, and multicast streaming

ActiveX: for JPEG

3 Mbps to 56 Kbps

Frame rate and bitrate controllable on-the-fly

VBR / CBR supported

Base64 HTTP encryption

Multiple user access levels with password protection

10 user accounts available

5 simultaneous unicast users (H.264)

5 simultaneous HTTP users (H.264)

5 simultaneous HTTP users (JPEG)

Unlimited users using multicast (H.264)

OS: Windows 2000, Windows XP, Windows Vista

Browser: Windows Internet Explore 5.0 or above

CPU: Intel Pentium 4 1.8GHz or above

AM: 512MB or above

Supported

Embedded SoC, ARM926, 166MHz, 64MB DDR, 4MB flash memory

10Mbps / 100Mbps, RJ-45

IP,TCP,UDP,HTTP,SMTP,ESMTP,NTP,DDNS,FTP,ARP,DHCP,PPPoE,DNS,Telnet

HTTPAPI downloadable

Embedded Linux 2.6.9

1 input / 1 output (N.O. / N.C.)

D/N SUPER HI-RES. VARI-FOCAL INFRARED IP CAMERA

IPR454X/458X W/S N/P

INSTRUCTION MANUAL

MERIT LILIN ENT. CO., LTD

http://www.meritlilin.com 66-IPR454CSE
