Lilin CMR6082X Manuale utente

MERIT LILIN ENT. CO., LTD

http://www.meritlilin.com

INSTRUCTION MANUAL

CMR6082X/6082MX3.6 N/P

CMR6086X/6086MX3.6 N/P

66-CMR608CSE

D/N VANDAL RESISTANT 700TVL VARI-FOCAL

IR DOME CAMERA

IMPORTANT SAFEGUARDS

GRAPHIC SYMBOL EXPLANATION

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated "dangerous voltage" within the product's enclosure

thatmaybeofsufficientmagnitudetoconstituteariskofelectric

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance(servicing)instructionsintheliterature

shocktopersons.

accompanying the unit.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION：

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NOUSERSERVICEABLEPARTSINSIDE.

REFERSERVICINGTOQUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE.

DISPOSEOFUSEDBATTERIESACCORDING

TOTHEINSTRUCTIONS

CAUTION

Do not drop or strike this equipment.

Do not install the equipment near any naked flames or heat

sources.

Do not expose this unit to rain or excessive moisture, avoid

smoke and dust.

Do not cover cloth or to install this unit in poorly ventilated

places.

Do not continue to operate if there appears to be fault.

Do not touch the power connection with wet hands.

Do not damage the power cord or leave it under pressure.

Sensitive electronics inside are vulnerable to excessive shock.

Excessive heat could damage this unit.

Please the camera in an environmental housing for protection.

If the camera gets wet, unplug it and have it checked by

qualified service personnel.

This may lead to overheating.

If the unit ceases to function, contact qualified service

personnel for help.

Risk of short circuit or electric shock.

Risk of fire or shock circuit.

CONGRATULATIONS

Thank you for purchasing this D/N Vandal Resistant 700TVL Vari-

Focal IR Dome Camera. You now own one of the many fine CCTV

products we manufactured. This product has been carefully

inspected under rigid quality control and should reach you in

perfect condition. With reasonable care, it will provide years of

reliable performance.

We recommend that you read this installation and operation

manual thoroughly before installing and operation your new

system.

Here you will find all the information you needto set up and use

the system. If any questions are not answered in the manual,

please contact your dealer.

Before proceeding, please read and observe all instructions and

warnings contained in this manual. Retain this manual with the

original bill of sale for future reference and, if necessary, warranty

service.

When unpacking your new camera, check for missing or damaged

items. If any item is missing, or if damage is evident,

I. Contact your dealer for

assistance.

DO NOT

NSTALL OR OPERATE THIS PRODUCT

WARRANTY INFORMATION

Please complete the following product purchase information. The

factory will requests this information when contacted for technical

support, or warranty repair. It is also valuable in case of loss or

theft.

Purchase Date

Serial Number

Model Number

：

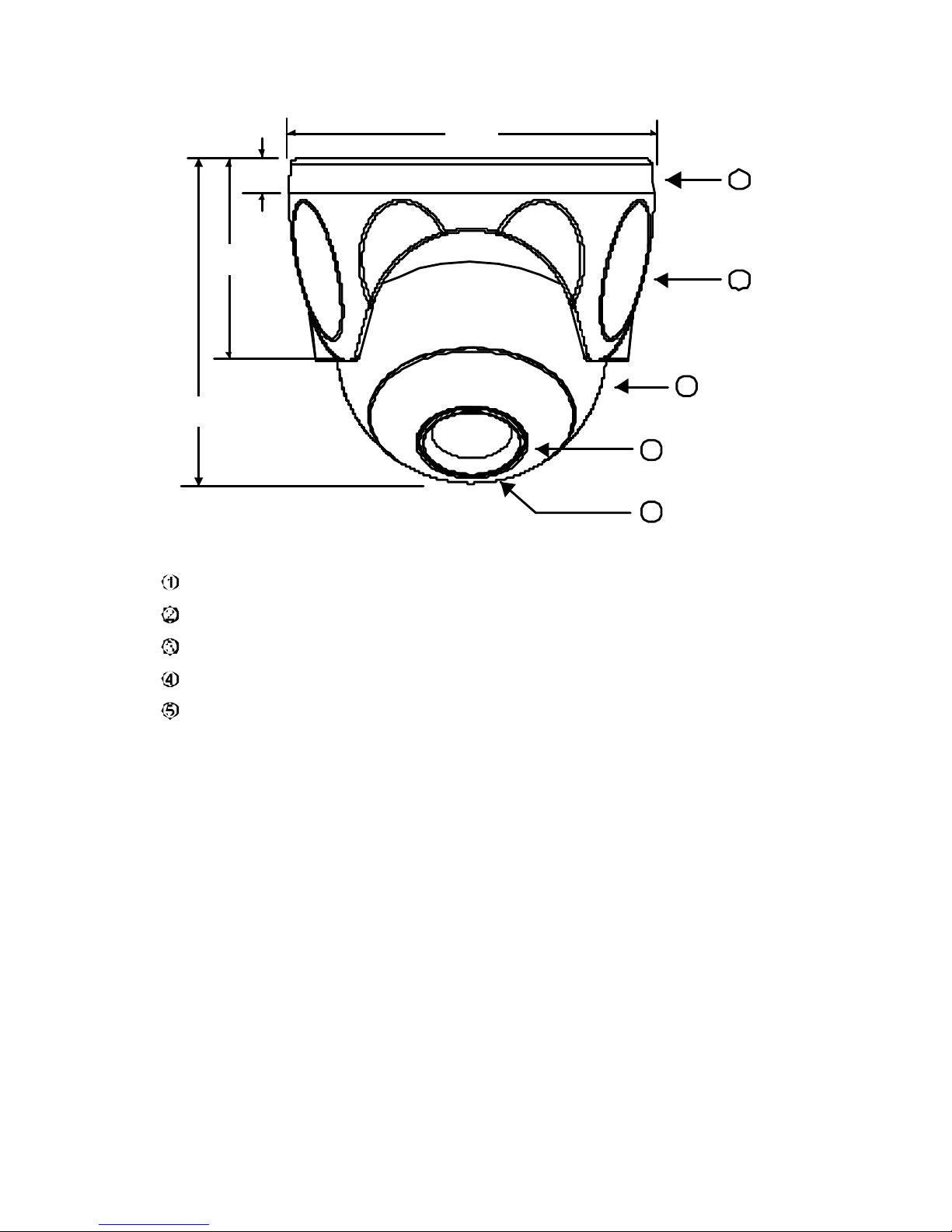

Unit: mm

BOTTOMCHASSIS

OUTERCOVER

CAMERA BODY

LENS

MASK

PART DESCRIPTION & DIMENSION

130

115

1. Please use the enclosed hexagon screw driver to untighten the 2 screws on the

bottom chassis (FIG.1).　

FIG. 1

INSTALLATION

2. Rotate the bottom chassis and outer cover until both ""marksarealign,then

separate them (FIG.2 & FIG.3). │

FIG. 2 FIG. 3

3. Put the provided screws (M3.0*25, wooden screw) through the holes marked as

"a", and fix the bottom chassis in the desired area (FIG.4 & FIG.5).　

FIG. 4 FIG. 5

120°

4. Plug or connect the power cable and plug the video cable to video output of the

camera (FIG.6 & FIG.7).　

FIG. 6 FIG. 7

CMR6082/6082MX3.6 N/P CMR6086/6086MX3.6 N/P

5. Align the bottom chassis and outer cover's "" marks and press them together

(FIG.8), rotate the outer cover for adjusting desired horizontal angle of camera,

afterwards, use hexagon screw driver to screw both sides of bottom chassis

tightly (FIG.9).

│

FIG. 8 FIG. 9

6. Loosen the screws on the outer cover to rotate the camera body to the desired

angle and then tighten the screws (FIG.10 & FIG.11).　

FIG. 10 FIG. 11

7. Using the screw driver to adjust zoom and focus of lens for image of video (FIG.12).

FIG. 12

NWT

Zoom Focus

Lens

Pick Up Element

Sync. Mode

System

Power Input Voltage

Model No.

Effective Pixels

Chip Size

Horizontal & Vertical

Sync. Frequency

Scanning System

Resolution

Minimum Illumination

S/N Ratio

Infrared Cut Filter

Auto Gain Control

White Balance

Aperture Correction

Power Consumption

Back Light Compensation

Gamma Characteristic

Operating Temperature

Dimension

Video Output

Vandal Proof

Peak Wavelength

Beam Spread

Radiant Distance

IP Rating

Weight

Focal Length

Iris

Angle of view H

3.3 ~ 12mm

F1.4

1/3" Exview HAD CCD Sensor

5.58mm(H) x 4.67mm(V)

976(H) x 494(V) [NTSC]

976(H) x 582(V) [PAL]

Internal

2 : 1 Interlace

15.734 KHz / 59.94Hz [NTSC]

15.625 KHz / 50Hz [PAL]

Color: 700 TV Lines, Mono: 750TV Lines

Color: 0.045Lux/F1.4 , Mono: 0.009Lux/F1.4, 0Lux (IR ON)

More Than 50dB (AGC OFF)

Auto Selectable, Automatic Switch From Color Mode to Monochrome

44.8dB Variable Gain

ATW

Horizontal, Vertical

6.8W

Auto

-10 ~ +50℃℃℉℉(14 ~ 122)

ψ130 x 115mm

880g

CVBS 1.0Vp-p , 75Ohm

With stand a blow from a 10 lbs sledgehammer

850nm

30°

30M

IP66

NTSCorPAL

DC12V 10%±

CMR6082X3.6N/P

γ=0.45

89.8 ~ 23.9° °

63.6 ~ 17.9°°

125.7 ~ 29.9°°

Design and specifications are subject to change without notice.

D/N VANDAL RESISTANT 700TVL VARI-FOCAL IR DOME CAMERA

Infrared

LED

SPECIFICATIONS

CMR6082MX3.6N/P

60°

20M
