Lilin IMegapro IPR7722ESX Manuale utente

IPR7722ESX / LR7722EX

D/N 1080P HD Vari-Focal Infrared IP Camera

66-IPR7722CSM

Quick Installation Guide

CAUTION

 Do not drop or strike this equipment

 Do not install the equipment near any naked flames or heat

sources

 Do not expose this unit to rain, moisture, smoke or dust

environment

 Do not cover the opening of the cabinet with cloth and plastic or

to install this unit in poor ventilated places. Allow 10cm between

this unit and its surroundings

 Do not continue to operate the unit under abnormal conditions

such as detection of smoke, strange smell or no display on

screen while power is turned on

 Do not touch the power connection with wet hands

 Do not damage the power cord or leave it under pressure

 Do not operate this unit near magnet, speaker system, etc., to

avoid unnecessary magnetic interference

 onnection cables should be grounded properly

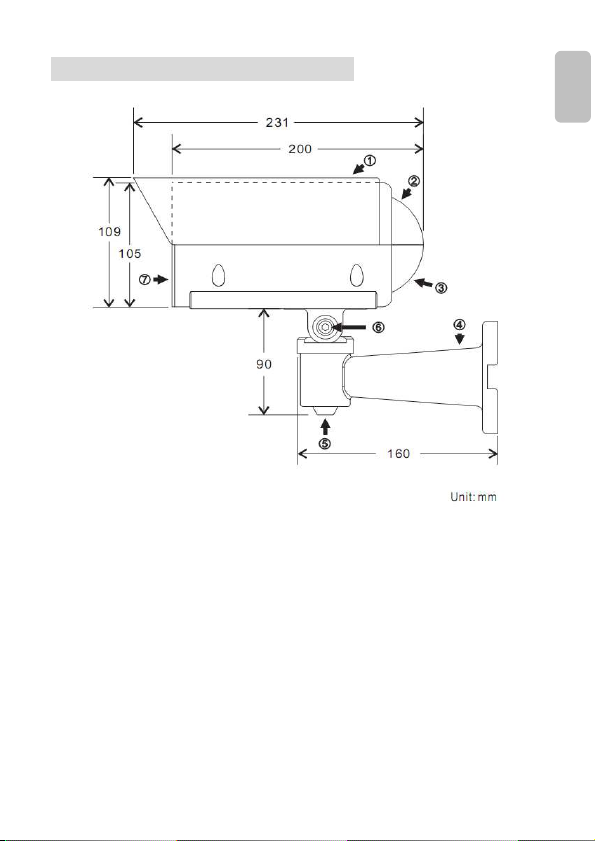

Part Description & Dimension

 Sun Shield

 Top over

 Bottom hassis

 Bracket

 Pan Adjustment Screw

 Tilt Adjustment Screw

 Lens

English

- 1 -

Installation

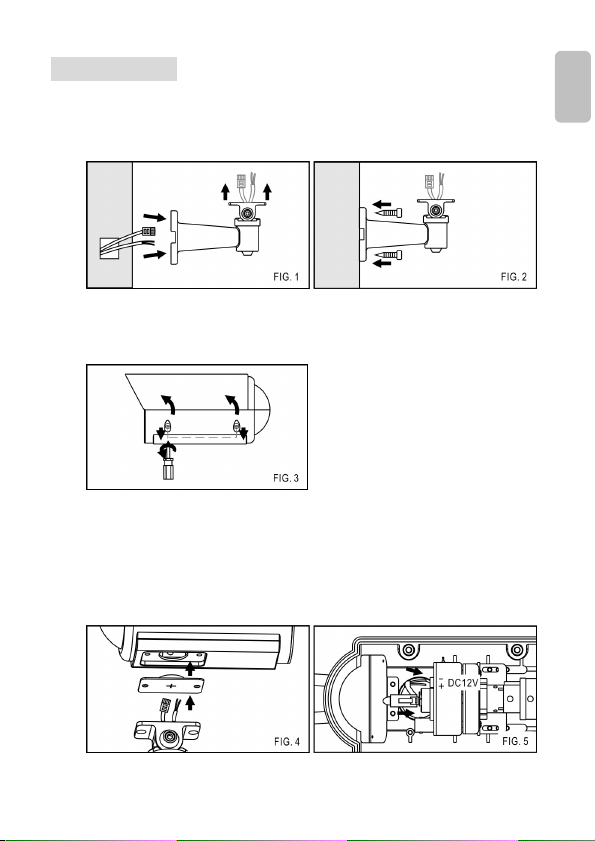

1. Take out the bracket from the box. Put the D 12V power cable

and network cable through the bracket and then fix it to the wall

(FIG.1 & FIG.2).

2. Take out the camera body and open the top cover with screw

driver (FIG.3).

3. Put the D 12V power cable and network cable through the

bracket rubber and then pull the cables through the bottom of

camera body (FIG.4). onnect the D 12V power cable to the

terminal and connect the network cable to RJ-45 slot of the

camera (FIG.5).

English

- 2 -

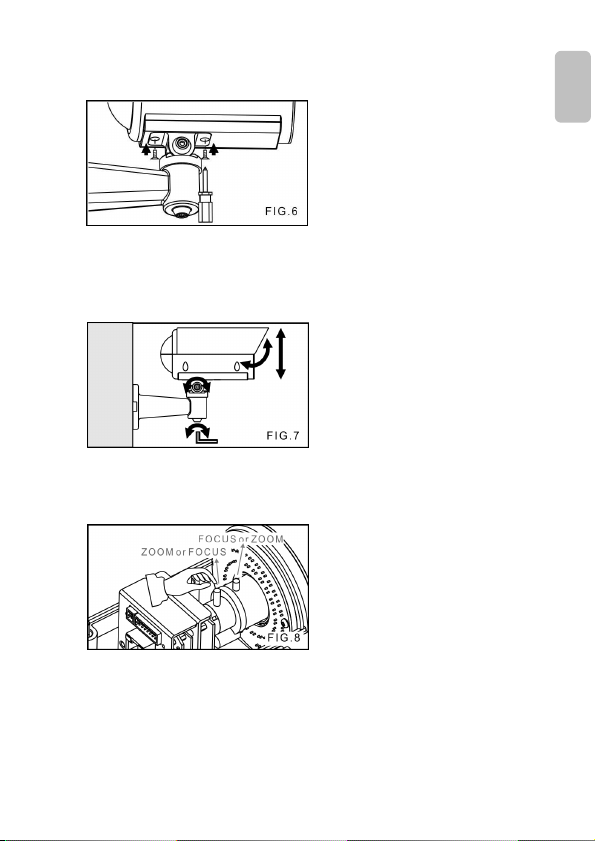

4. Use the provided M5.0x10 screws (2 silver ones) to fix the

camera body on the bracket with screw driver (FIG.6).

5. Loose the pan and tilt adjustment screws on the bracket to turn

the camera body to the desired angle and then tighten the

screws (FIG.7).

6. Adjust the lens on focus and zoom for recording clear video

image. After that, tighten the screws (FIG.8).

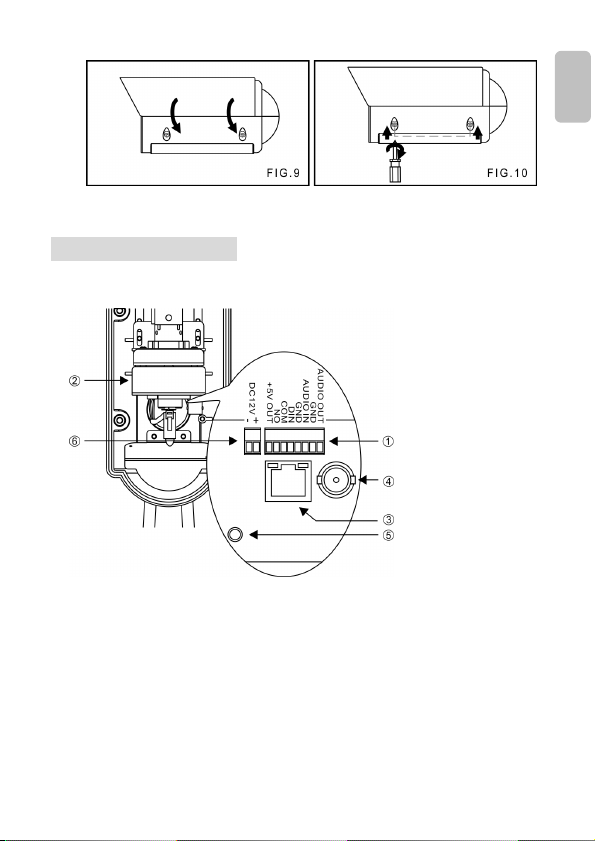

7. Replace the top cover and tighten the screws (FIG.9 & FIG.10).

English

- 3 -

System Overview

Top View

Input/Output Device Component Description

 Alarm In/Out & Audio In/Out onnector

 SD ard onnector

 RJ-45 Jack

 Video Out Jack

 Load Default Button

 D 12V Power Input onnector

English

- 4 -

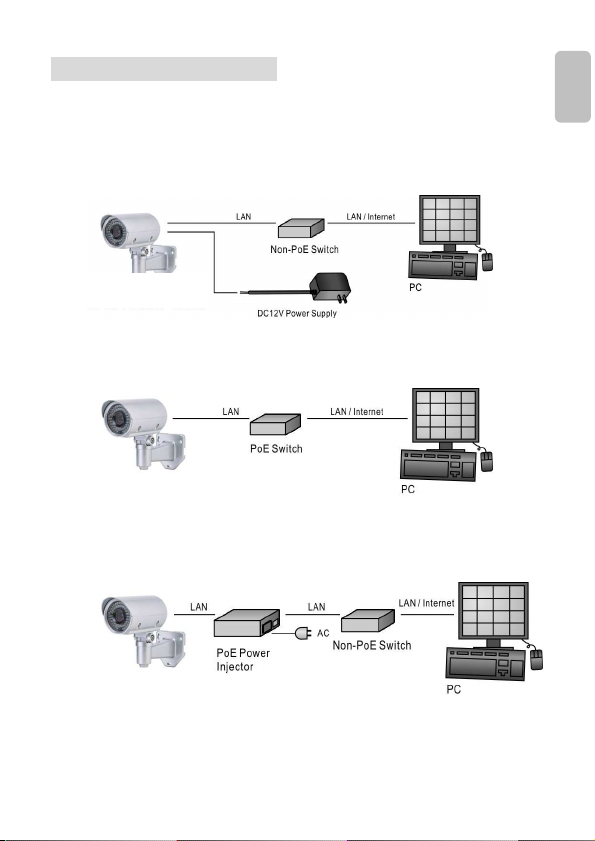

System Architectures

For connecting HD IP cameras to the network, please follow one of

the system architectures:

(1). Use D 12V power adapter and a network switch to connect to

the network.

(2). Use a PoE network switch to connect to the network.

(3). Use a PoE power injector and a network switch to connect to

the network.

English

HD IP CAMERA

- 5 -

Emergency Factory Default

To restore factory default settings by hardware, please follow these

steps:

1. Hold “RESET Key” for 10 seconds, then release.

2. After about 40 seconds, the network LED light should turn off,

and the back on again.

3. This camera has completed the factory default settings, and can

then reboot.

4. Search for the IP device using the IPScan software.

5. Start the IP device via Internet browser.

6. Enter the default username “admin” and password “pass” to

operate.

NOTE: For user convenience, restoring the factory default settings

will revert to the default IP address 192.168.0.200.

Before Accessing IP Cameras

Before accessing the IP camera, make sure that the camera’s RJ-45

network, audio, and power cables are properly connected. To set the

IP address, consult your network administrator for an available IP

address. The default IP address for each IP camera is 192.168.0.200.

Users can use the default IP address for verifying the camera’s

network connection.

Software Requirements

Merit LILIN Universal ActiveX software components are required for

web interface display of JPEG or H.264 Full HD video. When you login

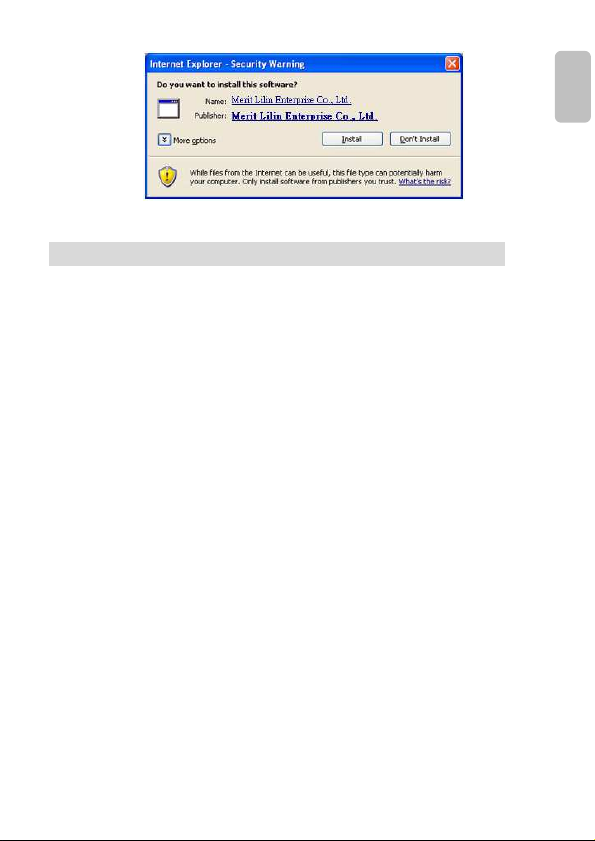

to the IP camera by Internet Explorer, the security warning dialog box

will prompt the installation of the LILIN Universal ActiveX. lick Install

to download it.

English

- 6 -

Configuring IP Addresses by IPScan Software

To configure an IP address using the IP scan tool, you can copy the

IPScan software from the installation D, and paste to your computer.

Alternatively, you can execute the IPScan software from the

installation D, or download the software from the Merit LILIN

website (www.meritlilin.com). To change the settings of the IP

address, subnet mask, gateway, or HTTP port, you can follow the

steps below:

1. Run the IPScan software.

2. lick Refresh. All available devices should be listed in the device

list.

3. Select your device from the list provided.

4. hange the IP address, subnet mask, gateway, or HTTP port for

the IP camera.

5. lick Apply to submit the settings.

6. lick Refresh to verify the settings.

English

- 7 -
