Lilliput 665WH Manuale utente

COLOR TFT LCD MONITOR

User Manual

LILLIPUTDIRECT

* Option for product model with"/P" only.

IMPORTANT SAFETY INSTRUCTIONS:

Please read manual before using this product.

Please keep manual for future reference.

Please read the cautions to prevent possible danger and loss of

property

Please enjoy the benefits of convenience, safety, and space-saving

from this TFT LCD monitor in different ways.

FEATURES:

This product employs integrate circuits, lower power consumption,

and lower radiation emission. It has fashion designed appearance and

good portability.

AV, HDMI, YPbPr & WHDI Input, to connect with Full HD Video

Camera.

LED backlight display, support 1920×1080 HD resolution.

High contrast & dizzy-proof monitor with flexible folding sun shade

cover, to see clearly under sunshine.

DC 7-24V wide range voltage.

CAUTIONS：

1. Please do not place the display screen towards the ground.

2. Please avoid heavy impact or drop onto the ground.

3. Please do NOT use chemical solutions to clean this product. Please

wipe with a clean soft cloth to maintain the brightness of the surface.

4. Please do not block any vent hole.

5. Please follow the instructions and trouble-shootings to adjust the

product. Other improper adjustment may result in damage. Any further

adjustment must be performed or conducted by a qualified technician.

6. Please unplug the power and remove the battery if long-term no-use,

or thunder weather.

YP-01140524

LILLIPUTDIRECT

* Option for product model with"/P" only.

Contents

1. PRODUCT DESCRIPTION................................................................................3

2. WIRELESS HD TRANSMITTER.......................................................................5

3. WHDI REMOTE CONTROL...............................................................................5

4. WHDI FUNCTION................................................................................................6

5. INSTALLATION OF SUNSHADE COVER AND BATTERY PLATE...........8

6. DV BATTERY MOUNT PLATE..........................................................................9

7. SETTING MENU................................................................................................10

8. ACCESSORIES .................................................................................................13

9. PARAMETERS...................................................................................................13

10. TROUBLE SHOOTING.....................................................................................14

LILLIPUTDIRECT

* Option for product model with"/P" only.

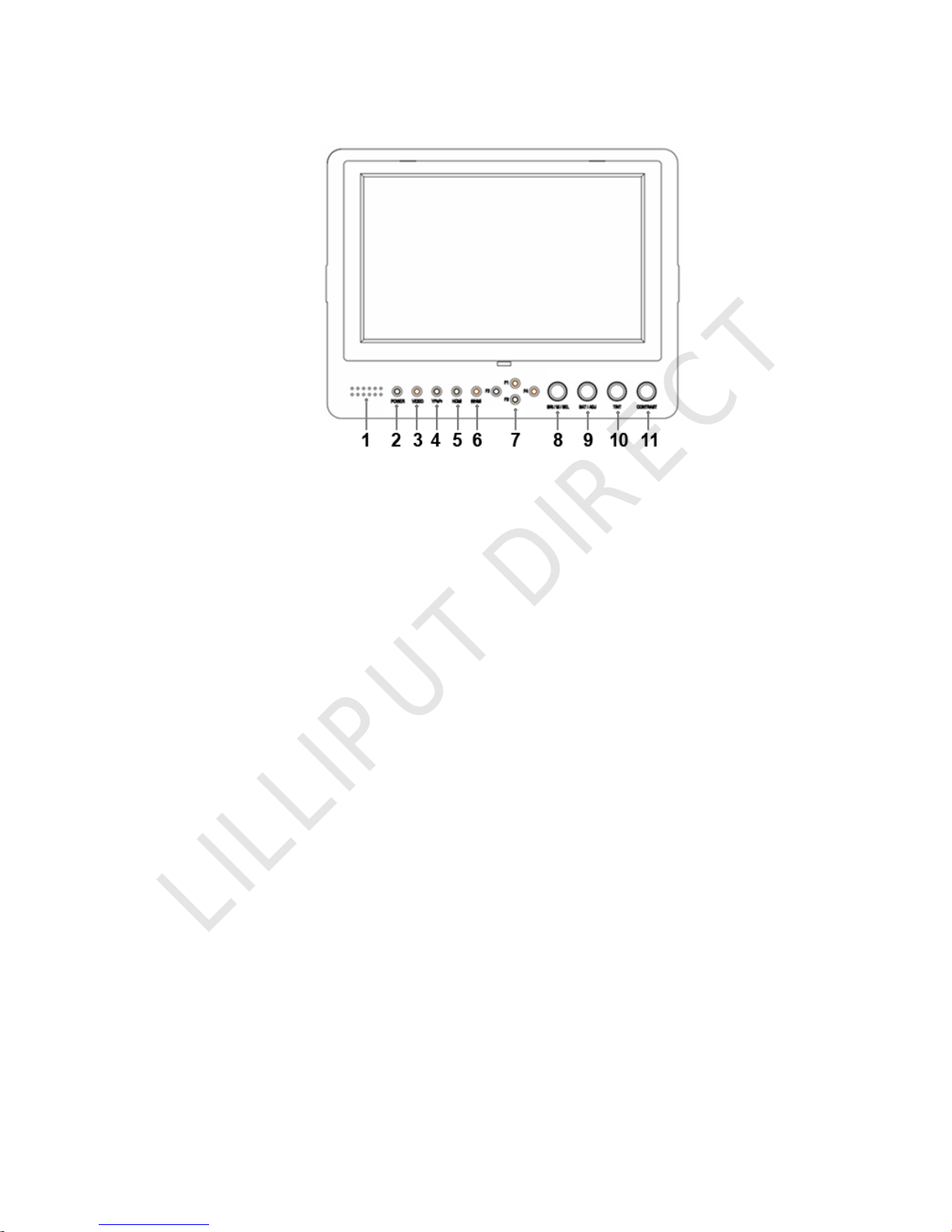

1. PRODUCT DESCRIPTION

1．Speaker.

2．POWER：ON/OFF (Light turns to red when power on).

3．VIDEO: Indicator lights up when signal switch to video state.

4．YPbPr: Indicator lights up when signal switch to YPbPr state.

5．HDMI: Indicator lights up when signal switch to HDMI state.

6．WHDI: Indicator lights up when signal switch to WHDI state.

7．F1、F2、F3、F4：User-definable buttons.

Default functions:

F1 Screen Marker F3 Check Field

F2 Aspect Ratio F4 Underscan

*F1 Peaking

*F2 False Color

*F3 Exposure

*F4 Histogram

（function customized to meet your needs）

8．Knob BRI/M/SEL：Press the knob to access the menu function,

pressing the knob in the menu to return to the previous page or

exit the menu. Rotate knob to select an option.

Default as Brightness function.

9．Knob SAT/ADJ：Press the knob to select main MENU options; rotate

knob to confirm the selection and adjust parameter values.

Default as Saturation function.

10．Knob TINT：Default as Tint function.

11．Knob CONTRAST: Default as Contrast function.

LILLIPUTDIRECT

* Option for product model with"/P" only.

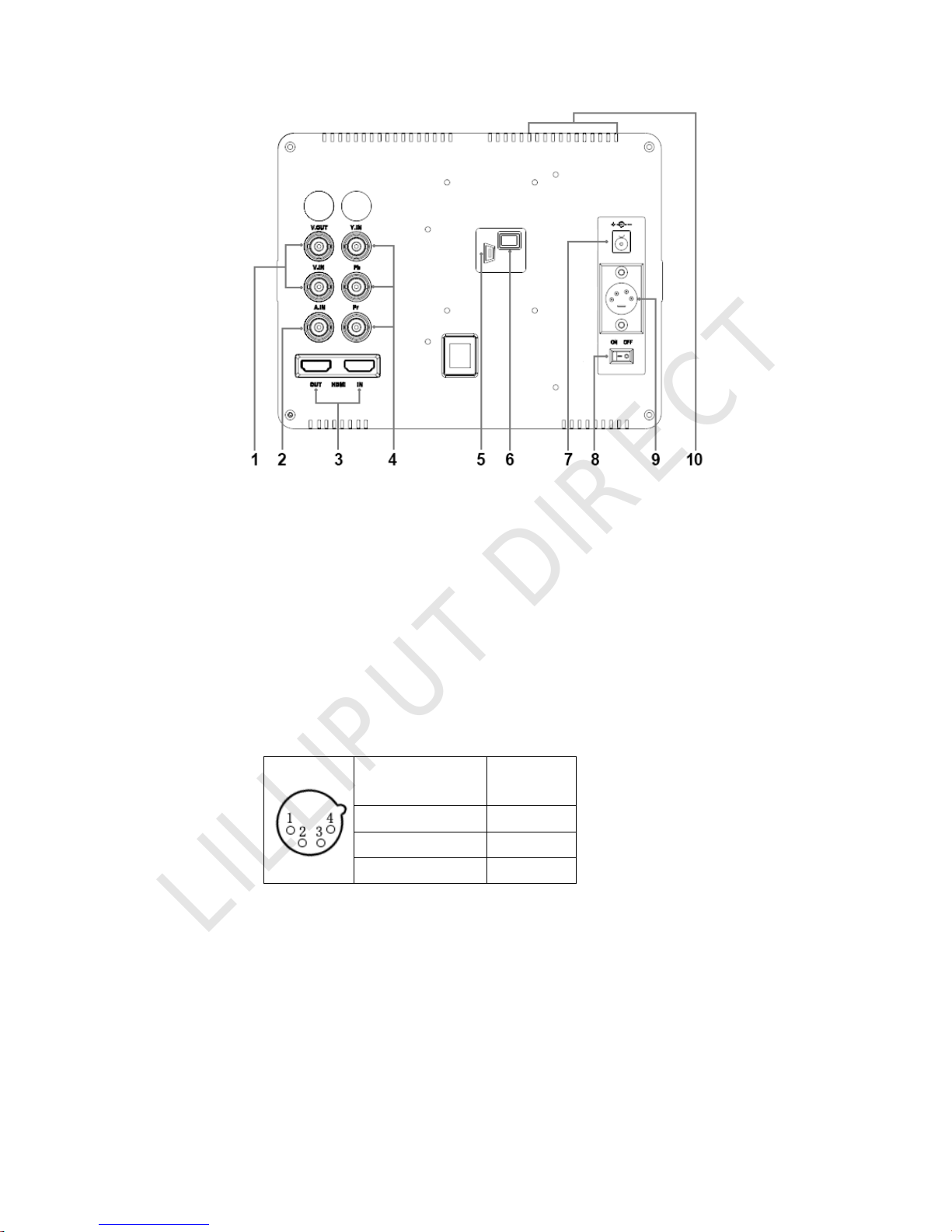

1. Video signal output / input.

2. Audio signal input.

3. HDMI signal output (Optional) / input.

4. YPbPr signal input

5 Mini USB input. (Only for program upgrades, do NOT use if

non-professionals)

6. Power cable interface (connecting to the battery plate).

7. DC power input.

8. Battery power on/off switch.

9. 4-pin XLR DC power input.

Pin number

Signal

①

GND

②③

……...

④

+12V

10. WHDI Infrared receiving window.

LILLIPUTDIRECT

* Option for product model with"/P" only.

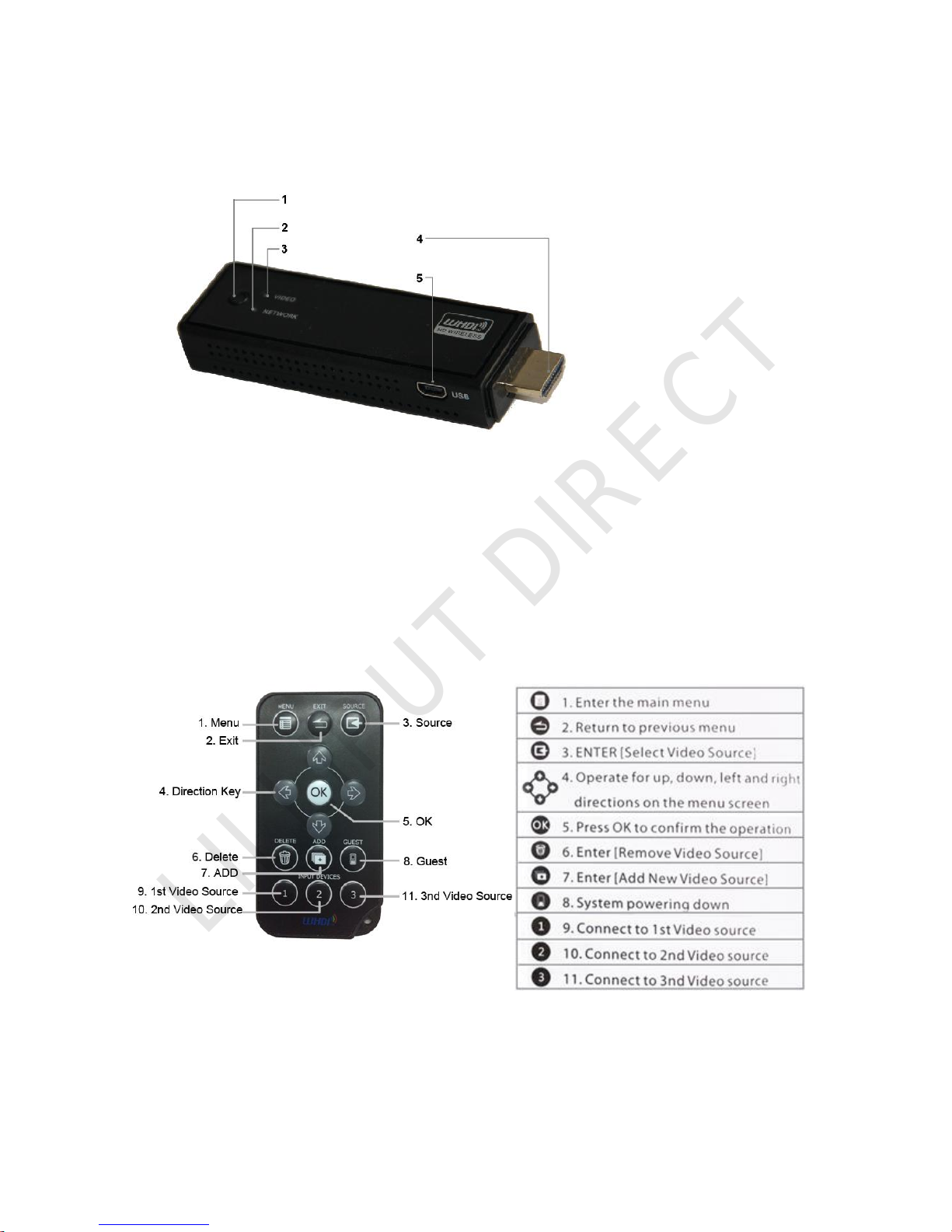

2. WIRELESS HD TRANSMITTER

1. Code key.

2. Network indicating light.

3. Video indicator.

4. HDMI interface (connect with HDMI device).

5. Mini USB port (connect with power).

3. WHDI REMOTE CONTROL

LILLIPUTDIRECT

* Option for product model with"/P" only.

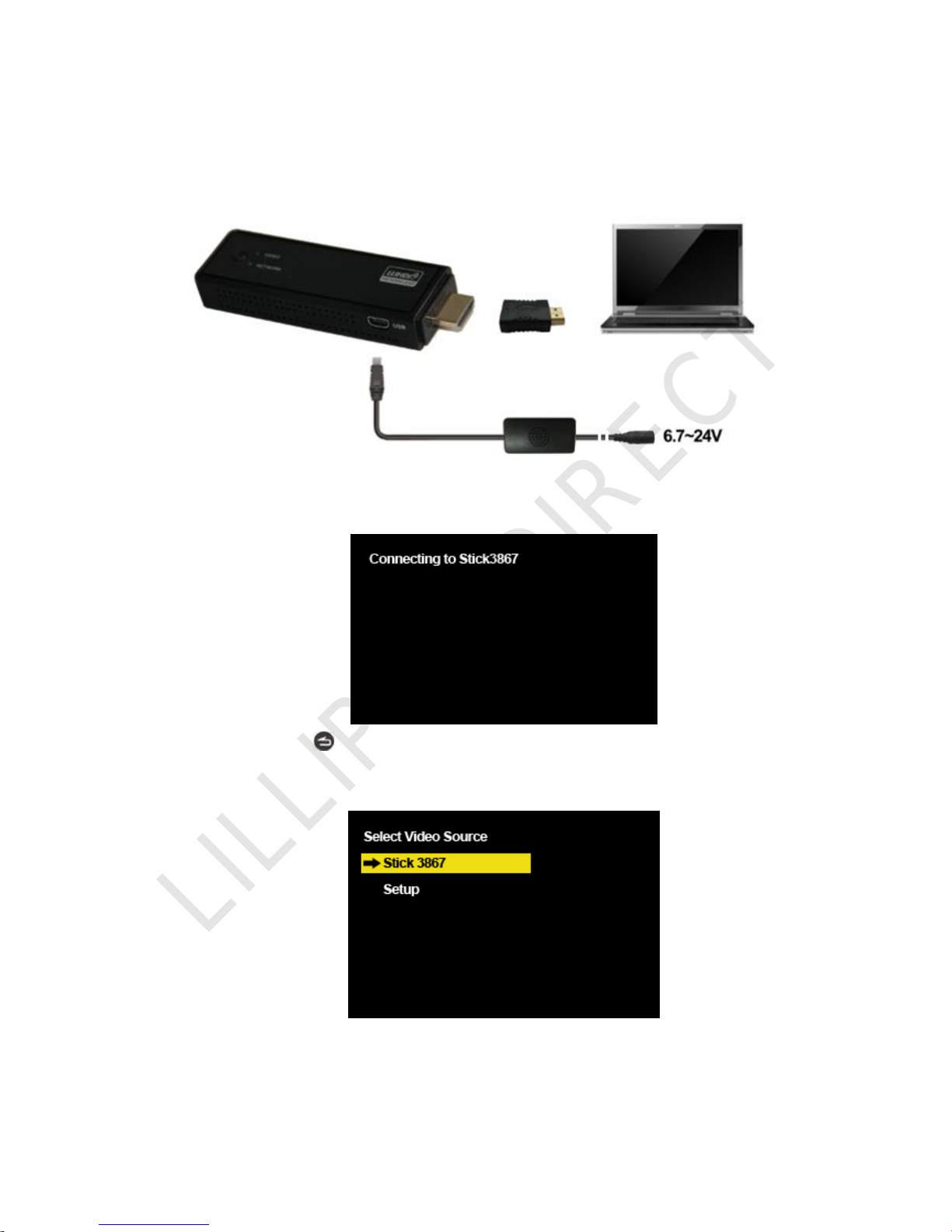

4. WHDI FUNCTION

1. Connect WHDI transmitter with computer or camcorder via HDMI

interface, display as below.

2. Press the EXIT button on remote control to activate “Select Video

Source” function, and the transmitter matched will be displayed as

follows.

LILLIPUTDIRECT

* Option for product model with"/P" only.

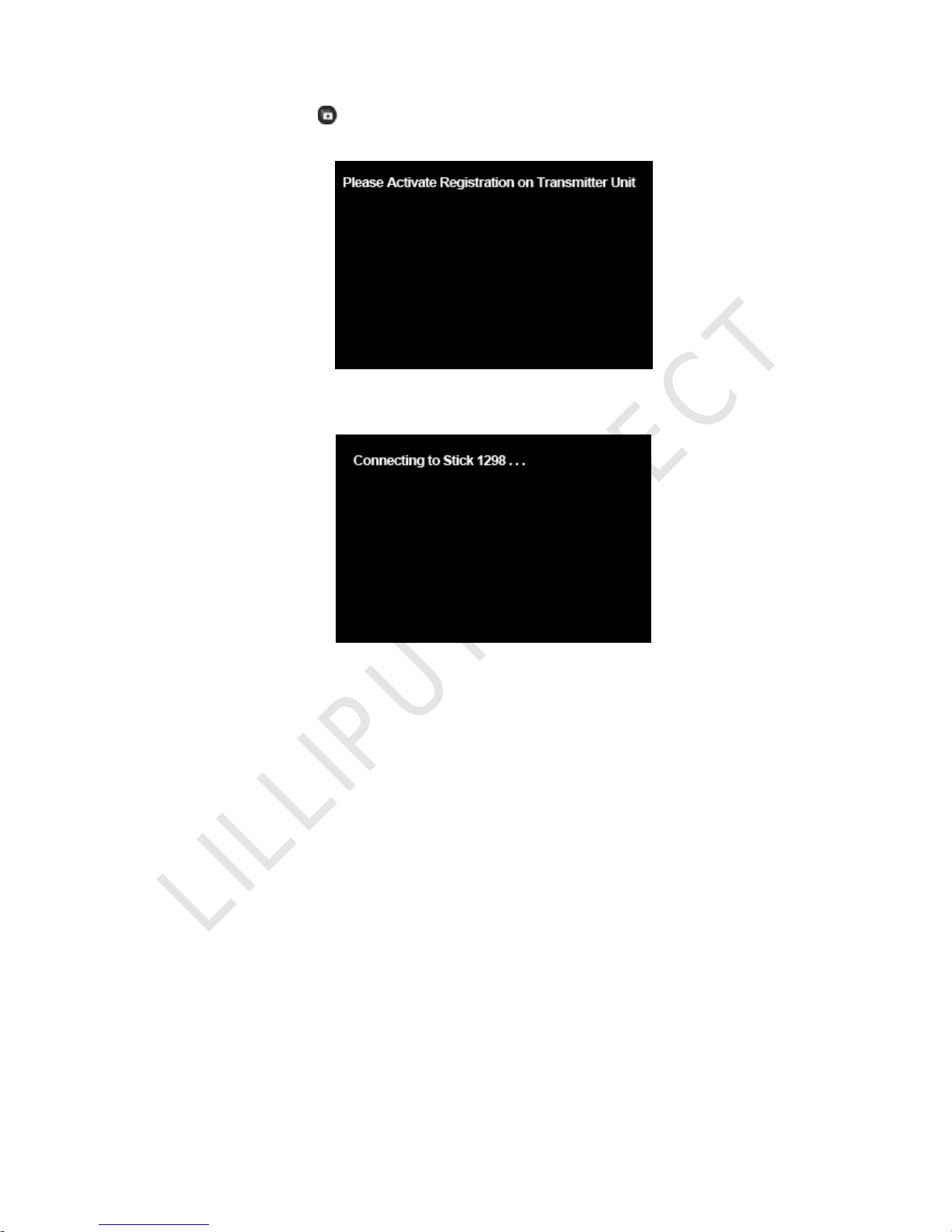

3. Press the ADD button on remote control to activate registration

function as follows.

4. Then long press Code key on WHDI transmitter to activate connecting

interface as follows.

5. Waiting for connection completed.

LILLIPUTDIRECT

* Option for product model with"/P" only.

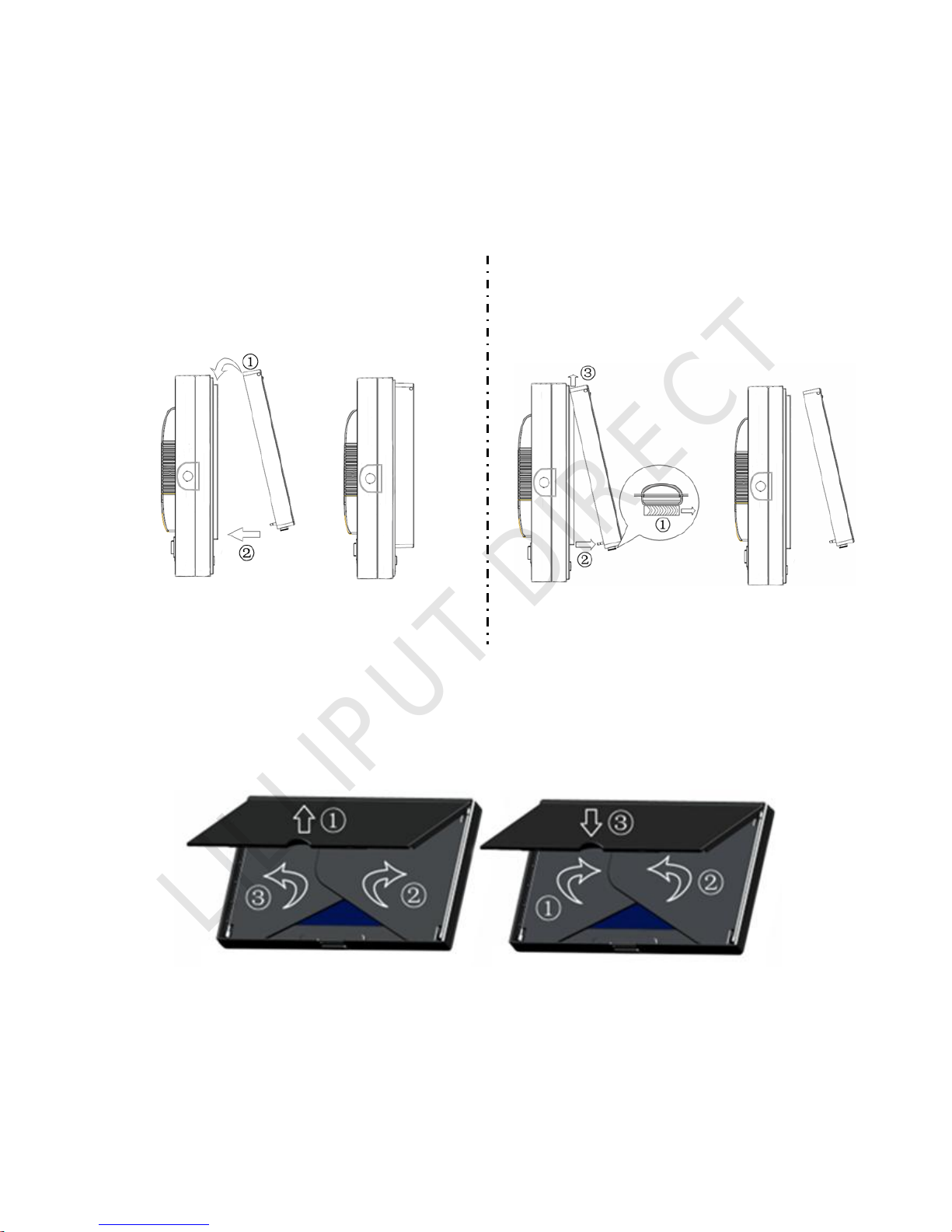

5. INSTALLATION OF SUNSHADE

COVER AND BATTERY PLATE

Installation of sunshade cover：Disassembly of sunshade cover：

Installation steps Installation completed Disassembly steps Disassembly completed

Steps of sunshade cover on / off:

Please follow the instructions steps, or may damage the cover.

Open Step: Closed steps:

Do not press the edge in the under of the cover, otherwise it will

result in open failure.

LILLIPUTDIRECT

* Option for product model with"/P" only.

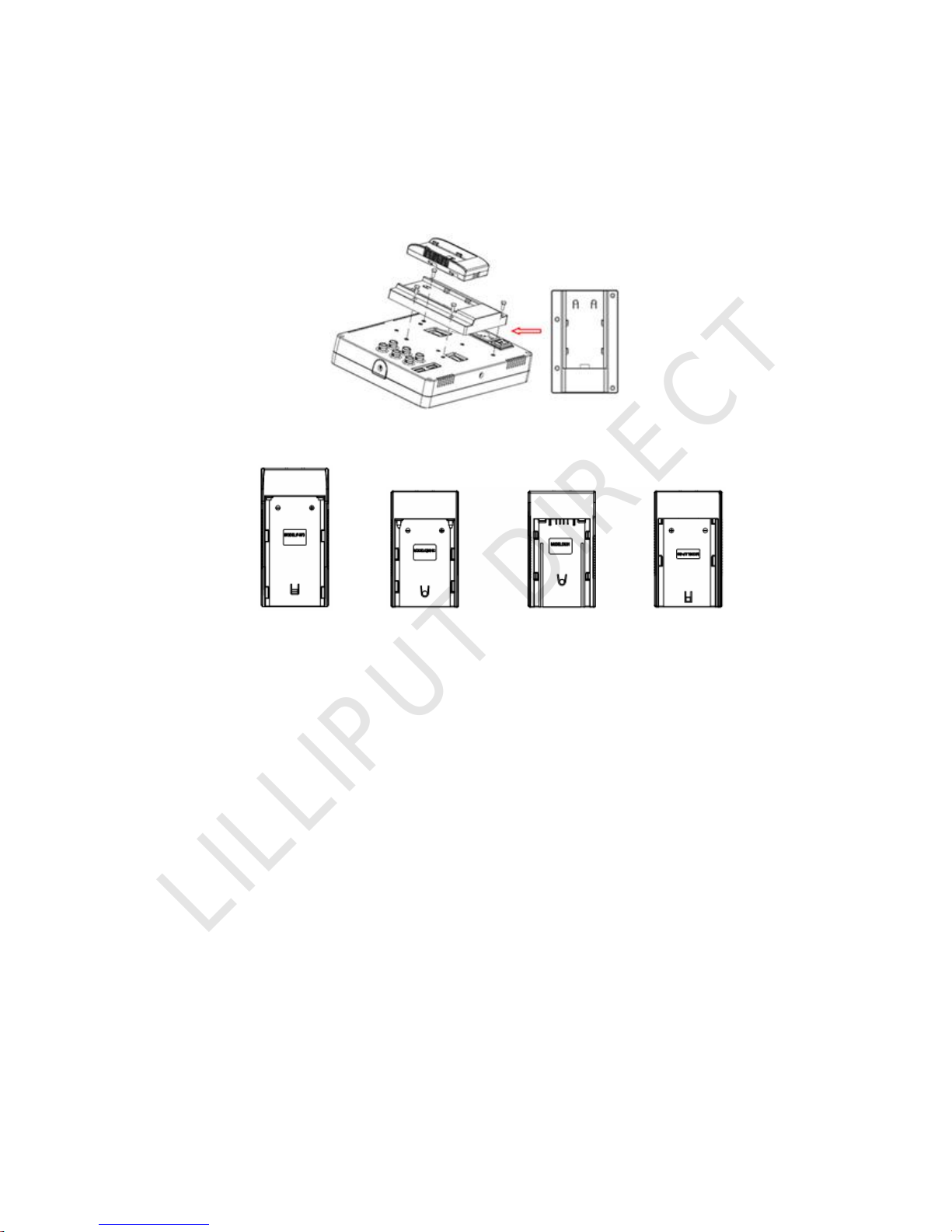

6. DV BATTERY MOUNT PLATE

Standard mounts process

Following three types of battery plates are suitable for this device, model

F970, QM91D, DU21 & LP-E6 (choose 2 out of 4).

MODEL: F-970 MODEL: QM91D MODEL: DU21 MODEL: LP-E6

DV Battery Mount Plate:

DV Battery Mount Plate Specification:

Model DU21 for battery of Panasonic DV:

NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with

Panasonic battery DU06/VBD140/SANYO DZhs301sw/Hitachi

DZ-HS303SW/BZ-BP14S/DZ3200/BP07W.

Model QM91D for battery of SONY DV:

DSCR1/F/S/MVCCD/E/HC15E/HC1E/AE1u/DCRTRV828/E/CCD-TRV

116/DCR-DVD/PS105K/300K/10P/1E series.

Model F970 for battery of SONY DV:

DCR-TRV series, DCR-TRV E series, VX2100E PD P series, GV-A700,

GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX1000E, HVR-Z1C,

HVR-V1C, FX7E F330.

Model LP-E6 for battery of Canon DSLR:

5D Mark II/EOS7D/EOS60D;

LILLIPUTDIRECT
