Lilliput FA1012 Manuale utente

COLOR TFT

MONITOR WITH

LTI-T

OUC

FUNC

TION

Manual

DEAR

CUS

ERS

Thank you for choosing our TFT LCD (liquid crystal display) monitor. This product employs

integrate circuits, low power consumption, and no radiation emission. It has fashion designed

appearance and good portability. The TFT LCD screen is the most suitable display for VGA, VCD,

DVD, and GPS on vehicles or vessels. Moreover, this product is able to be used in office, at home,

or other proper positions. Please enjoy the benefits of convenience, safety, and space-saving from

this TFT LCD monitor in different ways.

To ensure the best use of this

product,

please

read

this

hand

book

carefully

efo

ehand

CAUTION

1. Please use the adapter attached in the accessories.

2. The multi-touch function can be operated under Windows 7 OS only.

3. Please do NOT expose this product to direct sunlight, heat, or humid conditions.

4. Please keep away from strong light while using this product in order to obtain the

clearest and the most colorful pictures.

5. Please avoid heavy impact or drop onto the ground.

6. Please do NOT use chemical solutions to clean this product.

7. Please simply wipe with a clean soft cloth to maintain the brightness of the

surface.

8. Please follow the instructions and trouble-shootings to adjust the product. Other

improper adjustment may result in damage. Any further adjustment must be

performed or conducted by a qualified technician.

9. Please unplug the power if long-term no-use, or thunder weather.

1. PRODUCT DESCRIPTION

------------------------------------------

2. REMOTE

CONTROL------------------------------------------------- 5

3. MATCHED

CABLES--------------------------------------------------6

4. MULTI-TOUCH FUNCTION

OPERATION-----------------------8

5. MENU OPERATION

--------------------------------------------------9

5-1.IN AV

MODE----------------------------------------------------9

5-2.IN PC

MODE----------------------------------------------------9

5-3.IN DVI & HDMI

MODE--------------------------------------9

5-4.SETTING ITEMS

LIST---------------------------------------

6. ACCESSORIES

-------------------------------------------------------11

7. PARAMETER

---------------------------------------------------------12

8. TROUBLESHOOTING

----------------------------------------------12

REMARK---------------------------------------------------------------13

1. PRODUCT

SCRIP

．

：

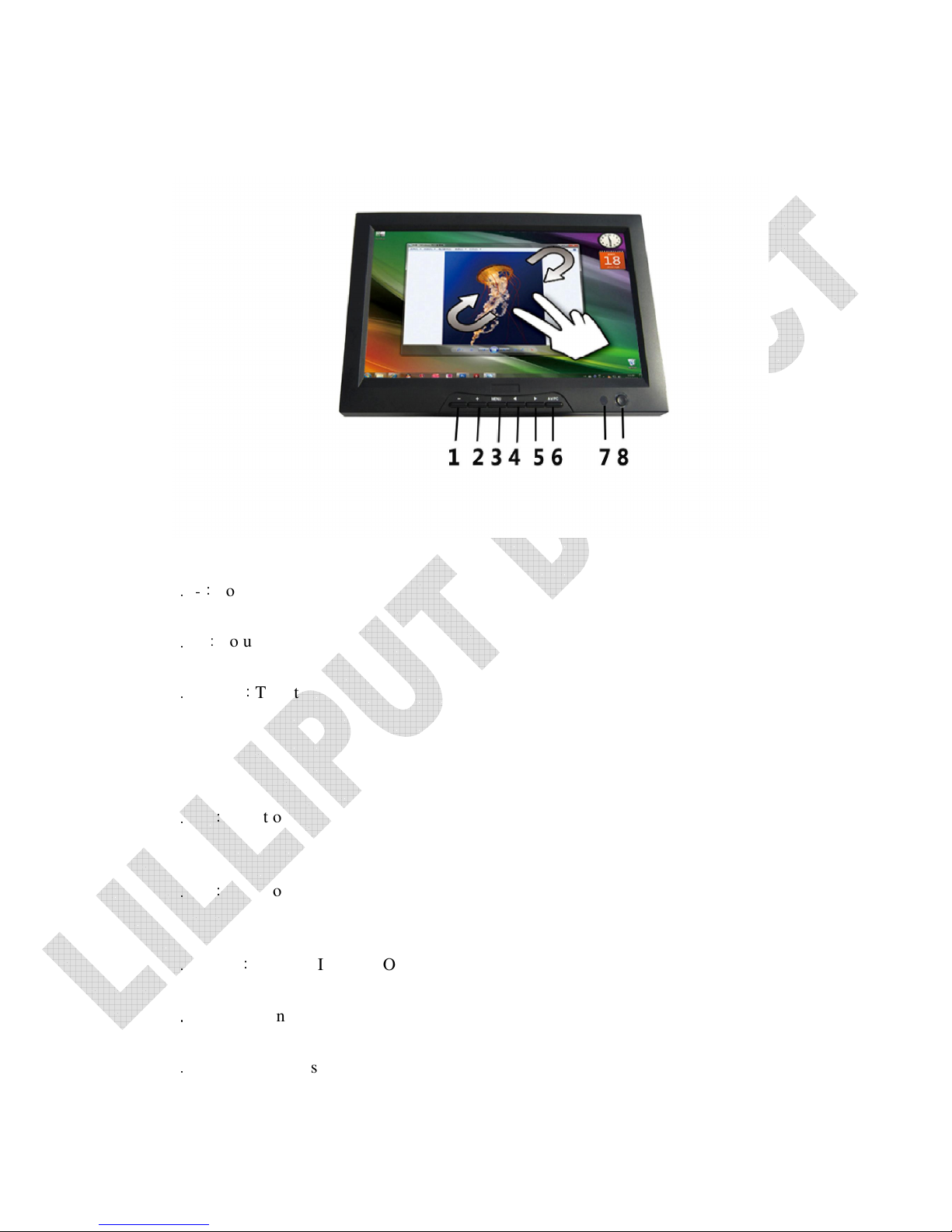

Volume down, or value down while using menu setting functions

．

：

Volume up, or value up while using menu setting functions

．

：

To activate OSD (on-screen display) menu; long press this button to zoom

in/out pictures automatically when receiving HDMI (High-Definition Multimedia

Interface) signals

．

◄

：

Selection key, to select items of OSD menu. Under PC mode, press to enable

automatically phase control

．

►

：

Selection key, to select items of OSD menu. Press to adjust 6 levels of

brightness.

．

AV/PC

：

PC、DVI、VIDEO1、VIDEO2、HDMI switch

．

Infrared signal receiver (work with remote control)

．

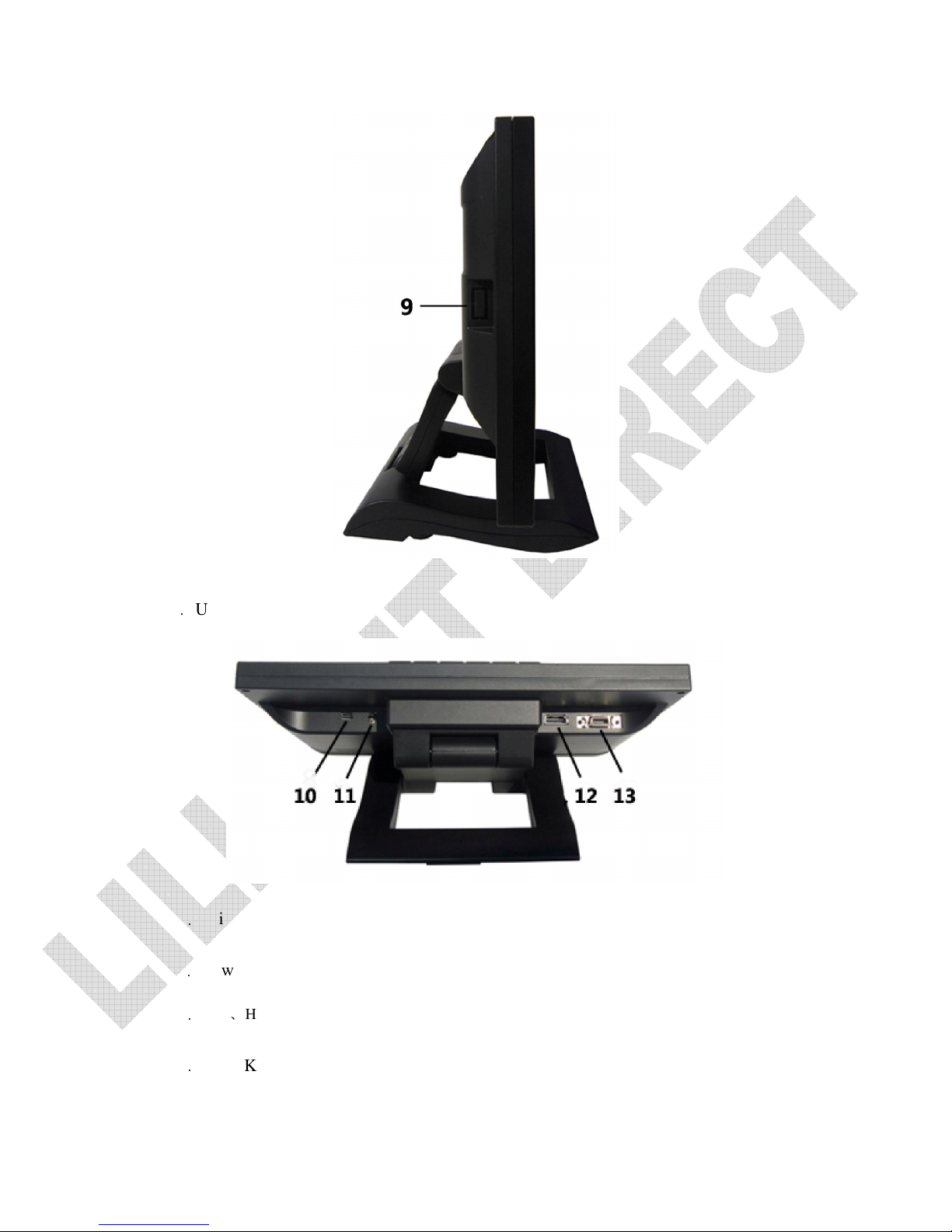

Power ON/OFF switch

．

USB interface（reserved）

．

Mini USB interface

．

Power input

．

DVI

、

HDMI

input interface

．

14P SKS input interface

．

Mounting Process: Standard VESA Sockets (75mm)

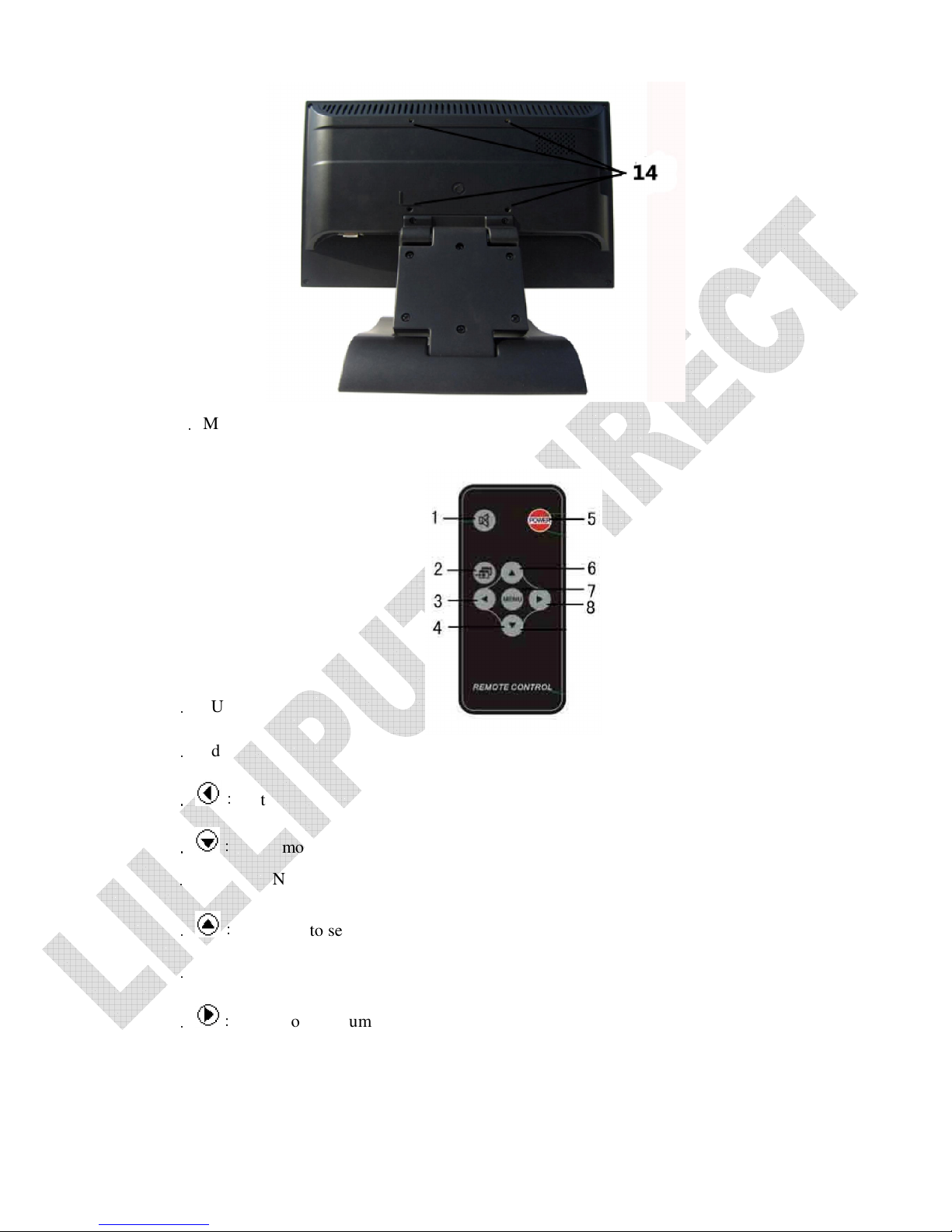

2. REMOTE

CONTR

．

MUTE

．

Video switch: PC、DVI、VIDEO1、VIDEO2、HDMI switch

．：

Left move，Volume down or to adjust the value of setting function

．：

Down move, to select function on OSD

．

POWER ON/OFF

．：

UP move, to select function on OSD

．

．：

Right move, Volume up or to adjust the value of setting function

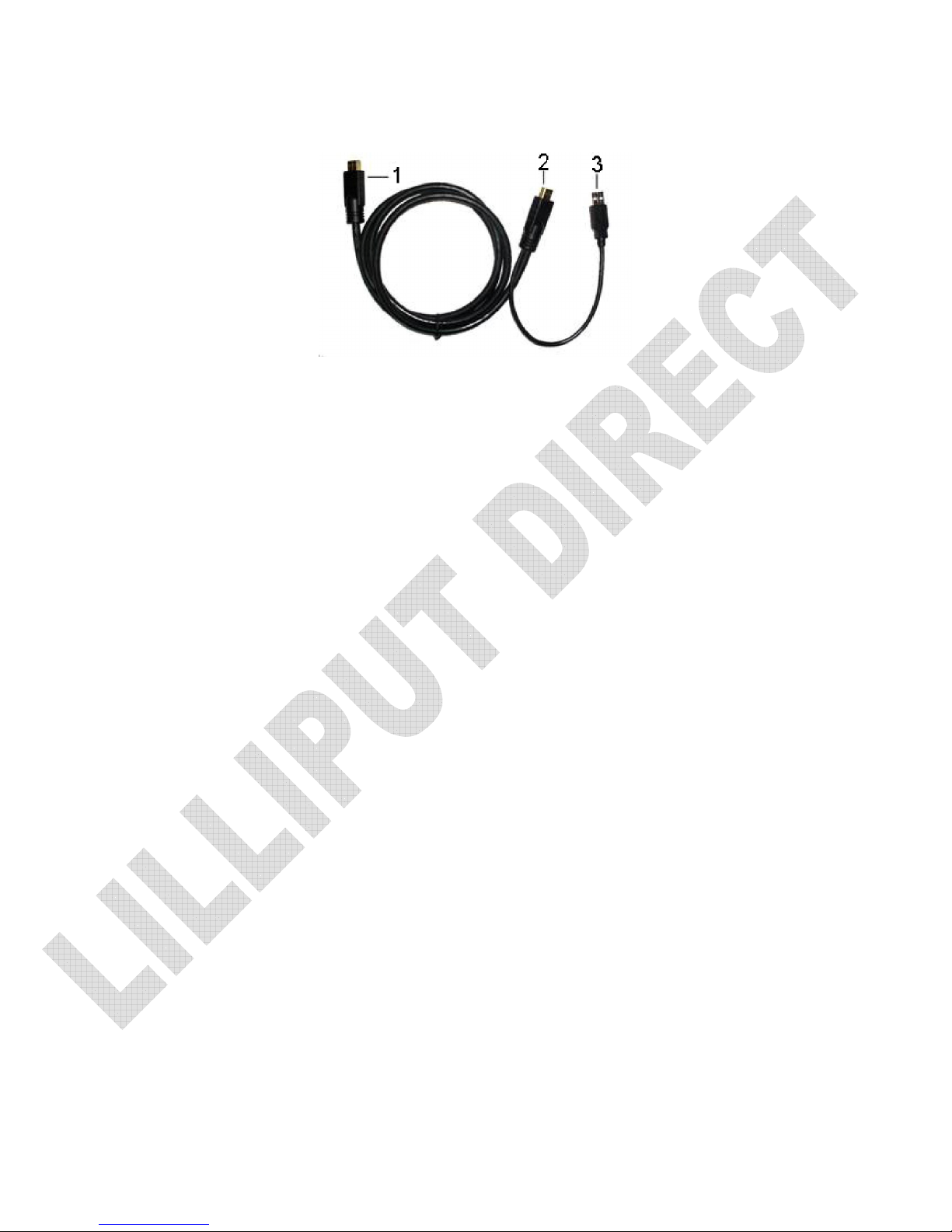

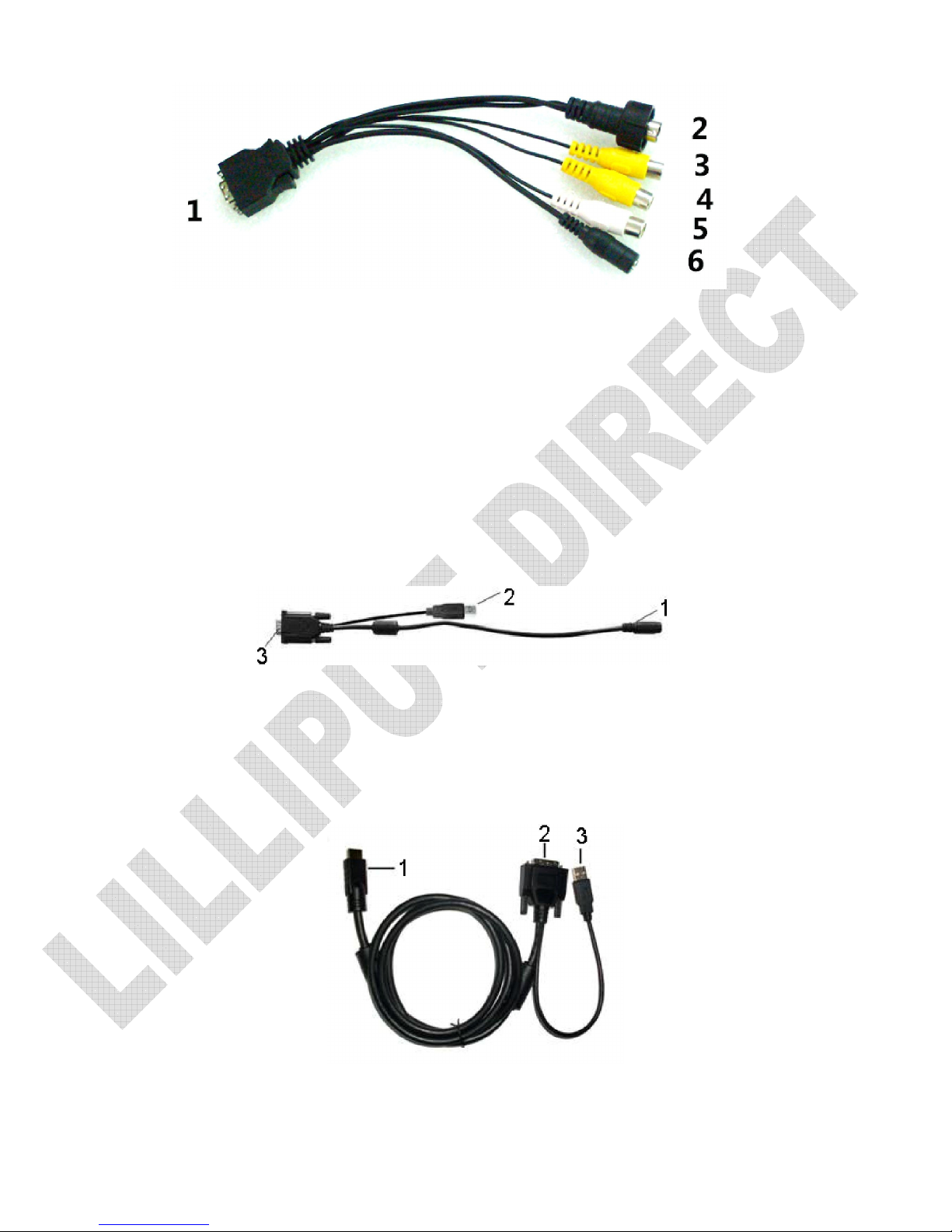

3. MATCHED

CAB

Match cable

SKS

cable:

1. 14P SKS Input Jack: all kinds of AV signal input, note that put it correctly into the

SKS input jack of the monitor

2. Black 9-pin VGA signal input jack

3. Yellow RCA: Video signal 1 input

4. Yellow RCA: Video signal 2 input

5. White RCA: Audio signal input

6. Black Jack: DC 12V Power input

VGA

cable

1. Black 9-pin VGA connector, contact to the 9-pin VGA signal input jack of SKS

cable.

2. USB end connect the USB port of computer for touch screen function.

3. 15-pin VGA signal input end connect VGA port of the computer.

DVI to HDMI

cable:

1. HDMI signal input end

2. DVI signal input connect with device with DVI signal

3. USB connect with the USB port of computer for touch function

HDMI to HDMI

cable:

1. HDMI signal input end

2. HDMI signal input connect device with HDMI signal

3. USB port connect computer for touch function

MULTI-TOUCH

FUNCTION

OPE

Before

operate

the

multi-touch

function, please make

sure

the

operation sys

tem

is Windows 7.

Operational Process as follow:

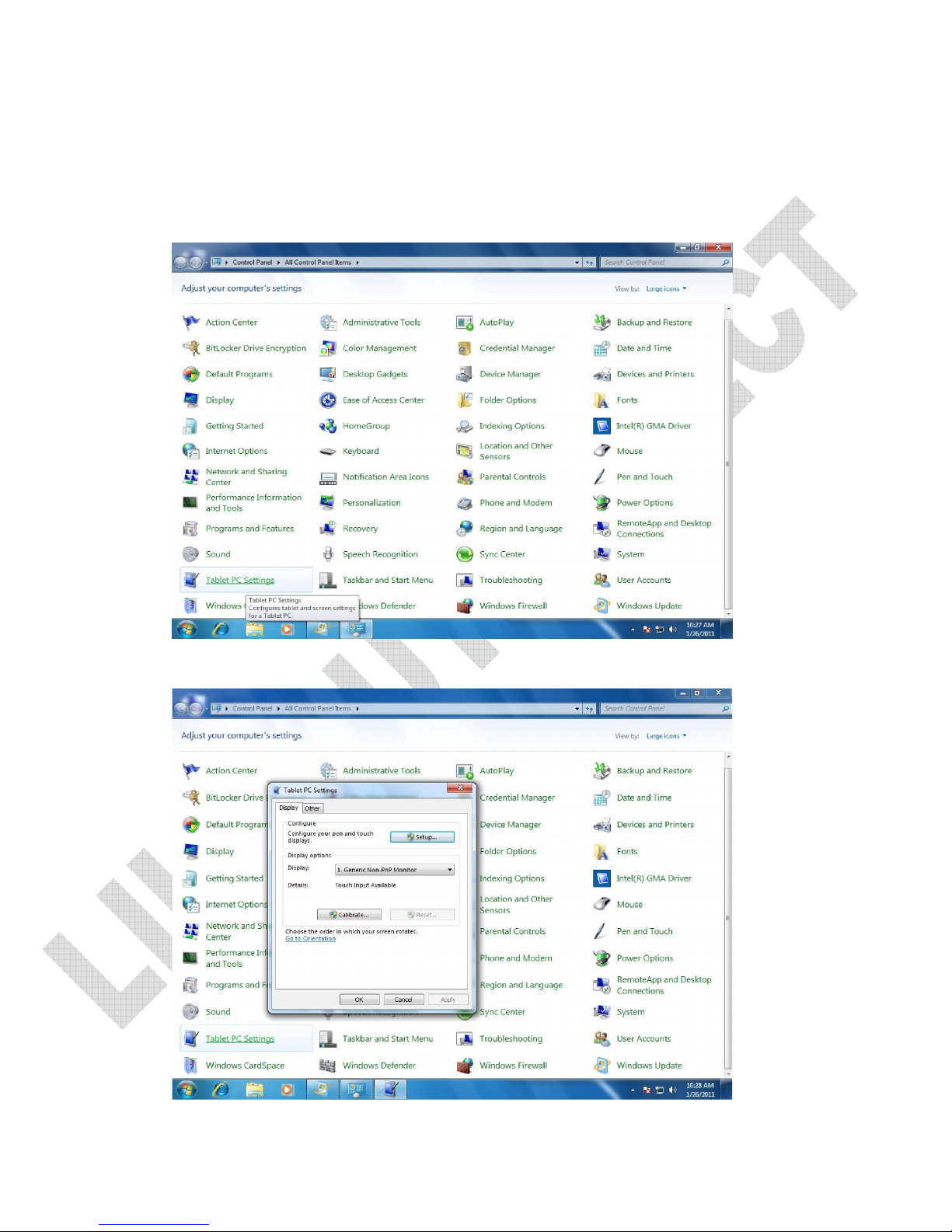

Click START to open control panel

Enter Tablet PC setting

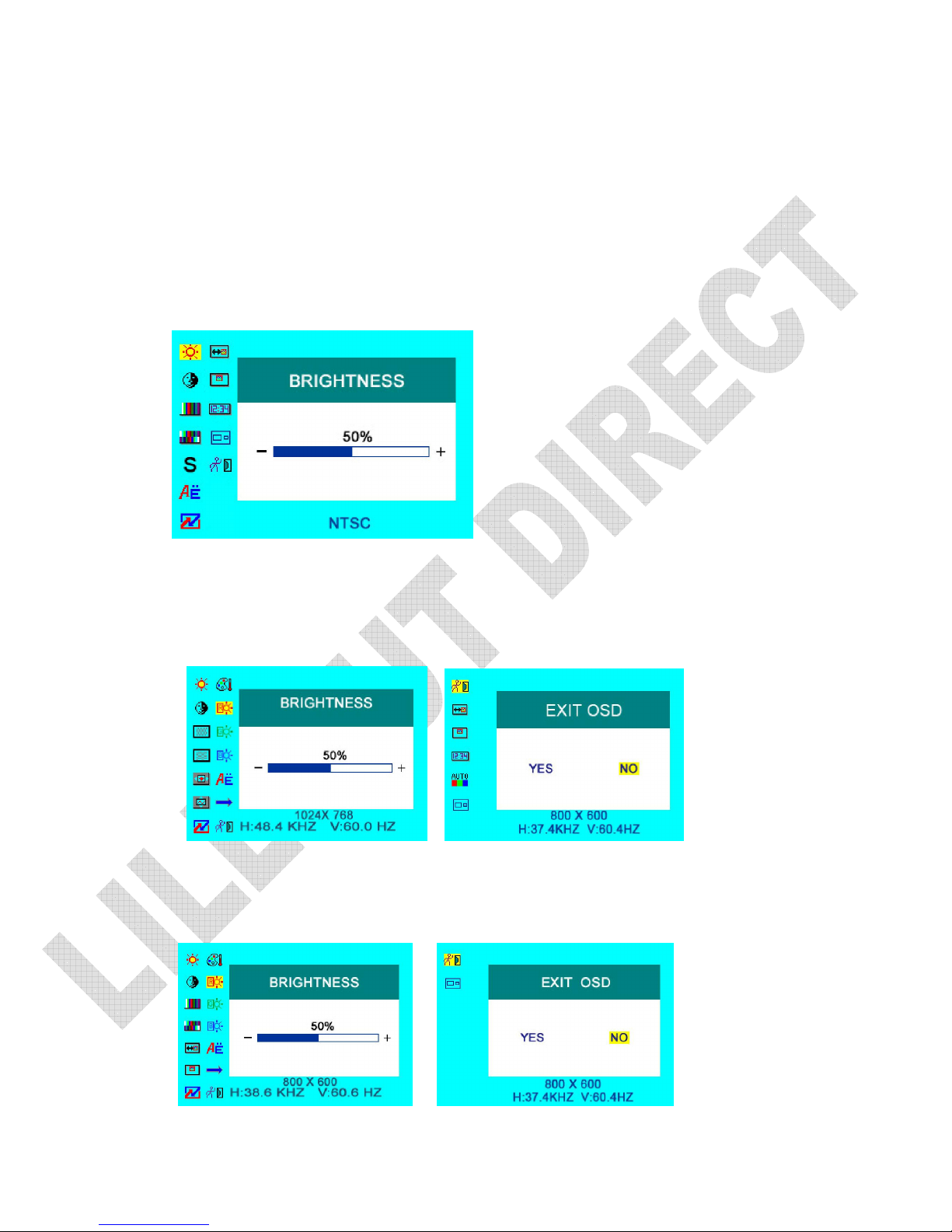

5. MENU

OPER

Before setting the menu functions, please make sure the device is connected correctly.

When power on, press MENU on the device or on the remote controller. The menu

functions setting will display on the screen.

Press buttons ►/◄on the device or buttons ▼/▲on the remote controller to select

items. Then press + / – on the device or ►/◄on the remote controller to change the

values.

5-1. IN AV

MODE

5-2. IN PC

MODE

OSD

SCEL

LANEOUS

5-3. IN DVI & HDMI

MODE

DVI MODE OSD miscellaneous setting under DVI mode
