Lincat LCG Istruzioni operative
IS315 ECN3403
User and Installation Instructions
Lynx 400 Electric Contact Grill
LCG, LPG, LRG, LCG/S, LPG/S, LRG/S,
LCG2, LPG2, LRG2
IS315 ECN3403
2
Dear Customer,
Thank you for purchasing this Lincat Product.
This is just one of over 450 different items of catering equipment available from our range which is constantly being
extended and improved. Details are available from your local distributor or direct from us.
Used for the purposes for which it is intended, and with careful maintenance as outlined in this user Guide, your
Lincat product will give years of trouble free use.
IMPORTANT INFORMATION
Please read all of the safety and operating instructions carefully before using this product. Please pay
particular attention to all sections of this User Guide that carry warning symbols and notices.
WARNING!
This is a Warning symbol. This symbol is used throughout the user guide whenever there is a risk
of personal injury. Ensure that these warnings are read and understood at all times.
CAUTION!
This is a Caution symbol. This symbol is used throughout the User Guide whenever there is a risk
damaging your Lincat product. Ensure that these warnings are read and understood at all times.
IS315 ECN3403
3
SAFETY INSTRUCTIONS
TECHNICAL SPECIFICATION
PACK CONTENTS
WARNING!
Basic safety precautions, including the following, should be followed to reduce the risk of personal injury.
Make sure you have read all of these instructions before switching on the unit. Keep this User Guide in
a safe place for future reference for you and your staff.
GENERAL
Do not clean the unit with a water jet.
Do not try to modify this product.
In the interest of hygiene, you should clean the product after unpacking and ensure all plastic coatings are removed
before use.
Ensure that the electrical supply cable is not damaged. If the supply cable is damaged it should be replaced by Lincat
Ltd or other suitably qualified persons, in order to avoid a hazard.
Disconnect the unit from the electric supply before servicing or undertaking any electrical maintenance.
This unit must be earthed.
LCG, LPG & LRG LCG2, LPG2 & LRG2
Electric grill (with electrical supply cable and 13 amp plug)
User instructions
Guarantee card
Double electric grill (with 2 x supply cables and 2 x13
amp plugs)
User Instructions
Guarantee card
LCG/S, LPG/S & LRG/S
Electric grill (with electrical supply cable and 13 amp plug)
Scraper
User instructions
Guarantee card
Model LCG, LPG, LRG
LCG/S, LPG/S, LRG/S LCG2, LPG2, LRG2
Width mm 293 293 623
Depth mm 400 400 400
Height mm 165 165 165
Power Rating watts 2250 2250 2 x 2250
Weight (net) kg 20 20 40
IS315 ECN3403
4
OPERATING INSTRUCTIONS
INSTALLATION
Ensure that the unit is installed on a sound, level work surface, which is heat resistant e.g. stainless steel
or formica. Inform your personnel that the external surfaces and base will become hot.
For safety regulations, the plug must always be accessible
.
CONNECTING TO THE ELECTRICITY SUPPLY
Ensure that the voltage of your electricity supply corresponds to the serial plate details. The product is
supplied with a 13 amp plug. To replace the plug, follow these instructions:
•green and yellow wire to 'E' or (Earth)
•blue wire to 'N' (Neutral)
•brown wire to 'L' (Live)
1
3
2
Fig 1. - Model LPG
1 Control knob
2 Green neon
3 Amber neon
Connect the unit to the electricity supply. The green neon will then light up. Turn the control knob to set the desired
temperature. When the cooking surfaces have heated up to the set temperature, the amber neon will extinguish.
To turn the unit off, turn the control knob to ‘0’
NOTE: That /S units have a 20 minute mechanical timer
Safety (High Limit) Thermostat
This unit is fitted with two thermostats. One controls the temperature of the cooking surfaces; the other prevents the
temperature from reaching a dangerous level if there is a fault with the unit or power supply.
If the green neon lights up but the element does not heat up, the safety thermostat may need to be re-set.
To re-set the thermostat, push the button located at the rear of the unit. (Fig. 2)
Note: The re-set button cannot be activated until the unit has cooled sufficiently
IS315 ECN3403
5

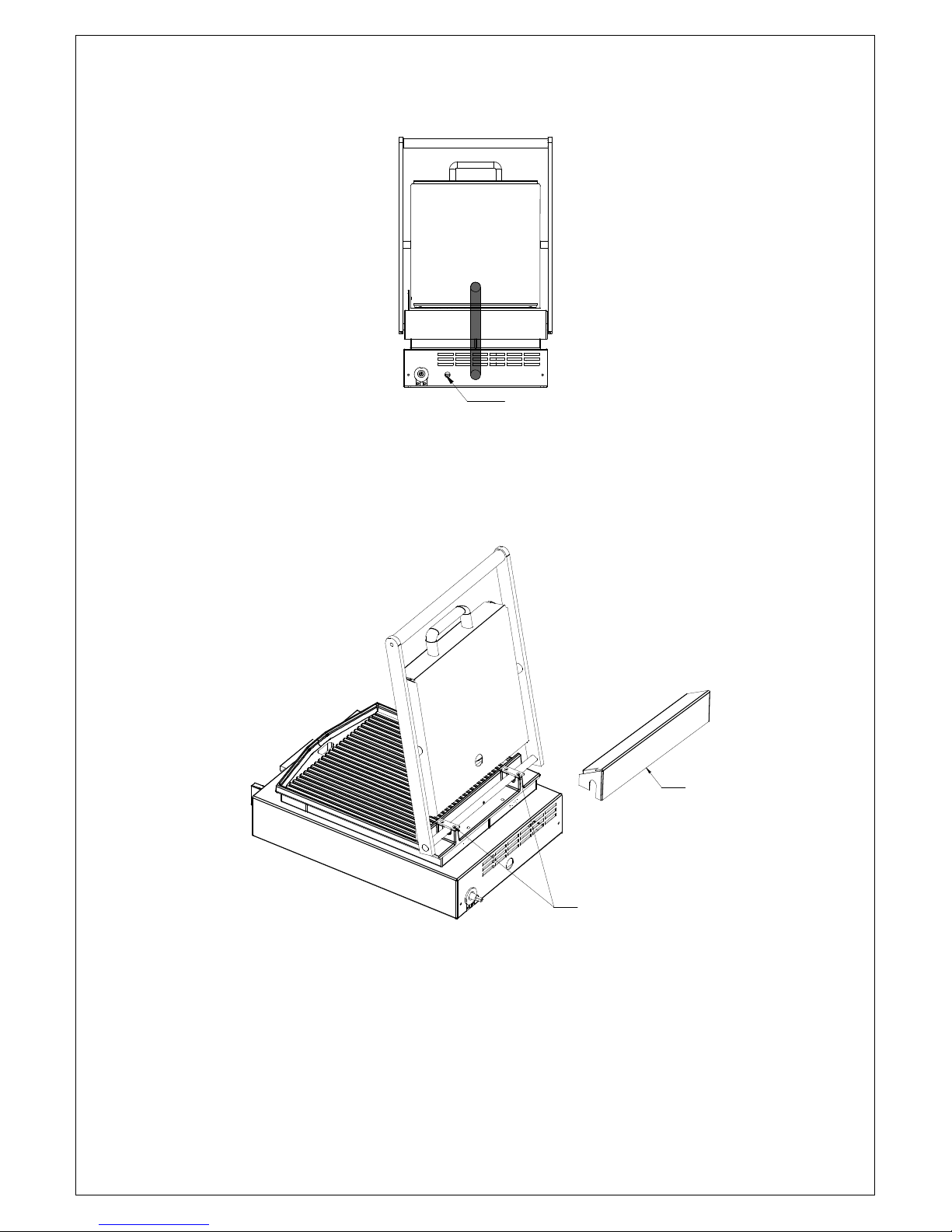

1
Fig. 2
1 Re-set button (safety thermostat
2 Adjusting the upper plate tension
2
1
Fig. 3
1 Rear Cover
2 Adjusting screws
To adjust the tension of the upper plate lifting mechanism, remove the rear cover and adjust the four screws. (Fig. 3)
IS315 ECN3403
6
CLEANING AND
MAINTENANCE
GUARANTEE
SERVICE INFORMATION
CLEANING
Disconnect the unit from the electricity supply and allow it to cool before starting to clean. Use a mild
detergent in hot water and a soft cloth. Do not use abrasive creams or scourers.
MAINTENANCE
Regular cleaning of the unit is recommended.
Regular maintenance is not required.
For help regarding the installation, maintenance and use of your Lincat equipment, please contact our service
department:
01522 875520
All service work, other than routine cleaning should be carried out by one of our authorised service agents. We
cannot accept responsibility for work carried out by other persons.
To ensure your service enquiry is handled as efficiently as possible, you need to have the following details available :
•Brief details of problem
•Product code, type number and serial number of unit (both on serial plate)
Lincat reserve the right to carry out any work under warranty during normal working hours, ie Monday to Friday,
08:30 a.m. – 17:00 p.m.
This unit carries a comprehensive UK twelve-month warranty. The guarantee is in addition to, and does not
diminish your statutory or legal rights.
The guarantee does not cover:
•Accidental damage, misuse (or use not in accordance with the instructions in this User Guide), or
consumable items.
•Damage due to incorrect installation, modification or unauthorised service work.
•The manufacturer disclaims any liability for incidental, or consequential damages.
