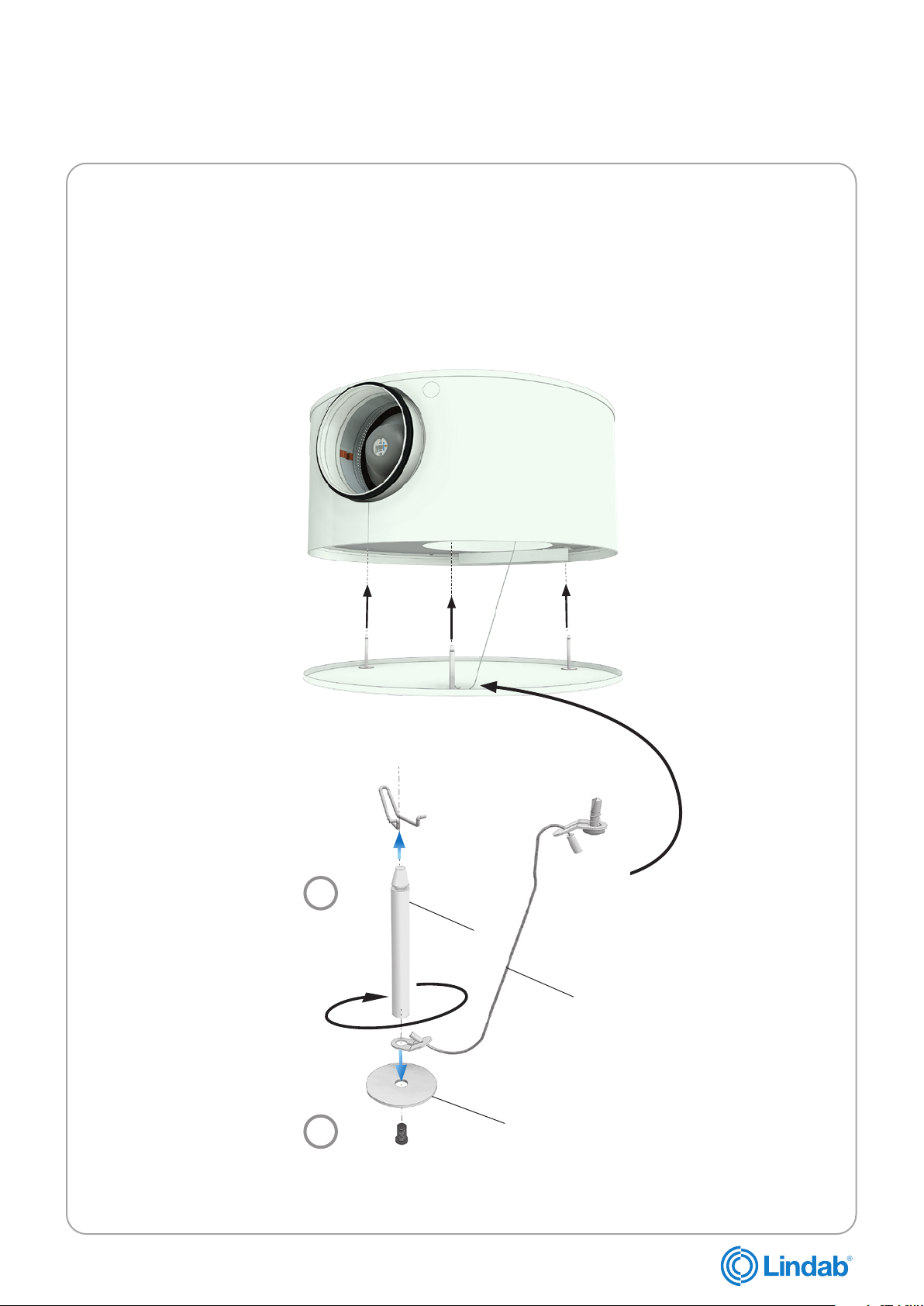

LindabLCFV / LCFV-P
click click click
x 3
x 1
x 3
click
B
A
Lindab reserves the right to make changes without prior notice
2021-01-12
Lindab reserves the right to make changes without prior notice
2021-01-12
lindab | for a better climate
Installation of faceplate
Installation af bundplade
Montera frontplatta
Etulevyn asennus
Montage der Frontplatte
Installazione del frontale
Montage de la façade
2
LCFV
x 2
x 2
B
Ød1= 125 => B= 250 mm
Ød1= 160 => B= 300 mm
Ød1= 200 => B= 400 mm
M8
Ød1
A
B
Lindab reserves the right to make changes without prior notice
2021-01-12
Lindab reserves the right to make changes without prior notice
2021-01-12
lindab | for a better climate
Mounting of LCFV in ceiling
Ophængning af LCFV i loft
Upphängning av LCFV mot tak
Kannakointi LCFV
Montage des LCFV an der Decke
Montaggio LCFV a soffitto
Installation de LCF contre le plafond
3
LCFV
A B
C
C1
Click !
C2
C3C4
Lindab reserves the right to make changes without prior notice
2021-01-12
Lindab reserves the right to make changes without prior notice
2021-01-12
lindab | for a better climate
Install / uninstall the damper
Montering / demontering af spjældet
Montera / demontera spjäll
Säätöpellin asennus / irrota
Montage / Demontage der Drossel
Montaggio / Smontaggio serranda
Montage / Démontage du registre
Hold manual switch down.
Hold manuel knap nede.
Håll den manuella knappen nedan.
Pidä painiketta alhaalla.
Hold manual switch down - DE
Tenere premuto l’interruttore manuale.
Presser et maintenir le switch manuel.
4
LCFV
E
Click !Click !
D F
Lindab reserves the right to make changes without prior notice
2021-01-12
Lindab reserves the right to make changes without prior notice
2021-01-12
lindab | for a better climate
Install / uninstall the damper
Montering / demontering af spjældet
Montera / demontera spjäll
Säätöpellin asennus / irrotus
Montage / Demontage der Drossel
Montaggio / Smontaggio serranda
Montage / Démontage du registre
Maintenance
Vedligeholdelse
Underhåll
Huolto
Wartung
Manutenzione
Entretien
Insert damper unit - Installation af spjæld -
Montering av spjäll - Säätöpellin asennus -
Montage des Drossel - Montaggio di seranda -
Montage de registrere.
Take out damper unit - Demonter spjældenhed -
Demontera spjällenhet - Säätöpellin irroitus -
Drossel demontieren - Smontaggio serranda -
Démontage du registre.
5
LCFV
x 1
B
E
CD
!
A
Lindab reserves the right to make changes without prior notice
2021-01-12
Lindab reserves the right to make changes without prior notice
2021-01-12
lindab | for a better climate
Accessories
Tilbehør
Tillbehör
Lisävarusteet
Zubehör
Accessori
Accessoires
No - Nej - Nej - Ei -
Nein - No - Non
6
LCFV
-P
Lindab reserves the right to make changes without prior notice
2021-01-12
Lindab reserves the right to make changes without prior notice
2021-01-12
lindab | for a better climate
- With presence sensor
- Med bevægelsessensor
- Med närvarosensor
LCFV-P - Varustettu liiketunnistimella
- Mit Präsenzmelder
- Con sensore di presenza
- Avec détecteur de présence
Optional presence sensor in diffuser faceplate.
Inklusiv bevægelsessensor i armaturbundplade.
Inklusiv närvarosensor i don frontplatta.
Liiketunnistin lisävarusteena etulevyssä
Mit Präsenzmelder in der durchlass Frontplatte.
Inclusivo sensore di presenza a del frontale del diffusore.
Détecteur de présence optionnel intégré sur la façade.
7
LCFV-P
