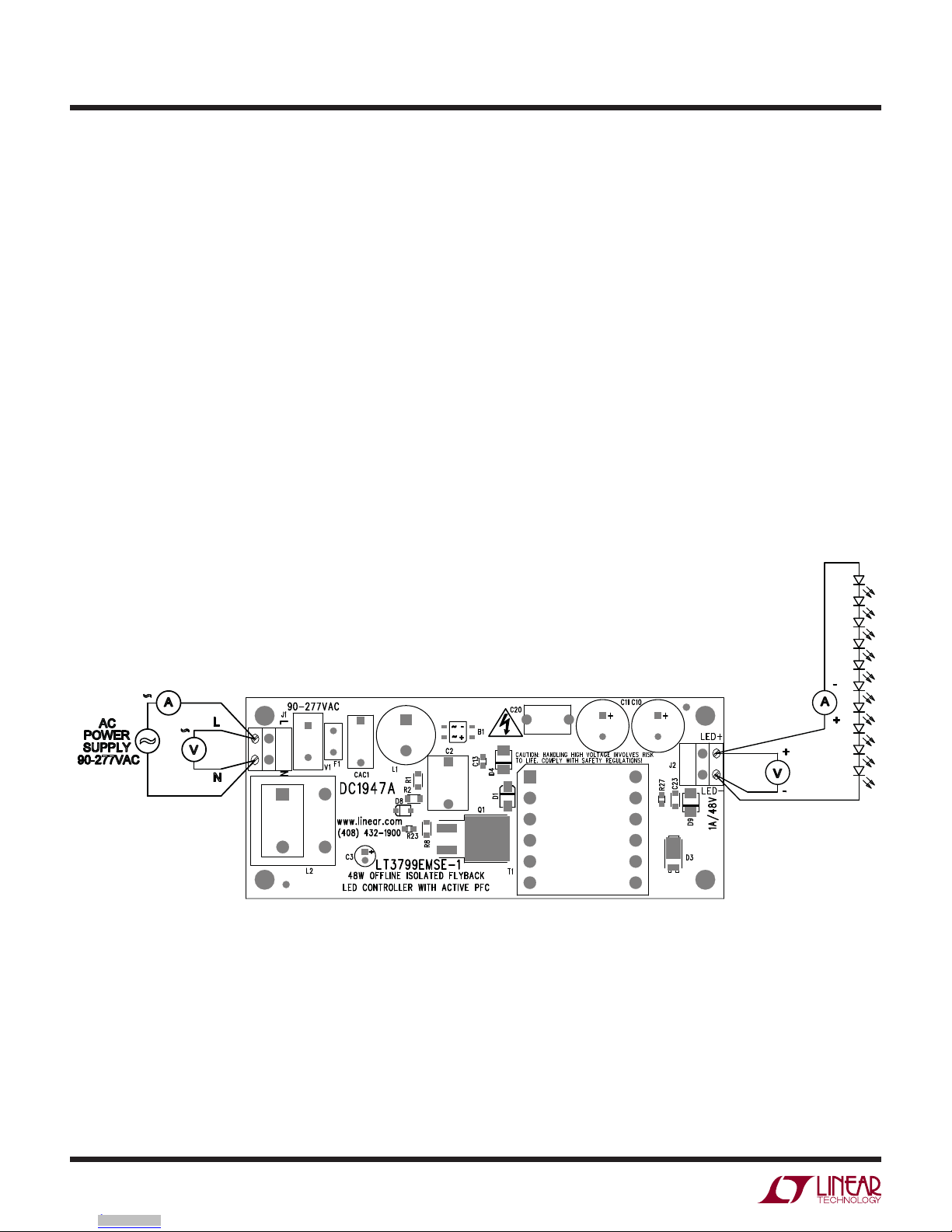

DEMO MANUAL DC1947A
PARTS LIST
ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER
Required Circuit Components
1 1 B1 RECTIFIER, BRIDGE 600V, 0.8A DIODES INC., HD06-T
2 1 CAC1 CAP, 0.1μF, 310V, 20% VISHAY, BFC233922104
3 1 C2 CAP, FILM, 0.22μF, 450V, 10% RUBYCON, 450MPH224K
4 1 C3 CAP, 10μF, 20%, 50V, ALUM RUBYCON, 50YXJ10M 5X11
5 2 C6, C7 CAP, X7R, 0.01μF, 50V, 10%, 0805 Murata, GRM216R71H103KA01D
6 1 C8 CAP, X5R, 4.7μF, 16V, 20%, 0805 AVX, 0805YD475MAT2A
7 1 C9 CAP, C0G, 47pF, 50V, 10%, 0805 AVX, 08055A470KAT
8 1 C10, C11 CAP, ELEC., 330μF, 63V, 20% RUBYCON, 63ZL330MEF
9 1 C13 CAP, U2J, 1.5nF, 250V, 5%, 0805 Murata, GRM21A7U2E152JW31D
10 1 C20 CAP, 2.2nF, 10%, TYPE "Y1" VISHAY, 440LD22-R
11 1 C21 CAP, C0G, 4.7pF, 50V, 0805 AVX, 08055A4R7BAQ2A
12 1 C23 CAP, X7R, 1μF, 100V, 10%, 1206 AVX 12061C105KAT2A
13 1 D1 DIODE, ULTRA FAST RECTIFIER CENTRAL SEMI.CMR1U-10M
14 2 D2, D8 DIODE, FAST SWITCHING DIODES INC., BAV20W-7-F
15 1 D3 DIODE, 3A Ultra-Fast REC., Power-DI-5 DIODES INC., PDU340-13
16 1 D4 DIODE, TVS, 600W, 170V, SMB DIODES INC., SMBJ170A-13-F
17 1 D9 DIODE, TVS, 600W, 48V, SMB DIODES INC. SMBJ48A-13-F
18 1 F1 FUSE, 2.5A BUSSMAN, SS-5H-2.5A
19 1 L1 INDUCTOR, 1mH, TDK, TSL1315RA-102JR78-PF
20 1 L2 CHOKE, D Code Double Choke EPCOS, B82731H2701A030
21 1 Q1 XSTR, MOSFET, N-CHANNEL 650V INFINEON, IPB60R165CP
22 2 R1, R2 RES, CHIP., 249k, 1%, 1/4W, 1206 VISHAY, CRCW0805249KFKEA
23 1 R3 RES, CHIP., 200k, 1%, 1/8W, 0805 VISHAY, CRCW0805200KFKEA
24 1 R4 RES, CHIP., 9.31k, 1%, 1/8W, 0805 VISHAY, CRCW08059K31FKEA
25 1 R5 RES, CHIP., 150, 1%, 1/8W, 0805 VISHAY, CRCW0805150RFKEA
26 1 R7 RES, CHIP., 10k, 1%, 1/8W, 0805 VISHAY, CRCW080510KFKEA
27 1 R8 RES, CHIP., 0.03, 1/4W, 1%, 1206 VISHAY, WSL1206R0300FEA
28 2 R10, R11 RES, CHIP., 499k, 1%, 1/4W, 1206 VISHAY, CRCW1206499KFKEA
29 1 R18 RES, CHIP., 100k, 1%, 1/8W, 0805 VISHAY, CRCW0805100KFKEA
30 1 R19 RES, CHIP., 40.2k, 1%, 1/8W, 0805 VISHAY, CRCW080540K2FKEA
31 2 R20, R27 RES, CHIP., 20k, 1%, 1/8W, 0805 VISHAY, CRCW080520KFKEA
32 1 R21 RES, CHIP., 0, 1/8W, 0805 VISHAY, CRCW08050000Z0EA
33 1 R23 RES, CHIP., 3.48k, 1%, 1/8W, 0805 VISHAY, CRCW08053K48FKEA
34 1 R25 RES, CHIP., 20, 5%, 1/8W, 0805 VISHAY, CRCW080520R0JKEA
35 2 R32, R33 RES, CHIP., 200k, 1%, 1/2W, 1210 VISHAY, CRCW1210200KFKEA
36 1 T1 XFMR, FLYBACK WÜRTH ELECTONIK, 750817251
37 1 U1 IC., Isolated Flyback Controller LINEAR TECH. LT3799EMSE-1#PBF
38 1 V1 VARISTOR, 385V Stackpole Electronic, Inc. CV385K10R
